Kaidi KDPT010-101 Recliner Motor
$180.00
In stock
Genuine Kaidi KDPT010-101 replacement headrest actuator for electric recliners and sofas. Designed to deliver smooth, reliable motion with a 110mm stroke length, this unit connects via a single 2-pin male plug and coiled cord to the footrest actuator. Built for durability, it restores full reclining comfort and functionality to your furniture without needing a costly service call. Replacement Headrest Recliner Actuator. This actuator is secured using an actuator rod and R-clip at the motor housing end, with the white block mounted using 4 bolts (not supplied, reuse your originals). Installation is straightforward and requires only basic hand tools. Looking for Another Recliner Actuator? We stock an extensive catalogue of genuine and universal replacement actuators (click here) to suit all popular recliner chair brands and models. If you’re unsure which motor you need, feel free to contact us for assistance. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
Kaidi KDPT010-101 Electric Headrest Actuator Replacement

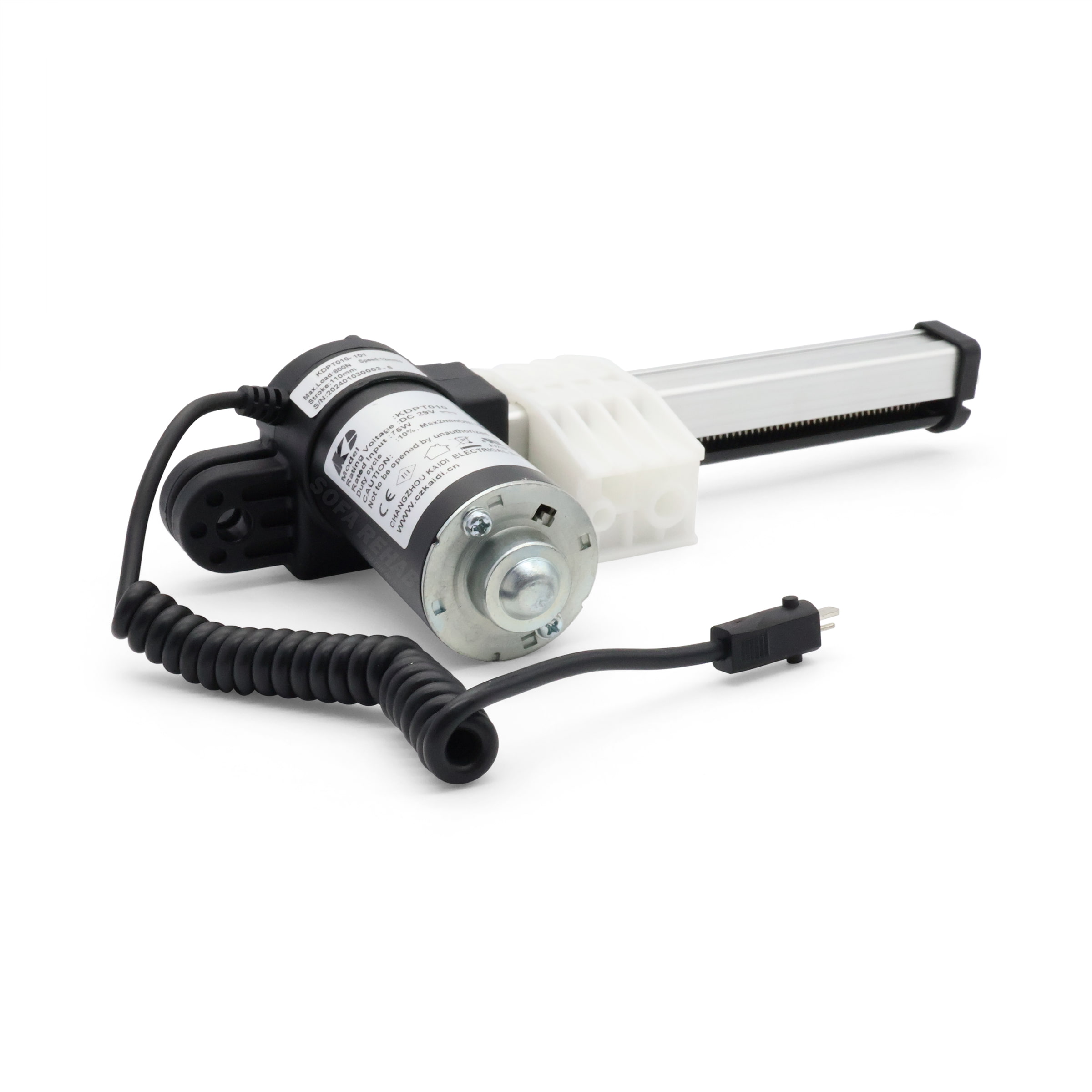

Restore your recliner’s comfort and functionality with this genuine Kaidi KDPT010-101 headrest actuator. Designed for electric recliner chairs and sofas, this actuator provides smooth and reliable motion with a 110mm stroke length. It connects to the footrest actuator via a single 2-pin male plug with coiled cord, making it an exact replacement for the original part.
Easy to Install Using Your Existing Hardware

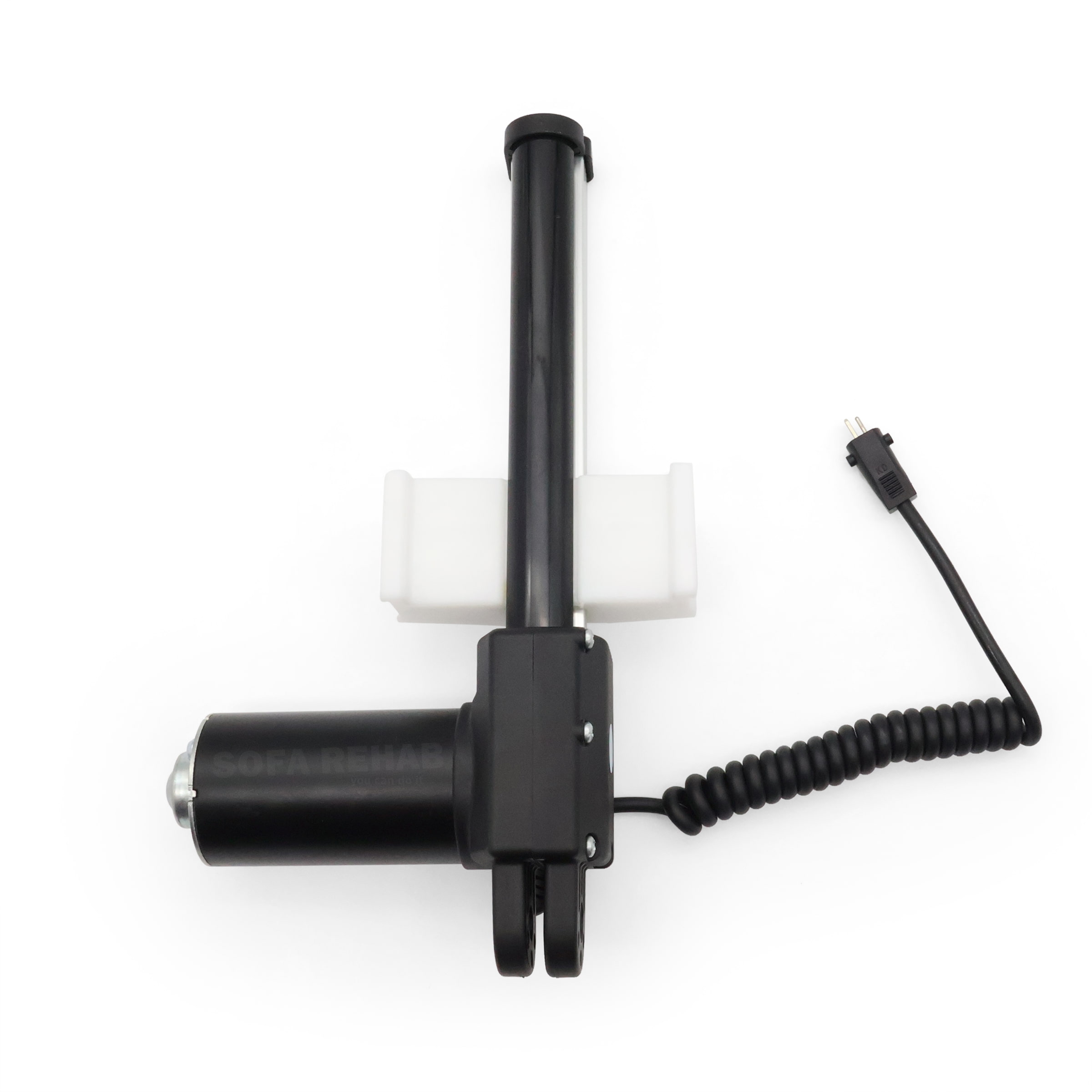

The KDPT010-101 actuator is secured in place using an actuator rod and R-clip at the motor housing end, and the white block mounts with 4 bolts. These fittings are not supplied and should be reused from your original installation. With only basic hand tools, you can complete the replacement at home without the need for a technician.
Genuine Kaidi Quality for Reliable Performance
As a genuine OEM Kaidi actuator, this part has been manufactured to meet the same quality and durability standards as your original. You can be confident it will deliver the same smooth operation and long service life. Replacing only the failed actuator instead of the entire mechanism is a cost-effective way to keep your furniture working like new.
DIY Friendly Replacement – Save Time and Money
Replacing a recliner actuator is a straightforward DIY task that requires only basic tools like a pair of pliers anda hammer. With Sofa Rehab’s step-by-step guides and video tutorials, you’ll be able to swap out your faulty motor quickly, restore your recliner to full function, and save on costly repair call-outs.
Technical Specifications
Technical Specifications
Technical Specifications
- Model Number: Kaidi KDPT010-101
- Function: Electric recliner headrest actuator
- Stroke Length: 110mm
- Electrical Connection: Single 2-pin male plug with coiled cord (links to footrest actuator)
- Mounting (Motor Housing End): Secured with actuator rod and R-clip (reuse originals)
- Mounting (White Block End): Secured with 4 × bolts (not supplied, reuse originals)
- Included Hardware: None (reuse existing rod, R-clip and bolts)
- Application: Electric recliner chairs, sofas and lounges with powered headrest
- Compatibility: Genuine Kaidi replacement for units originally fitted with KDPT010-101
How To
How To
How To Install the Kaidi KDPT010-101 Headrest Actuator
Replacing your electric recliner’s headrest actuator is straightforward and can be completed at home with just basic tools. Follow the steps below to safely and successfully install your new actuator.
- Unplug the Recliner: Disconnect the power supply from the wall socket before beginning any repair work.
- Practise Safe Lifting: If you need to tip the recliner onto its side or move it, ask for help if the chair is heavy and always use safe lifting techniques to avoid injury.
- Take Before Photos: Use your phone to take clear photos of the actuator, connections and mounting points. These will help you remember how everything fits back together.
- Disconnect the Old Actuator: Locate the KDPT010-101 headrest actuator and unplug the coiled 2-pin connector from the footrest actuator. Remove the actuator rod and R-clip from the motor housing end.
- Unbolt the White Block: Using a screwdriver or socket, remove the 4 bolts holding the white block of the actuator in place. Keep these bolts as you will reuse them.
- Install the New Actuator: Position the new KDPT010-101 actuator in place. Secure the white block using the 4 original bolts and reinsert the actuator rod with the R-clip at the motor housing end.
- Reconnect the Plug: Attach the 2-pin male plug and coiled cord to the footrest actuator as per your before-photos.
- Test the Recliner: Return the recliner to its normal position, plug the power supply back into the wall socket and test the headrest function to ensure smooth operation.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How do I know if this is the correct actuator for my recliner?

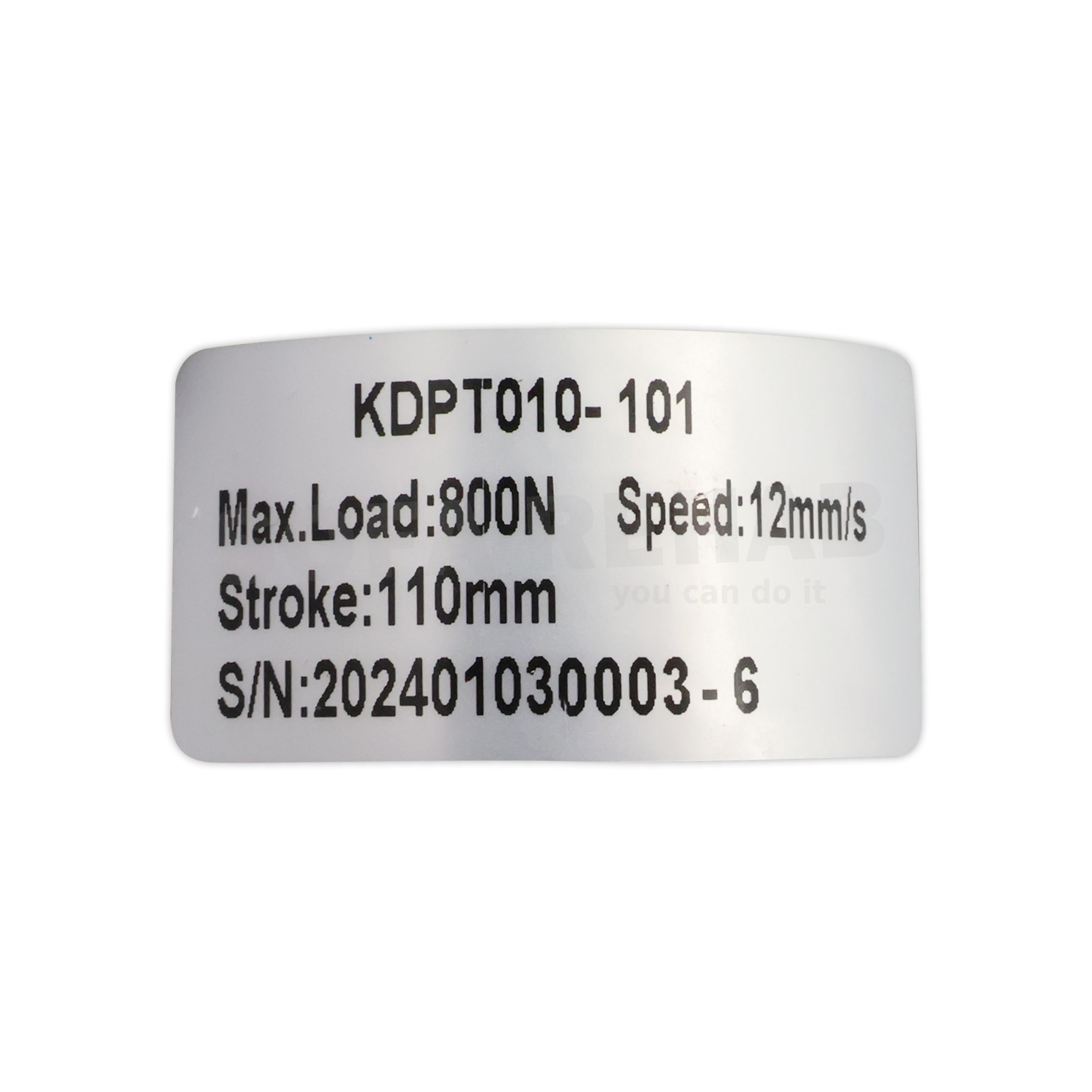

Check the label on your existing actuator – it should list model number KDPT010-101. Also compare the stroke length (110mm), plug type (2-pin male with coiled cord) and mounting style to confirm a match.
Does the actuator come with bolts, rod and R-clip?
No, these are not supplied. You will need to reuse the original bolts, actuator rod and R-clip from your existing installation.
Do I need special tools or professional help to replace this part?
No special tools are required – just basic hand tools like a socket set and pliers. Most customers can complete the replacement themselves in under 20 minutes by following our step-by-step guide.
Is this actuator compatible with other Kaidi models?
This unit is designed specifically as a headrest actuator with model code KDPT010-101.
What warranty is provided with this actuator?
All genuine Kaidi actuators are covered by a 12-month warranty. If you experience any issues during this time, contact us for assistance and we’ll be happy to help.
