Kaidi KDYJT013-106 Recliner Motor
$179.00
In stock

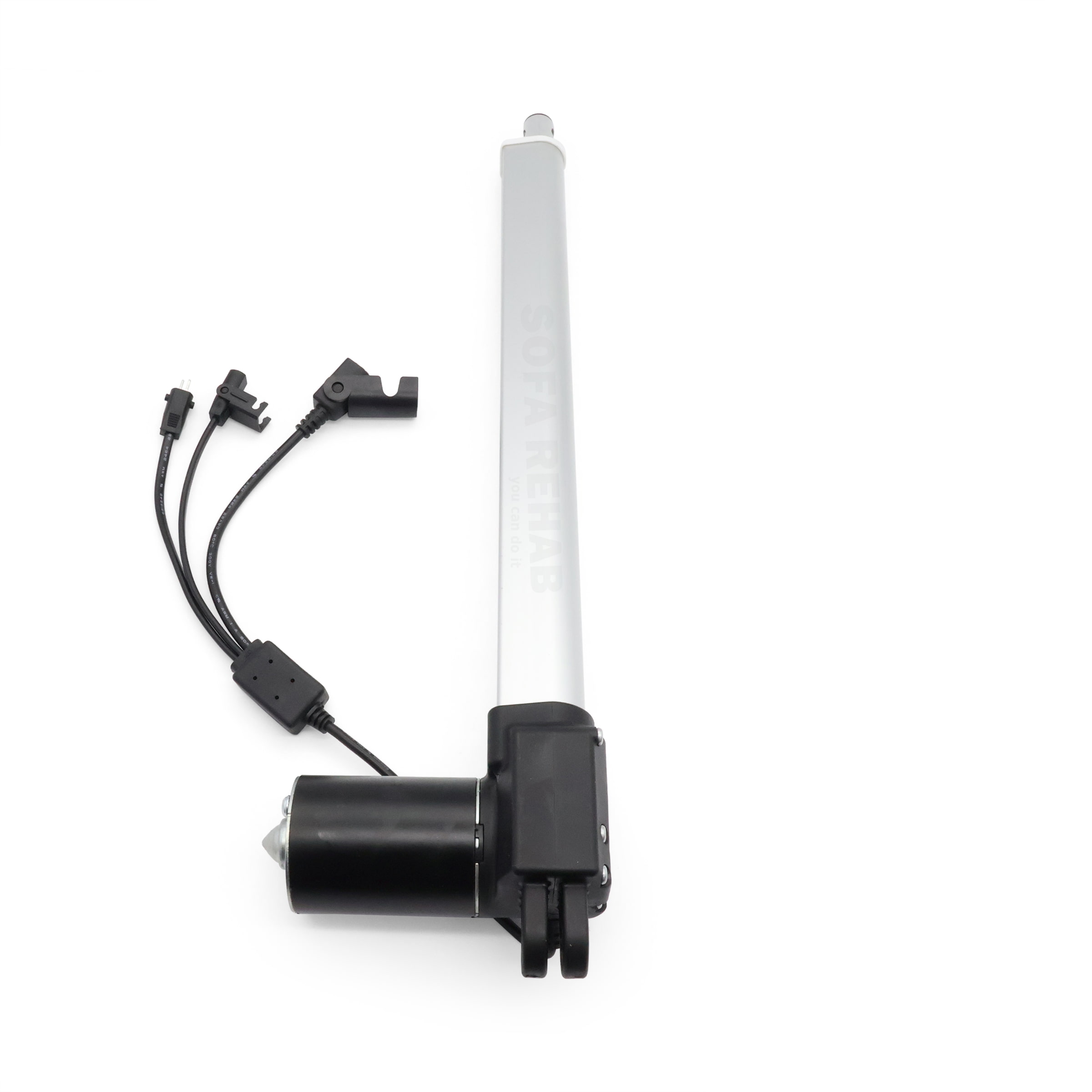

Genuine Kaidi KDYJT013-106 recliner actuator motor with a 295mm stroke. Designed for use as the footrest actuator in twin actuator recliner setups, this unit comes complete with 3 factory-fitted cables for seamless installation: 1x 5-pin female DIN plug with retaining clasp, 1x male 2-pin plug, and 1x female 2-pin plug with clasp. Easy to install and built for reliability in powered recliner chairs and lounges. Kaidi KDYJT013-106 OEM Footrest Actuator. This replacement KDYJT013-106 actuator is a direct fit for recliner and lounge models using Kaidi twin actuator systems. Supplied ready to install with the correct leads and connectors for plug-and-play replacement. Looking for Another Model or Stroke Size? We stock an extensive catalogue of genuine and universal replacement actuators (click here) to suit all popular recliner chair brands and models. If you’re unsure which motor you need, feel free to contact us for assistance. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
Kaidi KDYJT013-106 Recliner Footrest Actuator Motor
This genuine Kaidi KDYJT013-106 actuator is designed as the footrest motor in twin actuator recliner systems. With an install (closed) length of 532mm and a 295mm stroke, the actuator provides a total extended length of 827mm. Built with Kaidi’s well-known quality and reliability, it ensures smooth and consistent operation of your recliner’s footrest.
Factory Fitted with 3 Cables for Plug-and-Play Installation

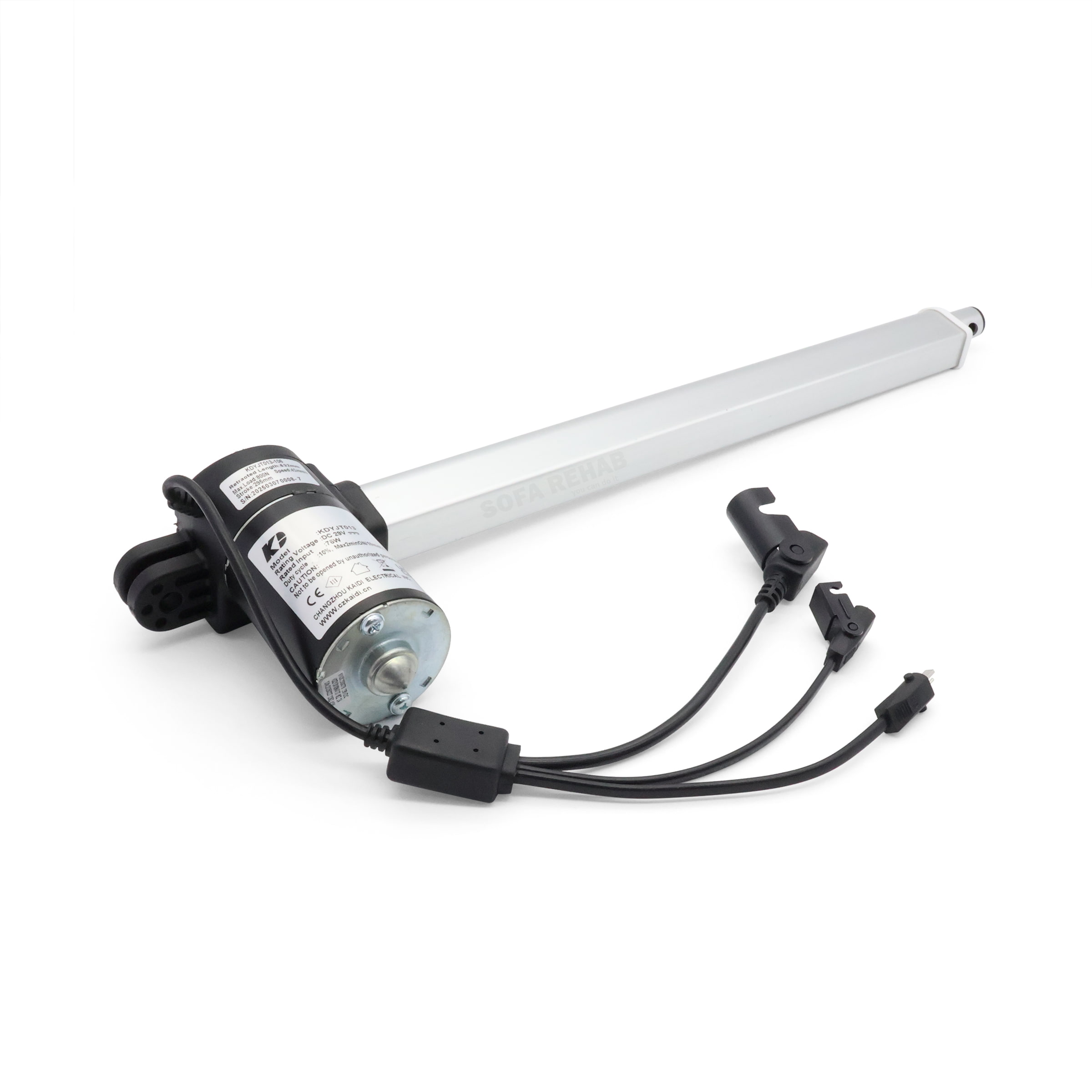

Each unit comes complete with all the necessary factory-fitted leads for quick installation: – 1x 5-pin female DIN plug with retaining clasp (for control box connection) – 1x male 2-pin plug- 1x female 2-pin plug with clasp (for twin actuator compatibility)
No wiring modifications are needed — simply unplug the old unit and connect this replacement.
Compatible With Twin Actuator Recliner Setups
The KDYJT013-106 is specifically designed to function as the footrest actuator in recliners and lounge chairs that utilise Kaidi twin actuator systems. The dual 2-pin plug arrangement allows connection between paired actuators for coordinated movement. If you are unsure whether this is the right actuator for your recliner, reach out to us with details of your existing motor and plugs — our support team will confirm compatibility.
Guaranteed Genuine Kaidi Parts
Kaidi actuators are widely used in recliner chairs by leading furniture manufacturers. Buying genuine parts means you can be assured of the same plug style, mounting dimensions, and performance as the original unit supplied with your recliner.
DIY Friendly Replacement – Save Time and Money
Replacing a recliner actuator is a straightforward DIY task that requires only basic tools like a pair of pliers anda hammer. With Sofa Rehab’s step-by-step guides and video tutorials, you’ll be able to swap out your faulty motor quickly, restore your recliner to full function, and save on costly repair call-outs.
Technical Specifications
Technical Specifications
Technical Specifications – Kaidi KDYJT013-106 Actuator
- Model Number: KDYJT013-106
- Function: Footrest actuator (for twin actuator recliner systems)
- Install Length (Closed): 532mm
- Stroke Length: 295mm
- Total Extended Length: 827mm
- Connectors:
- 1 × 5-pin female DIN plug with retaining clasp
- 1 × 2-pin male plug
- 1 × 2-pin female plug with clasp
- Application: Electric recliner chairs and lounges with twin actuator setups
- Manufacturer: Kaidi Electrical
- Installation: Plug-and-play replacement (no wiring modifications required)
How To
How To
How To Install the Kaidi KDYJT013-106 Actuator
- Unplug Power: Disconnect the recliner from the wall socket and remove any batteries or backup power packs to ensure safety.
- Take a Photo: Before removing your old actuator, take a clear picture of the wiring and plug connections. This will make it easier to reference later during installation.
- Access the Mechanism: Carefully tilt or turn the recliner onto its side to expose the mechanism. Practise safe lifting techniques – get assistance if needed to avoid strain or injury.
- Disconnect Old Actuator: Unclip the plugs (5-pin DIN and 2-pin connectors) and remove any retaining screws or pins holding the actuator in place.
- Install New Actuator: Position the KDYJT013-106 actuator in the same place as the old one, align the fixing points, and secure it with screws or pins provided with the chair.
- Reconnect Cables: Match the plugs to the correct sockets as shown in your photo. Ensure the retaining clasps click into place for a secure fit.
- Test Operation: Return the recliner to the upright position, reconnect the power supply, and test the footrest function. Ensure the actuator moves smoothly and without obstruction.
No specialist tools are required – just a hammer and pliers for most setups. Always take care when handling heavy furniture and follow safe lifting practices. If in doubt, ask for assistance or contact our support team for guidance.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How do I know if the KDYJT013-106 actuator is the right one for my recliner?
Check the model number printed on the body of your old actuator. If it says KDYJT013-106, this is the correct replacement. You can also compare the length, stroke, and plug configuration. If you’re unsure, contact us with photos and we’ll help confirm compatibility.
Do I need to replace both actuators in a twin actuator recliner setup?
Not necessarily. If only the footrest actuator is faulty, you can replace just this one. However, if both actuators are the same age and heavily used, replacing both can help maintain smooth and even operation.
What is the difference between this actuator and others in the Kaidi KDYJT013 series?
The “-106” at the end of the model number indicates a specific stroke length (295mm) and cable configuration (5-pin DIN plug plus 2-pin male and female). Other variants may have different strokes or plugs, so always match the full model number when ordering
Do I need professional help to install it?
No, this actuator is DIY-friendly. With our step-by-step instructions and video tutorials, most people can complete the replacement in under 30 minutes without prior experience.
What warranty is provided with this actuator?
All genuine Kaidi actuators are covered by a 12-month warranty. If you experience any issues during this time, contact us for assistance and we’ll be happy to help.
