Kaidi KDYJT018-316 Recliner Actuator
$185.00
In stock
Genuine Kaidi KDYJT018-316 recliner actuator motor used for powering the footrest mechanism of electric recliner chairs and sofas. This actuator features an 800N max load, 33.5mm/s speed, 335mm stroke, and 495mm install length. Equipped with 3 plug connectors (1x 5 pin DIN, 1x male 2 pin, 1x female 2 pin) and designed to link with a second actuator such as headrest or lumbar. Simple DIY install. Kaidi KDYJT018-316 Footrest Actuator Motor. A genuine OEM replacement part suitable for a wide range of dual-motor electric recliners using Kaidi actuators. Delivers smooth, quiet and reliable performance. Always check the model number printed on your existing actuator to confirm compatibility before ordering. Looking for Another Recliner Actuator? We stock an extensive catalogue of genuine and universal replacement actuators (click here) to suit all popular recliner chair brands and models. If you’re unsure which motor you need, feel free to contact us for assistance. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
Kaidi KDYJT018-316 Recliner Actuator Motor Replacement

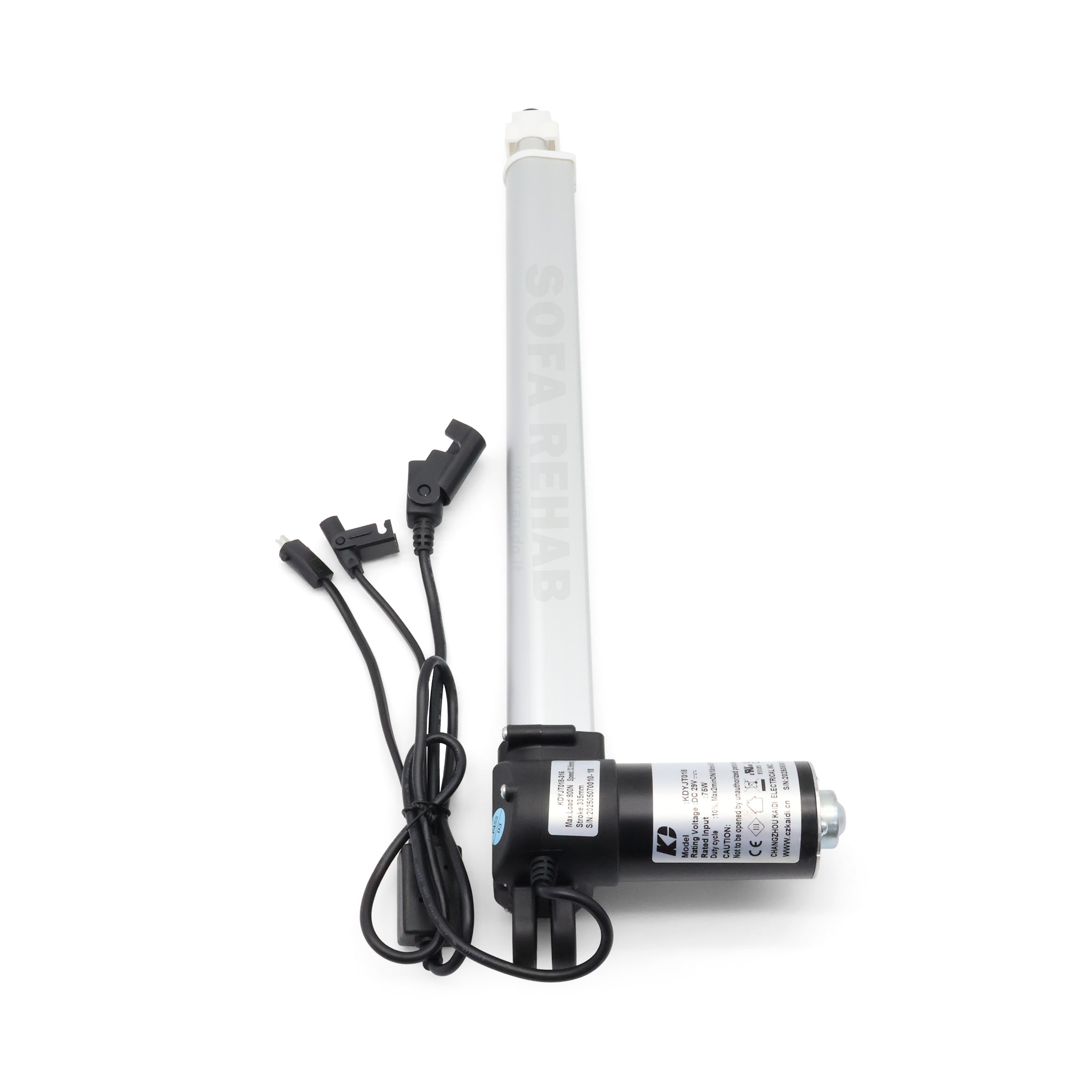

This genuine Kaidi KDYJT018-316 linear actuator motor is designed for use in dual-motor electric recliners and lounges as the footrest actuator. Rated at 800 N maximum load with a 33.5 mm/s speed, 335 mm stroke, and 495 mm minimum install length (centre-to-centre). When fully extended, the actuator measures approximately 830 mm overall.

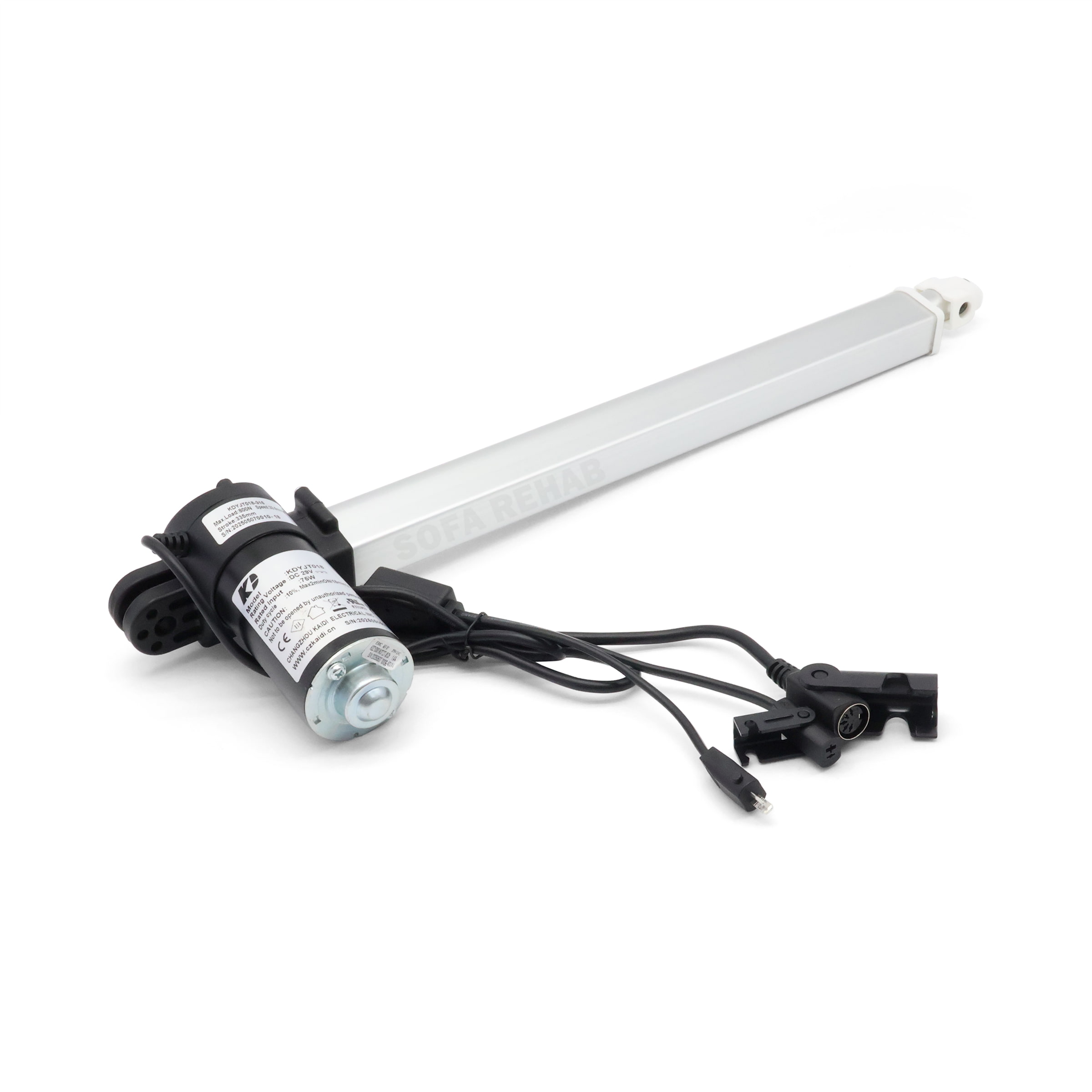

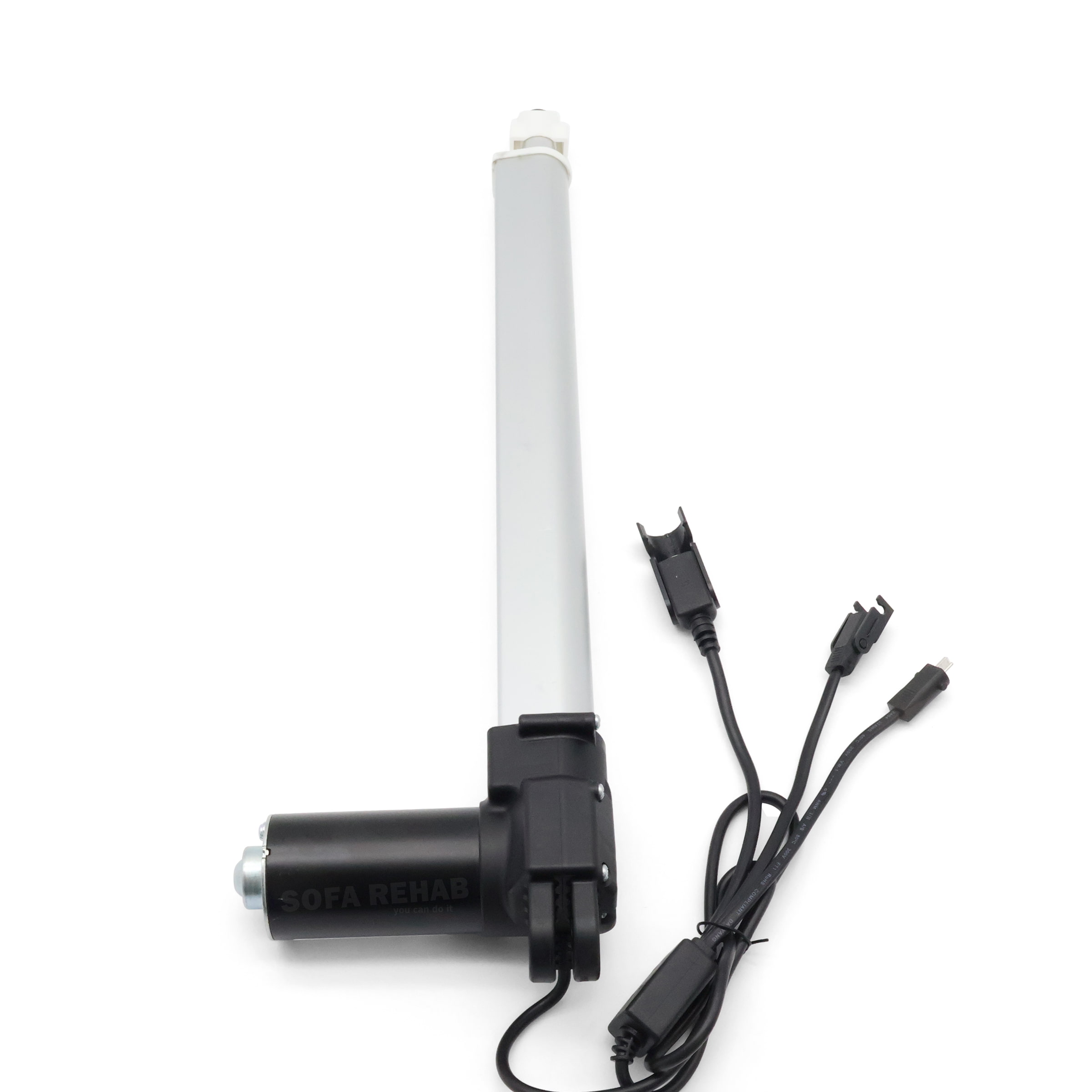

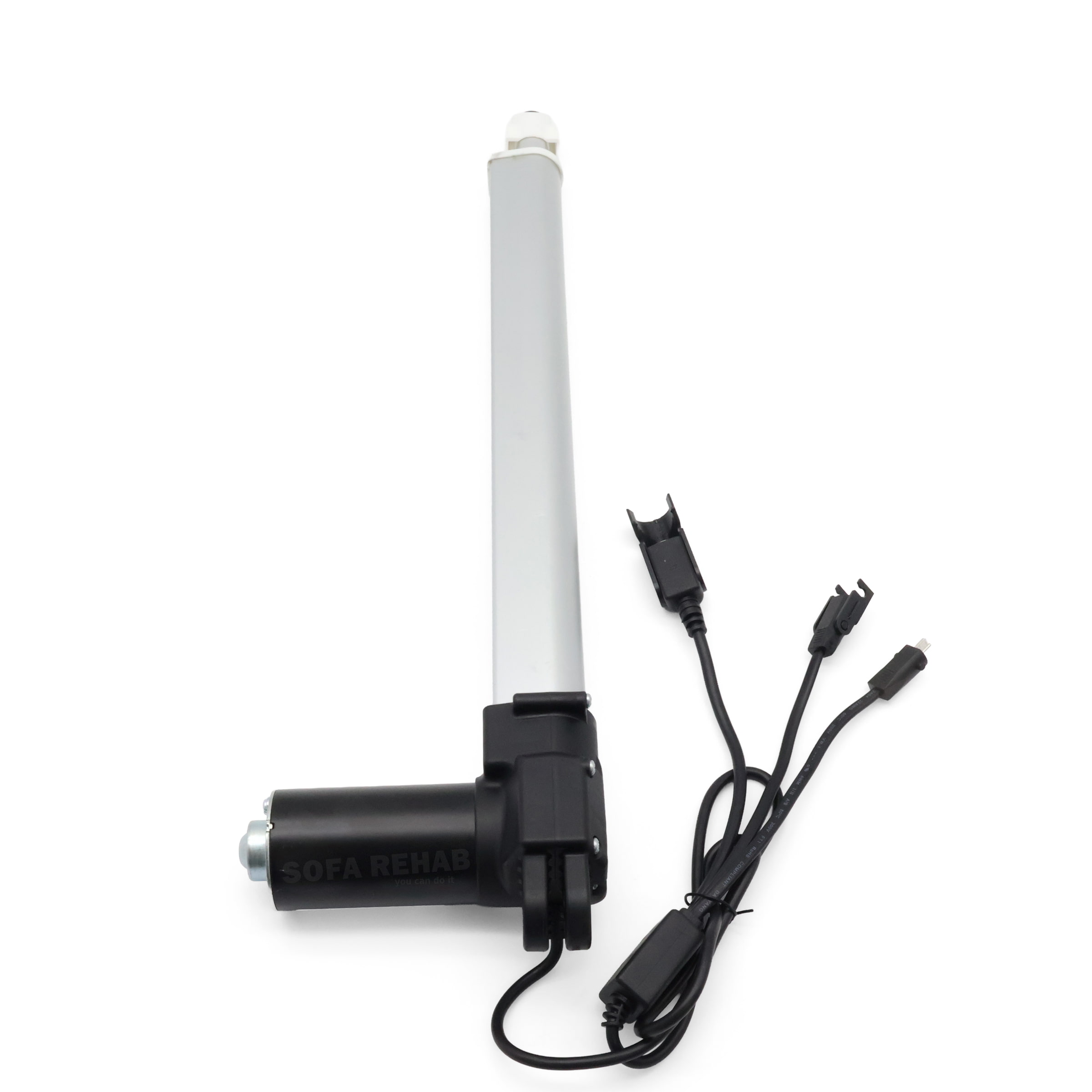

It connects to your recliner system via three plugs — one female 5-pin DIN control plug with a retaining clasp, one male 2-pin plug with clasp tabs, and one female 2-pin plug with retaining clasp — linking it to a second actuator such as a headrest or lumbar motor. Fitted using two actuator rods and R-clips (not supplied).
Compatibility and Connection Information
The KDYJT018-316 is typically used as the footrest actuator in dual-motor recliners, with the secondary actuator operating the headrest or lumbar function. The 3-plug configuration allows communication between both actuators and the recliner’s handset and control box. Compatible with standard 29 V DC power transformers and Kaidi system wiring harnesses.
If your recliner uses a different Kaidi model, see our full range of recliner actuator motors (click here) where you’ll find alternative versions.
Genuine Kaidi Quality for Reliable Performance
As a genuine OEM Kaidi actuator, this part has been manufactured to meet the same quality and durability standards as your original. You can be confident it will deliver the same smooth operation and long service life. Replacing only the failed actuator instead of the entire mechanism is a cost-effective way to keep your furniture working like new.
DIY Friendly Replacement – Save Time and Money
Replacing a recliner actuator is a straightforward DIY task that requires only basic tools like a pair of pliers anda hammer. With Sofa Rehab’s step-by-step guides and video tutorials, you’ll be able to swap out your faulty motor quickly, restore your recliner to full function, and save on costly repair call-outs.
Technical Specifications
Technical Specifications
| Model Number: | Kaidi KDYJT018-316 |
| Manufacturer: | Kaidi Electrical Co., Ltd (OEM) |
| Function: | Footrest actuator for dual-motor electric recliners and lounges |
| Maximum Load: | 800 N |
| Speed: | 33.5 mm/s |
| Stroke Length: | 335 mm |
| Minimum Installed Length: | 495 mm (centre-to-centre when retracted) |
| Fully Extended Length: | 830 mm overall |
| Voltage / Power Input: | 29 V DC (compatible with standard Kaidi power supply transformers) |
| Connector Plugs: | 1 × Female 5-Pin DIN plug (control), 1 × Male 2-Pin plug (power), 1 × Female 2-Pin plug (link) |
| Mounting Method: | Two actuator rods secured with R-clips (rods and clips not supplied) |
| Typical Applications: | Footrest actuator motor in dual-motor recliners linked to headrest, lumbar or backrest actuators |
| Noise Level: | Low noise – smooth, quiet operation |

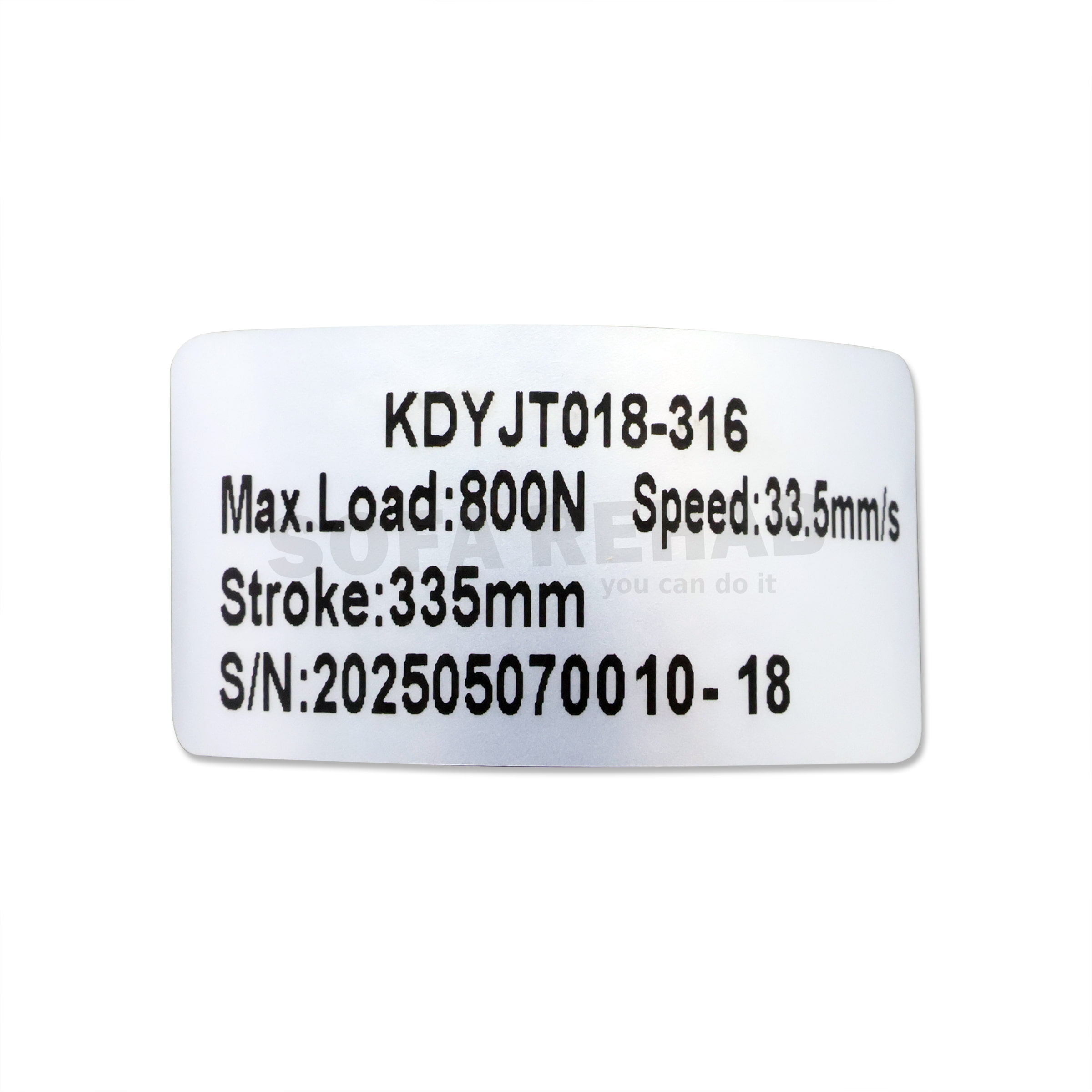

Note: Always confirm the model number printed on your existing actuator’s label before ordering. The KDYJT018 series includes several variants with different stroke lengths, connectors, and plug types.
How To
How To
How To Install Your Kaidi KDYJT018-316 Recliner Actuator
Replacing the actuator on your electric recliner is a straightforward process that most people can complete in around 10–15 minutes with basic hand tools. Follow the steps below and you’ll have your recliner back in working order in no time.
Before You Start
- Unplug the power supply from the wall to ensure there is no electrical current running to the chair.
- Take a clear photo of your existing actuator and all cable connections before you begin. This will make reconnecting everything quick and easy later.
- Place the chair in an open area with plenty of space to work and practice safe lifting techniques — recliners can be heavy and awkward to move.
- Gather the tools you’ll need: a Phillips screwdriver and a pair of pliers are usually sufficient.
Step-by-Step Installation
- Disconnect all power and control plugs. Locate the actuator under the chair and carefully unplug the connectors — one 5-pin DIN plug and the two 2-pin plugs. Gently press the release tabs before pulling apart to avoid damage.
- Remove the old actuator. The actuator is secured with two metal rods held in place by R-clips. Use pliers to remove the R-clips, then slide the rods free and lift out the actuator.
- Position the new actuator. Align the new Kaidi KDYJT018-316 actuator in the same orientation as the original, ensuring the cables are routed neatly and safely away from moving parts.
- Insert the actuator rods. Slide the two rods back through the mounting eyes of the actuator and re-fit the R-clips to secure them firmly.
- Reconnect the plugs. Match each plug to its corresponding socket — 5-pin to the control box, 2-pin to the power supply, and 2-pin link to the secondary actuator (if fitted). The plugs are keyed to fit only one way.
- Test the recliner. Plug the transformer back into the wall and use your recliner’s handset to extend and retract the footrest. Check that the movement is smooth and that all connections are secure.
Tips & Aftercare
- Double-check that no cables are pinched or rubbing against moving parts before using the recliner.
- If your recliner doesn’t move after installation, confirm that all plugs are fully seated and the transformer light is on.
- Store the installation photo you took earlier — it’s handy for future reference if you ever replace another part.
If you’re unsure about any step, feel free to contact our support team (click here) for friendly guidance. We also have video tutorials (click here) showing the complete installation process for common actuator types.
Reminder: Always unplug the recliner from power before working on it, and follow safe lifting practices to avoid injury.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How do I know if this actuator will fit my recliner?
Check the model number printed on the label of your existing actuator. If it reads KDYJT018-316, this is the correct replacement. If it’s a different KDYJT018-XXX variant, you’ll need to match the stroke length and plug types.
What tools do I need to install it?
You’ll only need a pair of pliers for removing the R-clips. It’s a quick and easy repair that most people complete in under 15 minutes. Remember to take a photo before you start and practice safe lifting techniques when moving the chair.
Do the actuator rods and R-clips come in the box?
No, this replacement motor is supplied on its own. The mounting rods and R-clips are reusable from your existing setup.
My recliner has two motors – will this one work?
Yes. The KDYJT018-316 is designed for dual-motor recliners and is typically used as the footrest actuator. It has three plugs — one 5-pin DIN plug and two 2-pin plugs — to link with the headrest or lumbar actuator and power supply. Always match the plug configuration before ordering.
What warranty is provided with this actuator?
All genuine Kaidi actuators are covered by a 12-month warranty. If you experience any issues during this time, contact us for assistance and we’ll be happy to help.
