Kaidi Recliner Switch KDH127-006
$79.95
In stock

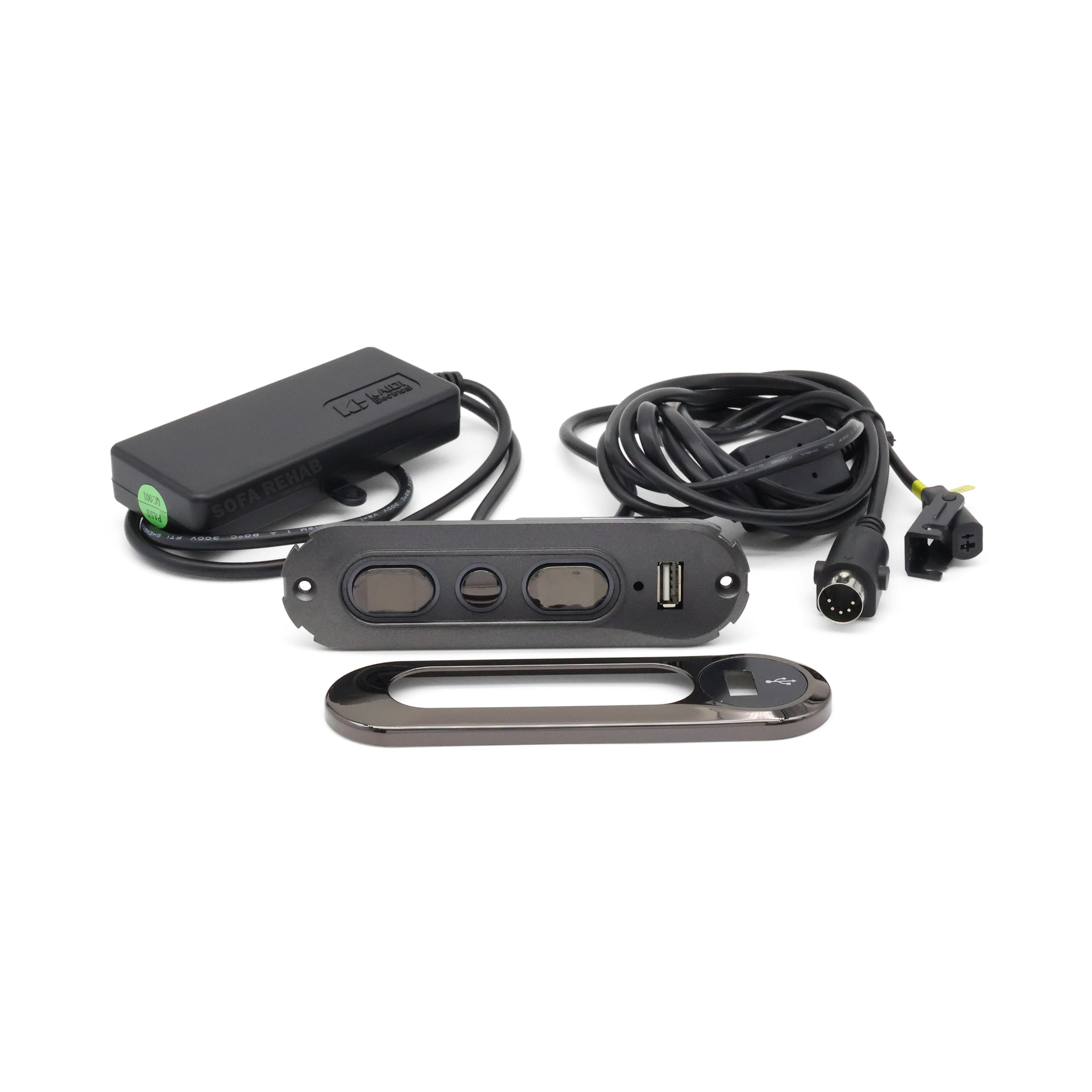

Universal 5-button dual motor electric recliner switch with USB charging port and control box. Genuine Kaidi KDH127-006 replacement, complete with nickel-coloured fascia plate. Includes Home button and controls for headrest, footrest and backrest. Supplied with matched control box and pre-attached cables for a simple plug-and-play installation on either side of your recliner. Genuine Kaidi Dual Motor Recliner Switch with USB Port. Features five easy-to-use buttons for recline, headrest and Home functions, plus a convenient USB-A charging port. The fascia hides the two mounting screws for a clean, modern finish. Supplied with the required control box and plug connectors. Need a Different Switch or Connector Type? We stock all the popular recliner switches (click here). If you are still not sure which replacement power recliner chair or sofa switch is right for you please contact our helpful team. read more
In stock
- Description
- Technical Specifications
- How To Tutorial
- Reviews (0)
- FAQs
- Add a review
Description
Kaidi Dual Actuator 5 Button Recliner Switch with USB - KDH127-006
The Kaidi KDH127-006 switch is a genuine OEM replacement designed for dual-motor electric recliners that control the footrest, backrest and headrest functions. Finished with a sleek nickel-coloured fascia and integrated USB-A charging port, this replacement delivers both practicality and a modern look. The fascia plate conceals the mounting screws for a professional finish, and it can be fitted to either side of your recliner chair or sofa.
This model includes an independent control box which connects directly to your chair’s actuators, ensuring reliable and synchronised operation of both motors. The control box and switch must be replaced together, as they are factory-paired to ensure proper function.
Found on La-Z-Boy Recliners and Other Premium Brands
This genuine Kaidi KDH127-006 switch is commonly fitted to many La-Z-Boy electric recliners, lift chairs and powered sofas. Kaidi Electrical manufacture components for several leading furniture brands, and this switch assembly is an original part used in many dual-motor La-Z-Boy models.
If your La-Z-Boy recliner has a nickel coloured fascia and a five-button control layout with a USB charging port, there’s a good chance this is the correct replacement. For confirmation, simply match the model number on the rear label or contact our support team with photos and we’ll verify compatibility for you.
Easy Replacement – Plug and Play Installation
Replacing your broken or faulty switch is straightforward. Simply disconnect your old switch and control box, match the plug connections, and secure the new unit using two screws (not supplied). The removable fascia then clips neatly over the top to conceal the fixings. No soldering or programming is required — a truly DIY-friendly repair you can complete in minutes.
Quality OEM Spare Parts from Sofa Rehab
As Australia’s leading supplier of recliner spare parts, we stock genuine Kaidi components to ensure your repair is safe, compatible, and long-lasting. This switch assembly is manufactured to Kaidi’s high quality standards, giving you peace of mind that your replacement will fit and function just like the original.
DIY Friendly Replacement – Save Time & Money
No technical experience is needed to install this switch. With just a screwdriver, you can replace your broken or worn switch in minutes and restore full functionality to your recliner chair or lift chair. Avoid costly service calls, enjoy the satisfaction of doing it yourself, and get back to relaxing sooner.
Technical Specifications
Technical Specifications
Technical Specifications
| Manufacturer / Model | Kaidi (KAIDI Electrical) – KDH127-006 |
|---|---|
| Type | Genuine OEM dual-motor recliner side switch with USB and matched control box |
| Finish | Nickel-coloured removable plastic fascia (conceals mounting screws) |
| Controls | 5 buttons: Footrest (open, close) • Backrest (open, close) • Headrest (open, close) • Home button |
| Ports / Connectors |
|
| Mounting | Side-mounted, two screws required (not supplied). Fascia clips on to hide fixings. |
| Side Fitment | Can be fitted to either the left or right arm of the recliner |
| Switch Body Size | 140 mm (W) × 41 mm (D) × 38 mm (thick including buttons) |
| Recommended Cut-Out | 109 mm (W) × 26 mm (D) |
| Cable Lengths |
|
| Control Box | Included and required for operation (must be replaced together with the switch). Approx. 118 mm × 50 mm × 21 mm. |
| DIY Suitability | Plug-and-play replacement (no programming). Basic tools only (screwdriver). |
Compatibility Notes
- Designed for dual-motor recliners that use Kaidi actuator systems with 5-pin DIN control and separate 2-pin OI headrest connection.
- Not suitable for single-motor chairs that use 2-button switches.
- If unsure, contact us with photos of your current switch, plugs and cut-out.
What’s Included
- Kaidi KDH127-006 switch assembly
- Nickel-coloured removable fascia
- Matched Kaidi control box with attached lead
Mounting screws are not included.
How To Tutorial
How To Tutorial
How To Install Your Kaidi KDH127-006 Recliner Switch
Follow these simple steps to replace your switch and control box. No prior experience required. If you get stuck, contact our friendly team and we will help you through it.
Before You Start
- Disconnect power at the wall and unplug the transformer. Wait 60 seconds for any stored power to discharge.
- Move the chair to a clear workspace and tip it gently on its side if needed for easier access. Protect flooring and fabric with a towel.
- Confirm you are fitting the supplied control box with the new switch. These components are designed to work together.
What You Will Need
- Phillips head screwdriver
- Small flat tool or plastic trim tool to lift the fascia
- Two suitable mounting screws for your furniture frame (not supplied)
- Cable ties or tape for tidy cable routing (optional)
Step 1: Remove the Old Switch
- Locate the existing side switch on the arm. Gently pry off the decorative fascia to reveal the fixing screws.
- Undo the two screws and slide the old switch body out of the cut-out.
- Follow the cables to the connectors under the chair. Unplug the main multi-pin control plug and any headrest or auxiliary plugs. Note the routing so you can replicate it.
- If your chair has an existing control box, unscrew or unclip it from the frame and unplug its connectors.
Step 2: Install the New Control Box
- Position the supplied control box where the original was mounted or in a similar protected location away from moving parts.
- Secure it to the frame using existing fixings or cable ties. The box should be secure and not rattle.
- Connect the chair’s actuator and power leads to the new control box. Press each plug firmly until it clicks or seats fully.
Step 3: Fit the New Switch
- Feed the new switch cables through the arm cut-out toward the control box location. Avoid edges that may pinch the cable.
- Offer the switch body into the cut-out with the buttons upright. Align the holes and fasten using two suitable screws (not supplied). Do not overtighten.
- Clip the nickel coloured fascia onto the switch to hide the fixings. Ensure it snaps in evenly on all sides.
Step 4: Make the Plug Connections
- Connect the 5-pin DIN plug from the switch into the matching socket from the control box. Align the locating notch, then push straight in until it is fully seated.
- If your chair uses a powered headrest, connect the 2-pin OI plug from the switch to the headrest motor lead. Ensure the locking buckle is engaged.
- Use cable ties to keep slack away from moving parts such as the scissor mechanism and footrest arms.
Step 5: Power On and Test
- Return the chair to its normal position. Plug the transformer back into the wall and switch the power on.
- Test each function in short presses. Check footrest up and down, backrest up and down, headrest up and down, and the Home button.
- Confirm the USB charging port powers your device. Use a known good cable and device.
Troubleshooting Tips
- No movement at all: Check wall socket power, transformer connections and the 5-pin plug seating. Disconnect power for 30 seconds and reapply.
- Only some functions work: Recheck the headrest 2-pin connection. Ensure the locking buckle is clicked in.
- Buttons operate in reverse on left or right fitment: This can occur with some chair wiring. Swap the actuator leads at the control box if required, then retest.
- Fascia does not sit flush: Back off the mounting screws slightly and reclip the fascia. Check there is no fabric trapped under the edges.
- Cables rub on the mechanism: Reroute and secure with cable ties. Maintain a gentle loop where the mechanism moves.
Safety and Support
- Always disconnect power before connecting or disconnecting any plugs.
- Do not force connectors. Align keys and push straight in until fully seated.
- If you are unsure about any step, contact our support team (click here) with photos of your current switch and plugs. We are happy to help.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
KDH127-006 switch compatible with my recliner?
This switch is designed for dual-motor recliners that use Kaidi actuator systems with a 5-pin DIN plug and a 2-pin headrest connector. If your current switch looks similar and uses the same plugs, it’s very likely compatible. If you’re unsure, contact us with photos of your existing switch and plugs — we’ll confirm for you.
Do I need to replace the control box as well?
Yes. The control box supplied with the KDH127-006 is factory-paired to the switch, and both must be replaced together for proper operation. Using an old control box may cause the buttons or USB port to function incorrectly.
Does this switch include the mounting screws?
Mounting screws are not included, as different recliners use various screw types and thread lengths. You can reuse your existing screws or use two screws of similar size for installation.
Can this switch be fitted on either the left or right side of the recliner?
Yes. The KDH127-006 can be mounted on either side. The fascia plate is symmetrical, and the buttons will operate correctly once installed.
Is the USB port suitable for charging phones and tablets?
Yes. The integrated USB-A port is designed for charging small devices such as phones, tablets, and accessories. It provides convenient power while you relax in your recliner — no extra wiring or adapters needed.
