Okin JLDQ.12.157.333H Recliner Motor
$195.00
In stock
Replacement Okin Refined JLDQ.12.157.333H actuator motor for electric recliner chairs and lounges. Genuine OEM linear actuator with a 533 mm installation length, 333 mm stroke and 157 mm minimum retraction. Features a female 5-pin DIN control socket built into the housing and a 485 mm male 2-pin DC power lead. Genuine Okin Recliner Motor Actuator. This JLDQ.12.157.333H model is a direct OEM replacement, offering precise fitment and reliable performance. Easy installation with existing swing brackets and compatible control handsets makes it the ideal solution for restoring smooth recliner function without modification. Need Help Finding the Right Replacement? We stock an extensive range of recliner motor actuators (click here) for all popular brands and models. If you’re unsure whether this one is right for your chair, contact us for guidance and we’ll help you select the right part. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
Genuine Okin JLDQ.12.157.333H Recliner Actuator Replacement

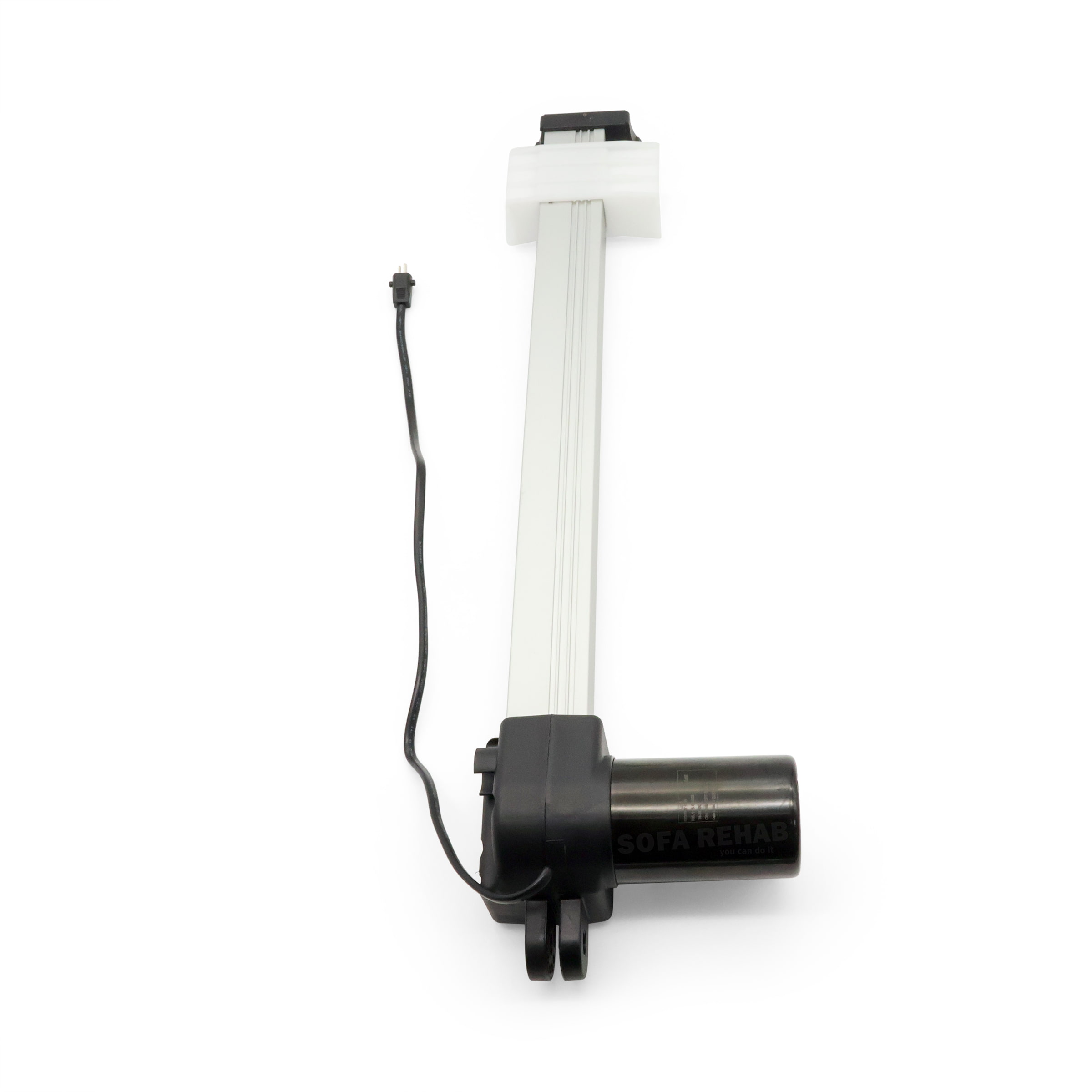

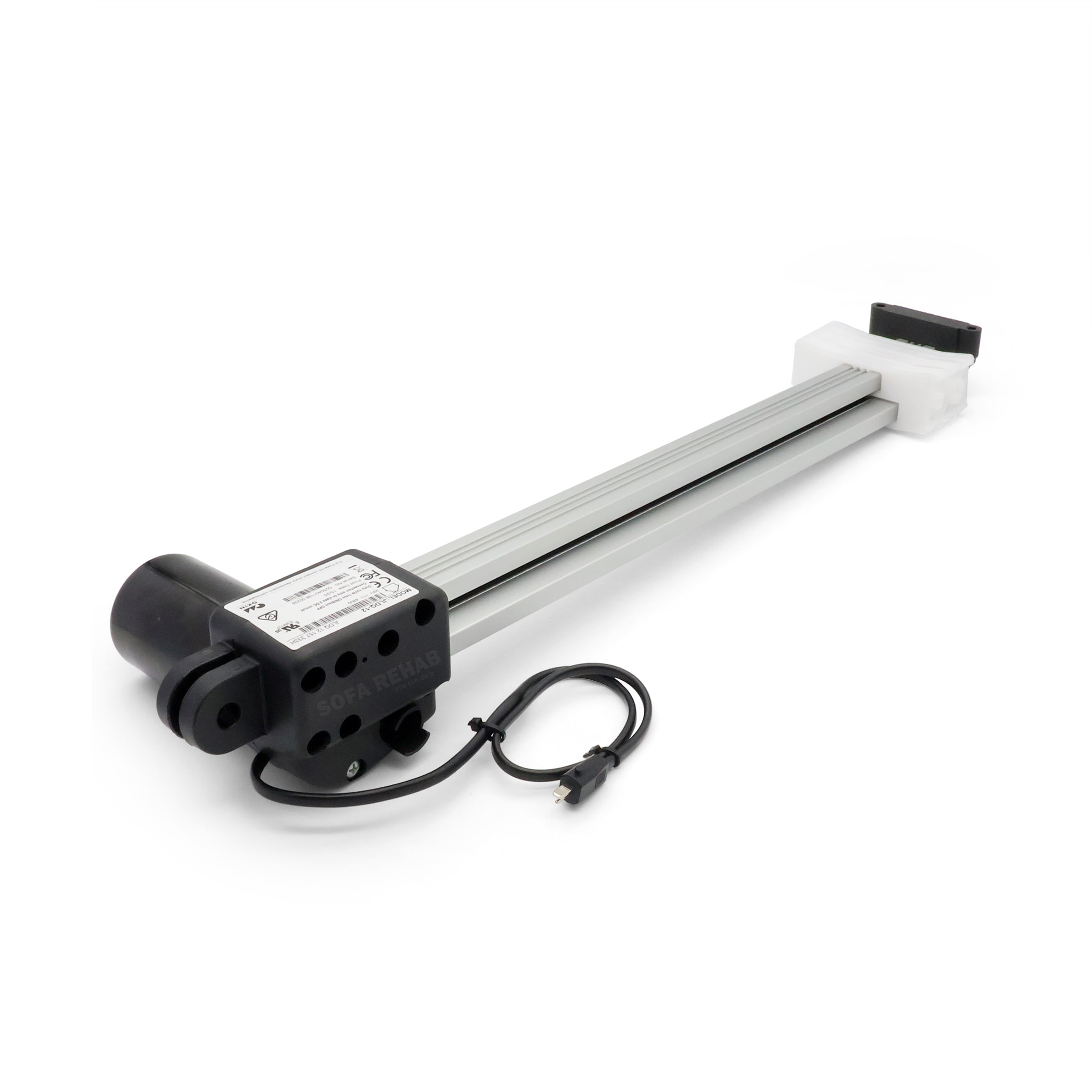

This genuine Okin Refined JLDQ.12.157.333H actuator is designed to restore smooth and reliable motion to your electric recliner chair or lounge. With an installation length of 533mm (measured centre of front fixing bolts to centre of rear clevis rod hole), 333mm stroke, and 157mm minimum retraction, it’s a direct replacement part that fits perfectly into the recliner frame.
The actuator features a female 5-pin DIN control socket integrated into the housing and a 485mm male 2-pin DC power lead. Built for Class 2 DC circuits, it offers safe and efficient operation with a duty cycle of 1 minute ON and 18 minutes OFF.
High-Quality OEM Spare Part from Okin
As a genuine OEM product, this actuator provides precise compatibility with recliners originally fitted with this model. The factory-assembled unit comes ready to install with existing swing brackets, delivering smooth, quiet, and dependable performance.
Need Help Finding the Right Recliner Actuator?
We stock a wide range of recliner actuators (click here) from Okin, TiMotion, Kaidi and other leading brands. If you’re unsure whether this model matches your existing actuator, reach out to our friendly support team. We can help identify the correct replacement using your old part’s model number or photos.
Save Time & Money – Do It Yourself
Replacing an actuator is a straightforward job that requires only basic tools. With our step-by-step instructions and video tutorials, you can complete the installation yourself and save on costly service fees. Simply unplug your old unit, fit the new one in place, connect the plugs, and your recliner is ready to use.
Technical Specifications
Technical Specifications

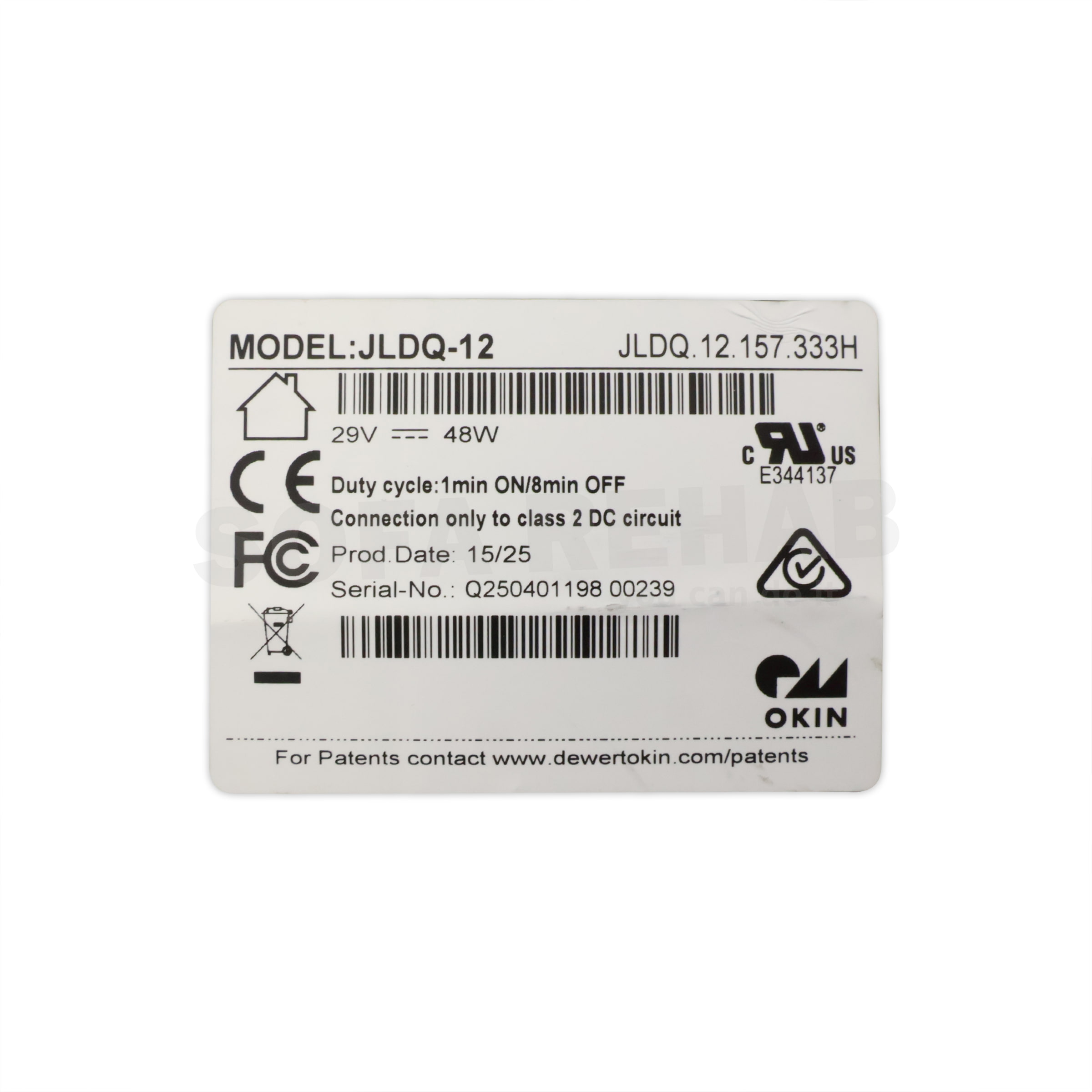

| Technical Specifications – Okin Refined JLDQ.12.157.333H Actuator | |
|---|---|
| Model Number | JLDQ.12.157.333H |
| Brand | Okin Refined |
| Installation Length | 533 mm (centre of front fixing bolts to centre of rear clevis rod hole) |
| Stroke Length | 333 mm |
| Minimum Retraction | 157 mm (swing brackets) |
| Power Lead | 485 mm, male 2-pin DC plug |
| Control Plug | Female 5-pin DIN socket integrated in housing |
| Input Voltage | 29 V DC (Class 2 circuit) |
| Power Rating | Approx. 48 W |
| Duty Cycle | 1 minute ON / 18 minutes OFF |
| Push / Pull Force | 750 N |
How To
How To
How To Install Your Okin JLDQ.12.157.333H Recliner Actuator
- Unplug the Recliner
Always disconnect the chair from mains power before beginning. This prevents accidental activation and keeps you safe while working. - Position the Recliner Safely
Tip the recliner gently onto its side or back to access the underside. Use safe lifting techniques — bend your knees, not your back — and ask for help if the chair is heavy. - Take a Picture First
Before removing the actuator, take a clear photo of how it’s installed and where the plugs are connected. This will help guide you during reassembly. - Disconnect the Cables
Locate the actuator’s control plug (female 5-pin DIN) and the power plug (male 2-pin). Disconnect both by gently pulling the connectors apart without forcing or twisting them. - Remove Fixings
Unscrew or unbolt the actuator’s front and rear fixings. Keep all screws, bolts, or clevis pins in a safe place — you’ll need them for reinstallation. - Install the New Actuator
Position the new actuator into the same place as the old one. Align the clevis rod hole and front fixing bolts with the brackets on your recliner frame. - Secure Fixings
Refit the bolts, screws, or pins, ensuring the actuator is firmly secured at both ends. Do not overtighten — firm and secure is enough. - Reconnect the Cables
Plug the 2-pin power lead into the transformer cable and connect the 5-pin DIN plug into the handset/control box as per your photo reference. - Return the Recliner to Upright
Carefully lift the recliner back to its upright position, again using safe lifting techniques or with help from another person. - Test the Operation
Reconnect the chair to mains power and test the actuator by using the handset. Ensure the movement is smooth, quiet, and the full range of motion works properly.
⚠️ Safety Reminder: Always keep hands, pets, and children away from moving parts during testing. If you feel resistance or hear unusual noises, stop immediately and recheck the installation.
