Accessories, Electric Recliner Spare Parts, Moving Blocks and Clevis
30mm Socket Cap Actuator Hex Bolt
$1.00
In stock

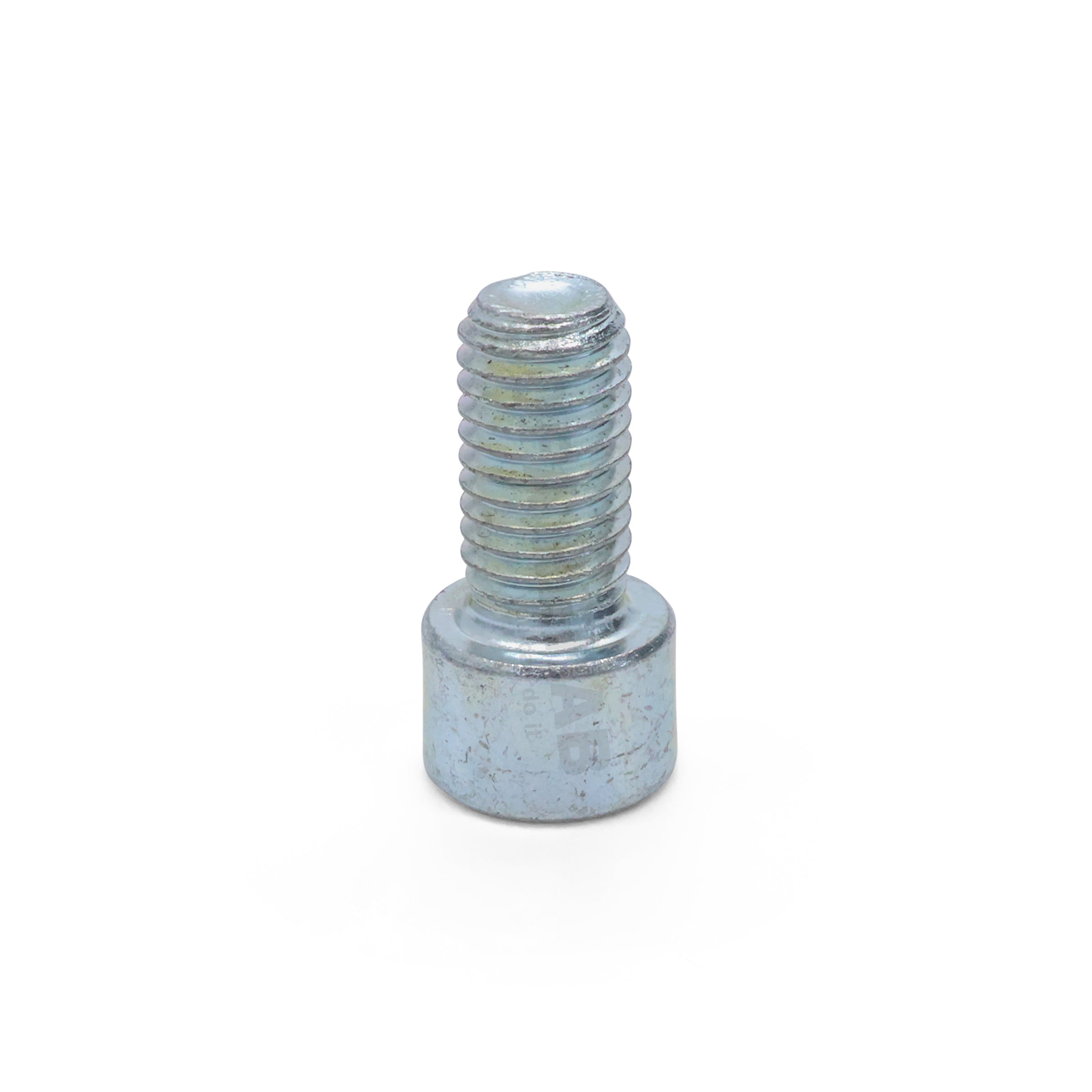

A silver M10 socket cap bolt used to fasten the electric recliner actuator’s slider block to the mechanism’s drive link brackets. The bolt features a 20mm thread length with a total overall length of 30mm including the cap, and an internal hex head that accepts an 8mm Allen key. Ideal for restoring secure actuator mounting and smooth recliner operation when the original bolt is worn, missing or damaged. Universal Actuator Mounting Bolt. This M10 replacement bolt matches the industry standard specifications found on many electric recliners and lift chairs. With its 8mm internal hex head and 20mm threaded portion, it suits a wide variety of actuator and mechanism configurations. Need Another Size or Recliner Spare Part? We stock a wide range of recliner hardware including actuator moving blocks, clevis tips, power recliner cables and complete replacement motors. Browse our comprehensive range of recliner spare parts (click here) or contact us if you need assistance finding the right item. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
Electric Recliner Actuator Mounting Bolt – M10 Socket Cap Design

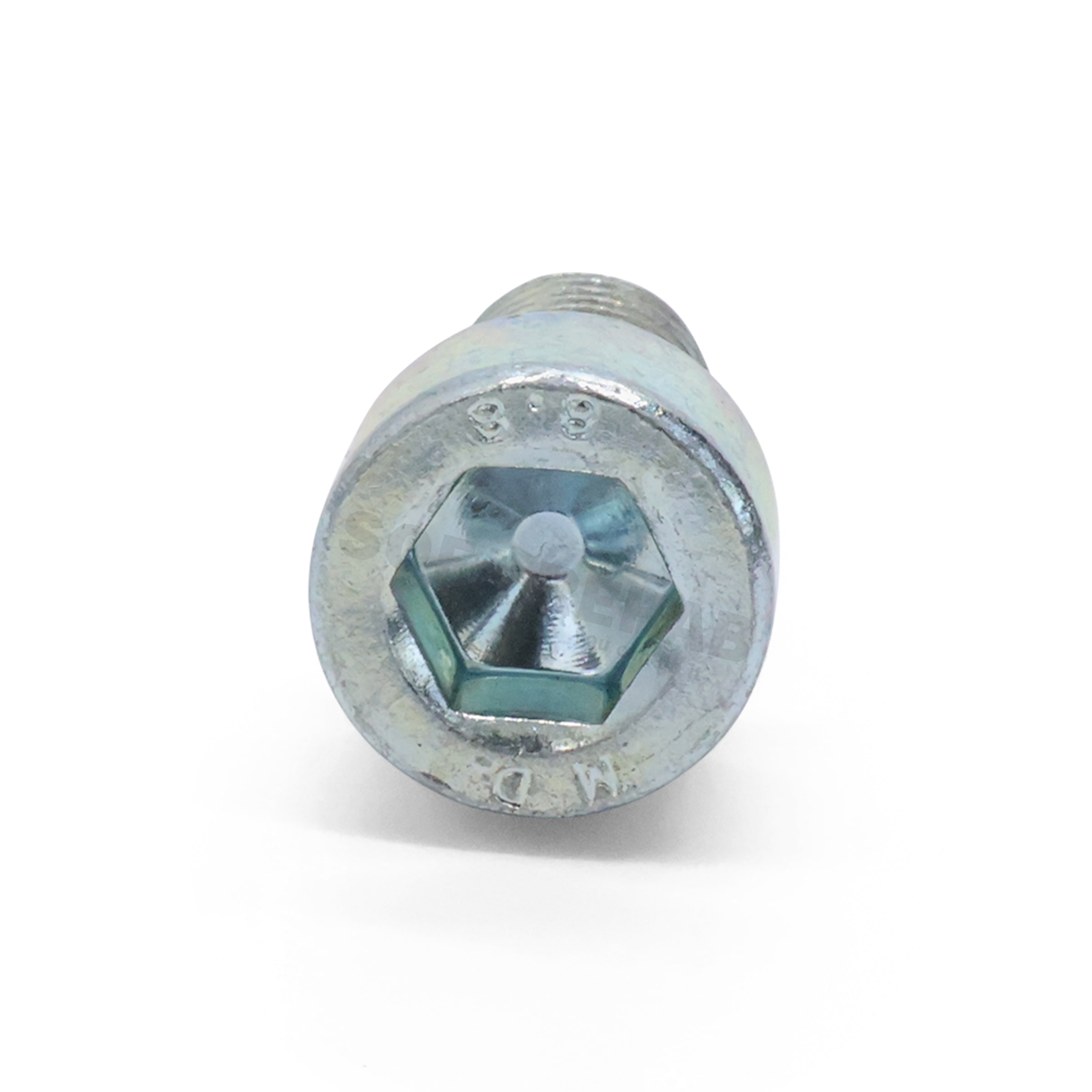

This replacement socket cap bolt is used to secure the actuator’s slider block to the drive link brackets within an electric recliner mechanism. With a 20mm thread length and a total overall length of 30mm including the cap, this bolt provides the correct fit and strength required for a secure actuator connection. Finished in silver and designed with an 8mm internal hex head, it offers a compact low-profile fastening solution suitable for tight mechanism spaces.
Check Your Existing Bolt Size Before Ordering
Actuator bolts vary between recliner models, so measuring your existing bolt is important. Confirm that your mechanism uses an M10 thread size and a similar overall length to ensure a precise replacement. If your bolt is missing, inspect the actuator’s slider block and drive link bracket to check the thread size on the mounting point. Our support team can help you identify the correct bolt if you are unsure.
Quality Replacement Hardware for Actuators
This M10 socket cap bolt is commonly used on many brands of electric recliners, including those with TiMotion, OKIN, eMoMo and similar actuator assemblies. The internal hex head design allows strong tightening with an 8mm Allen key while keeping the head compact to avoid interference with moving components. Whether your original bolt is stripped, bent or missing entirely, this replacement restores a secure actuator connection and reliable motion.
DIY Friendly – Replace It Yourself and Save
No special tools or prior experience are required to replace this bolt. All you need is an 8mm Allen key to remove the damaged bolt and secure the new one in place. With our step-by-step instructions and customer support available by phone, email or chat, you can confidently fit this replacement yourself. Enjoy the satisfaction of repairing your electric recliner and saving money on professional service fees.
Technical Specifications
Technical Specifications
| Product Type | M10 socket cap bolt (socket cap screw) |
|---|---|
| Thread Size | M10 metric |
| Thread Length | 20 mm |
| Overall Length | 30 mm (including head) |
| Head Style | Internal hex socket cap |
| Hex Key Size | 8 mm Allen key |
| Head Diameter | 15 mm (approx.) |
| Head Thickness | 10 mm (approx.) |
| Colour / Finish | Silver |
How To
How To
How To Replace an Electric Recliner Actuator Bolt
Replacing this actuator mounting bolt is a simple DIY task, but always take care when working with heavy furniture and moving mechanical parts. Follow the steps below to safely remove the old bolt and install the new one.
1. Turn Off the Power
Before starting any work, switch off the recliner at the wall and unplug the power supply. This ensures the actuator cannot move unexpectedly while you are working on it.
2. Position the Recliner Safely
Carefully tip the recliner onto its side so you can access the mechanism. Recliners can be heavy, so use proper lifting techniques such as bending your knees, keeping your back straight and lifting with your legs. Ask for assistance if required to avoid injury.
3. Take a Before Photo
Use your phone to take a clear photo of the original bolt location and orientation. This makes it easy to reinstall the new bolt in the correct position and ensures nothing is overlooked during reassembly.
4. Locate the Actuator Slider Block
Identify the actuator’s moving slider block where it attaches to the mechanism’s drive link brackets. The M10 internal hex bolt fastens directly through this point to secure the actuator.
5. Remove the Existing Bolt
Use an 8mm Allen key to loosen and remove the old bolt. If it is stripped, bent or partially sheared, take your time and work carefully to avoid damaging the mounting point threads.
6. Install the New M10 Socket Cap Bolt
Insert the new bolt through the slider block into the drive link bracket. Tighten firmly with the 8mm Allen key, ensuring the bolt is snug but not overtightened. Check that the actuator moves freely and the bolt head does not interfere with any surrounding parts.
7. Restore Power and Test
Return the recliner to its upright position, plug the power supply back in and test the recliner’s movement. Confirm that the actuator operates smoothly and the bolt remains securely seated.
DIY Safety & Support
Always work slowly and safely when handling recliner mechanisms. If you are unsure about the correct bolt size, installation position or actuator configuration, our team is here to help. Contact us via phone, email or chat for personalised support before beginning your repair.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Will this M10 bolt fit my electric recliner actuator?
In most cases, yes. Many electric recliners use an M10 socket cap bolt to secure the actuator’s slider block to the drive link brackets. However, some models use different thread sizes, so we recommend measuring your existing bolt or contacting us with a photo if you're unsure.
What tools do I need to install this bolt?
All you need is an 8mm Allen key (hex key). No other special tools or experience are required, making this a simple DIY repair that can be completed in a few minutes.
What is the overall length of this bolt?
This bolt has a 20mm threaded section and a 30mm total length including the cap. The cap itself is approximately 10mm thick and 15mm wide.
What does this bolt secure on my recliner?
It fastens the actuator’s moving slider block to the mechanism’s drive link brackets. If your actuator feels loose, isn’t moving correctly or has come away from the mechanism, this bolt is often the part that needs replacing.
Is this replacement suitable for DIY installation?
Absolutely. This bolt is ideal for DIY repairs and fits perfectly with our “You Can Do It” approach. Turn off the power, tip the recliner safely, remove the old bolt and tighten the new one with your 8mm Allen key. If you need guidance, our support team is happy to help.
