Actuator Mounting Bracket Set
$39.95
In stock
Leggett & Platt durable electric recliner actuator end bracket set, designed to securely mount the actuator’s clevis to the front base rail of your recliner mechanism. Made from strong black metal with precise cut-outs for universal fitment. Supplied with 4x bolts and 4x nuts for quick and reliable installation. Universal Metal Actuator Mounting Bracket. This heavy-duty bracket suits most common electric recliner mechanisms, including Leggett & Platt and other popular brands. With an 83mm x 43mm base plate and 26.5mm x 33mm clevis cut-out, it provides a secure DIY-friendly repair using just basic tools. Need Another Recliner Spare Part? Browse our full range of electric recliner mechanism spares (click here) or chat with us if you’re unsure which rod, brackets or actuator suits your chair—DIY support is just a call away. read more
In stock
- Description
- Technical Specifications
- How To Tutorial
- What's in the Box
- Reviews (0)
- FAQs
- Add a review
Description
Universal Metal Actuator End Bracket with Nuts & Bolts
This heavy-duty right-angle bracket is designed to secure the actuator clevis to the front base rail of your recliner mechanism. Made from strong black metal and supplied with 4x 1/4×5/8 HEX BZP bolts and 4x nylon lock nuts, it’s a simple and effective way to restore your electric recliner’s functionality without replacing the entire actuator.
The bracket base plate measures 83mm x 43mm and features 4x oblong holes (11.95mm x 7.17mm) spaced 56mm apart left to right and 10mm apart top to bottom. The upright plate measures 83mm x 64mm with a central square cut-out of 26.5mm x 33mm, allowing the actuator’s clevis to slot securely into place.
Genuine Leggett & Platt Quality – Fits RMT and More
This bracket suits a wide range of popular electric recliner mechanisms, including those manufactured by Leggett & Platt, RMT and other common brands. Its universal sizing makes it a dependable choice for repairing or replacing a damaged or missing actuator bracket.
DIY Friendly Recliner Repair
Installing this actuator end bracket is quick and simple. Using only a socket and spanner, you can fit the bracket in minutes by bolting it to the front base rail, sliding the actuator clevis through the cut-out, and securing it in position. For most recliners, no additional rod or R-clip is needed as the actuator is held firmly in place by the supplied hardware and the mechanism’s rear mounting point.
Do It Yourself and Save Time & Money
Why replace a complete actuator when you can fix the issue with just the bracket? This cost-effective repair solution empowers you to do it yourself and restore your recliner’s smooth operation. With Sofa Rehab’s step-by-step guides and video tutorials, you’ll have the confidence to complete the job quickly and enjoy the satisfaction of a successful DIY repair.
Technical Specifications
Technical Specifications
Technical Specifications
- Product Type: Electric Recliner Actuator End Bracket Set
- Material: Heavy-duty metal
- Finish: Black coated
- Included Hardware:
- 4 × 1/4 × 5/8 HEX BZP black bolts
- 4 × matching black nylon lock nuts
- Tools Required for Installation: 10mm socket and a spanner

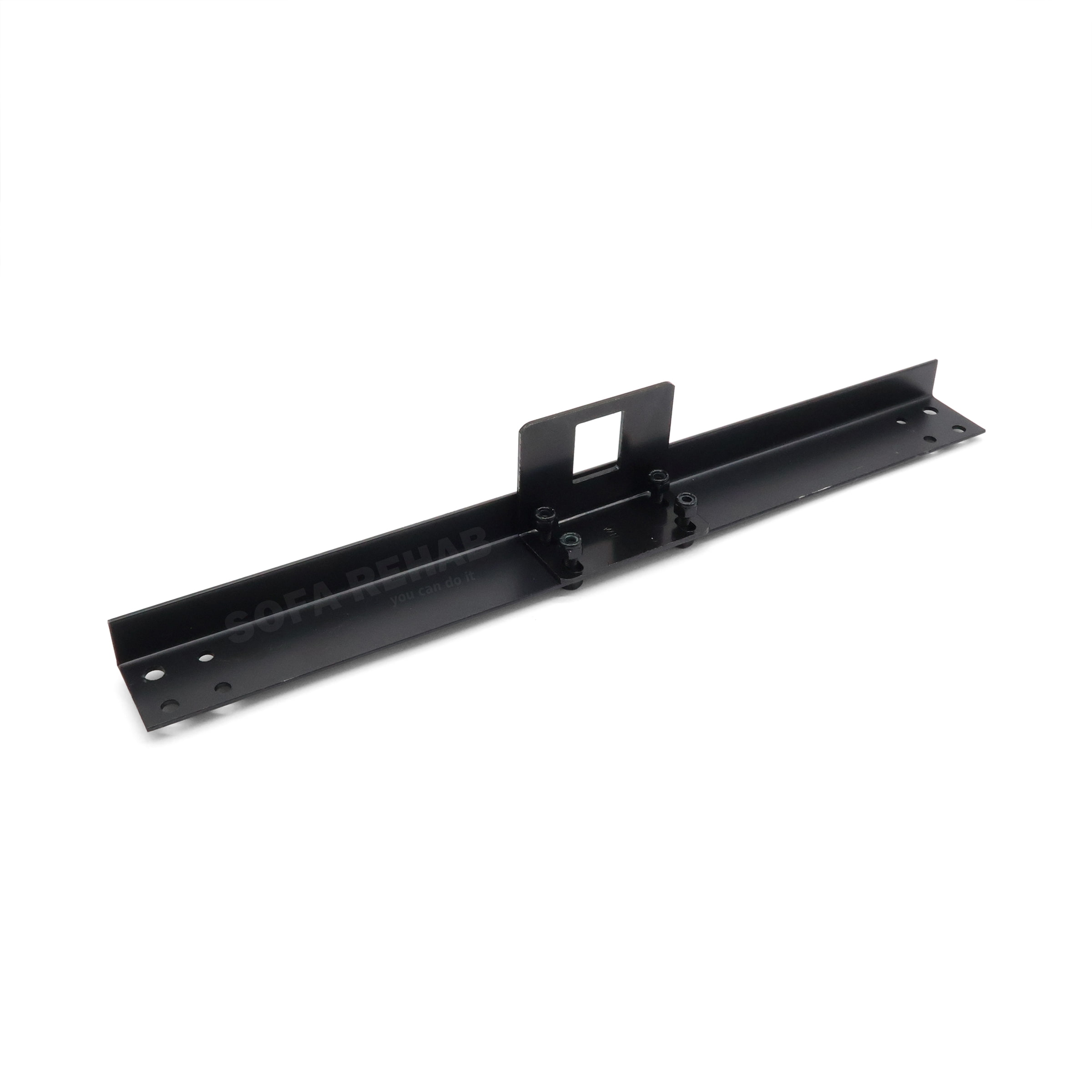

- Mounting Location: Front base rail of electric recliner mechanism
- Actuator Interface: Accepts actuator end clevis through square cut-out
Dimensions
| Base plate (horizontal) | 83 mm (W) × 43 mm (D) |
| Upright plate (vertical) | 83 mm (W) × 64 mm (H) |
| Clevis opening (square cut-out) | 26.5 mm × 33 mm (located 29 mm in from side, 8 mm down from top) |
Bolt Hole Layout
| Hole shape | Oblong 11.95 mm (L) × 7.17 mm (W) |
| Quantity & position | 4 total (2 left, 2 right on base plate) |
| Spacing (left ↔ right) | 56 mm apart |
| Spacing (top ↔ bottom) | 10 mm apart |
Compatibility
- Universal fit for most electric recliner mechanisms
- Commonly used with Leggett & Platt, RMT and other popular brands
Notes
- An actuator rod and R-clip may be added if required, but many mechanisms secure the actuator via the bracket at the front slider block and a rear base rail mounting.
How To Tutorial
How To Tutorial
Step-by-Step Installation Guide
- Safety First. Disconnect the recliner from mains power before starting. Practise safe lifting techniques when moving or tilting your recliner to access the mechanism. If the chair is heavy, ask for assistance.
- Take a Reference Photo. Use your phone or camera to take a clear picture of the actuator and bracket setup before beginning. This will help you remember the correct orientation when refitting.
- Remove the Actuator. Locate the actuator’s clevis where it passes through the bracket. Carefully slide the actuator clevis free of the bracket cut-out. If necessary, remove any retaining bolts, screws, pins or clips that holds it in place.
- Remove the Old Bracket. Using a 10mm socket and spanner, undo the 4 bolts and nuts that secure the old bracket to the front base rail. Once the bolts are removed, take off the bracket.

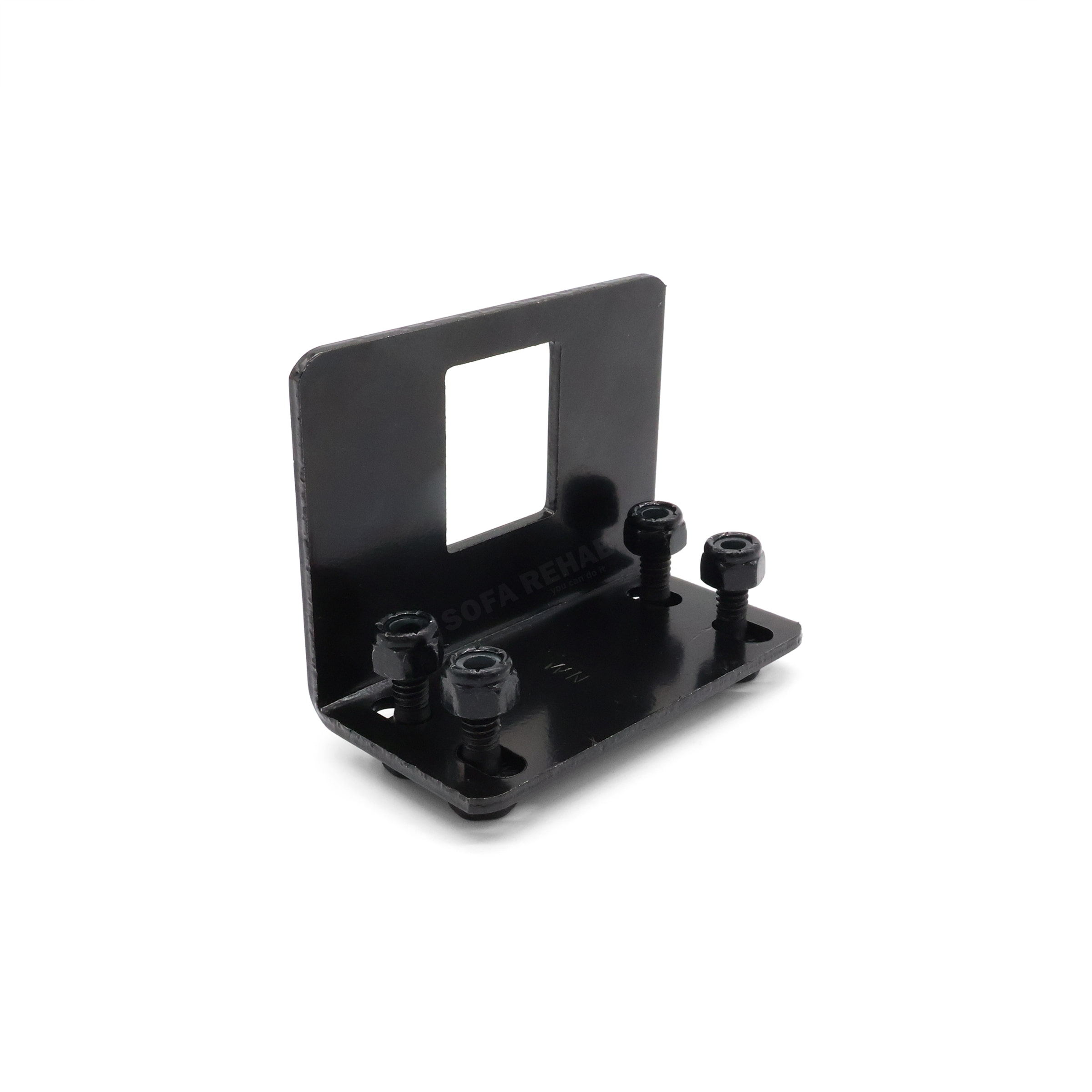

- Fit the New Bracket. Position the new metal bracket onto the front base rail, aligning the 4 oblong holes with the holes in the rail. Insert the supplied bolts through the bracket and rail, then add the nylon lock nuts. Tighten evenly with the #10 socket and spanner until secure.

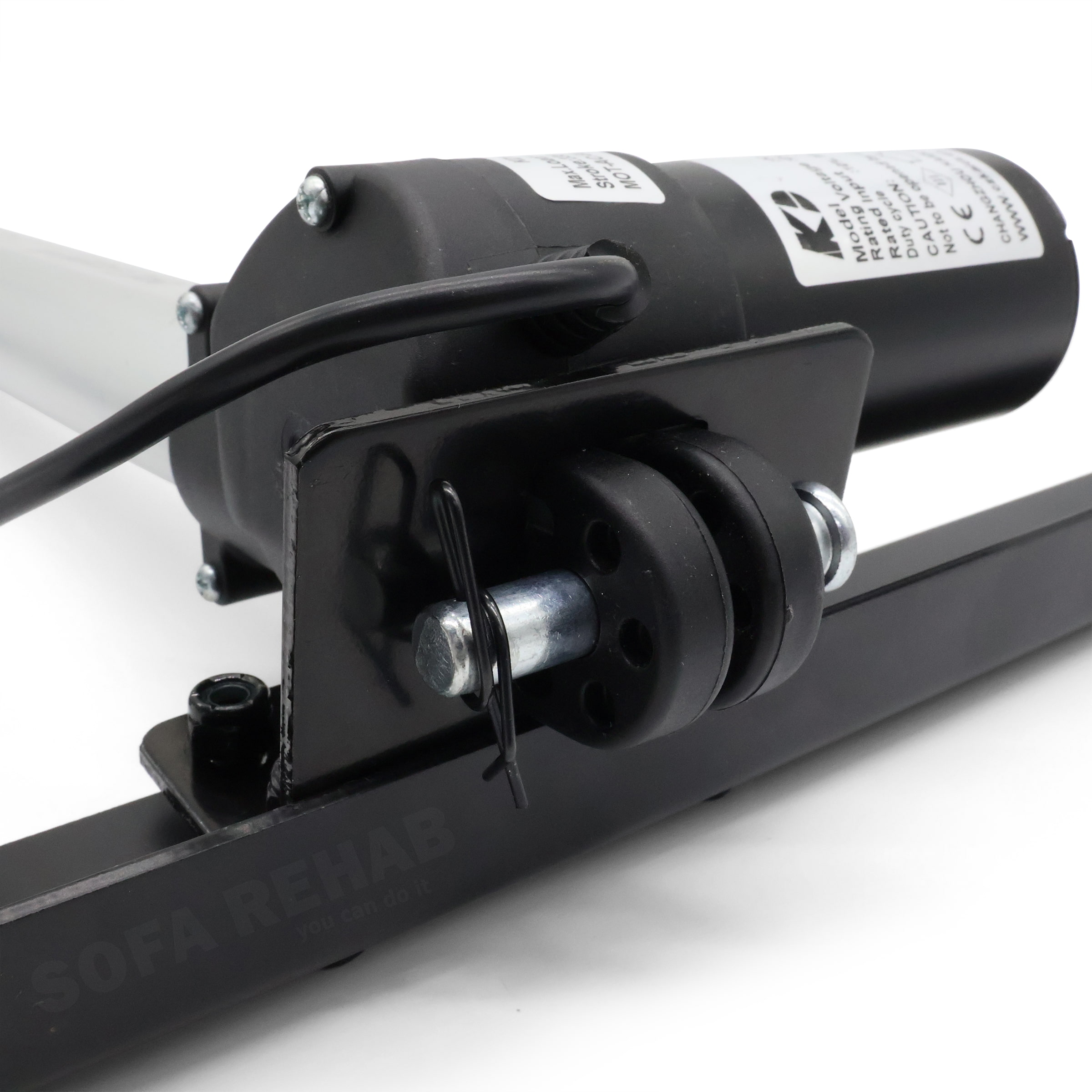

- Refit the Actuator. Slide the actuator clevis back into the square cut-out of the new bracket. Ensure it sits flush and secure. If your recliner requires it, reinsert the actuator rod and R-clip for added retention.
- Check Alignment & Function. Confirm that the actuator is firmly held at both the new bracket (front) and the rear base rail. Reconnect the recliner to mains power and test the full range of motion to make sure it operates smoothly.
- Final Safety Check. Verify that all bolts are tight, the actuator is securely in place, and there are no loose parts before returning the recliner to normal use.
Do you want me to also draft a “What’s in the Box” tab in HTML (listing the bracket, bolts, nuts) so th
What's in the Box
What's in the Box
What’s in the Box?

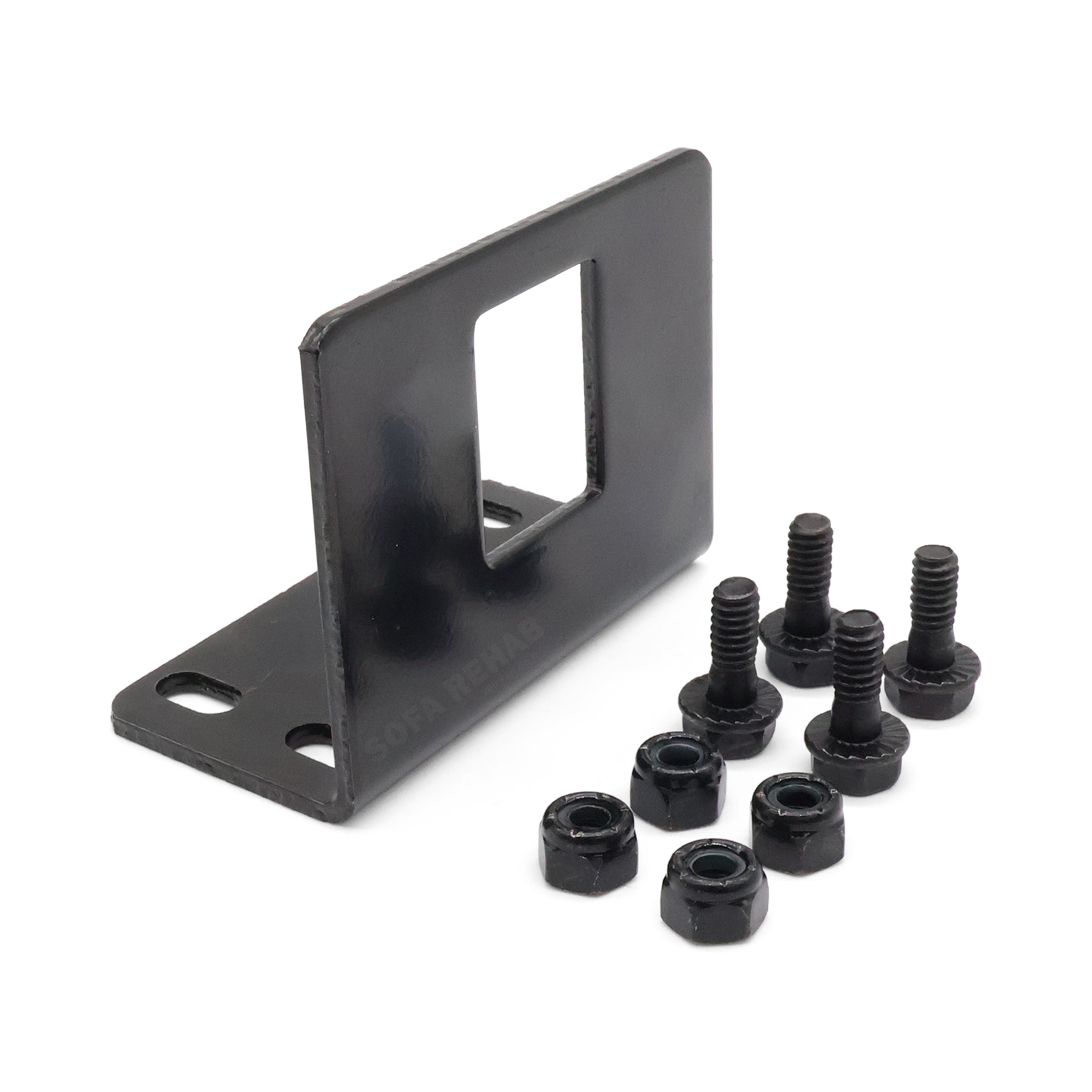

- 1 × Universal Electric Recliner Metal Actuator End Bracket
- 4 × 1/4 × 5/8 HEX BZP black bolts
- 4 × Matching black nylon lock nuts
- Fitting requires only a #10 socket and a spanner (not included)
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Will this bracket fit my electric recliner?
Yes, this is a universal bracket designed to suit most electric recliner mechanisms, including those made by Leggett & Platt and many other popular brands. Please check the measurements listed in the specifications tab to confirm compatibility.
What tools do I need for installation?
All you need is a 10mm socket and a spanner to fit the bracket securely using the supplied bolts and nylon lock nuts.
Do I need to remove the actuator to change the bracket?
Yes, the actuator must be removed from the old bracket first. Once the new bracket is fitted, you can slide the actuator clevis back into the square cut-out and secure it.
Does this come with the bolts and nuts included?
Yes, the set includes 4 × 1/4 × 5/8 HEX BZP black bolts and 4 × matching black nylon lock nuts. You do not need to buy any extra fixings.
Is this a DIY-friendly repair?
Absolutely. With only a 10mm socket and spanner, the installation can be completed in minutes. Take a reference photo before you begin, follow our guide, and you’ll be able to do it yourself and save money.
