Chendi ST03-29-345.180-4 Actuator
$199.00
In stock

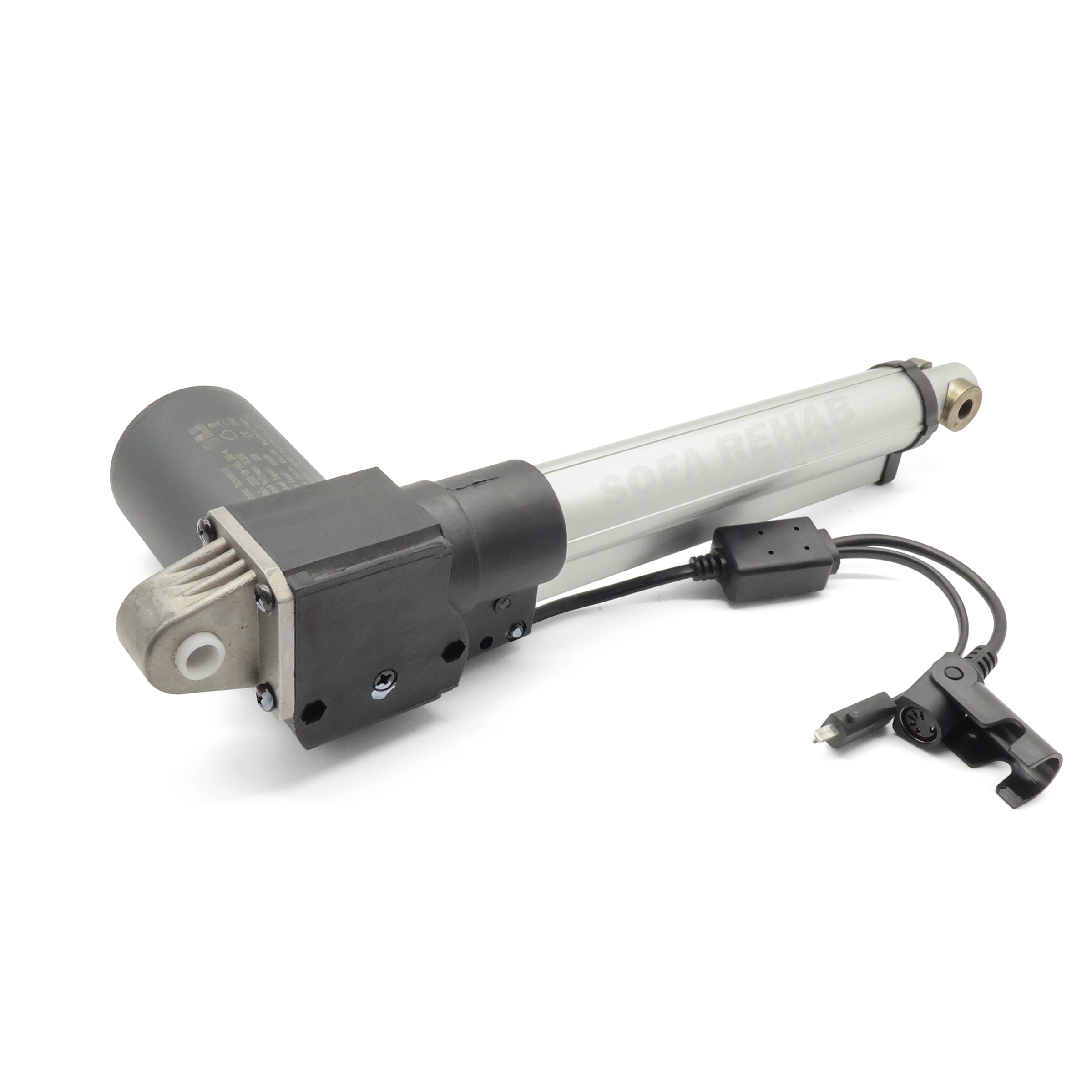

A complete genuine OEM replacement Chendi ST03-29-345.180-4 recliner lift chair actuator/motor. Suitable for many brands of electric recliner lift and tilt chairs. Changzhou Chendi Electrical model number is ST03-29-345.180-4 with a stroke length is 180mm and comes with a female 5 pin din plug and retaining clip and male OI plug. We Only Stock Genuine Chendi Electrical Parts. If you are looking for genuine Chendi electrical recliners parts, look no further! No cheap compatible versions. Quality, Durable And Reliable. This part comes with our 12 Month replacement warranty. So you can be assured of quality and compatibility in the replacement for your recliner. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
Genuine Changzhou Chendi Lift Chair Motor Replacement

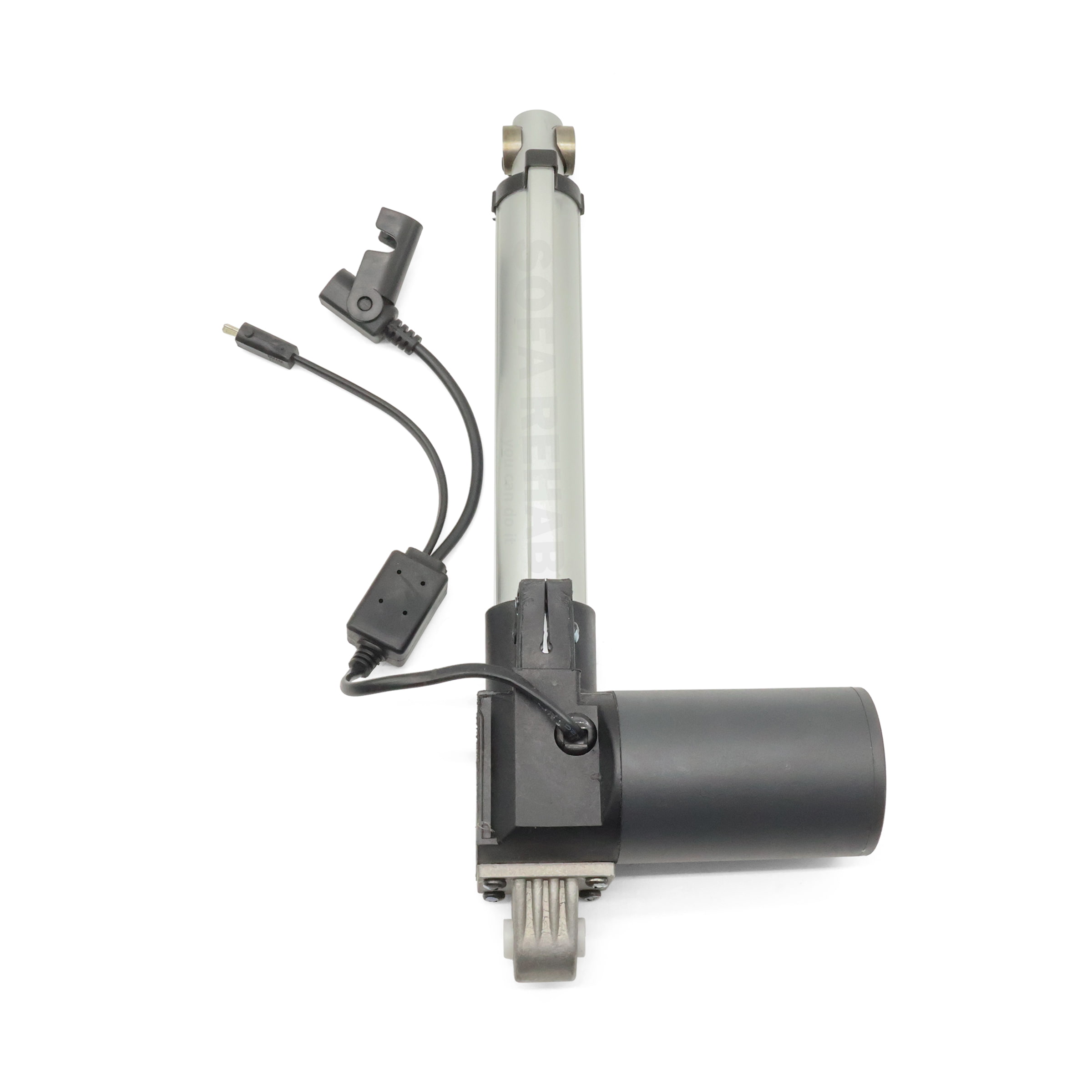

A complete replacement Linear actuator/motor unit which is fully factory assembled and ready to install. This ST03-29-345.180-4 lift chair actuator is designed to drive open and closed the recliner mechanism in order for the furniture to lift, tilt and recline. Ultra quite, swift and smooth operation are just some of the benefits of installing a quality part from Sofa Rehab.
Be Assured You Are Buying Quality
Knowing your getting genuine parts means that you’ll know the cables, plugs and fixing points are all the exact same and a straight swap out.
Australia's leading supplier of recliner chair spare parts
We’re Australia’s leading supplier for repair kits and spare parts. Get the lowest prices on DIY repairs and if your a trades person who needs to buy in bulk, we also offer bulk buy discounts.
Save Time & Money, Do It Yourself
With our wide range of repair products, our easy step-by-step instructions and video tutorials, you’ve got everything you need to repair it yourself. Feel great about having done the repair yourself and saved $$$ on the repair.

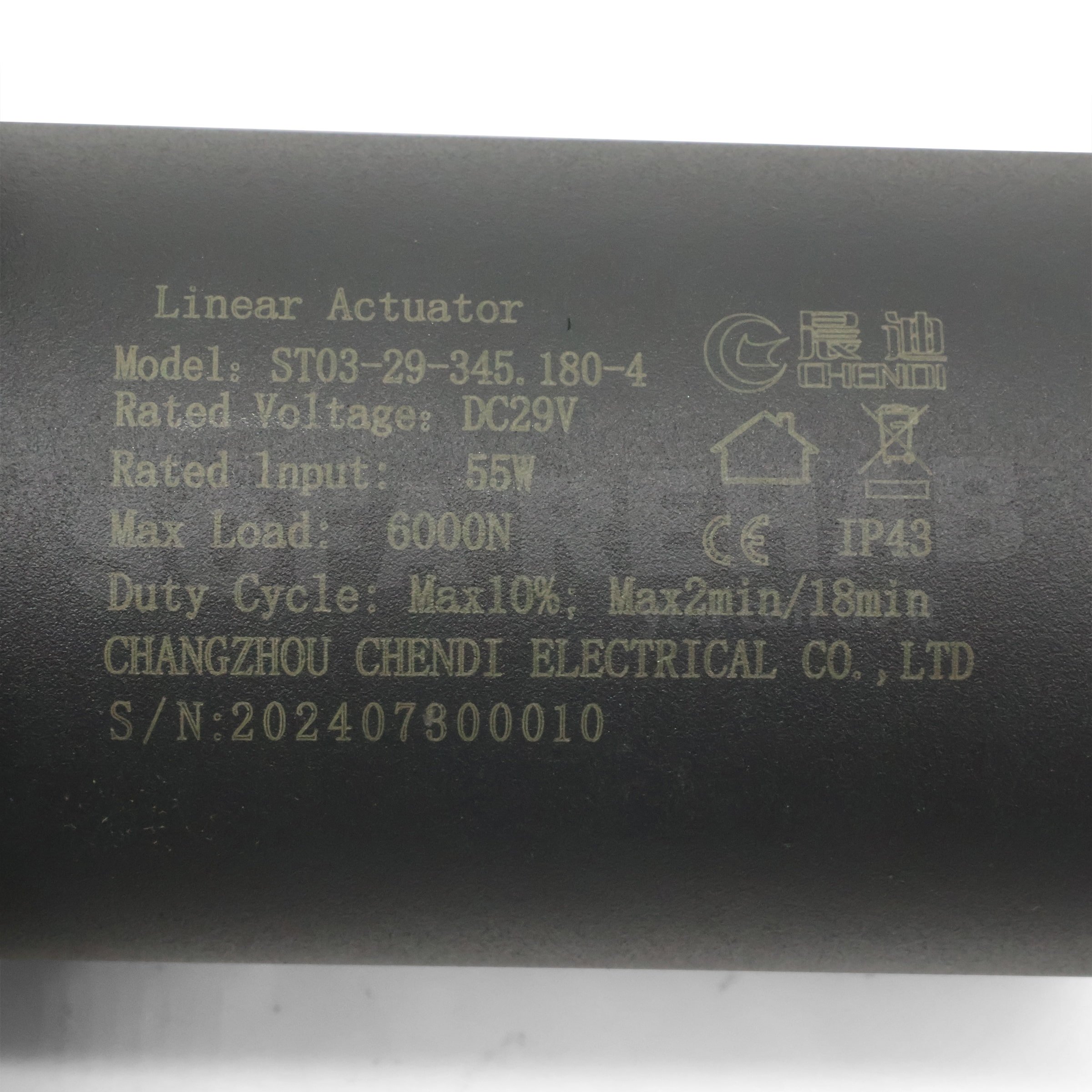

Technical Specifications
Technical Specifications
| Make: | Changzhou Chendi Electrical Co.Ltd |
|---|---|
| Model Number: | ST03-29-345.180-4 |
| Install Length: | 345mm |
| Stroke: | 180MM |
| Max Load: | 6000N |
| Rated Voltage: | DC 29V |
| Rated Input: | 55W |
| Max Duty Cycle: | Max 2min ON and 18min OFF (10%) |
How To
How To
1, Unplug all power to the recliner and remove the mains plug from the wall and check no power
2, Lay a drop sheet on the floor and carefully turn the recliner over on its side or back, please remember safe lifting techniques
3, Check and make a note of how the cables are situated on the recliner frame (photograph is a good idea)
4, Remove any cable clips with pliers/cutters, unplug all linked plugs
5, Detach the Actuator/Motor pin and R clips from the clevis mounts and remove the part fully
6, Install the new Actuator/Motor by refitting the pins and R clips
7, Connect and plug all plugs in
8, Route the cables and attach in position with new cable clips
9, Carefully turn the furniture back over to the standard position
10, Reinstate the power and then fully test the recliner carefully checking all cables are in the correct position and are not being pinched or stretched.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Will this fit my recliner?
For this to be suitable its best to match the model number. Ours being ST03-29-345.180-4. If the model number is different but the stroke, load, speed, install and plugs are the same then it will fit.
Who makes this actuator?
This is manufactured by Changzhou Chendi Electrical Co LTD. Better known as Chendi.
What is the install length of this part?
345mm
