eMoMo E50BAAU C13 Power Socket Switch
$54.50
In stock

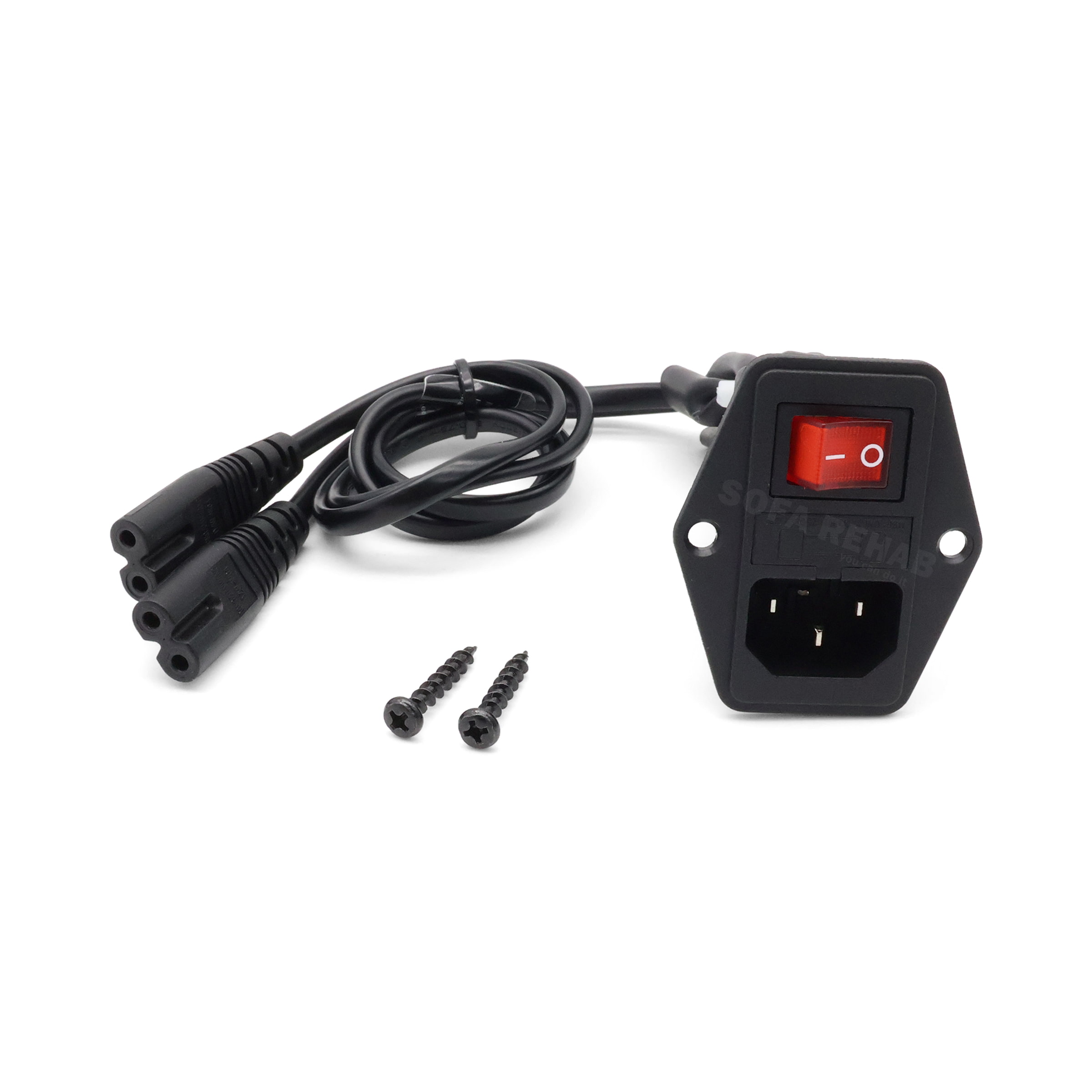

eMoMo E50BAAU replacement foundation power socket with illuminated orange/red on/off switch and C13 plug input. Fits neatly into the rear arm of electric recliner chairs and lounges. Features two figure-8 output leads (510 mm each), built-in dual glass fuse compartment (one active + one spare) and includes two mounting screws. Requires a 50 × 33 mm cut-out for installation. eMoMo E50BAAU Power Recliner On/Off Socket. This foundation socket accepts a standard C13 power lead to connect your lounge to the wall power point. Includes illuminated power switch, fuse box with spare fuse, and dual figure-8 output leads to supply your recliner’s motors or control box. Need Help or Looking for Another Power Socket? See our complete range of power sockets & leads (click here) for alternative plate sizes, cable lengths or plug styles. Need help choosing the right one? Get in touch and we’ll guide you. read more
In stock
- Description
- Technical Specifications
- How To Tutorial
- Reviews (0)
- FAQs
- Add a review
Description
eMoMo E50BAAU Power Recliner Foundation Socket – C13 On/Off Switch with Fuse Box
The eMoMo E50BAAU foundation socket is a genuine replacement power inlet designed for electric recliners, sofas, and theatre lounges. It mounts neatly into the rear arm frame and serves as the main power connection point between your lounge and the wall outlet.

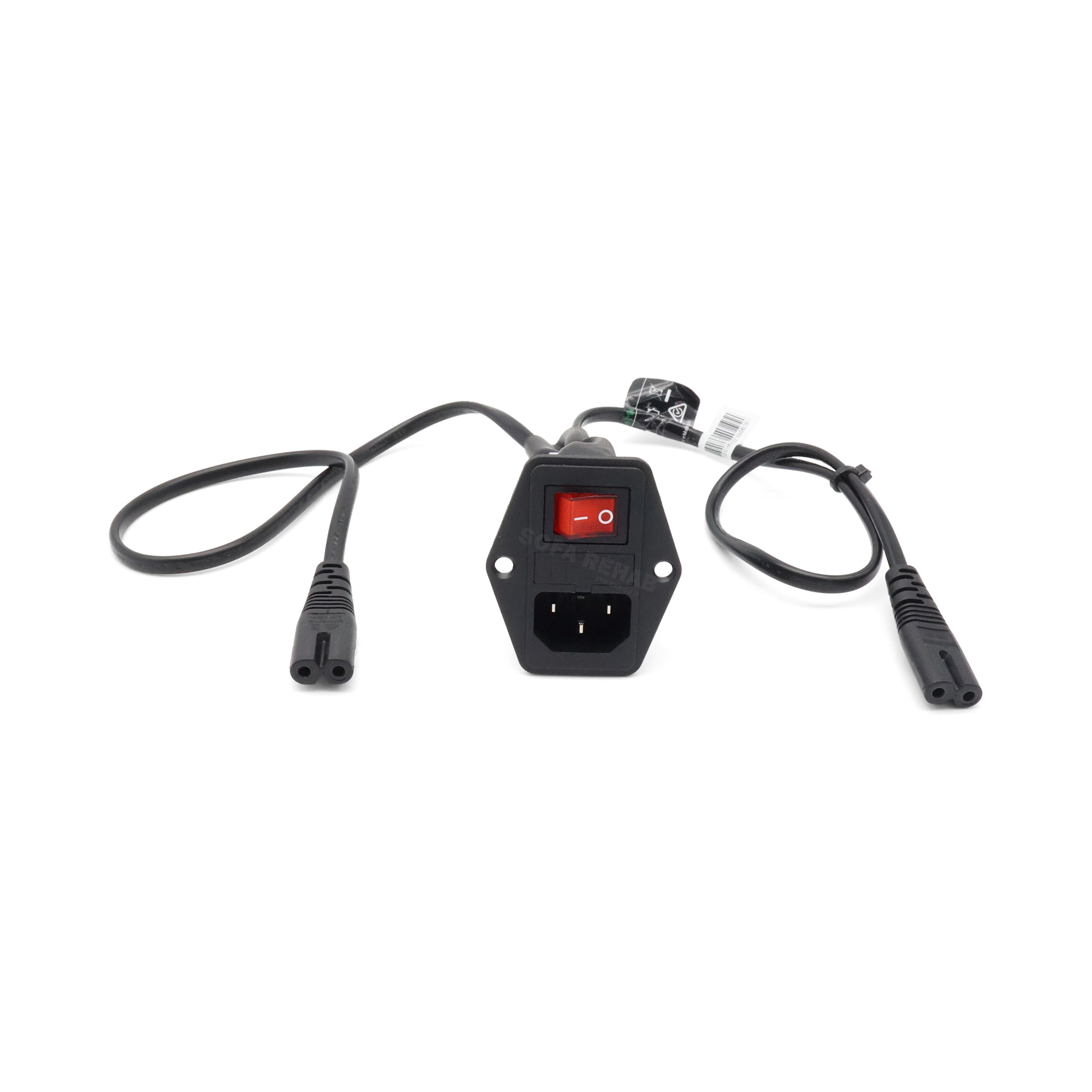

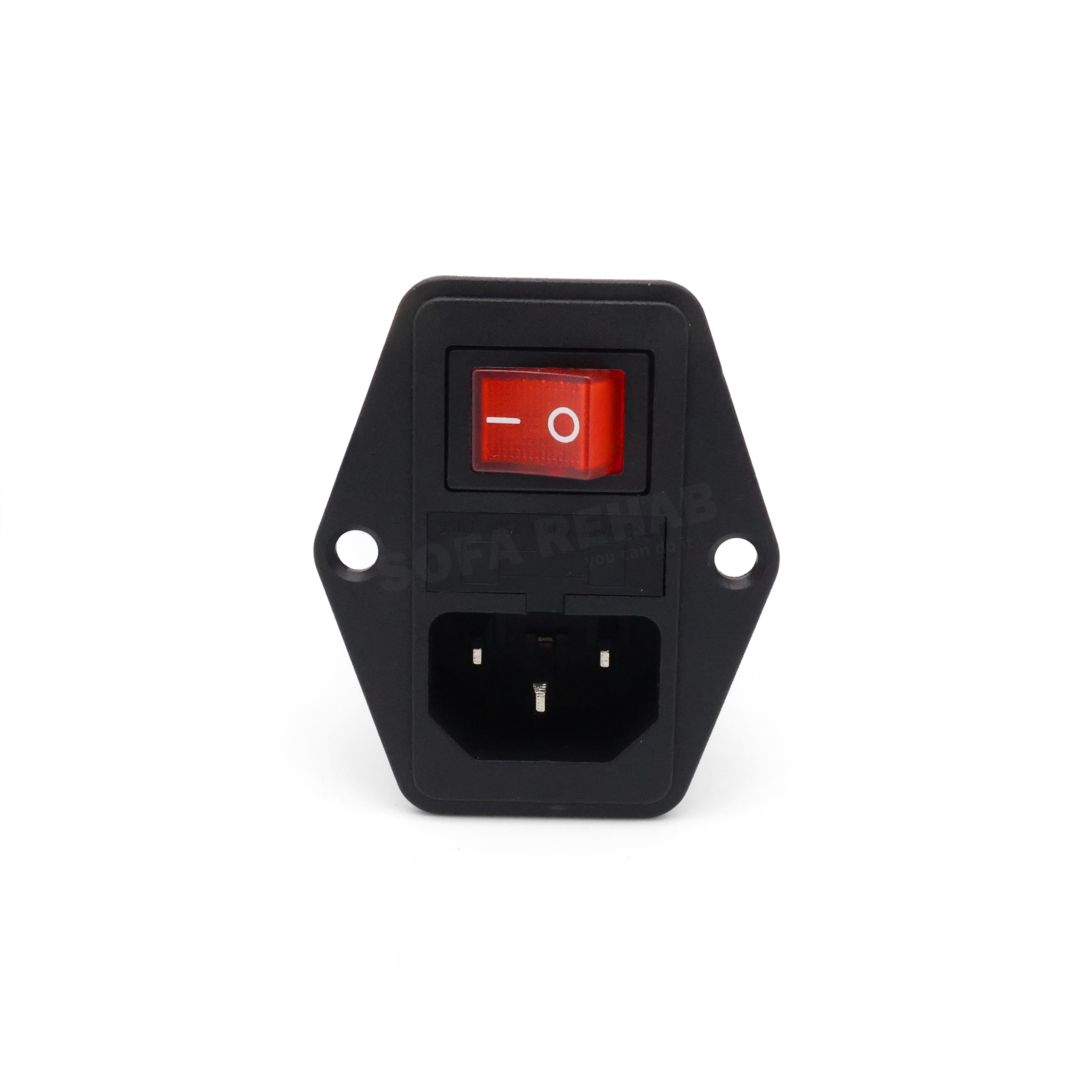

This module features an illuminated orange/red rocker on/off switch and accepts a standard C13 plug. On the rear side, two figure-8 (OI/C7) output leads (510 mm each) connect internally to the recliner’s transformer or power distribution harness. A built-in fuse compartment houses two glass fuses — one in use and one spare — for added safety and convenience.
Installation & Fitment Details
Installing this foundation socket is quick and straightforward. The unit fits a 50 × 33 mm cut-out and is secured with two screws (included). The faceplate measures 59 mm long × 50 mm wide and is shaped to suit standard recliner arm mounting positions.
The plug-and-play design makes it suitable for most power recliners that use an eMoMo foundation socket with C13 input and dual figure-8 outputs. No soldering or special tools are required — simply remove the old unit, position the new socket, tighten the screws, and connect the cables.
Quality Spare Parts from Sofa Rehab
Manufactured by eMoMo Technology, a leading supplier of motion-furniture electronics, this genuine OEM replacement ensures reliable performance and compatibility. The integrated dual-fuse design provides circuit protection and peace of mind while maintaining a clean, factory-fit finish on your recliner.
Save Time & Money and Do It Yourself
Replacing this socket takes under ten minutes with only a Phillips-head screwdriver—no prior experience needed. Follow our step-by-step tutorial or watch the video in the “How To” tab, then sit back and enjoy the satisfaction of a job well done.
Technical Specifications
Technical Specifications
Technical Specifications
- Model: eMoMo E50BAAU
- Product type: Foundation socket with on/off switch and fuse box
- Switch: Illuminated orange/red rocker switch (On/Off)
- Input socket: IEC C13 female (connects lounge to wall power lead)
- Fuse compartment: 2 × glass fuses (5 × 20 mm; 1 fitted, 1 spare)
- Mounting location: Rear arm of recliner or sofa frame
- Face plate size: 59 mm (length) × 50 mm (width at widest)
- Cut-out required: 50 mm × 33 mm
- Fixing method: 2 × screws (supplied)

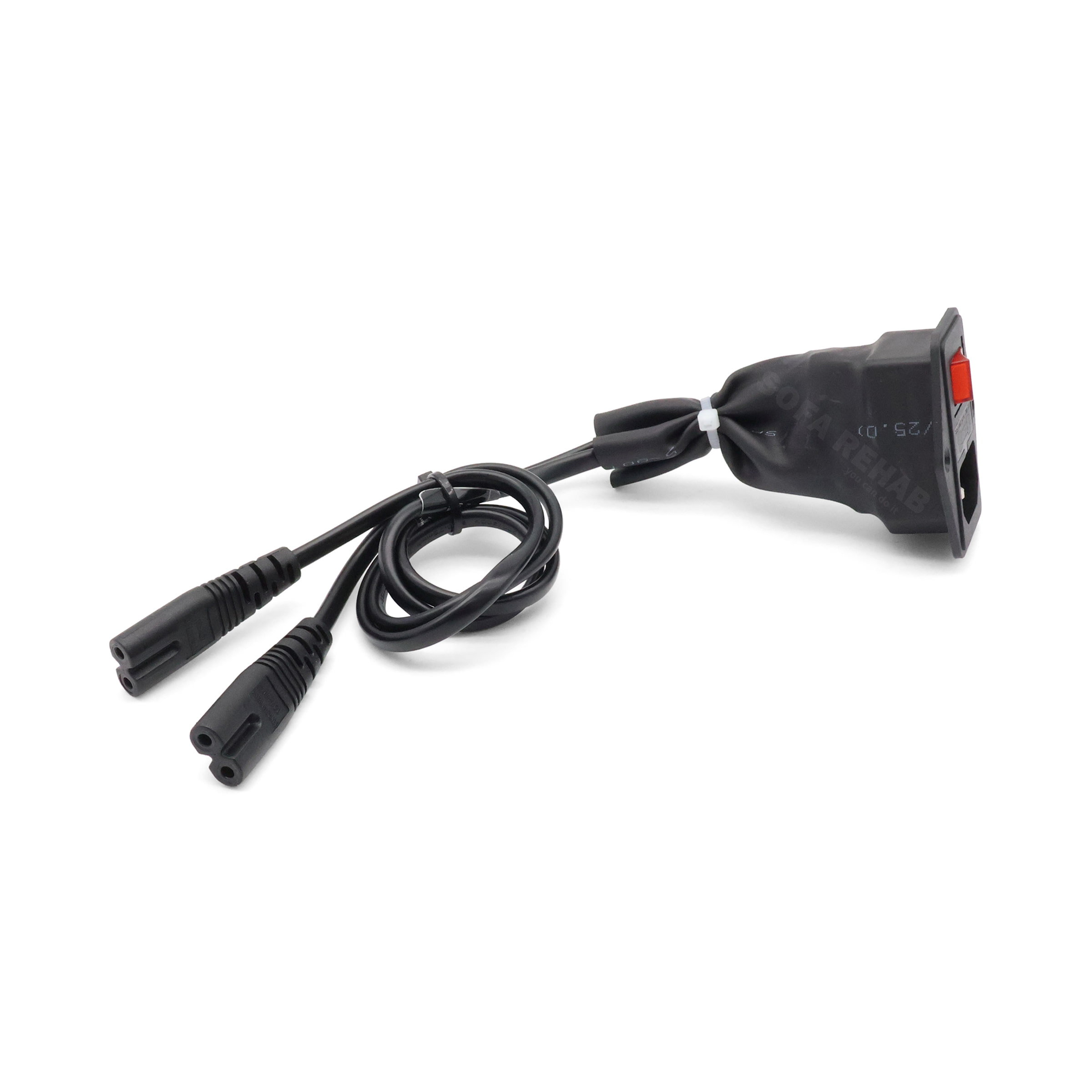

- Internal outputs: 2 × figure-8 (OI/C7) connectors
- Cable length: 510 mm each (measured from the back of the foundation socket including the figure-8 connector)
- Installation: DIY friendly; screwdriver required
- In the box: E50BAAU foundation socket, 2 × mounting screws, 2 × glass fuses (1 installed, 1 spare)
How To Tutorial
How To Tutorial
How To Replace the eMoMo E50BAAU Power Socket
Replacing your electric recliner’s foundation socket is quick and straightforward. Follow these steps to safely and confidently install your new eMoMo E50BAAU C13 power socket with on/off switch and fuse box.
Before You Start
- Unplug the recliner from the wall power point to ensure safety.
- Take a clear photo of your current socket and cable connections before removing anything. This will make it easier to reconnect the cables correctly later.
- Prepare your workspace: Make sure there’s enough space behind the recliner to tilt or move it safely.
- Use safe lifting techniques: If the recliner needs to be moved or tilted, bend your knees and keep your back straight. Always lift using your legs, not your back. Ask someone for help if the chair is heavy.
- Have a Phillips head screwdriver ready — no other tools are required.
Step-by-Step Instructions
- Lay the recliner gently on its side or back to access the rear arm area where the socket is fitted.
- Remove the two screws securing the old socket and gently pull the unit out.
- Unplug the two figure-8 connectors from the internal cables or transformer harness. If they’re tight, wiggle gently — do not pull on the wires.
- Compare the new socket to the old one to confirm matching cable types and connection layout.
- Connect the two figure-8 plugs on the new socket to the same positions as your original (refer to the photo you took earlier).
- Insert the new socket into the existing cut-out (50 × 33 mm) and align the screw holes.
- Secure the socket using the two supplied screws. Do not overtighten.
- Reconnect your recliner’s power lead to the new C13 socket, plug into the wall outlet, and test the illuminated switch.
After Installation
Once installed, ensure the switch operates smoothly and the indicator light illuminates when turned on. If the recliner doesn’t power up, double-check the fuse compartment — one fuse is active and the second is a spare.
Need Help?
If you have any questions or need help identifying your recliner’s power components, contact our friendly Sofa Rehab support team by phone, email or instant chat. We’re always happy to help you get your repair done right the first time.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Will this socket fit my recliner or theatre lounge?
Yes, this foundation socket suits most electric recliners and lounges that use an eMoMo power system with a C13 plug input and figure-8 (OI/C7) outputs. If you’re unsure, check the model number printed on your old socket or send us a photo — we’ll confirm compatibility for you.
What tools do I need to install it?
All you need is a Phillips head screwdriver. The replacement socket is DIY-friendly and comes with mounting screws, so no soldering or special tools are required.
Does it include the power cable to the wall?
No, this listing is for the foundation socket only. It accepts a standard IEC C13 power lead, which can be purchased separately if you need a replacement wall power cable.
How do I know if my existing socket is faulty?
If your recliner’s power light doesn’t turn on, the chair isn’t responding, or the fuse keeps blowing, it’s often due to a damaged or burnt foundation socket. Replacing it with a new E50BAAU unit is a simple fix that restores safe power connection.
Can I replace this part myself safely?
Absolutely. Just unplug your recliner before starting, take a photo of the cable connections for reference, and follow our step-by-step guide. Always lift or tilt the chair using safe lifting techniques — bend your knees and keep your back straight.
