Kaidi KDH020-317 Touch Sensor Kit
$89.95
In stock
Universal Kaidi KDH020-317 touch sensor kit for single actuator electric recliners. This complete kit includes two chrome-plated touch sensors, control box and 2-metre actuator cable with straight 5-pin DIN plug. Designed for side-mounted installation through thick upholstery with secure nut fittings. Genuine Kaidi KDH020-317 Replacement Touch Sensor Kit. Includes two 19.5mm chrome-faced touch buttons, control box and 2m lead with 5-pin plug. Compatible with single-motor recliners using Kaidi actuator systems and 24–29v DC power supplies. Need Another Type of Switch? See our wide range of replacement recliner seat mounted switches (click here) or contact us if you need help choosing the right match for your recliner. read more
In stock
- Description
- Technical Specifications
- How To Tutorial
- Reviews (0)
- FAQs
- Add a review
Description
Kaidi KDH020-317 Touch Sensor Switch Kit for Single Motor Recliners

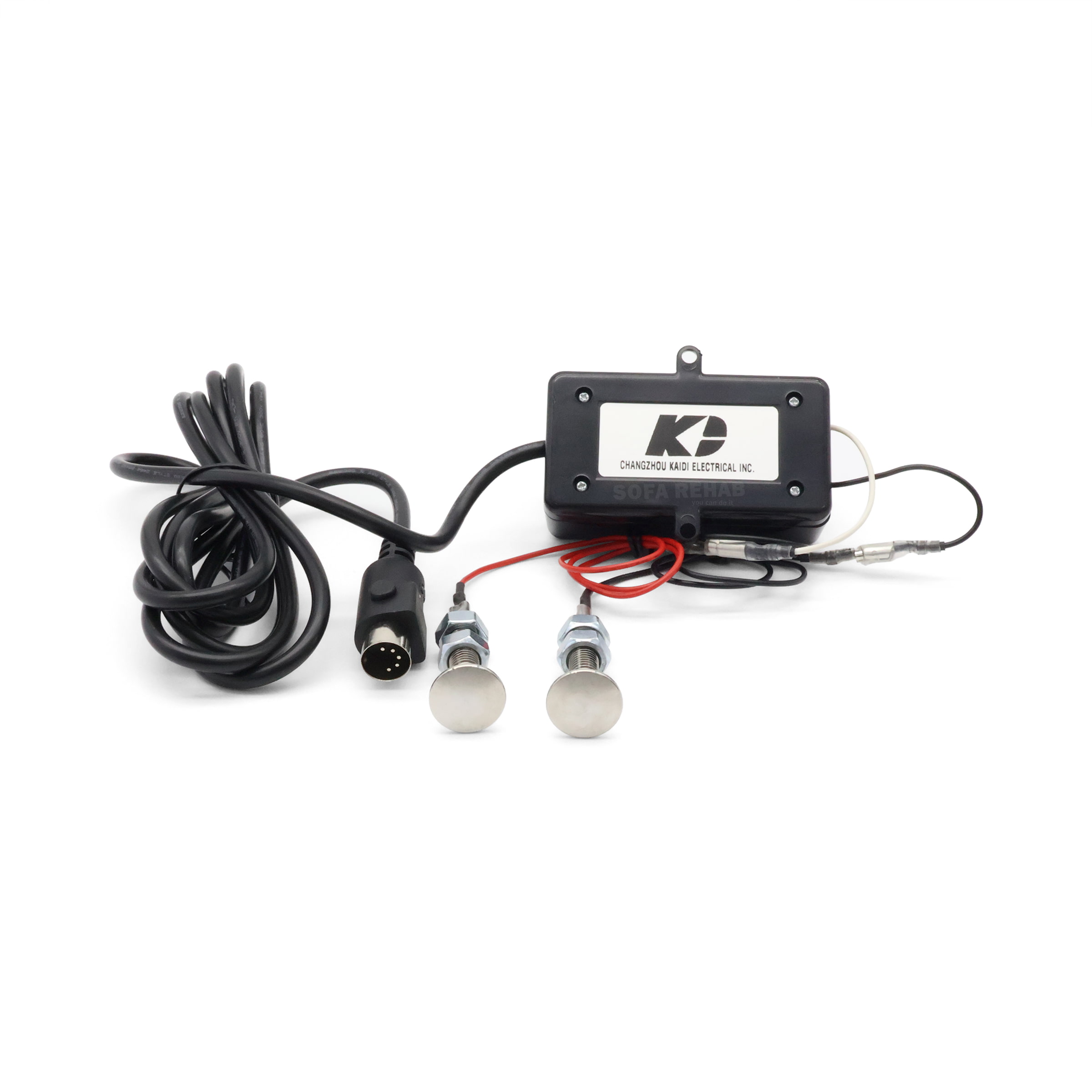

The Kaidi KDH020-317 is a complete touch sensor control kit designed to operate single actuator recliners. It includes two chrome-plated touch sensors, a control box, and a 2-metre actuator cable with a standard 5-pin DIN plug. This genuine Kaidi kit is a direct replacement for damaged or faulty touch controls commonly used in electric recliners and lounges.
This system offers smooth, reliable operation with a sleek appearance. The two touch sensors can be mounted into the armrest, seat wall, or console panel, making it ideal for both fabric and leather recliners with thick upholstery.
Genuine Kaidi Quality & Compatibility
As an official Kaidi-manufactured part, this KDH020-317 kit is engineered for compatibility with single actuator recliner systems operating on 24–29v DC power. The kit features a universal 5-pin DIN connector with secure retaining clips and two high-quality chrome touch sensors for a modern and durable control solution.
The threaded 31mm sensor shafts and double-nut fittings ensure a secure hold, even in thicker upholstered panels, while the compact control box (86mm × 45mm × 33mm) allows flexible installation options using screws or cable ties.
How It Fits and Works
The chrome sensors mount through the seat side upholstery. Feed the red and black sensor leads through to the underside of the seat cushion or frame and plug them into the control box (red-to-white, black-to-black). Mount or tie the control box securely, then connect the 5-pin DIN plug directly to the actuator. Press the chrome pads to drive the actuator up or down.
Quality Spare Parts from Sofa Rehab
Sofa Rehab are Australia’s leading supplier of recliner spare parts and leather repair kits. We only stock quality genuine and compatible replacement parts to help you keep your furniture working for years to come. Contact our team if you need help identifying the right replacement switch for your recliner.
Simple, DIY-Friendly Installation
You don’t need to be an electrician to replace this part. With only a screwdriver or pliers, the installation can be completed in just a few minutes. The kit’s plug-and-play connectors and threaded sensor shafts make it easy for anyone to fit.
We provide detailed step-by-step guides and video tutorials to help you through the process — you can do it yourself and save on costly professional repair services.
Technical Specifications
Technical Specifications
Technical Specifications – Kaidi KHD020-317 Touch Sensor Switch Set
| Product Type | Touch sensor switch kit for single actuator electric recliners |
|---|---|
| Manufacturer / Model | Kaidi – KHD020-317 |

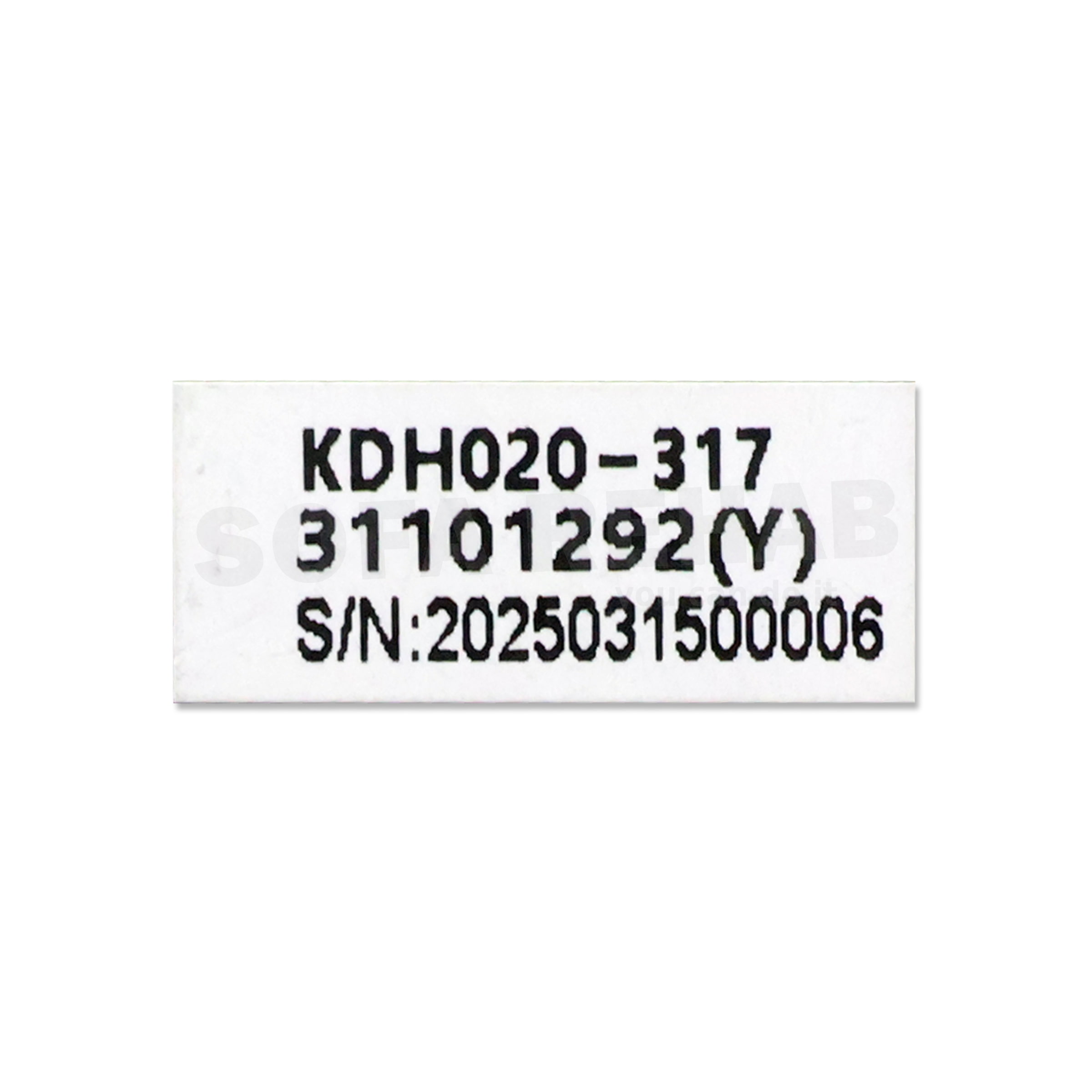

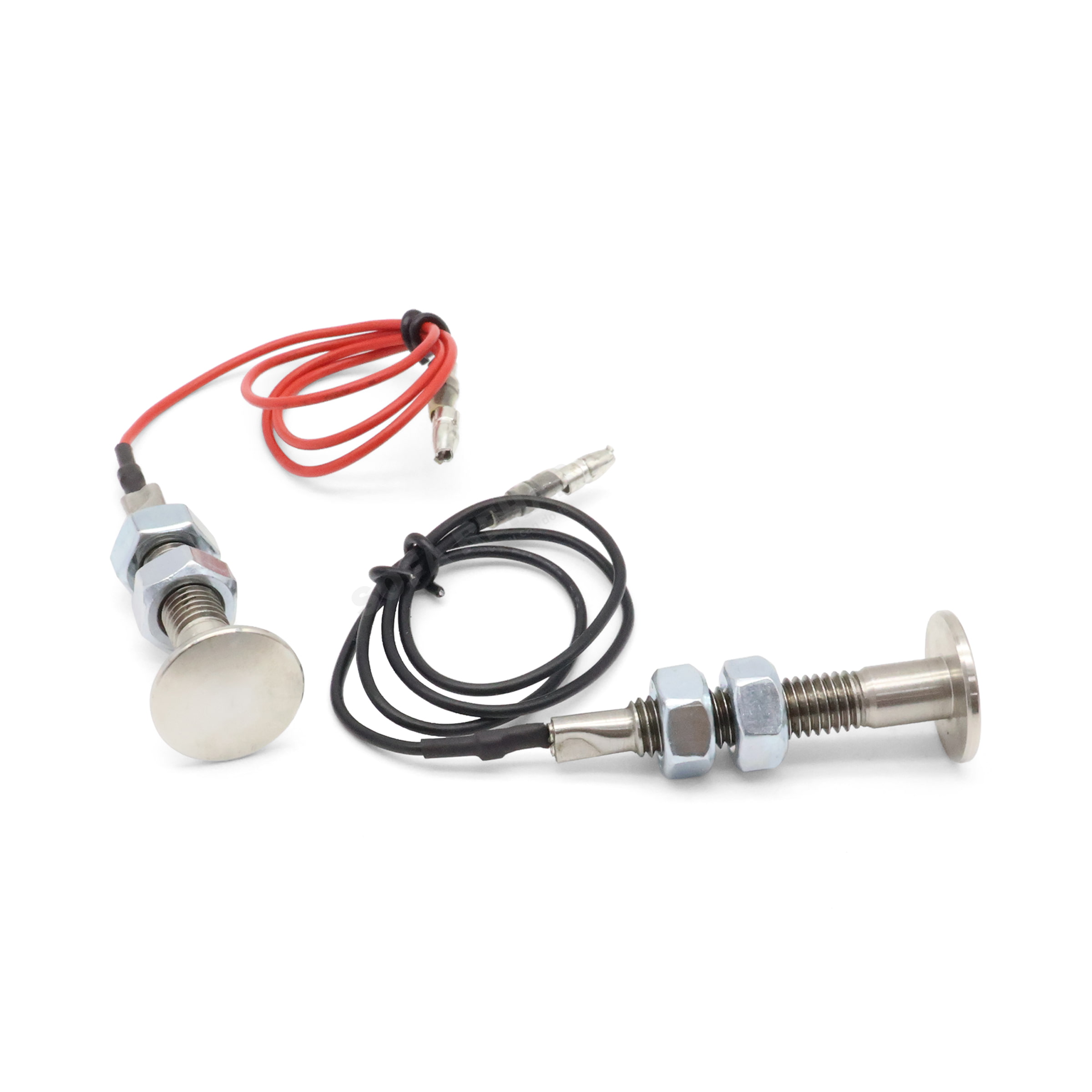

| Sensors | 2 × chrome plated touch sensors, 19.5 mm round face, 31 mm threaded shaft, supplied with 2 nuts per sensor |
| Fixings | Each sensor secures behind upholstery using the supplied nuts |
| Sensor Leads | 1 × red lead and 1 × black lead, 460 mm long each (including fittings), push-fit connectors |
| Control Box | Housing 86 mm × 45 mm × 33 mm with 2 mounting holes (screw or zip-tie fix; hardware not supplied) |
| Control Box Leads | White and black pigtail connectors, 90 mm long each (including fittings). Connect red to white and black to black |
| Actuator Cable | 2000 mm cable with straight 5-pin DIN plug and retaining clasp lugs |
| Compatibility | Designed for single actuator recliners with side-wall mounted touch sensors and a 5-pin DIN actuator connection. Suitable for seat walls, console arm panels or cushions. Suits thick upholstery due to 31 mm threaded length and ~55 mm overall sensor length. |
| Installation | DIY friendly; requires only basic hand tools (screwdriver and pliers). No specialist knowledge required |
How To Tutorial
How To Tutorial
How To Install the Kaidi KDH020-317 Touch Sensor Kit
Replacing this kit is a straightforward DIY task. You will only need basic hand tools (screwdriver and pliers). Follow the steps below and take your time.
-
Unplug the recliner from power.
Disconnect the transformer from the wall outlet and wait 60 seconds. This prevents accidental movement and removes power from the system. -
Prepare a safe work area.
Clear space around the chair and lay a soft blanket to protect finishes. If you need to tilt or move the recliner, use safe lifting technique and ask for help if it is heavy. Do not strain yourself. -
Take a “before” photo.
Photograph the existing sensors, control box and cable routing. This reference will help when reconnecting the new kit. -
Remove the old components.
Locate the current touch sensors and control box. Remove any trim or access panels as required. Undo the sensor fixings from behind the upholstery, then unplug the connectors to the old control box and actuator. -
Fit the new touch sensors.
Insert each chrome sensor through the mounting holes. Use the supplied nuts on the 31 mm threaded shafts to secure behind the upholstery. Tighten until snug. Do not overtighten. -
Connect the sensor leads.
On the control box pigtails, connect red to white and black to black using the push-fit connectors. Ensure each connector clicks fully into place. -
Mount the control box.
Position the control box (86 mm × 45 mm × 33 mm) on the frame where it will not foul moving parts. Fix using screws or cable ties (not supplied). -
Connect the actuator cable.
Route the 2000 mm lead neatly and plug the straight 5-pin DIN into the actuator. The retaining lugs should click into place. Avoid sharp bends and pinch points. -
Tidy the cabling.
Bundle excess length and secure with cable ties. Keep all wiring clear of hinges, scissor arms and mechanisms. -
Restore power and test.
Reconnect the transformer to mains power. Lightly touch each sensor to confirm smooth up and down operation. If movement is reversed, recheck the red to white and black to black connections. -
Refit panels and final check.
Reinstall any covers. Operate the recliner through a full cycle to confirm there are no cable snags or unusual noises.
Safety Tips
- Always disconnect from power before working on the chair.
- Use safe lifting technique when tilting or moving the recliner. Ask for assistance with heavy furniture.
- Keep fingers clear of moving parts during testing.
- Store small parts (nuts and screws) out of reach of children and pets.
- If you are unsure at any step, contact our support team for guidance.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Is the Kaidi KDH020-317 kit compatible with all recliners?
This kit suits single-motor electric recliners that use a 5-pin DIN actuator plug. It won’t work with dual-motor, headrest or massage functions. If unsure, check your actuator plug or contact us for help identifying the right kit.
Do I need any special tools to install it?
No special tools are required. A screwdriver and pliers are all you need. Installation is plug-and-play, and we provide step-by-step guides and video tutorials to make it quick and easy for DIY users.
Can it be fitted to recliners with thick upholstery?
Yes. Each chrome touch sensor has a 31 mm threaded shaft and two securing nuts, allowing it to be fitted through thick arm panels, console walls or seat sides.
What’s included in the box?
You’ll receive two chrome touch sensors, a control box, and a 2 m actuator cable with straight 5-pin DIN plug. All parts are genuine Kaidi components, ready to connect and use.
What should I do before installing the new kit?
Always disconnect power from your recliner before working on it. Take a clear “before” photo of the wiring so you can match the connections later. Follow safe lifting practices when tilting or moving the recliner.
