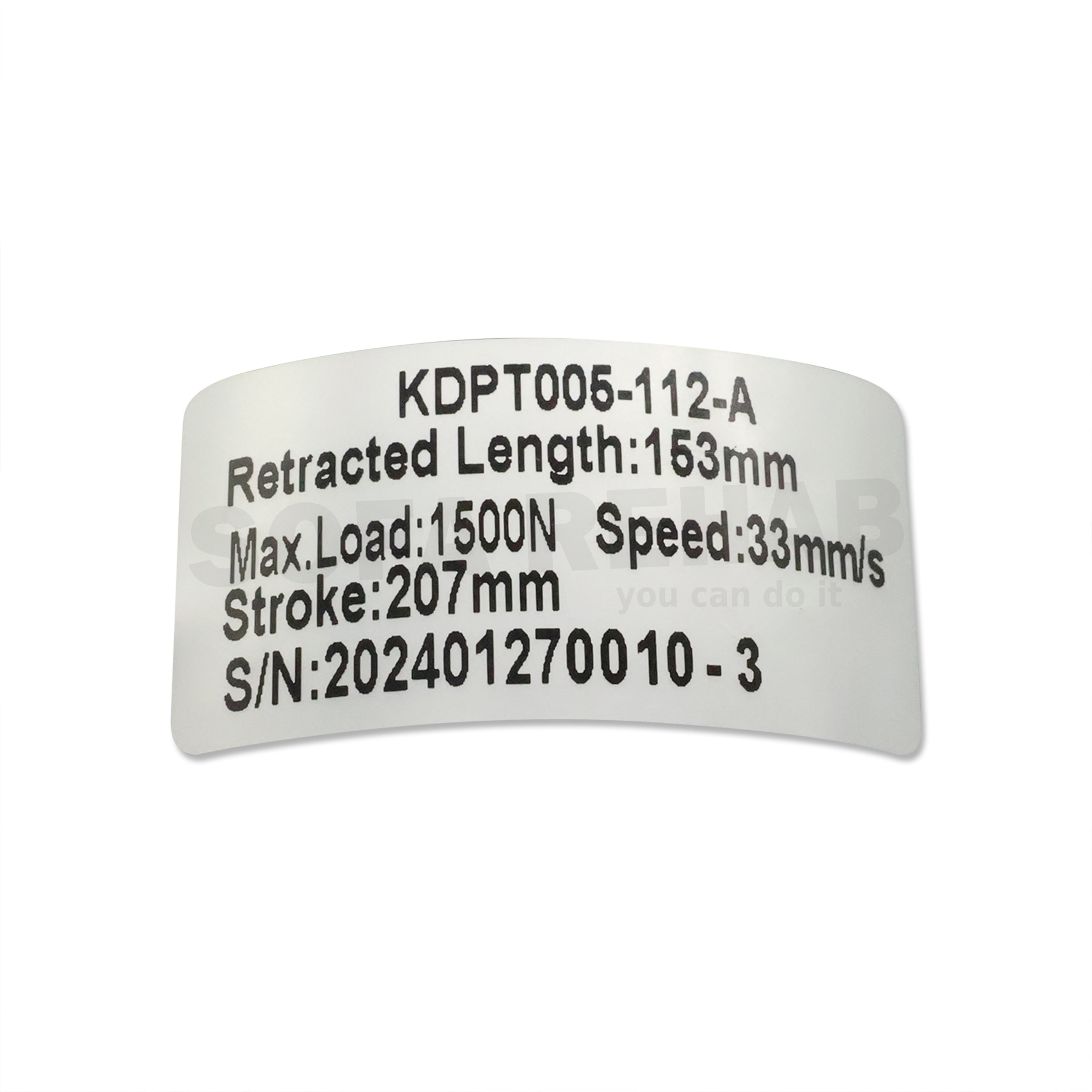

  • compliance-label-for-kaidi-KDPT005-112-A-model-sticker
  • kaidi-KDPT005-112-A-footrest-actuator-153mm-retracted-length-and-207mm-stroke-length
  • replacement-KDPT005-112-A-recliner-actuator-2-pin-OI-cable-and-2-pin-plug-with-retaining-clasp

1 / 4

Zoom In

  • compliance-label-for-kaidi-KDPT005-112-A-model-sticker
  • kaidi-KDPT005-112-A-footrest-actuator-153mm-retracted-length-and-207mm-stroke-length
  • replacement-KDPT005-112-A-recliner-actuator-2-pin-OI-cable-and-2-pin-plug-with-retaining-clasp

0

Recliner Motors/Actuators

Kaidi KDPT005-112-A Recliner Motor

$185.00

In stock

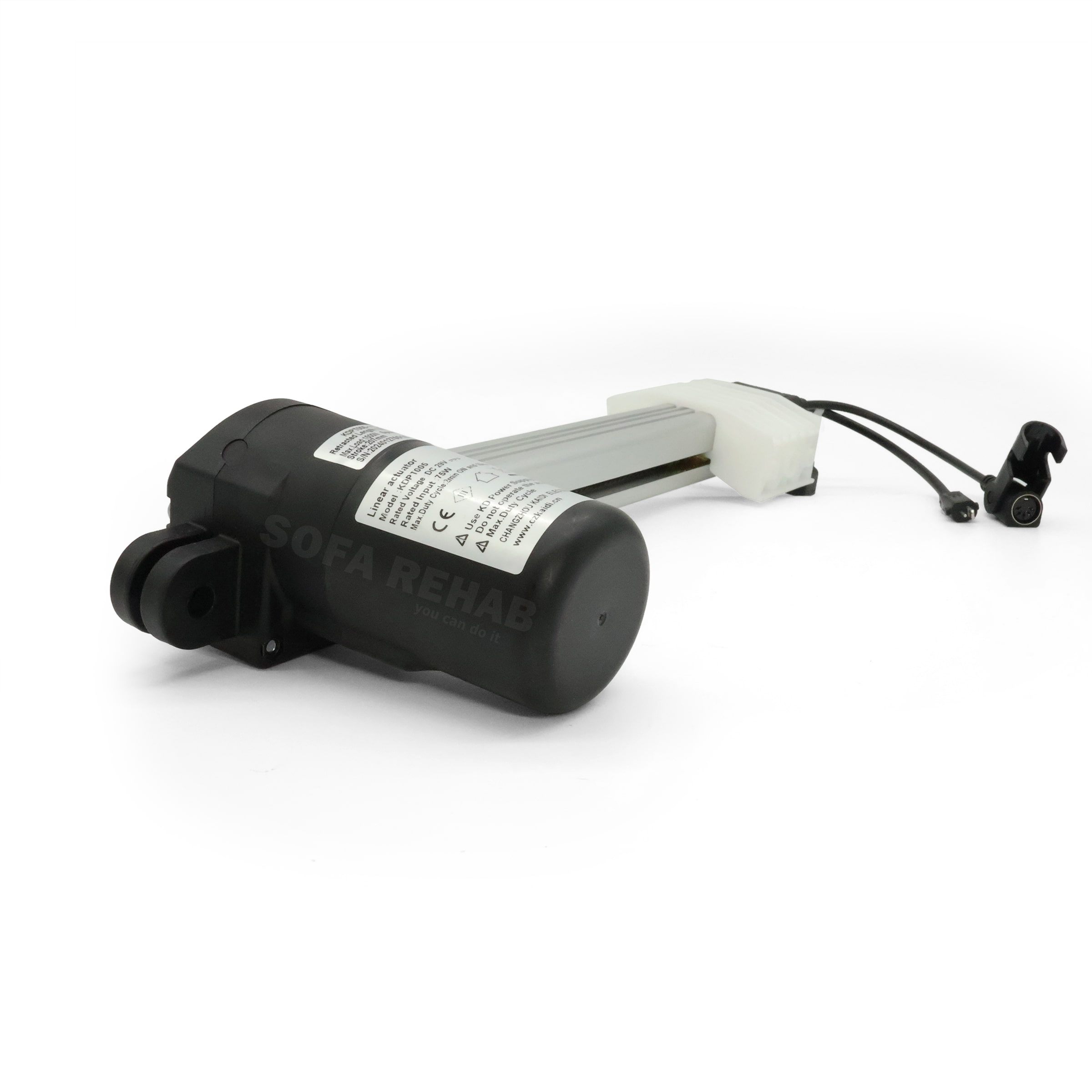

A complete genuine OEM replacement recliner chair and sofa linear footrest actuator/motor. Kaidi model number KDPT005-112-A. Commonly used to recline the footrest mechanism in electric recliner chairs, sofas and theatre lounges. Stroke length is 207mm and comes with a male OI plug and female 5 pin din plug and clasp. We Only Stock Genuine Kaidi Electrical Parts No cheap compatible versions. Quality, Durable And Reliable This part comes with our 12 Month replacement warranty. So you can be assured of quality and compatibility in the replacement for your recliner. read more

SKU:
E-MOTO530
Brand:
Kaidi
Weight
1.86 kg
Dimensions
45 × 16 × 8 cm
view all details

Description

Genuine Kaidi Footrest Motor Replacement

A complete replacement Linear actuator/motor unit KDPT005-112-A which is fully factory assembled and ready to install. This actuator is commonly used in electric recliner chairs and lounges to recline the footrest mechanism open and closed. Ultra quite, swift and smooth operation are just some of the benefits of installing a quality part from Sofa Rehab.

Be Assured You Are Buying Quality

Knowing your getting genuine parts means that you’ll know the cables, plugs and fixing points are all the exact same and a straight swap out.

Australia's Leading Supplier Of Recliner Chair Spare Parts

We’re Australia’s leading supplier for repair kits and spare parts. Get the lowest prices on DIY repairs and if your a trades person who needs to buy in bulk, we also offer bulk buy discounts.

Save Time & Money, Do It Yourself

With our wide range of repair products, our easy step-by-step instructions and video tutorials, you’ve got everything you need to repair it yourself. Feel great about having done the repair yourself and saved $$$ on the repair.

Technical Specifications

Technical Specifications

Make – Kaidi Electrical.
Model Number – KDPT005-112-A.
Stroke – 207MM.
Retracted Length- 153mm.
Max Load – 1500N.
Speed – 33MM/S.
Plugs and Cables 1 x female 5 pin din plug and clasp and 1 x male OI plug and cables are 160mm excluding the plugs (approximately).
Rated Voltage – DC 29V.
Rated Input – 75W.
Max Duty Cycle – 2min ON and 18min OFF (10%).

How To

How To

1, Unplug all power to the recliner and remove the mains plug from the wall and check no power
2, Lay a drop sheet on the floor and carefully turn the recliner over on its side or back, please remember safe lifting techniques
3, Check and make a note of how the cables are situated on the recliner frame (photograph is a good idea)
4, Remove any cable clips with pliers/cutters, unplug all linked plugs
5, Detach the Actuator/Motor pin, R clips from the clevis mounts and remove bolts from the white block and remove the part fully
6, Install the new Actuator/Motor by refitting the pins, R clips and bolts
7, Connect and plug all plugs in
8, Route the cables and attach in position with new cable clips
9, Carefully turn the furniture back over to the standard position
10, Reinstate the power and then fully test the recliner carefully checking all cables are in the correct position and are not being pinched or stretched.
