Kaidi KDPT007-141 Recliner Motor
$180.00
In stock
Replacement Kaidi KDPT007-141 actuator motor for electric recliners, sofas and chairs. This genuine Kaidi linear motor is widely used by many furniture brands and is supplied with the standard 2 pin OI male plug and 5 pin female control plug. Model codes KDPT007-141, KDPT007-141N, KDPT007N-141, KDPT007-141-1 and KDPT007-141-1-N are all the same actuator, and plug colours may be black, red or blue. Compatible Kaidi Recliner Actuators. This actuator is interchangeable across all KDPT007-141 family numbers and plug colour variations. It connects with a 2 pin OI male plug (power) and 5 pin female control plug with clasp. Straight swap installation with no wiring changes required. Looking for Another Recliner Actuator? We stock an extensive catalogue of genuine and universal replacement actuators (click here) to suit all popular recliner chair brands and models. If you’re unsure which motor you need, feel free to contact us for assistance. read more
In stock
Description

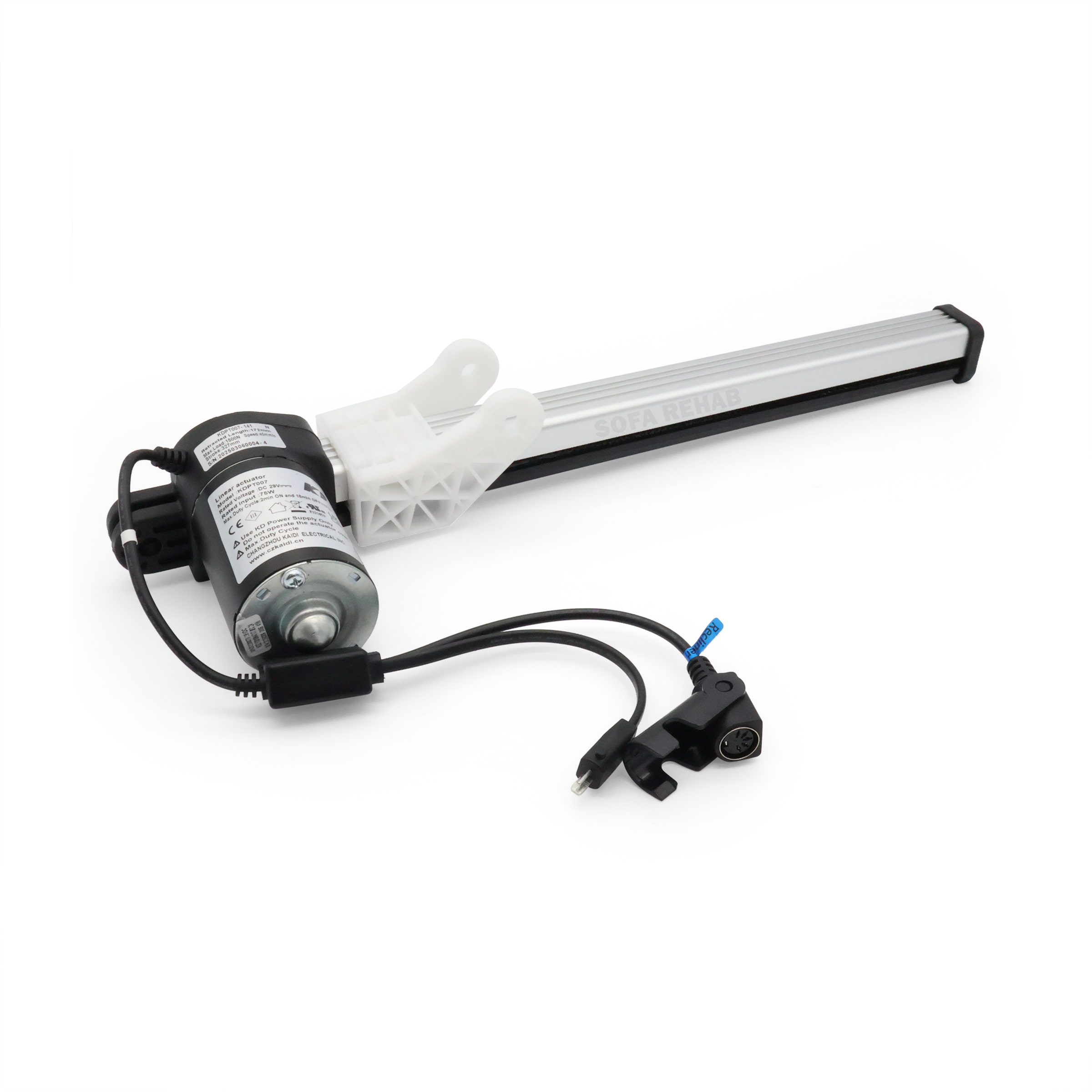

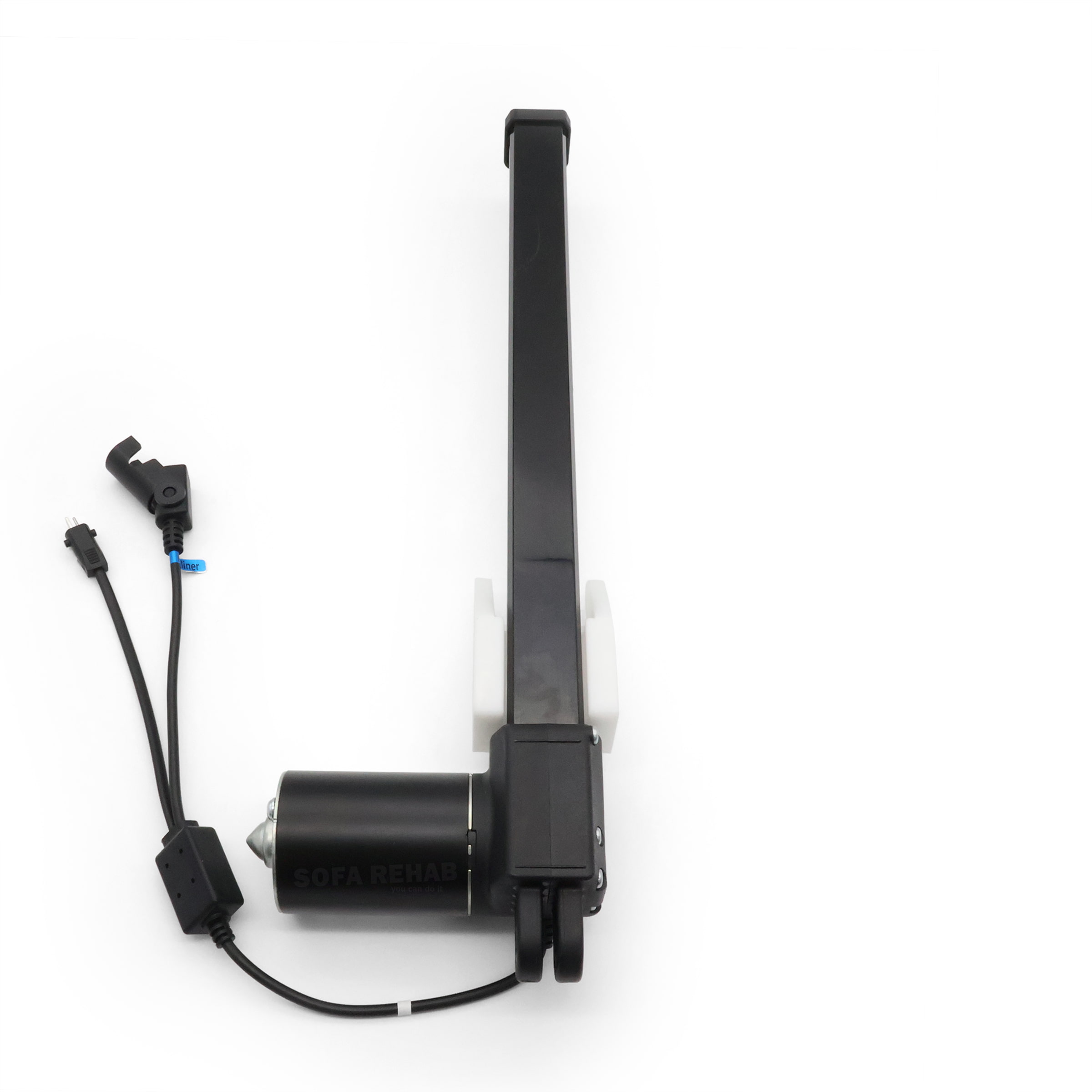

Kaidi KDPT007-141 Recliner Actuator Motor Replacement
This genuine Kaidi actuator is a direct replacement for a wide range of electric recliner chairs, sofas and lift chairs. It is the main motor unit that extends and retracts the recliner mechanism, restoring smooth and reliable operation. Model codes KDPT007-141, KDPT007-141N, KDPT007N-141, KDPT007-141-1 and KDPT007-141-1-N are all the same actuator. Kaidi have also produced this motor with different coloured plugs (black, red or blue), however they are identical in function and interchangeable.
Compatible Connectors and Fitment
Each actuator is supplied with the industry standard connectors:
- Power: 2 pin OI male plug (round + flat pin).
- Control: 5 pin female plug with retaining clasp.
These are the same connections used on all KDPT007-141 variations. Simply match your existing actuator model label or plug style to confirm compatibility. If you are unsure, please contact us for support.
Genuine Kaidi Quality for Reliable Performance
As a genuine OEM Kaidi actuator, this part has been manufactured to meet the same quality and durability standards as your original. You can be confident it will deliver the same smooth operation and long service life. Replacing only the failed actuator instead of the entire mechanism is a cost-effective way to keep your furniture working like new.
DIY Friendly Replacement – Save Time and Money
Replacing a recliner actuator is a straightforward DIY task that requires only basic tools like a pair of pliers anda hammer. With Sofa Rehab’s step-by-step guides and video tutorials, you’ll be able to swap out your faulty motor quickly, restore your recliner to full function, and save on costly repair call-outs.
Technical Specifications
Technical Specifications

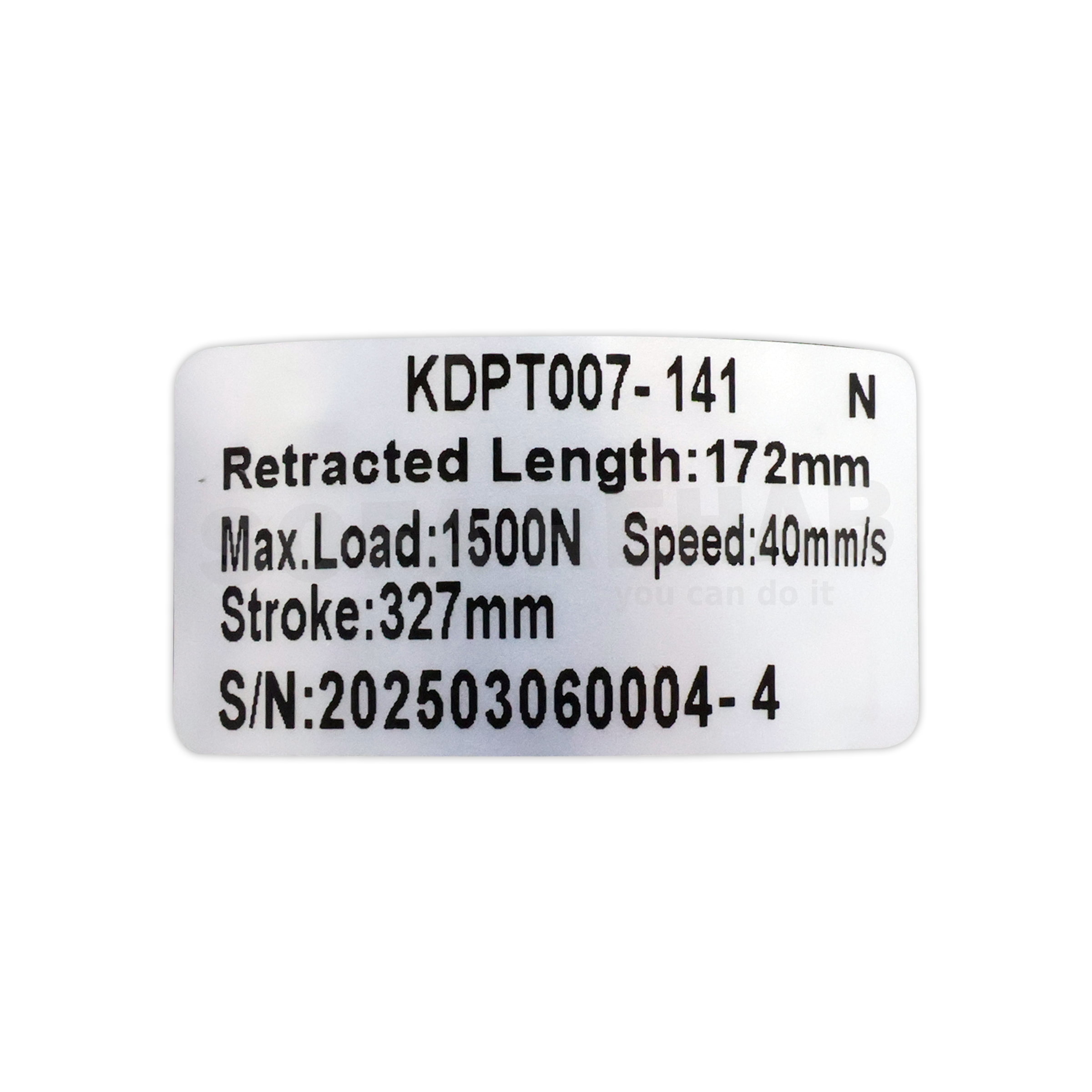

Technical Specifications – Kaidi KDPT007-141 Recliner Actuator
- Manufacturer: Kaidi Electrical (OEM supplier to many recliner brands)
- Model Numbers: KDPT007-141, KDPT007-141N, KDPT007N-141, KDPT007-141-1, KDPT007-141-1-N
- Stroke Length: Approx. 327 mm (12.9 inches)
- Minimum Retracted Length: Approx. 172 mm
- Speed: ~40 mm/s (no-load)
- Load Capacity: Rated up to 1500 N
- Input Voltage: 29 V DC
- Power Rating: ~75 W
- Duty Cycle: Intermittent use – typically 2 minutes on, 18 minutes off
- Connectors:
- 2 pin OI male plug (round + flat pin) – power input
- 5 pin female plug with retaining clasp – control signal
If your existing actuator label matches any of the part numbers above, this is the correct replacement. For help confirming compatibility, please contact our support team (click here).
How To
How To
How To Install the Kaidi KDPT007-141 Recliner Actuator
Replacing your recliner actuator is a simple DIY job that most people can complete in under 20 minutes with just a screwdriver. Please follow these steps carefully for a safe and successful installation.
- Unplug the chair from power. Disconnect the power supply from the wall socket to ensure there is no electrical current running through the unit.
- Turn the chair over safely. Place the chair on its side or back using safe lifting techniques. Recliners can be heavy, so ask for help if needed.
- Take a photo of the wiring. Before you unplug anything, take a clear photo of the actuator plugs and connections. This will help you remember exactly where everything goes when installing the new motor.
- Disconnect the plugs. Unclip the 2 pin power plug and the 5 pin control plug from the old actuator.
- Remove the old actuator. Use a screwdriver to remove the retaining bolts or screws that secure the actuator to the frame. Keep these fixings handy as you will reuse them.
- Fit the new actuator. Position the replacement actuator in the same orientation as the old one. Re-install the bolts or screws to secure it firmly in place.
- Reconnect the plugs. Match the plugs to your photo reference and clip the 2 pin power plug and 5 pin control plug back into place.
- Test the chair. Return the recliner to its normal position, plug it back into the power supply, and test the functions using the handset to confirm smooth operation.
Tip: If anything doesn’t look right during installation, compare your setup to the photo you took at the start, or contact our support team for advice. Doing it yourself is quick and easy, and you’ll save money while enjoying the satisfaction of a successful repair.
Compatible Actuators
Compatible Actuators
Compatible Actuators & Alternate Part Numbers
Kaidi produced this actuator with several part-number variants that are all the same actuator (identical fit and function). If your motor label shows any of the codes below, this is the correct replacement.
- KDPT007-141
- KDPT007-141N
- KDPT007N-141
- KDPT007-141-1
- KDPT007-141-1-N
Plug Styles and Colours
This actuator has the same two connectors across all variants. Kaidi supplied the plugs in different colours over time. Colour does not affect compatibility.
- Power: 2 pin male OI plug (one round pin and one flat pin). Common plug colours include black, red, and blue.
- Control: 5 pin female plug with retaining clasp (mates to the chair’s control lead or control box).
Before You Order (Quick Checks)
- Match the model on your old actuator label to any code in the list above (KDPT007-141 family).
- Confirm your power connector is a 2 pin male OI plug (colour may vary; this is normal).
- Confirm your control lead uses a 5 pin female plug with a retaining clasp.
- Visually compare mounting points and overall layout to ensure like-for-like fitment.
Not sure if yours matches or cannot find the label? Contact our friendly support team and we will help you confirm the right replacement.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
My old actuator says KDPT007-141N, will this replacement fit?
Yes. All model codes in the KDPT007-141 family (including KDPT007-141, KDPT007-141N, KDPT007N-141, KDPT007-141-1, and KDPT007-141-1-N) are the same actuator and fully interchangeable.
The plug on my old actuator is red/blue instead of black, is that a problem?
No. Kaidi have produced this actuator with different plug colours (black, red and blue). The plug style is the same and they are all compatible.
Do I need special tools or professional help to replace this part?
No special tools are required – just basic hand tools like a pair of pliers. Most customers can complete the replacement themselves in under 20 minutes by following our step-by-step guide.
What if I’m not sure this is the right actuator?
If you’re unsure, contact our support team with photos of your existing actuator’s label and plugs. We’ll help you identify the correct replacement. We also stock a wide range of other recliner actuators (click here) for popular brands and models.
What warranty is provided with this actuator?
All genuine Kaidi actuators are covered by a 12-month warranty. If you experience any issues during this time, contact us for assistance and we’ll be happy to help.
