Kaidi KDYJT013-104 Recliner Motor
$179.00
In stock
The Kaidi KDYJT013-104 recliner actuator is a genuine replacement motor designed to deliver smooth and reliable operation for your electric recliner. With an install length of 532mm and a 290mm stroke (822mm extended), this actuator features a 2-pin male power plug and 5-pin female DIN plug with clasp. Kaidi KDYJT013-104 OEM Footrest Actuator. This OEM actuator is engineered for performance and durability, providing a direct fit for electric recliners using the KDYJT013-104 model. Includes the standard Kaidi connector plugs for simple installation. Need a Different Model Actuator? We stock an extensive catalogue of genuine and universal replacement actuators (click here) to suit all popular recliner chair brands and models. If you’re unsure which motor you need, feel free to contact us for assistance. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
Kaidi KDYJT013-104 Recliner Actuator Motor Replacement

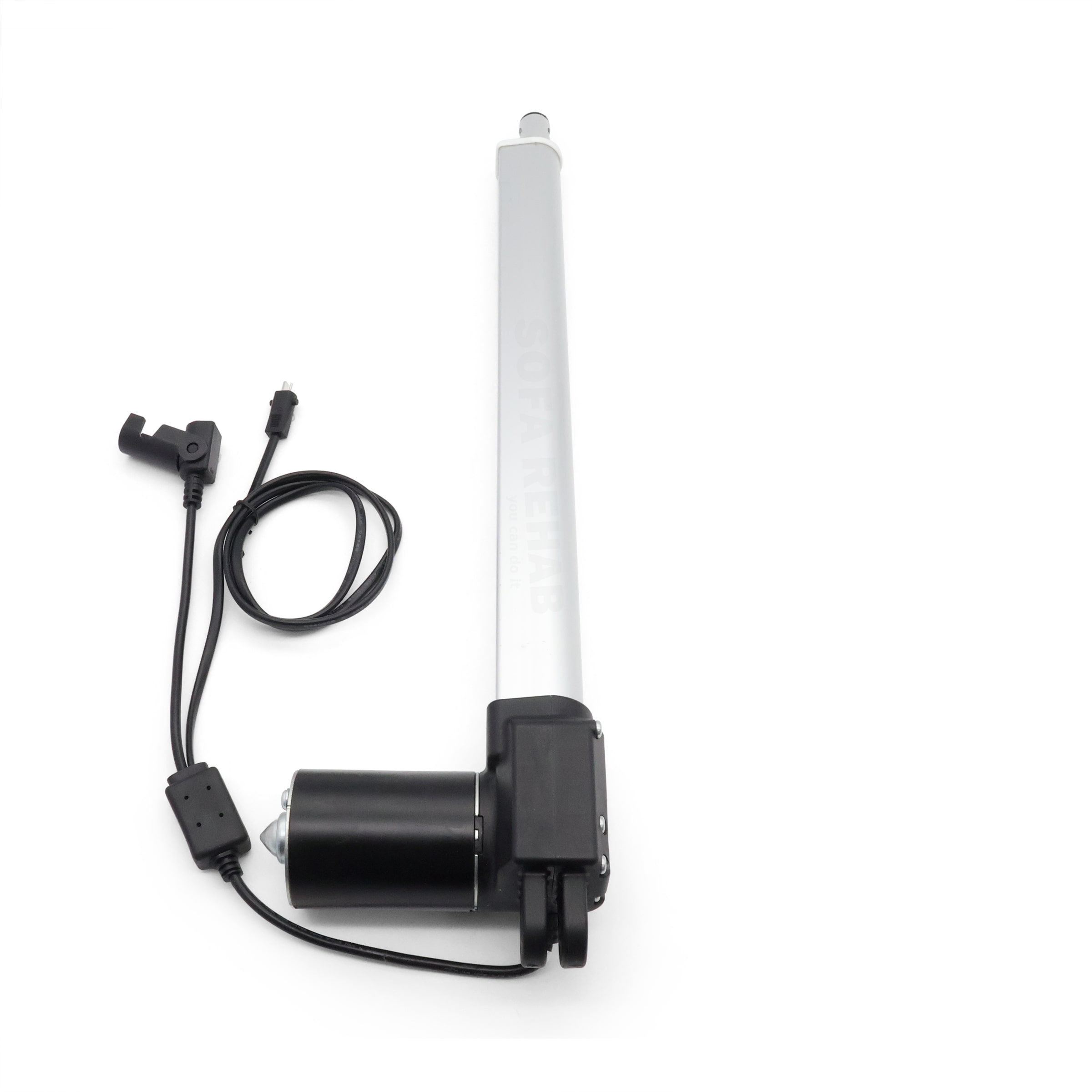

The Kaidi KDYJT013-104 linear actuator is a genuine OEM replacement designed for use in a wide range of electric recliners. With an install length of 532mm and a 290mm stroke, it extends to an overall length of 822mm, providing smooth and reliable operation. It is fitted with a 2-pin male power plug and a 5-pin female DIN plug with clasp for easy connection.
Plug-and-Play Genuine Kaidi Motor
Supplied fully assembled, this actuator is ready to install as a direct replacement for your existing unit. To complete the fitting, simply reuse the original actuator rods and R-clips from your chair’s mechanism. The wiring harness and connectors match the Kaidi factory standard, making this a straightforward swap without modifications.
Guaranteed Genuine Kaidi Parts
Kaidi actuators are widely used in recliner chairs by leading furniture manufacturers. Buying genuine parts means you can be assured of the same plug style, mounting dimensions, and performance as the original unit supplied with your recliner.
DIY Friendly Replacement – Save Time and Money
Replacing a recliner actuator is a straightforward DIY task that requires only basic tools like a pair of pliers anda hammer. With Sofa Rehab’s step-by-step guides and video tutorials, you’ll be able to swap out your faulty motor quickly, restore your recliner to full function, and save on costly repair call-outs.
Technical Specifications
Technical Specifications
Technical Specifications

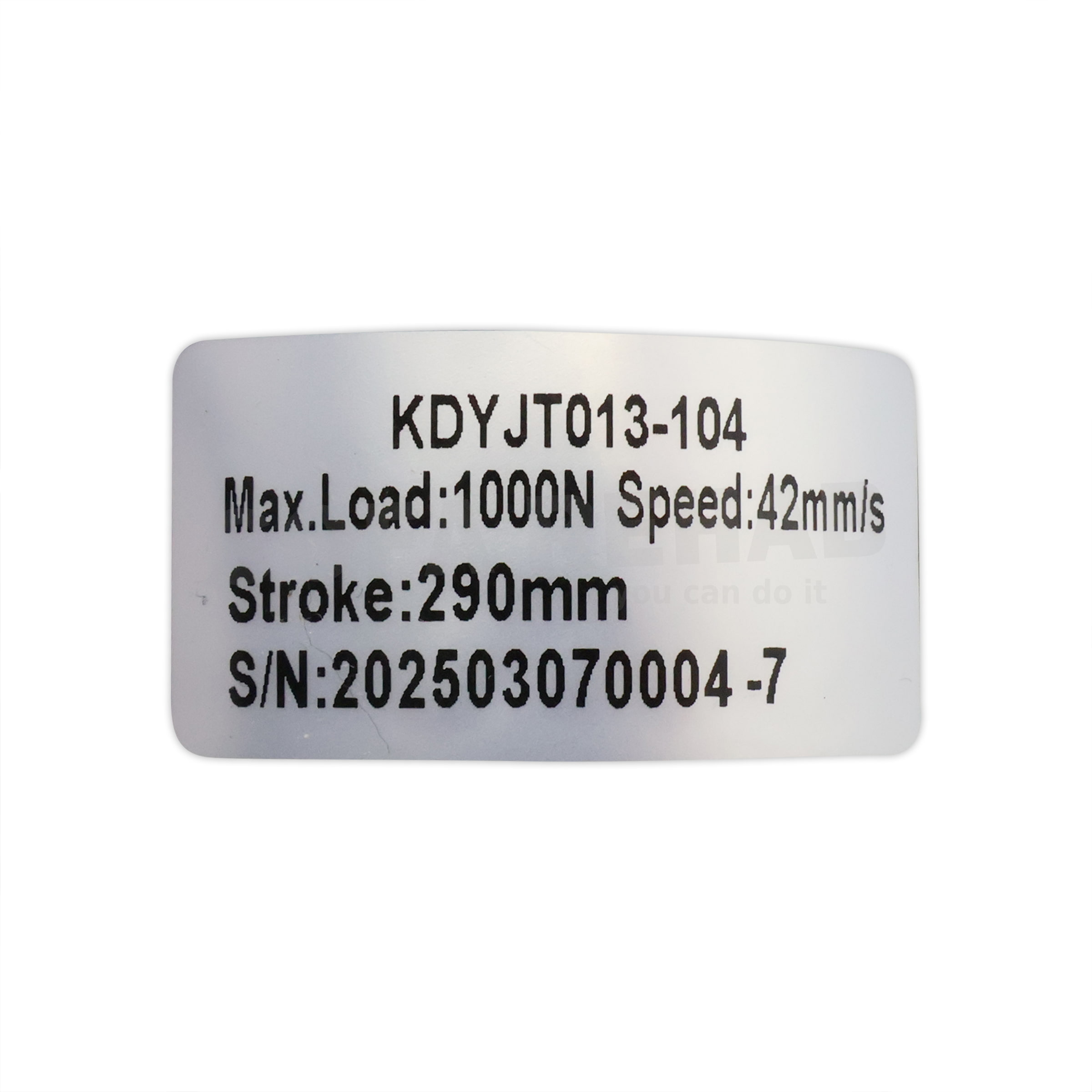

- Model: Kaidi KDYJT013-104
- Type: Linear actuator motor for electric recliners and lift chairs
- Install Length (Closed): 532mm
- Stroke Length: 290mm
- Overall Extended Length: 822mm (install length + stroke)
Connectors
- Power: 1 x 2 pin male plug
- Control: 1 x 5 pin female DIN plug with clasp
Installation Notes
Hardware required: Actuator rods and R-clips are required for installation and are not supplied. Please reuse the original rods and R-clips from your existing mechanism.
How To
How To
How To Install the Kaidi KDYJT013-104 Actuator
Replacing your recliner actuator is a quick and simple DIY job that requires only basic tools. No special experience is needed, and by following these steps you can safely and confidently complete the installation yourself.
- Unplug the power supply. Before starting, disconnect the chair from the wall socket and transformer to ensure your safety.
- Practice safe lifting techniques. Recliners can be heavy. If possible, ask for assistance when turning the chair over to access the mechanism.
- Take a reference photo. Use your phone to take a clear picture of the existing actuator, plugs, and connections. This will make it easier to reconnect everything correctly.
- Remove the old actuator. Disconnect the 2-pin and 5-pin plugs, then carefully remove the actuator rods and R-clips (keep these for reuse).
- Install the new actuator. Position the new Kaidi KDYJT013-104 actuator in place, reinsert the rods, and secure with the original R-clips.
- Reconnect the plugs. Attach the 2-pin power plug and the 5-pin DIN control plug securely, making sure the clasp locks in place.
- Test the operation. Plug the recliner back into the power supply and test the open/close function to ensure smooth operation.
Tip: Keep your reference photo saved in case you need to check the wiring later. If you encounter any questions or need guidance, our friendly support team is here to help.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Is this the exact replacement for my Kaidi KDYJT013-104 actuator?
Yes, this is a genuine Kaidi OEM actuator with the same install length (532mm) and stroke length (290mm). It is designed as a direct plug-and-play replacement.
What type of plugs does it use?
The actuator is fitted with 1 x 2 pin male power plug and 1 x 5 pin female DIN plug with clasp. These match the original Kaidi connectors for easy installation.
What is the difference between this actuator and others in the Kaidi KDYJT013 series?
The “-104” at the end of the model number indicates a specific stroke length (290mm) and cable configuration (5-pin DIN plug plus 2-pin male). Other variants may have different strokes or plugs, so always match the full model number when ordering
Do I need professional help to install it?
No, this actuator is DIY-friendly. With our step-by-step instructions and video tutorials, most people can complete the replacement in under 30 minutes without prior experience.
What warranty is provided with this actuator?
All genuine Kaidi actuators are covered by a 12-month warranty. If you experience any issues during this time, contact us for assistance and we’ll be happy to help.
