Kaidi KDYJT018-308 Recliner Motor
$195.00
In stock
A replacement electric recliner chair and sofa footrest actuator/motor. Model number KDYJT018-308. Stroke length is 250mm and comes with a female 5 pin plug with retaining clasp and male OI blue coloured plug. Genuine Kaidi Electrical Part We are Australia's Leading supplier of recliner spare parts. Produced by Changzhou Kaidi Electrical Co Ltd. Quality, Durable And Reliable This is a genuine replacement motor so you can be assured of quality and compatibility in the replacement for your recliner. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
Replacement Kaidi KDYJT018-308 Electric Recliner Actuator

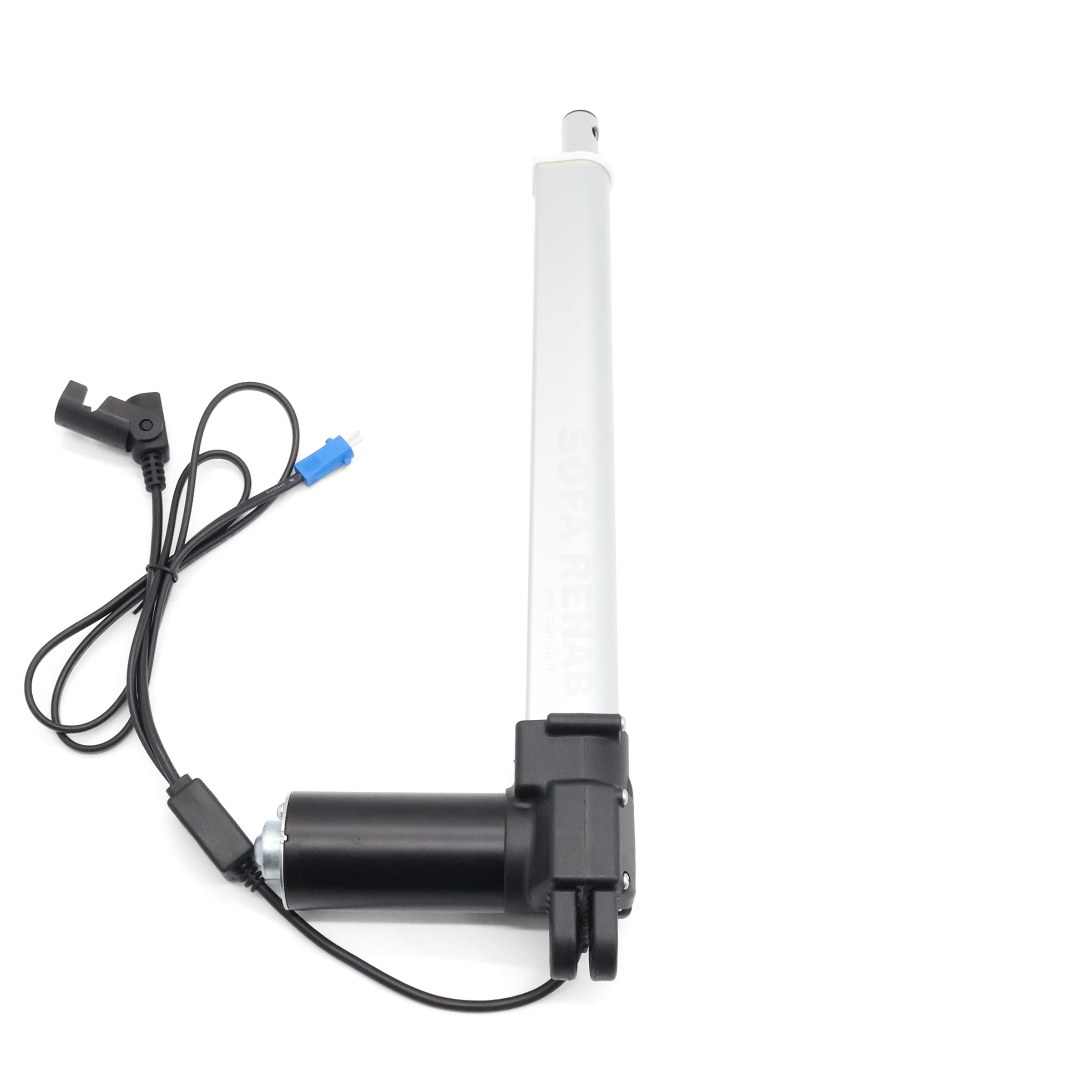

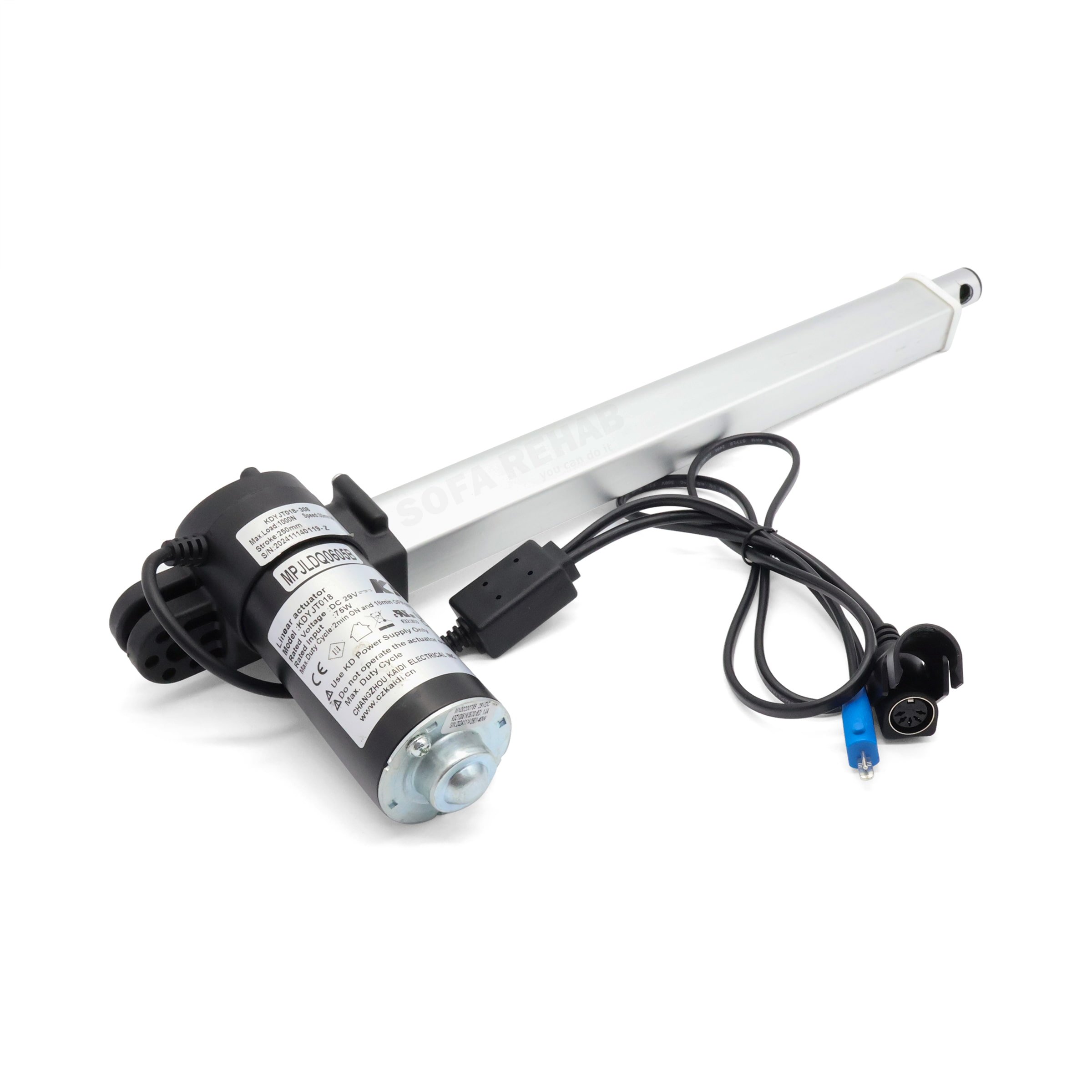

A complete replacement actuator/motor unit which is fully assembled and ready to install. The female 5 pin plug with retaining clasp and blue male OI plug are situated at the motor housing end. Installation is via a actuator pin and R clip that fasten to the mechanism frame via the clevis mounts.
Be Assured You Are Buying Genuine Quality Parts!
When ordering from Sofa Rehab you are buying not only quality spare parts but genuine factory original parts. With this you can be confident in knowing that you will receive like for like cables, plugs and fitment points.
Australia's Premier Recliner Spare Parts Supplier
We’re Australia’s leading supplier for repair kits and spare parts. Get the lowest prices on DIY repairs and if your a trades person who buys regularly we can offer a trade account.
Save Time & Money, Do It Yourself!
With our wide range of repair products, our easy step-by-step instructions and video tutorials, you’ve got everything you need to repair it yourself. Feel great about having done the repair yourself and saved $$$ on the repair.
Technical Specifications
Technical Specifications
Make – Kaidi Electrical Inc.
Model Number –Â KDPYJT018-308
Stroke –Â 250MM
Install Length – 435mm
Max Load –Â 1000N
Speed –Â 30MM/S
Rated Voltage –Â DC 29V
Rated Input –Â 75W
Max Duty Cycle –Â 2min ON and 18min OFF (10%)
Plugs – 1x Female 5 pin din plug with retaining clasp and 1x male 2 pin HiFi blue plug.
How To
How To
1, Unplug all power to the recliner and remove the mains plug from the wall and check no power
2, Lay a drop sheet on the floor and carefully turn the recliner over on its side or back, please remember safe lifting techniques
3, Check and make a note of how the cables are situated on the recliner frame (photograph is a good idea)
4, Remove any cable clips with pliers/cutters, unplug all linked plugs
5, Detatch the Actuator/Motor pin and R clips from the clevis mounts and remove the part fully
6, Install the new Actuator/Motor by refitting the pins and R clips
7, Connect and plug all plugs in
8, Route the cables and attach in position with new cable clips
9, Carefully turn the furniture back over to the standard position
10, Reinstate the power and then fully test the recliner carefully checking all cables are in the correct postion and are not being pinched or stretched.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Is this a genuine part?
Yes, this is a genuine Kaidi actuator.
Will this fit my recliner?
For this to be compatible it must either have the same model number (KDYJT018-308) or have the same plugs, install, stroke and speed.
Is this easy to install?
Yes, we have full instructions found on our "How To" tab.
What are the install dimensions?
435mm
