Kaidi KDYJT018-426 Recliner Motor
$185.00
In stock

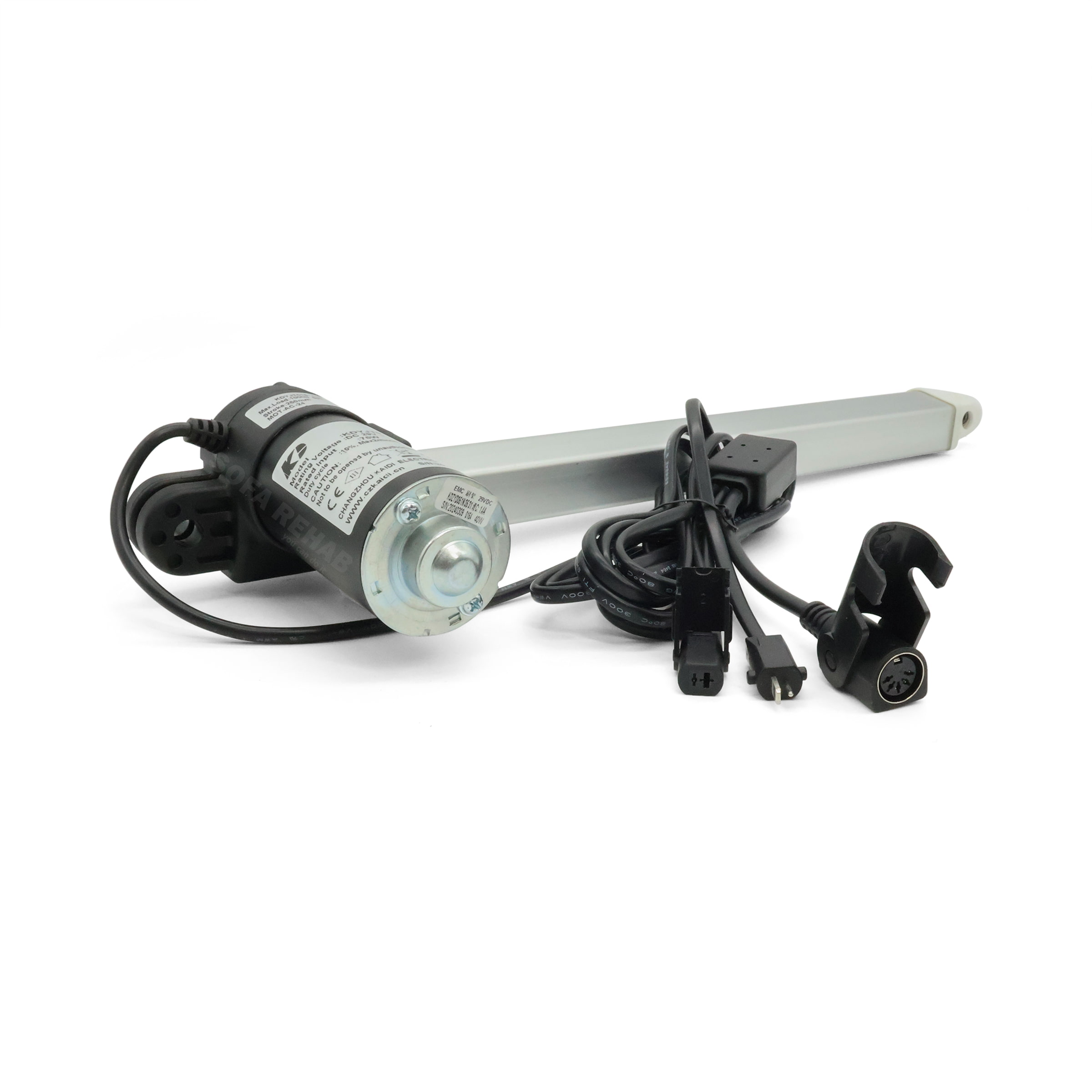

A complete genuine Kaidi OEM replacement recliner chair and sofa Linear actuator/motor. Kaidi model number KDYJT018-426. Stroke length is 250mm and comes with a 5 pin plug and retaining clip, 1x male and 1x female OI plug. Designed to operate the electric recliner footrest mechanism. We Only Stock Genuine Kaidi Electrical Parts No cheap compatible versions. Quality, Durable And Reliable This part comes with our 12 Month replacement warranty. So you can be assured of quality and compatibility in the replacement for your recliner. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- Add a review
Description
Genuine Kaidi Footrest Motor KDYJT018-426

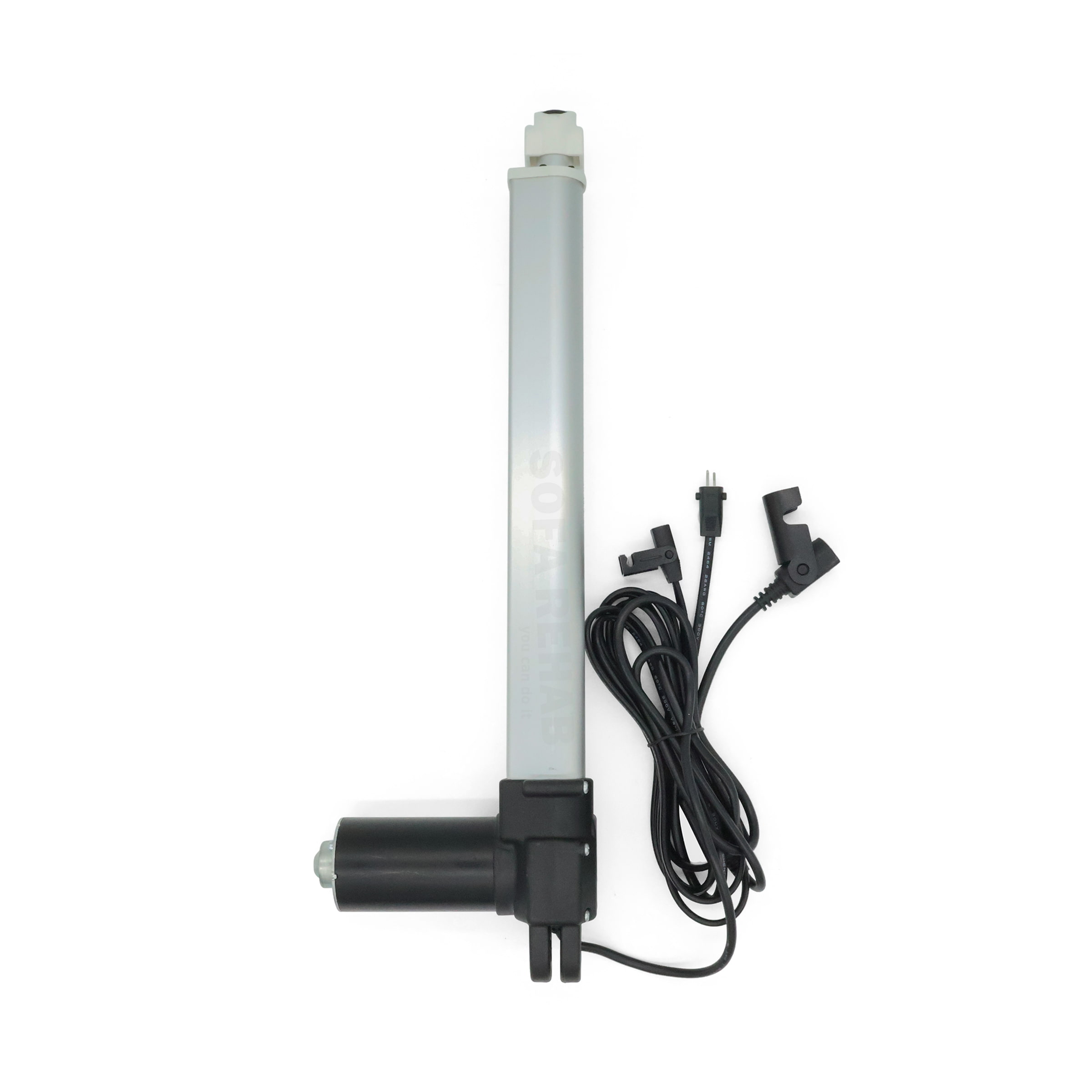

A complete replacement Linear actuator/motor unit model KDYJT018-426 which is fully factory assembled and ready to install. This actuator is designed to drive open and closed the recliner footrest mechanism in order for the furniture to recline. Ultra quite, swift and smooth operation are just some of the benefits of installing a quality part from Sofa Rehab.
Be Assured You Are Buying Quality
Knowing your getting genuine parts means that you’ll know the cables, plugs and fixing points are all the exact same and a straight swap out.
Australia's Leading Supplier Of Recliner Chair Spare Parts
We’re Australia’s leading supplier for repair kits and spare parts. Get the lowest prices on DIY repairs and if your a trades person who needs to buy in bulk, we also offer bulk buy discounts.
Save Time & Money, Do It Yourself
With our wide range of repair products, our easy step-by-step instructions and video tutorials, you’ve got everything you need to repair it yourself. Feel great about having done the repair yourself and saved $$$ on the repair.
Technical Specifications

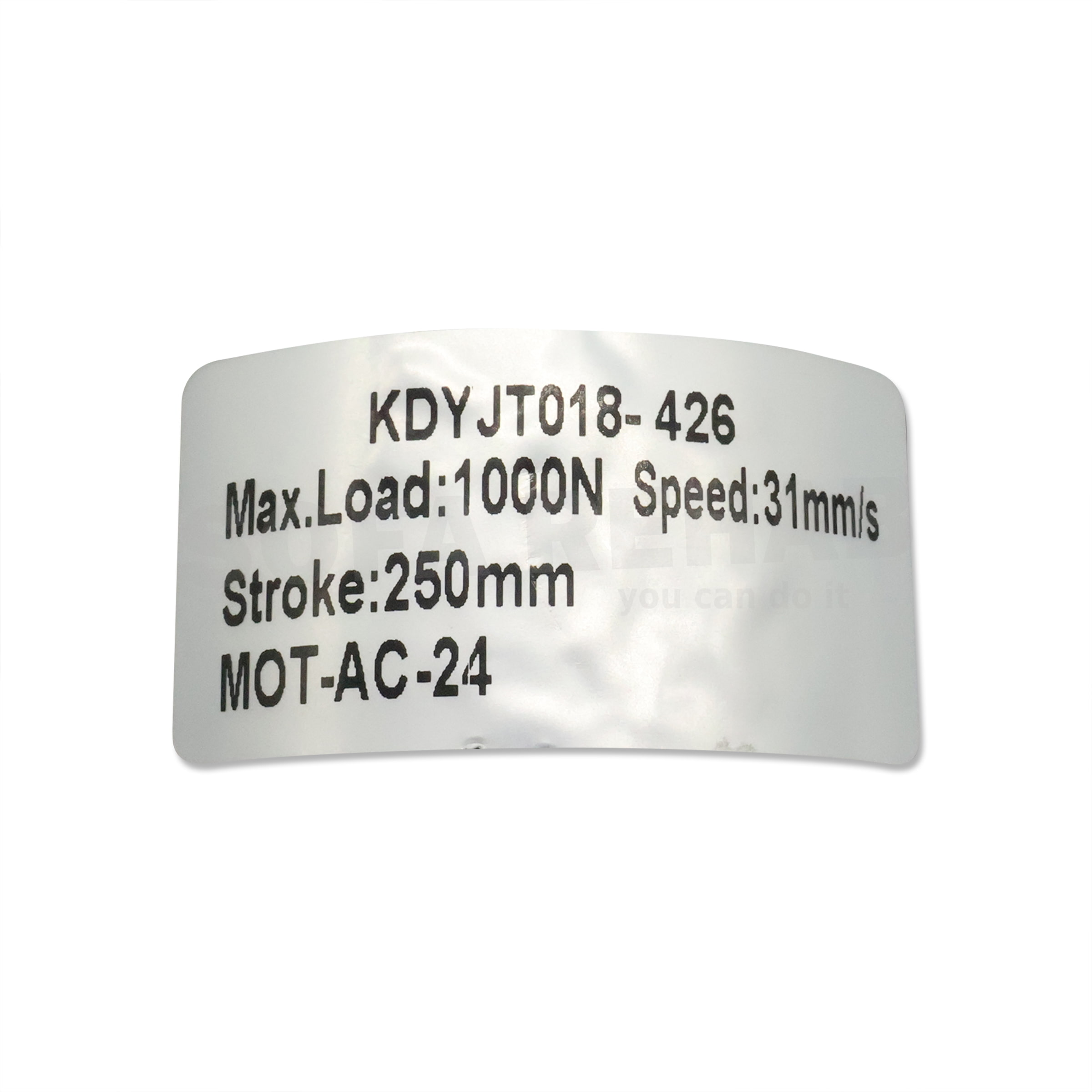

Technical Specifications
Model Number –Â KDPYJT018-426
Stroke – 250MM
Max Load –Â 1000N
Speed –Â 31MM/S
Rated Voltage –Â DC 29V
Rated Input –Â 75W
Max Duty Cycle –Â 2min ON and 18min OFF (10%)
Plug Type – 1 x Female 5 pin din plug and clasp. 1 x Male and female with clasp OI plug.
How To
How To
1, Unplug all power to the recliner and remove the mains plug from the wall and check no power
2, Lay a drop sheet on the floor and carefully turn the recliner over on its side or back, please remember safe lifting techniques
3, Check and make a note of how the cables are situated on the recliner frame (photograph is a good idea)
4, Remove any cable clips with pliers/cutters, unplug all linked plugs
5, Detach the Actuator/Motor pins and R clips from the clevis mounts and remove the part fully
6, Install the new Actuator/Motor by refitting the pins and R clips
7, Connect and plug all plugs in
8, Route the cables and attach in position with new cable clips
9, Carefully turn the furniture back over to the standard position
10, Reinstate the power and then fully test the recliner carefully checking all cables are in the correct position and are not being pinched or stretched.
