KDH020-334 Touch Sensor Full Kit
$79.95
In stock
Replacement Kaidi KHD020-334 Touch Sensor Switch Kit. Suitable for single actuator recliners. Includes 2x chrome sensors (one for “up” and one for “down”), a Kaidi control box, and all connecting leads. Simple DIY replacement with standard fittings to restore smooth recliner operation. Kaidi KHD020-334 Touch Sensor Switch Kit. The kit includes 2 x chrome buttons, 690mm white and black leads to the control box, 90mm control box connectors, and a 1000mm 5-pin DIN plug lead to the actuator Need Another Type of Switch? See our wide range of replacement recliner seat mounted switches (click here). Contact us if you’re unsure which model is the right match for your recliner. read more
In stock
- Description
- Technical Specifications
- How To Tutorial
- Reviews (0)
- FAQs
- Add a review
Description
Kaidi KHD020-334 Touch Sensor Switch Kit for Single-Actuator Recliners

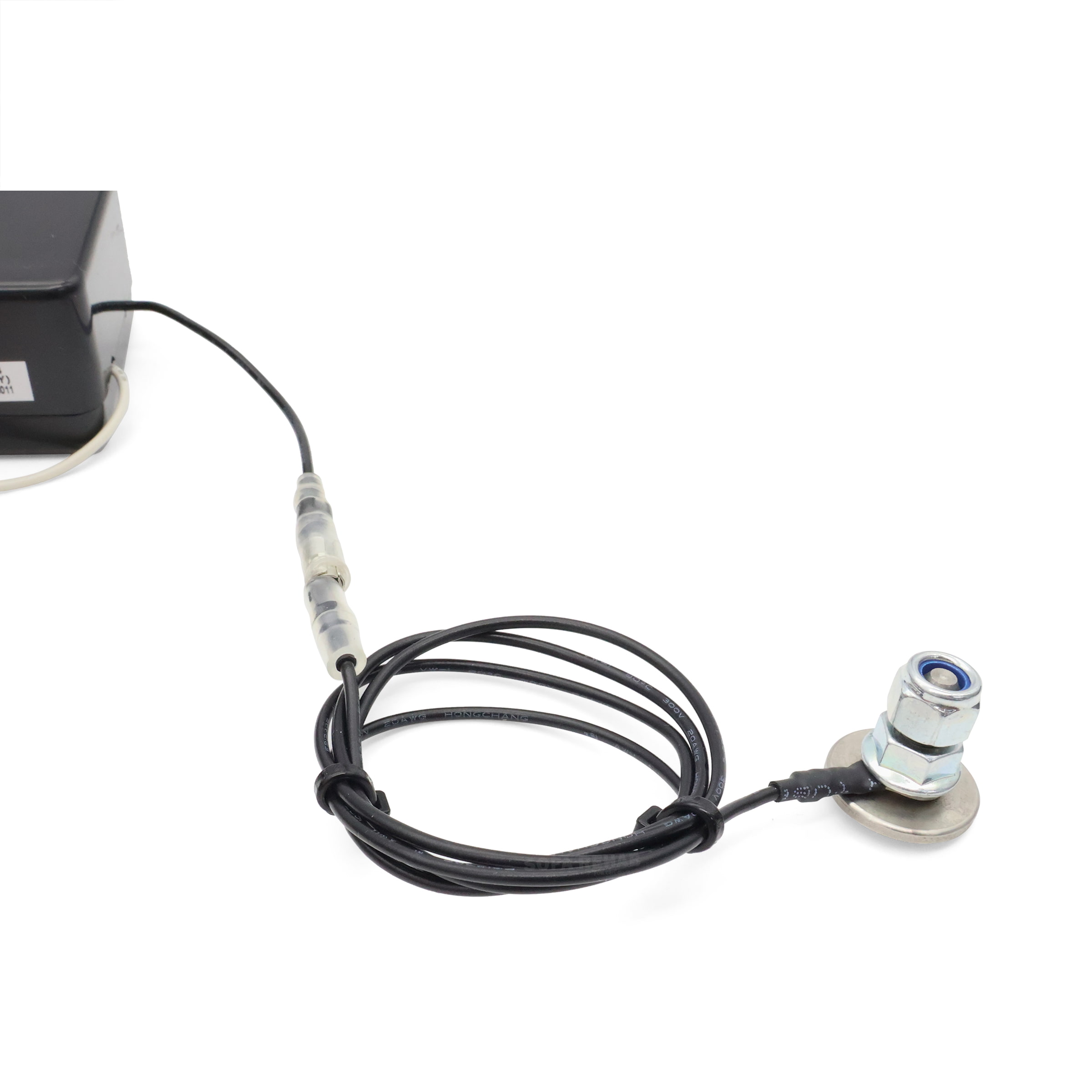

This complete touch sensor switch set is designed for single actuator electric recliners where the sensors are installed into the seat’s side wall. The kit includes 2x chrome 20mm round touch sensors (one “up” and one “down”), a Kaidi control box, and all connecting leads. Easy to install with only basic hand tools, this kit restores smooth recliner operation without the need for expensive service calls.
Product Details & Specifications
- Chrome Sensors: 20mm diameter with 16mm threaded shaft, each supplied with 2x nuts for secure upholstery mounting.
- Sensor Leads: 690mm long white and black leads including washer fitments; push-fit connectors link directly to the control box.

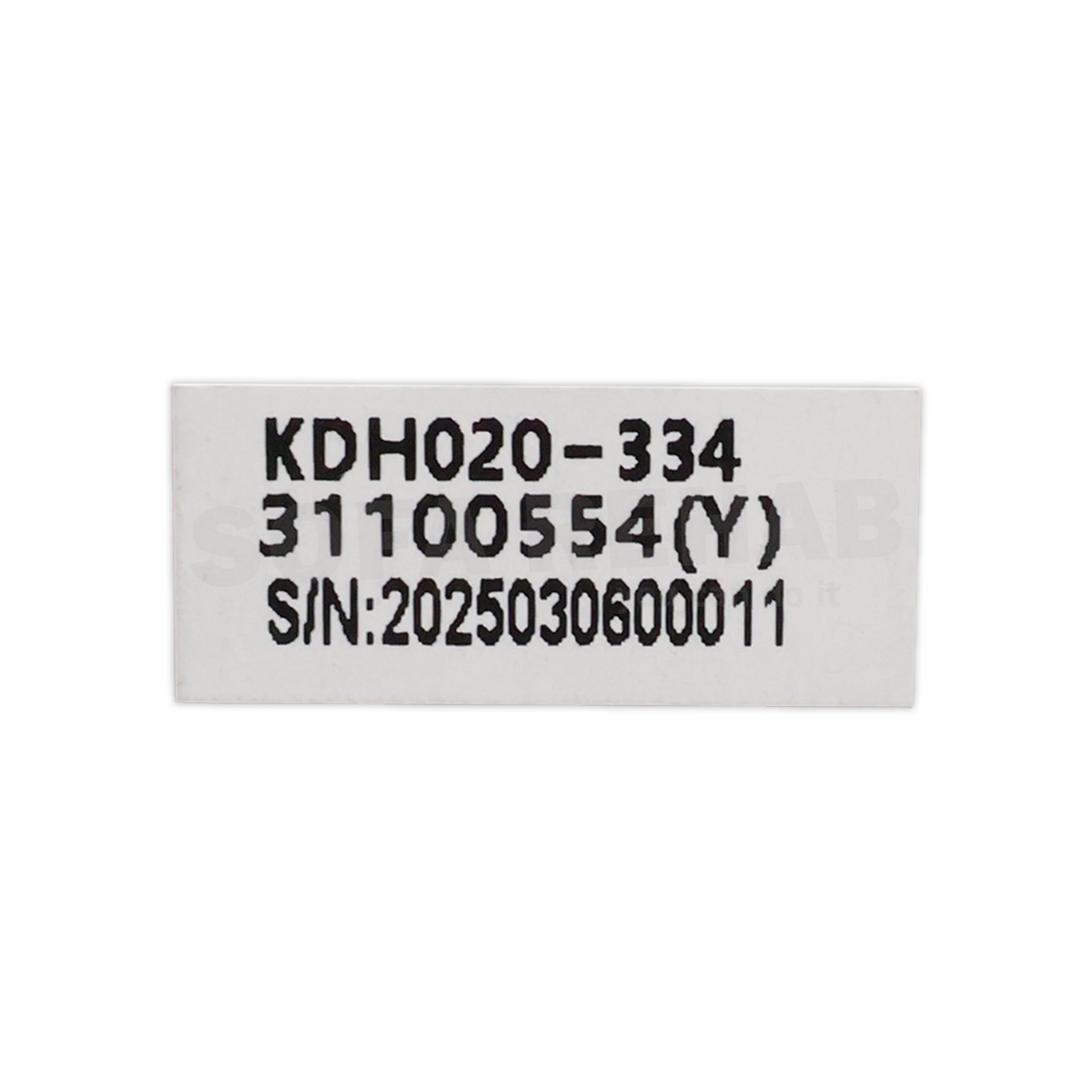

- Control Box: Compact unit measuring 86mm × 45mm × 33mm, with two mounting holes for screws or zip ties; supplied with 90mm connector leads.
- Actuator Lead: 1000mm long cable with straight 5-pin DIN plug and retaining clasp lugs.
How It Fits and Works
The chrome sensors mount through the seat side upholstery. Feed the white and black sensor leads through to the underside
of the seat cushion or frame and plug them into the control box (white-to-white, black-to-black). Mount or tie the control
box securely, then connect the 5-pin DIN plug directly to the actuator. Press the chrome pads to drive the actuator up or down.
Quality Spare Parts from Sofa Rehab
Sofa Rehab are Australia’s leading supplier of recliner spare parts and leather repair kits. We only stock quality genuine and compatible replacement parts to help you keep your furniture working for years to come. Contact our team if you need help identifying the right replacement switch for your recliner.
DIY Installation Made Simple
Installing this touch sensor kit is straightforward: mount the chrome sensors through the upholstery, route the leads through to the control box, and connect the 5-pin DIN plug to your actuator. No specialist tools are required, and with our guides and video tutorials, most installations can be completed in under 30 minutes.
Technical Specifications
Technical Specifications
Technical Specifications – Kaidi KHD020-334 Touch Sensor Switch Set
| Product Type | Touch sensor switch kit for single actuator electric recliners |
| Manufacturer / Model | Kaidi – KHD020-334 |
| Sensors | 2x chrome plated, 20mm round face with 16mm threaded shaft |
| Fixings | Each sensor supplied with 2x nuts; washer fitments secure behind upholstery |
| Sensor Leads | 1x white lead and 1x black lead, 690mm long (including fittings), push-fit connectors |
| Control Box | Dimensions 86mm × 45mm × 33mm, with 2 mounting holes (screw or zip tie fix) |
| Control Box Leads | White and black pigtail connectors, 90mm long each (including fittings) |
| Actuator Cable | 1000mm long with straight 5-pin DIN plug, retaining clasp lugs |
| Compatibility | Designed for single actuator recliners with side wall mounted touch sensors and 5-pin DIN actuator connection |
| Installation | DIY friendly – requires only basic hand tools (screwdriver/pliers). No specialist knowledge required. |
How To Tutorial
How To Tutorial
How To Install – Kaidi KHD020-334 Touch Sensor Switch Kit
Replacing your touch sensor switch kit is a quick and simple DIY job. Follow the step-by-step guide below to complete the repair safely and successfully.
- Unplug the recliner from power. Always disconnect the power supply before starting any electrical repair to avoid risk of shock.
- Practice safe lifting techniques. Recliners can be heavy and awkward to move. Get assistance if needed and lift safely to avoid injury.
- Access the seat side panel. Locate the existing chrome touch sensors on the side wall of the seat cushion. Take a clear picture of the wiring before disconnecting anything so you have a reference for re-assembly.
- Remove the old sensors. Unscrew the retaining nuts from the threaded shafts and gently pull the sensors out from the upholstery. Disconnect the leads from the control box.
- Install the new chrome sensors. Insert each 20 mm sensor through the upholstery holes. Place the washer fitments behind the upholstery and secure them between the two nuts on the 16 mm threaded shaft.

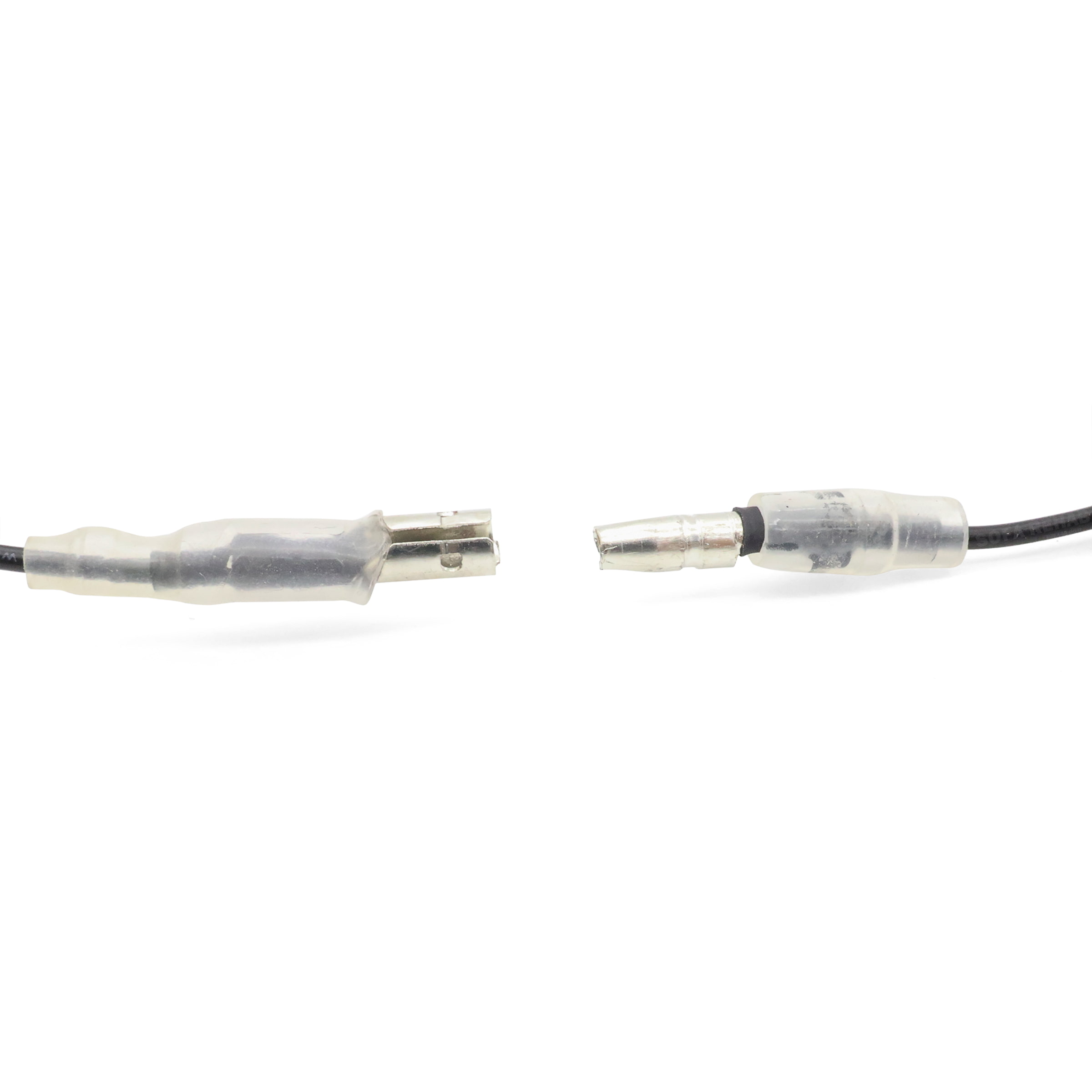

- Route the sensor leads. Feed the 690 mm white and black leads through into the underside of the seat frame. Connect the male push-fit connectors to the matching white and black female connectors from the control box.
- Mount the control box. Position the control box under the seat and secure using the two screw holes or by zip tying it firmly in place. Ensure it is clear of moving parts.
- Connect the actuator lead. Plug the 1000 mm straight 5-pin DIN lead with retaining clips into your actuator socket.
- Double-check connections. Compare your installation to the reference photo you took earlier. Make sure all leads are connected securely and away from pinch points.
- Reconnect power and test. Plug your recliner back into the wall and test both the “up” and “down” touch sensors. Confirm smooth operation before returning the recliner to its normal position.
If you have any questions during installation, contact our friendly support team via phone, email, or live chat. We’re here to help you complete your DIY repair with confidence.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Will this touch sensor kit fit all electric recliners?
This kit is designed for single actuator recliners that use side-mounted chrome touch sensors with a straight 5-pin DIN actuator plug.
Do I need special tools to install this kit?
No special tools are required. Basic hand tools like a screwdriver and pliers are sufficient. Installation usually takes less than 30 minutes and we recommend following our step-by-step instructions and video tutorials.
How do I make sure I connect the leads correctly?
Take a clear photo of the old wiring before you remove anything. The white and black sensor leads connect colour-to-colour into the control box using the push-fit connectors, so it’s simple to match them up correctly.
What if I’m not sure whether this is the right replacement for my recliner?
No problem! We stock a wide range of touch sensors, toggle switches, and handsets. If you’re unsure, please send us a photo of your old part and we’ll help identify the correct replacement before you order.
Is this touch sensor kit universal?
Yes, this kit is considered universal for single actuator recliners that use side wall mounted chrome touch sensors. As long as your recliner operates with a single actuator and connects via a straight 5-pin DIN plug, this Kaidi KHD020-334 kit will be compatible.
