Electric Recliner Spare Parts, Recliner Button Switches
Mulin MLSK35-F1(L) Switch
$59.99
In stock
Genuine MLSK35-F1(L) 5 button electric recliner switch with USB charging port and Home button. Designed to operate dual motor recliner systems such as footrest and headrest functions. Nickel finish with push-fit installation requiring no screws. Includes integrated control box, 5 pin DIN plug and semi-circle 5 pin female light connection plug with retaining clasp. 5 Button Recliner Switch with USB Port. Operates 2 recliner motors with dedicated directional buttons plus a Home button feature. Compatible replacement for MLSK35-F1(LSF) and MLSK35-F1(L) models. Need Another Recliner Switch Model? We stock all the popular recliner switches (click here). If you are still not sure which replacement power recliner chair or sofa switch is right for you please contact our helpful team. read more
In stock
- Description
- Technical Specifications
- How To Tutorial
- Reviews (0)
- FAQs
- Add a review
Description
MLSK35-F1(L) 5 Button Recliner Switch with USB Charging
This genuine MLSK35-F1(L) electric recliner switch is designed to control dual motor recliner systems including footrest and headrest movement functions. Featuring 5 buttons including a convenient Home button plus an integrated USB A charging port, this replacement switch is commonly fitted to modern electric recliner chairs, lounges and theatre seating.

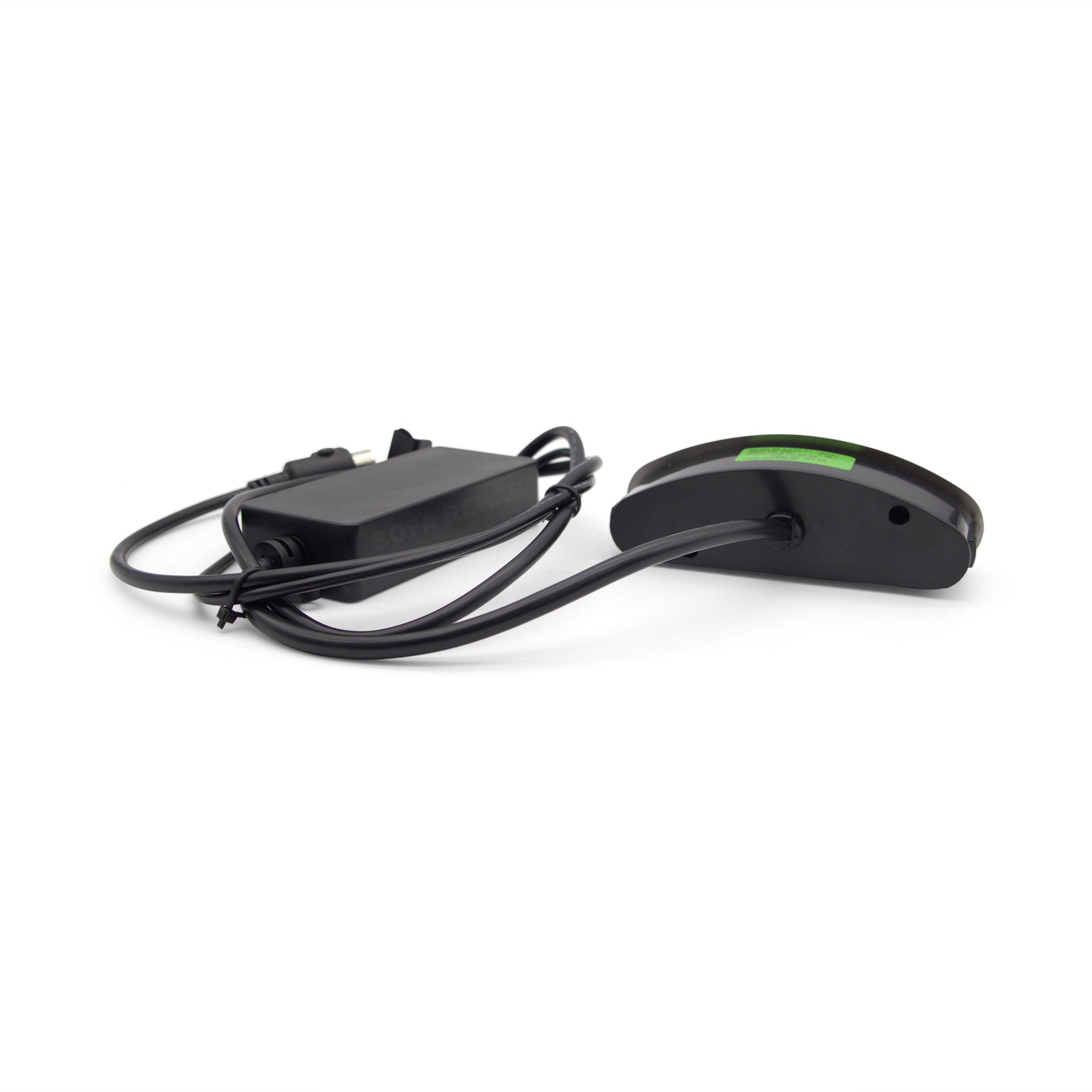

Finished in nickel colour, this switch installs with a simple push-fit design requiring no screws. Includes integrated control box, 5 pin male DIN plug, and semi-circle 5 pin female light connection plug with retaining clasp. The fascia dimensions are 130mm wide x 45mm high and requires a cut-out size of 123mm wide x 38mm high x 45mm deep.
Important Left & Right Side Compatibility Information
The manufacturer code “L” refers to Left Side Facing when viewing the recliner from the front. At Sofa Rehab we describe switch positions while sitting in the recliner, therefore this is considered a right hand operated recliner switch.

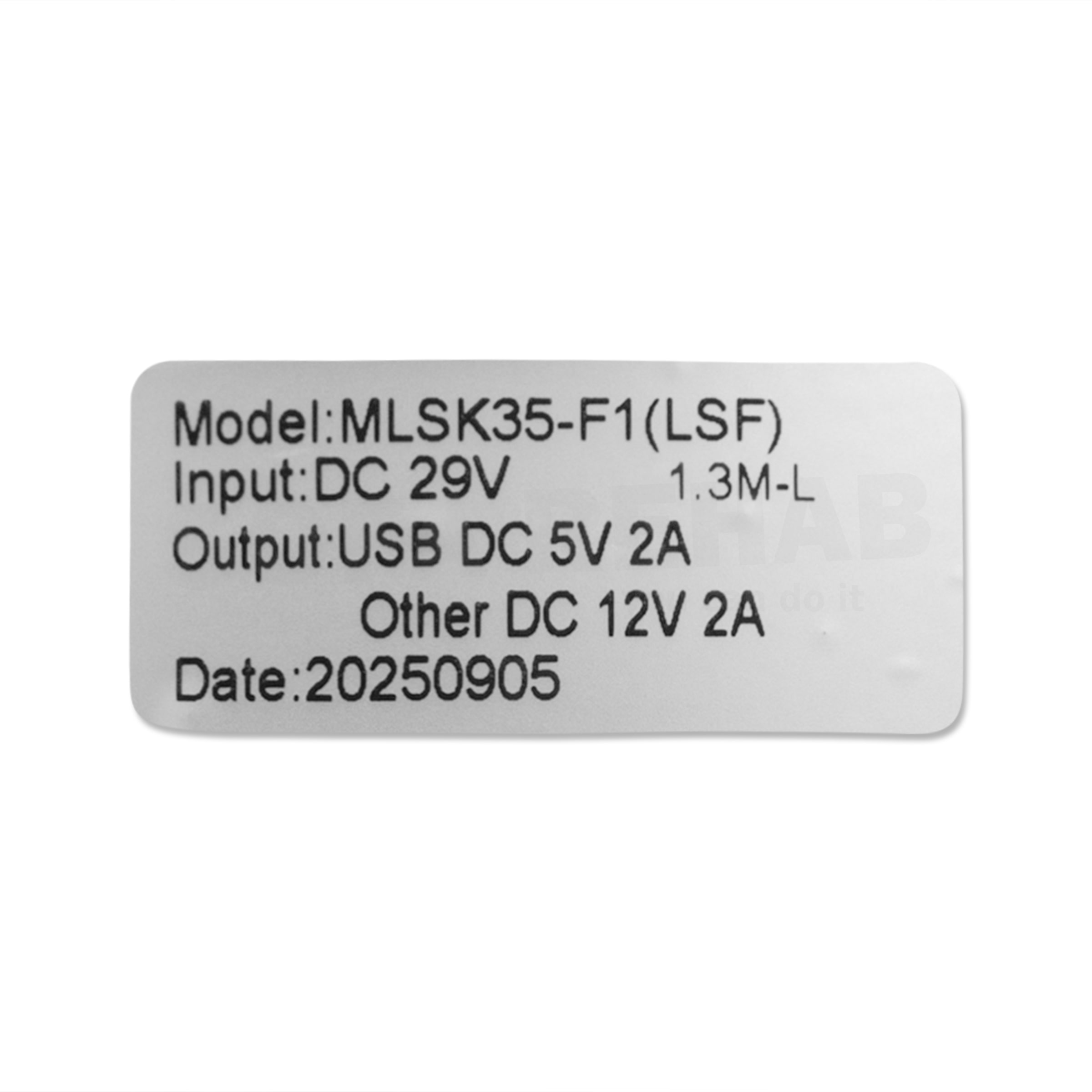

This switch is compatible with MLSK35-F1(LSF) models and operates on DC 29V input power. The USB charging output specification is DC 5V 2A.
This Switch will be labelled MLSK35-F1(LSF)
If you require the opposite side version then see our MLSK35-F1(R) Recliner Switch (click here) which is the left hand operated version when seated in the furniture.
Premium Features and Modern Design
This Mulin Electric recliner switch combines practical functionality with a premium appearance. The nickel coloured fascia and concealed screw cover provide a clean modern look suited to contemporary recliner lounges and theatre seating.
Integrated USB-A and USB-C charging ports allow you to conveniently charge phones, tablets and other devices directly from your recliner chair while relaxing. The supplied extension lead also provides generous cable length for larger recliners, sofas and home theatre lounge configurations.
Quality Spare Parts from Sofa Rehab
Sourcing direct from leading OEM factories and trusted aftermarket suppliers, we keep an extensive range of recliner electronics, handles, cables and leather-care kits in stock ready for immediate order. Every item is tested for fit and reliability by our in-house repair technicians before it reaches our shelves, so you receive parts that work first time and last. From the smallest spring to complete power kits, if it belongs on a lounge, chances are we have it – and we stand behind every product with full technical support and clear measuring guides.
Save Time & Money and Do It Yourself
Replacing a faulty switch is a five-minute job with just a screwdriver. Follow our step-by-step video tutorial, feel the pride of a successful DIY repair, and keep money in your pocket instead of paying a call-out fee. Need extra help? Our friendly support team is only a phone call, email or live chat away.
Technical Specifications
Technical Specifications
| Product Type | Electric recliner side switch |
|---|---|
| Model Number | MLSK35-F1(LSF) |
| Compatible Model | MLSK35-F1(L) |
| Operation Side | Right hand operated when sitting in the furniture |
| Button Functions | 5 buttons for dual motor operation, including Home button |
| Motor Control | Operates 2 recliner motors |
| USB Port | USB A charging port |
| Colour / Finish | Nickel |
| Installation Type | Push fit, no screws required |
| Fascia Dimensions | 130mm W x 45mm H |
| Required Cut Out | 123mm W x 38mm H x 45mm D |
| Cable Length to Light Plug | 800mm |
| Cable Length to DIN Plug | 1310mm including 5 pin male DIN plug |
| Plug 1 | 5 pin male DIN plug |
| Plug 2 | Semi-circle 5 pin female light connection plug with retaining clasp |
| Control Box | Integrated control box in wiring harness |
| Input | DC 29V |
| USB Output | DC 5V 2A |
| Other Output | DC 12V 2A |
How To Tutorial
How To Tutorial
- Turn off the power.
Unplug the recliner from the wall power before starting the replacement. - Access the existing switch wiring.
Carefully remove or loosen the existing switch from the armrest and locate the wiring harness under or inside the recliner. - Disconnect the old switch.
Unplug the 5 pin male DIN plug and the semi-circle 5 pin female light connection plug with retaining clasp. Take note of how the original cables are routed. - Remove the old switch.
Push the old switch out from the armrest cut-out. This switch style is push-fit, so no screws should need to be removed from the fascia. - Check the cut-out size.
Confirm the opening is approximately 123mm wide x 38mm high x 45mm deep before fitting the new MLSK35-F1(LSF) switch. - Connect the new switch.
Plug in the 5 pin male DIN plug and reconnect the semi-circle 5 pin female light connection plug with retaining clasp. Make sure each plug is firmly seated. - Fit the switch into the armrest.
Gently push the nickel fascia into the cut-out until it sits securely and evenly against the furniture arm. - Reconnect power and test.
Plug the recliner back into wall power and test all buttons, including both motor functions, the Home button and USB charging port.
Important: Always match the model number, plug style and cut-out size before installation. If the switch does not operate correctly after fitting, disconnect power and check that all plugs are fully connected.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
What label will be on this switch?
This switch will be labelled MLSK35-F1(LSF) it is the same switch as the MLSK35-F1(L).
What does the Home button do on this recliner switch?
The Home button is designed to return the recliner to its default seated position by operating the connected motors automatically.
Is this switch left hand or right hand operated?
This model is manufacturer coded MLSK35-F1(LSF), which means left side facing when viewed from the front of the recliner. At Sofa Rehab we describe the side while sitting in the furniture, therefore this is considered a right hand operated switch.
Does this switch include the control box?
Yes. The MLSK35-F1(L) includes the integrated control box within the wiring harness as shown in the product images.
Do I need screws to install this recliner switch?
No. This switch features a push-fit design and clips directly into the furniture arm cut-out without requiring mounting screws.
How do I know if this is compatible with my recliner?
Please match the model number, plug configuration, cut-out size and button layout with your existing switch before ordering. This switch suits MLSK35-F1(LSF) and MLSK35-F1(L) configurations. If you are unsure, contact Sofa Rehab and we can help identify the correct replacement.
