Recliner Button Switches, Seat Mounted Buttons
RMT 2 Button Switch RG00100188
$75.00
In stock
Seat-mounted two button replacement switch for electric recliners. Model RG00100188 with manufacturing number RK23300188X000. Made from black ABS plastic with a matte finish and nickel coloured buttons. Measures 107mm x 31mm x 21mm and mounts with a rear clamp plate plus clip-on screw cover. Fitted with a 90° 5 pin DIN plug on a 2120mm lead. Seat Mounted 2 Button Recliner Switch. Suitable for most single motor electric recliners using a 5 pin DIN connection. Flush fit on the seat side for a neat finish. Easy DIY replacement with basic tools and clearances. Looking for another style or model? Browse our full range of recliner toggle switches (click here), including versions with USB, different shapes and button layouts. If you are unsure which part you need, contact us and we will help identify the correct replacement. read more
In stock
- Description
- Technical Specifications
- How To Tutorial
- Reviews (0)
- FAQs
- Add a review
Description
Seat Mounted 2 Button Recliner Switch – Model RG00100188

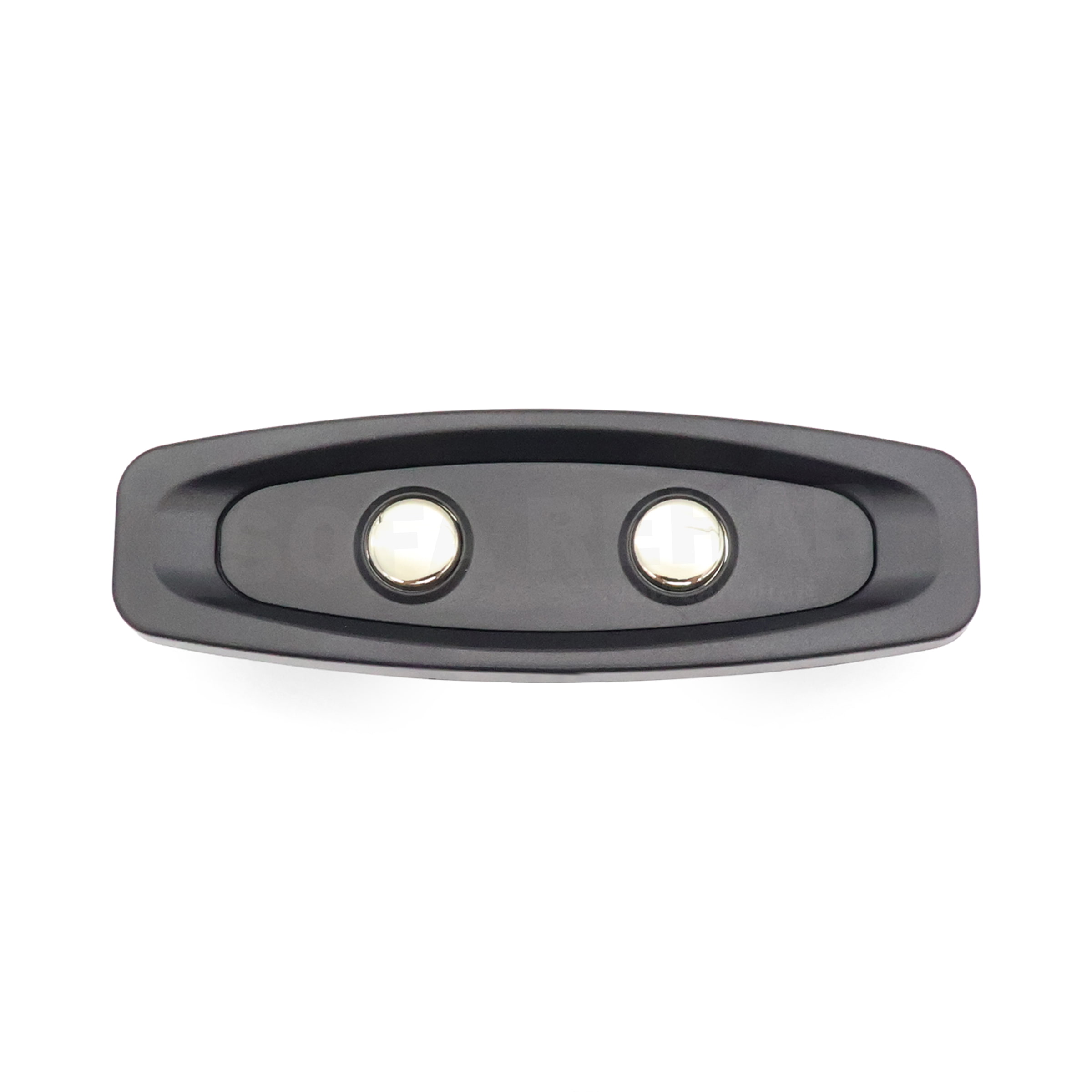

This genuine replacement seat mounted switch (Model: RG00100188, M/N: RK23300188X000) is designed for use with electric recliner chairs and sofas. The slim, flush mount design fits neatly on the seat side or armrest and provides reliable control of your recliner’s open and close functions. Manufactured in durable black ABS plastic with a matte finish and featuring two nickel coloured round buttons. Dimensions are 107mm x 31mm x 21mm deep, with a rear mounting plate and clip-on screw cover for a neat installation.
Plug-and-Play Replacement for Common Two-Button Assemblies
The switch comes with a 90° 5 pin DIN plug and a 2120mm (2.12m) long lead, giving plenty of length for easy positioning during fitting. Input specification is 29V DC, 2A, which matches the majority of standard electric recliner motor systems. This model is widely compatible across popular brands that use RMT seat-mounted switches with the same 5 pin connector. Screws are not included.
We're Australia's Leading Supplier of Recliner Chair Spare Parts
As Australia’s leading supplier of genuine and compatible recliner spares, we source directly from trusted manufacturers such as Mulin Electric. That means the wiring, pin-out and fixing points mirror your original part for a hassle-free swap.
Save Time & Money and Do It Yourself
Replacing your broken switch is simple and requires no technical skills. With just a screwdriver, you can fit this part in 20 minutes using the included clamp plate and screw cover. Follow our step-by-step instructions, and enjoy the satisfaction of repairing your own recliner. Do it yourself and save $$$ on service callouts while getting your chair back in action quickly.t.
Technical Specifications
Technical Specifications
Make: RMT
Model: RG00100188
Manufacturing Number: RK23300188X000
Material: Black ABS Plastic with Matte Finish and Nickel Coloured Buttons
Dimensions: 107mm x 31mm x 21mm

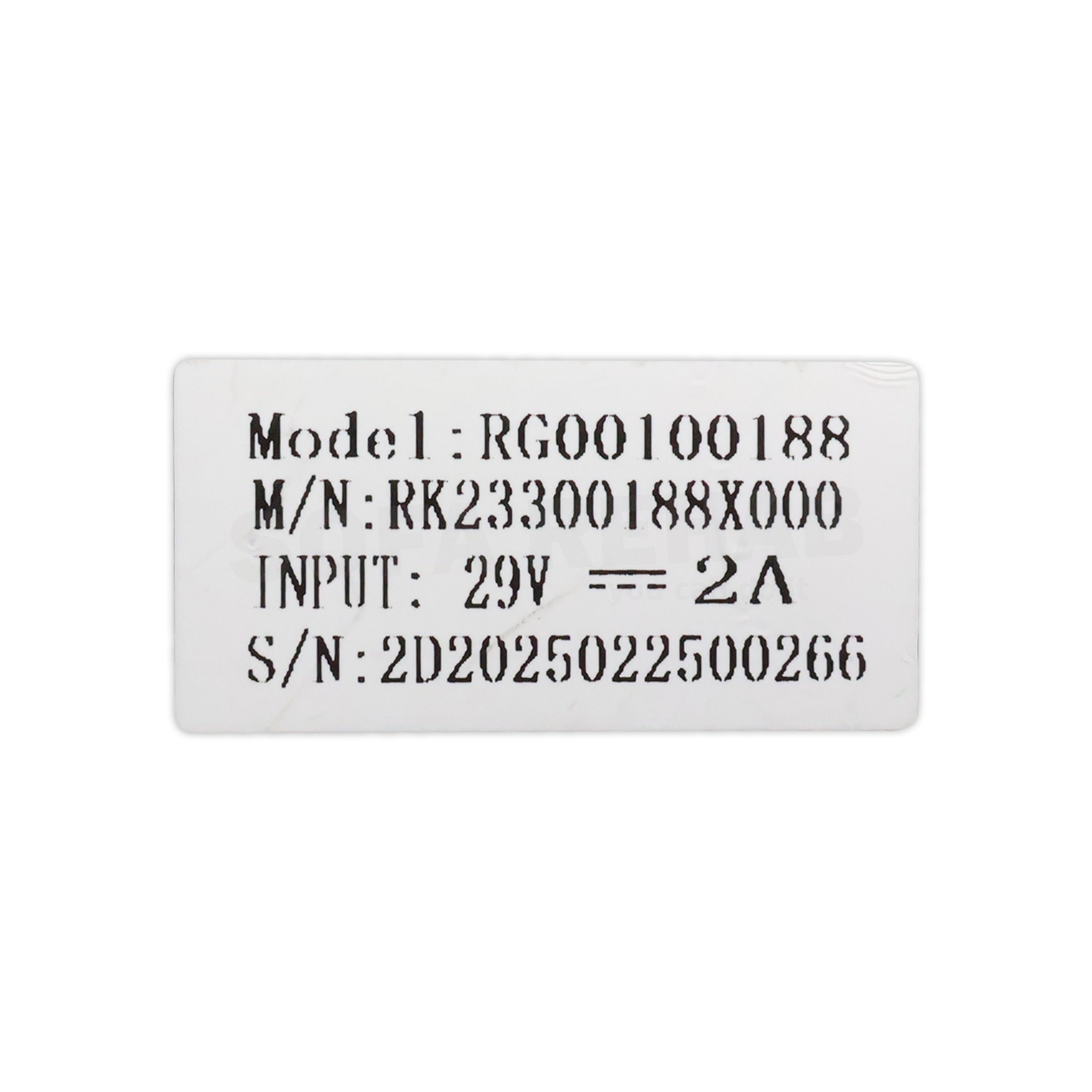

Input Rating: 29V DC, 2A
Connector Type: 90° 5 Pin DIN Plug
Lead Length: 2120mm (2.12m)

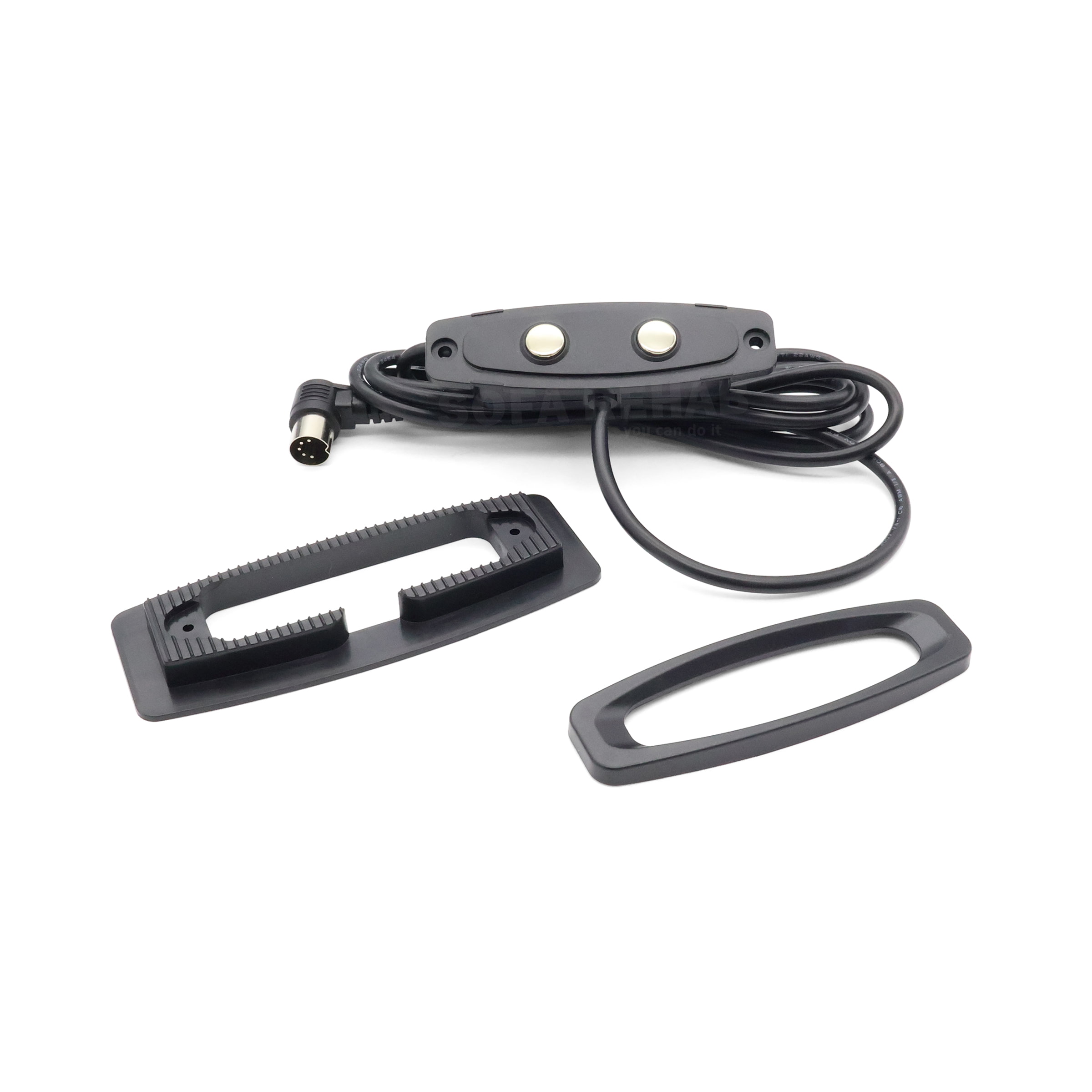

Mounting: Rear Clamp Plate with Clip-On Screw Cover (screws not included)
Compatibility: Suitable for most single motor electric recliners using 5 Pin DIN connection
How To Tutorial
How To Tutorial
Installation Guide
Follow these steps to safely replace and install the RMT RG00100188 (M/N RK23300188X000) seat mounted 2 button switch:
1. Unplug the recliner from the power outlet before starting. This ensures your safety when handling electrical parts.
2. Position the chair safely. If you need to tip the recliner onto its side, always use safe lifting techniques. Bend your knees, keep your back straight, and avoid twisting while lifting. Ask for assistance if the chair is heavy.
3. Take a reference photo. Before removing the old switch, take a clear picture of how it is fitted and how the plug is connected. This can be used to check the orientation when fitting the new switch.
4. Locate the old switch on the seat side or armrest and remove the clip-on screw cover.
5. Unscrew the two mounting screws with a standard screwdriver and carefully remove the rear clamp plate.
6. Disconnect the 5 pin DIN plug from the motor or control box, using your photo if needed to confirm correct orientation later.
7. Insert the new switch into the cut-out, align the clamp plate at the rear, and tighten the two screws securely.
8. Reconnect the 90° 5 pin DIN plug to the motor or control unit and snap the screw cover back into place for a tidy finish.
9. Return the chair carefully to its upright position, again using proper lifting technique or a second person to assist if required.
10. Plug the recliner back into the mains and test both buttons to confirm smooth operation.
Installation usually takes less than 20 minutes and requires only a screwdriver and possibly a few basic upholstery tools. By taking a reference photo and following safe lifting practices, you can complete this DIY repair with confidence and avoid injury.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Will this switch work with my recliner?
This switch is compatible with most single-motor electric recliners using a 5 pin DIN connector. Always check your existing part for the model number RG00100188 or manufacturing number RK23300188X000 before ordering.
Does the switch come with screws and mounting plate?
No, screws are not supplied with this part. But the mounting plate is supplied. You can reuse the screws from your original switch or purchase suitable replacements separately.
How long is the cable attached to this switch?
The switch comes pre-fitted with a 2120mm (2.12m) lead and a 90° 5 pin DIN plug, giving plenty of length for installation in most recliner chairs.
Do I need any special tools to install it?
No special tools are required. A standard screwdriver is all you need and depending on your version of lounge some basic upholstery tools maybe required. We also recommend taking a photo of your existing switch and connections before removal to make installation easier.
Can I install it myself or should I call a tech?
Yes, this switch is DIY-friendly. Installation takes less than 20 minutes with safe lifting techniques and basic tools. Full step-by-step instructions are provided, and our support team can help if you have questions.
