CN Doer Switch DL-SK-204-2-C-001-L
$89.99
In stock
Seat-mounted electric recliner switch model DL-SK-204-2-C-001-L by Cn Doer for dual motor recliners. This LHF switch is right-hand operated when seated and features dual rocker controls for footrest, backrest and headrest, plus a home button. Finished in nickel with USB-A and USB-C ports and a concealed screw fascia. 5 Button Dual Motor Recliner Switch with USB Charging. Controls recline and headrest with rocker switches plus a home reset button. Includes 5 pin plug cable for easy installation. Looking for Another Switch or Need Help? We stock all the popular recliner switches (click here). If you are still not sure which replacement power recliner chair or sofa switch is right for you please contact our helpful team. read more
In stock
- Description
- Technical Specifications
- How To Tutorial
- Reviews (0)
- FAQs
- Add a review
Description
5 Button Dual Motor Recliner Switch with USB A & USB C Charging – LHF Nickel Finish
The DL-SK-204-2-C-001-L by Cn Doer is a premium seat-mounted recliner switch designed for dual motor electric recliner chairs and lounges. Installed on the left-hand side when facing the furniture, this switch is operated with your right hand when seated. It features a modern nickel finish and a clean look thanks to the removable fascia that conceals the mounting screws.
This switch uses a 3-button layout with dual rocker functionality, giving you 5 control inputs. The front rocker controls the footrest and backrest, the rear rocker controls the headrest, and the centre button acts as a home function to return the chair to its default position.
Dual Motor Functionality with Modern Features

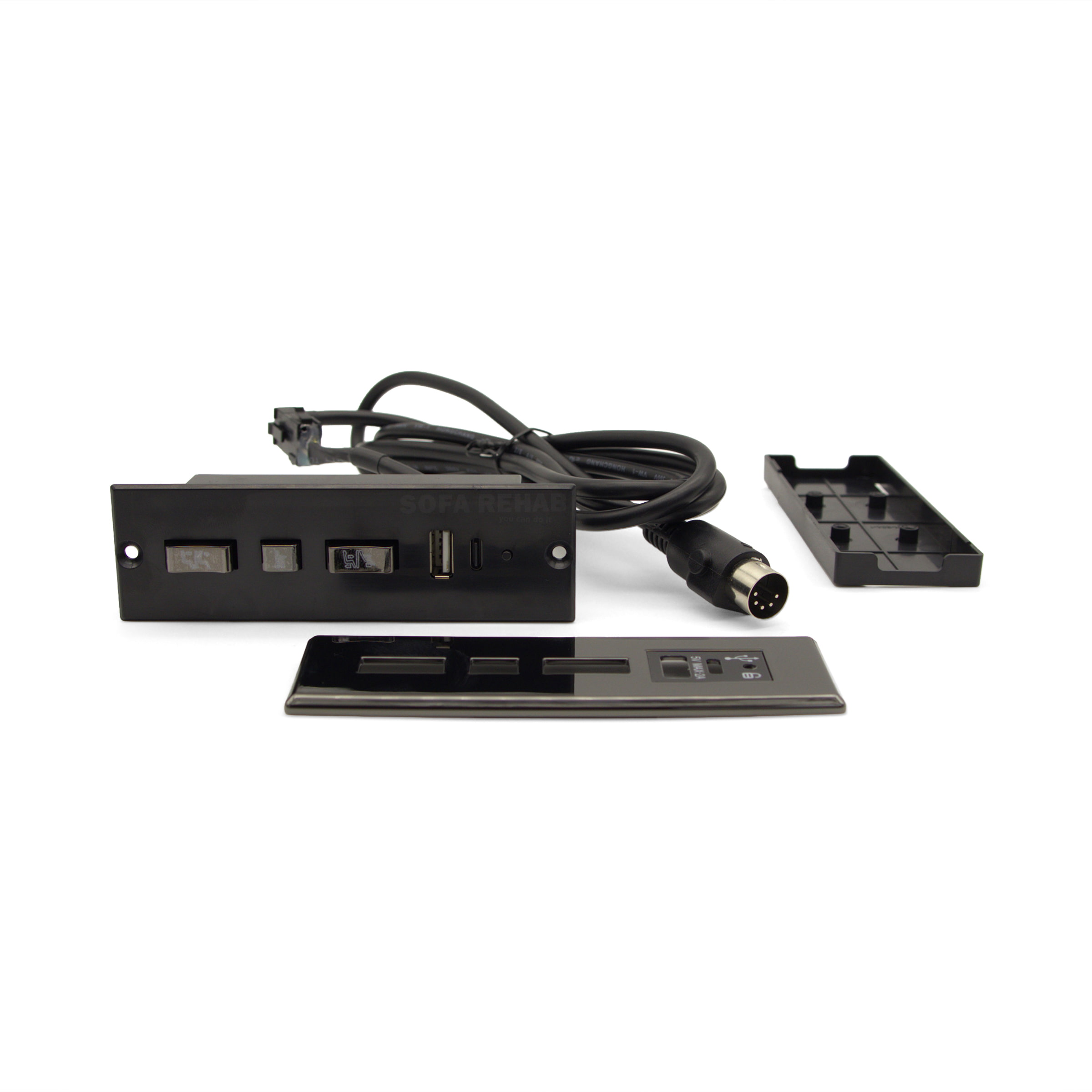

Dual Motor Functionality with Modern Features Designed for dual actuator recliners, this switch independently controls the main recline and headrest functions. It also includes USB-A and USB-C charging ports (5V max 2A), a child lock feature, and concealed screw mounting for a clean finish. Supplied with a short integrated lead (approx. 105mm) and a 1800mm extension cable with a 5 pin round DIN plug and retaining lugs for a simple plug and play installation.
Quality Cn Doer Replacement Switch with Premium Finish
Manufactured by Cn Doer, this switch is built to meet industry standards for quality and compatibility across many dual motor recliner systems. The nickel finish provides a modern, durable look, while the removable fascia keeps the installation neat by concealing the mounting screws. Supplied with a long 1800mm lead, it offers flexibility for routing the cable within your recliner or lounge frame.
DIY Friendly Replacement – Save Time & Money
Replacing your recliner switch is a quick and easy DIY repair that most people can complete in just a few minutes. Simply remove the old switch, disconnect the plug, and install the new one using basic tools like a screwdriver.
With our step-by-step guides and support team ready to help, you can confidently complete the repair yourself, save on service costs, and enjoy the satisfaction of fixing your recliner on your own.
Technical Specifications
Technical Specifications
Technical Specifications
- Brand: Cn Doer
- Model: DL-SK-204-2-C-001-L

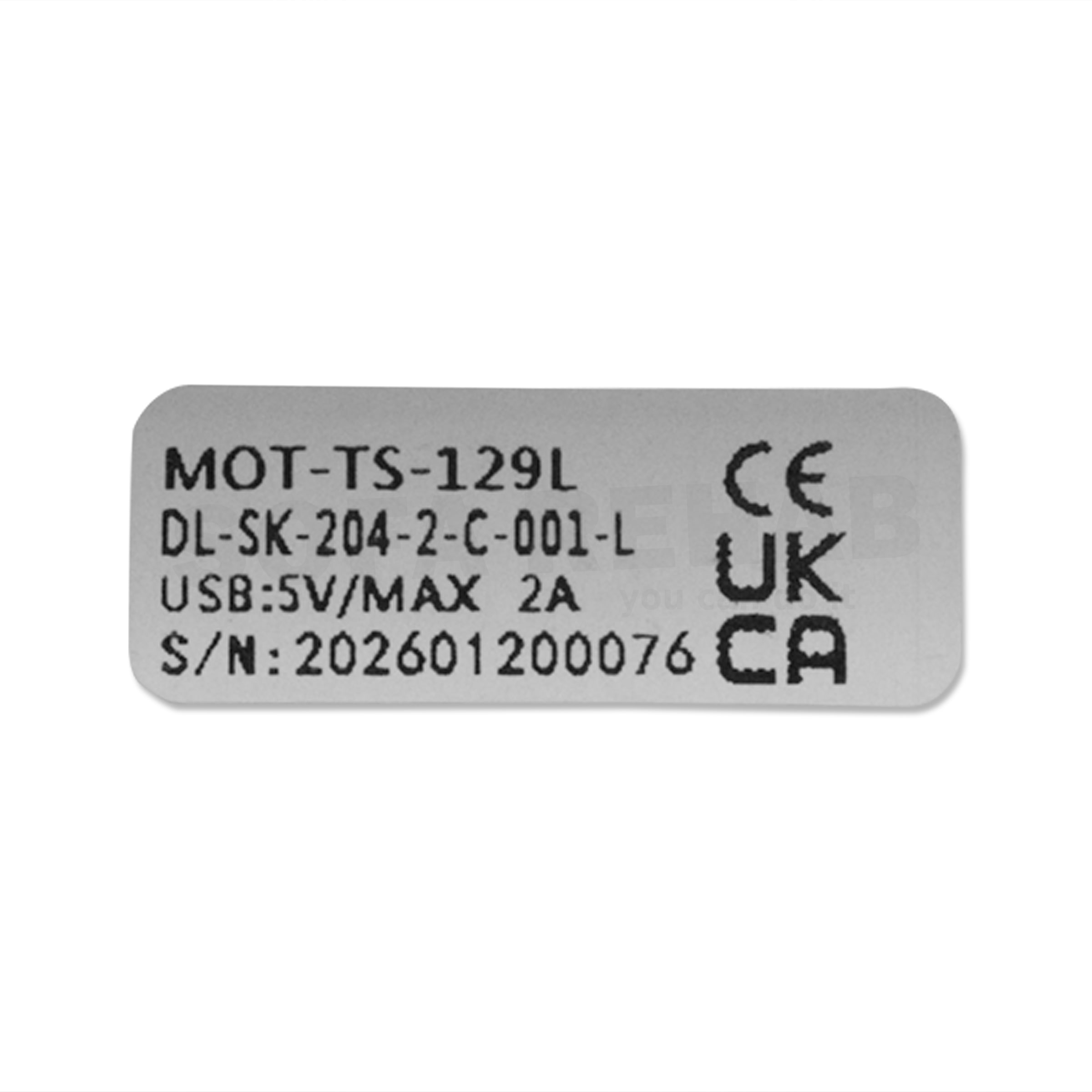

- Sticker Code: MOT-TS-129L
- Switch Type: 5 function dual motor recliner switch
- Controls: Main recline open/close, headrest open/close, home button
- Installation Side: LHF, left-hand facing when looking at the furniture
- Operation Side: Right-hand operated when seated
- Colour: Nickel
- Charging Ports: USB-A and USB-C
- USB Output: 5V, max 2A
- Faceplate and Body Size: Approx. 123mm wide x 40mm deep x 37mm thick
- Furniture Cut-Out Size: Approx. 103mm x 29mm
- Switch Lead Length: Approx. 105mm including plug connection
- Extension Cable Length: Approx. 1800mm including plug

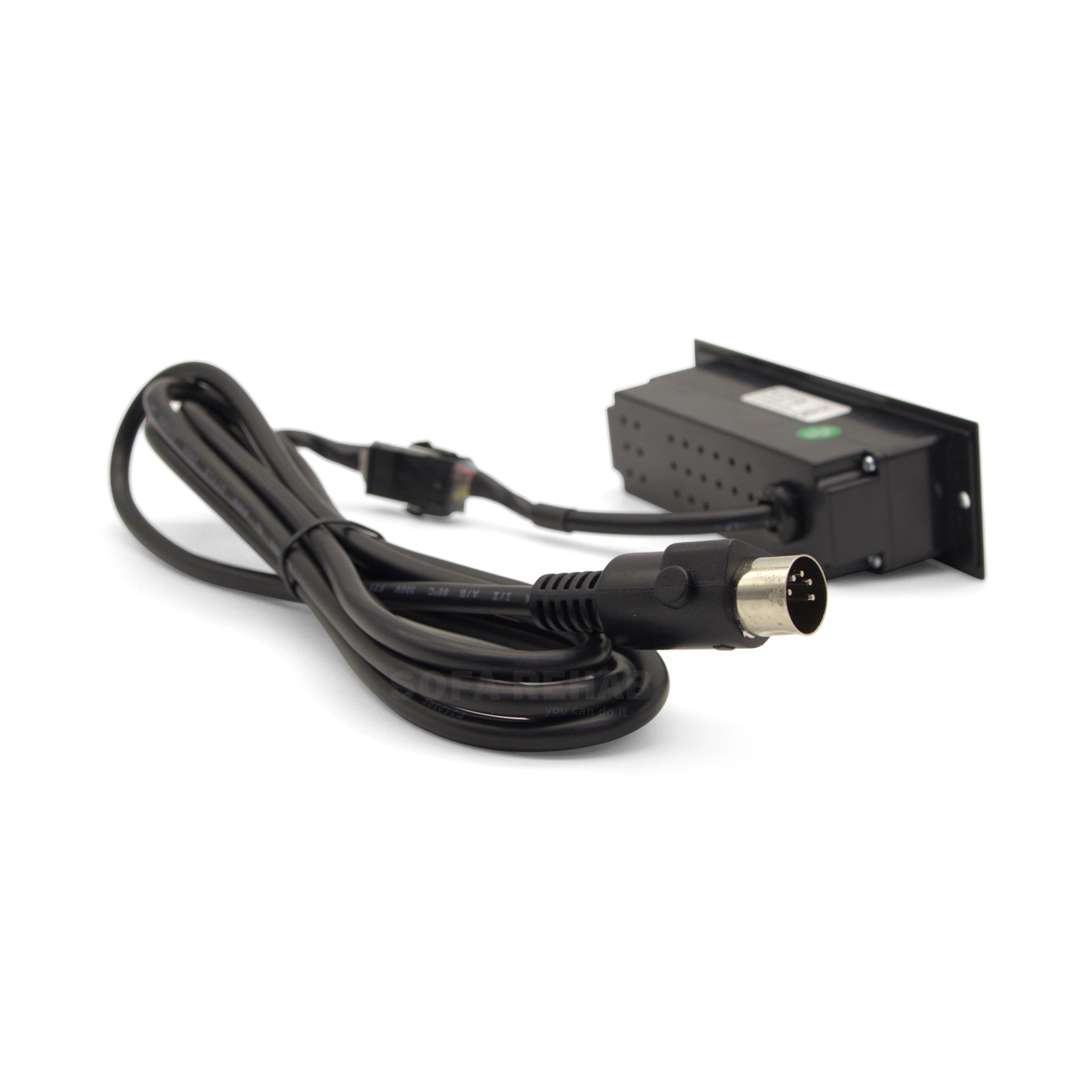

- Plug Type: Male 5 pin round DIN plug with retaining lugs
- Mounting: Screw mounted with removable fascia to hide screw holes
How To Tutorial
How To Tutorial
How To Install Your Recliner Switch
- Step 1: Disconnect power to your recliner by unplugging it from the wall socket.
- Step 2: Carefully remove the existing switch by taking off the fascia cover and unscrewing the mounting screws.
- Step 3: Take a photo of the existing setup before disconnecting any cables for reference during reinstallation.
- Step 4: Disconnect the old switch from the 5 pin plug connection.
- Step 5: Connect the new switch to the existing plug, ensuring the connection is secure and aligned correctly.
- Step 6: Position the new switch into the cut-out and secure it using the screws, then refit the fascia cover.
- Step 7: Restore power and test all functions including recline, headrest and home button.
Safety Tips: Always practice safe lifting techniques when moving your recliner to access the switch area. Recliners can be heavy and awkward, so get assistance if needed to avoid injury or damage to your furniture.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Is this switch compatible with all electric recliners?
This switch is designed for dual motor recliners with separate controls for the main recline and headrest. It uses a 5 pin round DIN plug, so you’ll need to match both the plug type and functionality with your existing switch.
What does LHF mean and will this fit my chair?
LHF stands for Left-Hand Facing when looking at the furniture. This means the switch is installed on the left-hand side of the chair frame and operated with your right hand when seated. Make sure your current switch matches this orientation.
Does this work with single motor recliners?
No, this switch is specifically designed for dual actuator systems. If your recliner only has one motor controlling all movements, you will need a different type of switch.
Do the USB ports work independently of the recliner?
Yes, the USB-A and USB-C ports (5V max 2A) will provide power as long as the recliner is connected to a working power supply, allowing you to charge devices conveniently.
Is this difficult to install?
Not at all. This is a straightforward DIY replacement. Simply unplug your recliner, remove the old switch, connect the new one using the existing 5 pin plug, and secure it in place. No special tools or experience required.
