eMoMo Q-Cup E201LHRCW Recliner Cup Holder & Control Box
$165.00
In stock

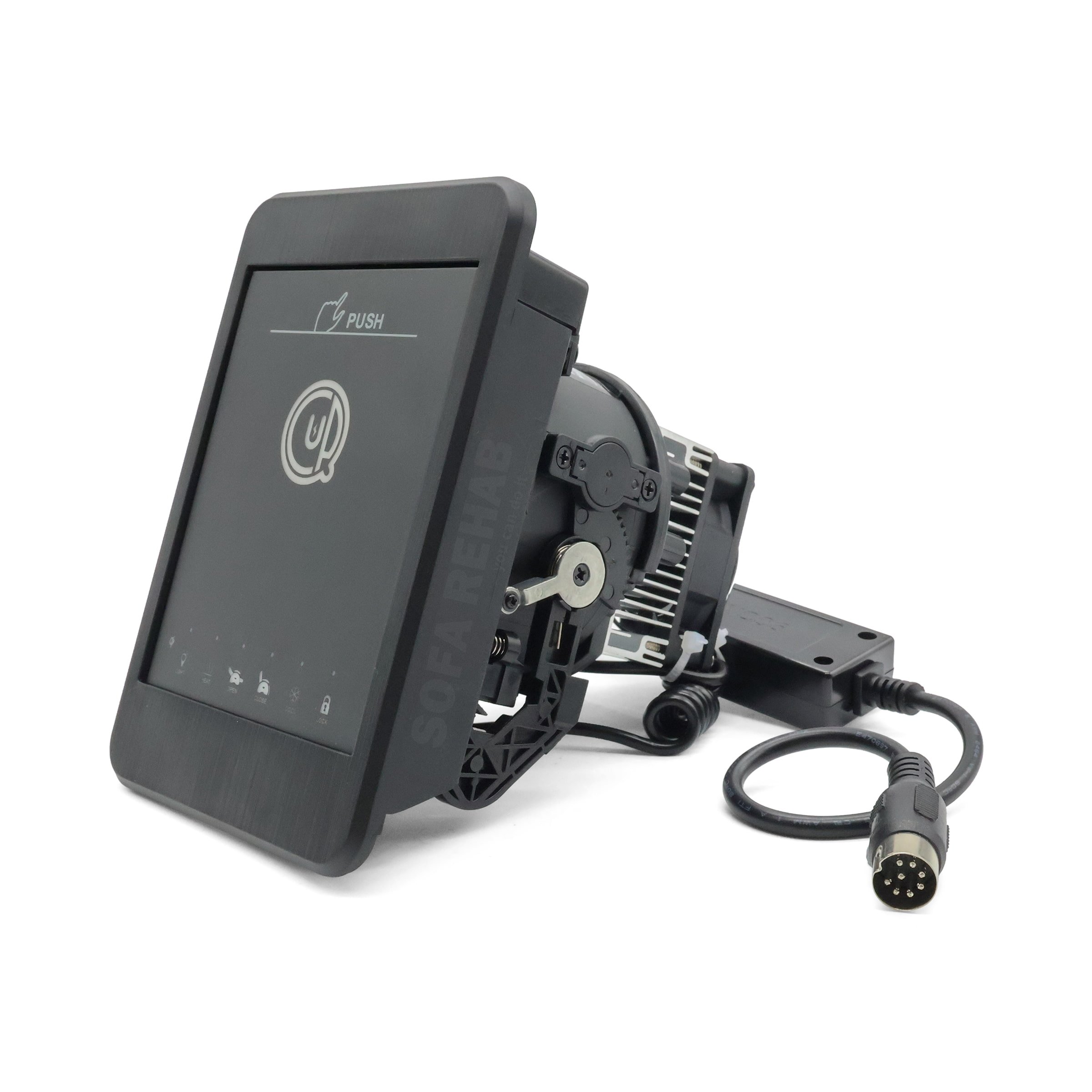

eMoMo Tech Q-Cup E201LHRCW multifunction cup holder and control box kit. Designed to operate electric recliners chairs, sofas and movie lounges. Black in colour with a 90° flip cover which has 6 back-lit touch sensor buttons to operate either the seat/backrest recline functions, turn lights, drink cooling and heat features on/off and a child lock button. Model number E201LHRCW. Power Recliner Armrest Cup Holder With Drink Cool/Heat Function Keep drinks hot or ice cold whilst watching your favourite movie with the built in temperature function and even wirelessly charge your device. eMoMo Tech genuine product. Looking For Another Replacement Cup Holder? We have an extensive inventory of cup holder (click here) replacements but if your having trouble finding the right one then feel free to ask us. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
E201LHRCW Q-Cup Multifunction Cup Holder

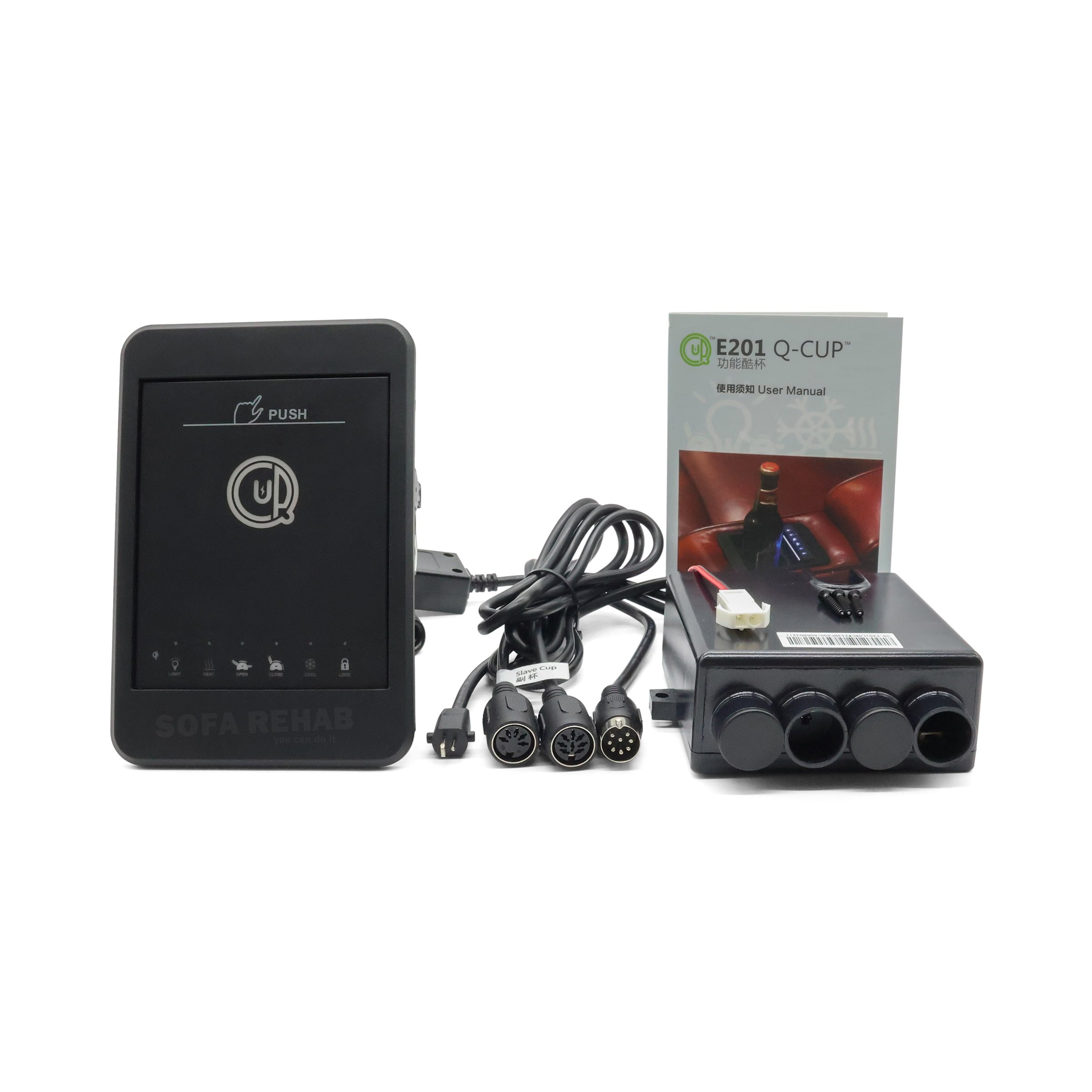

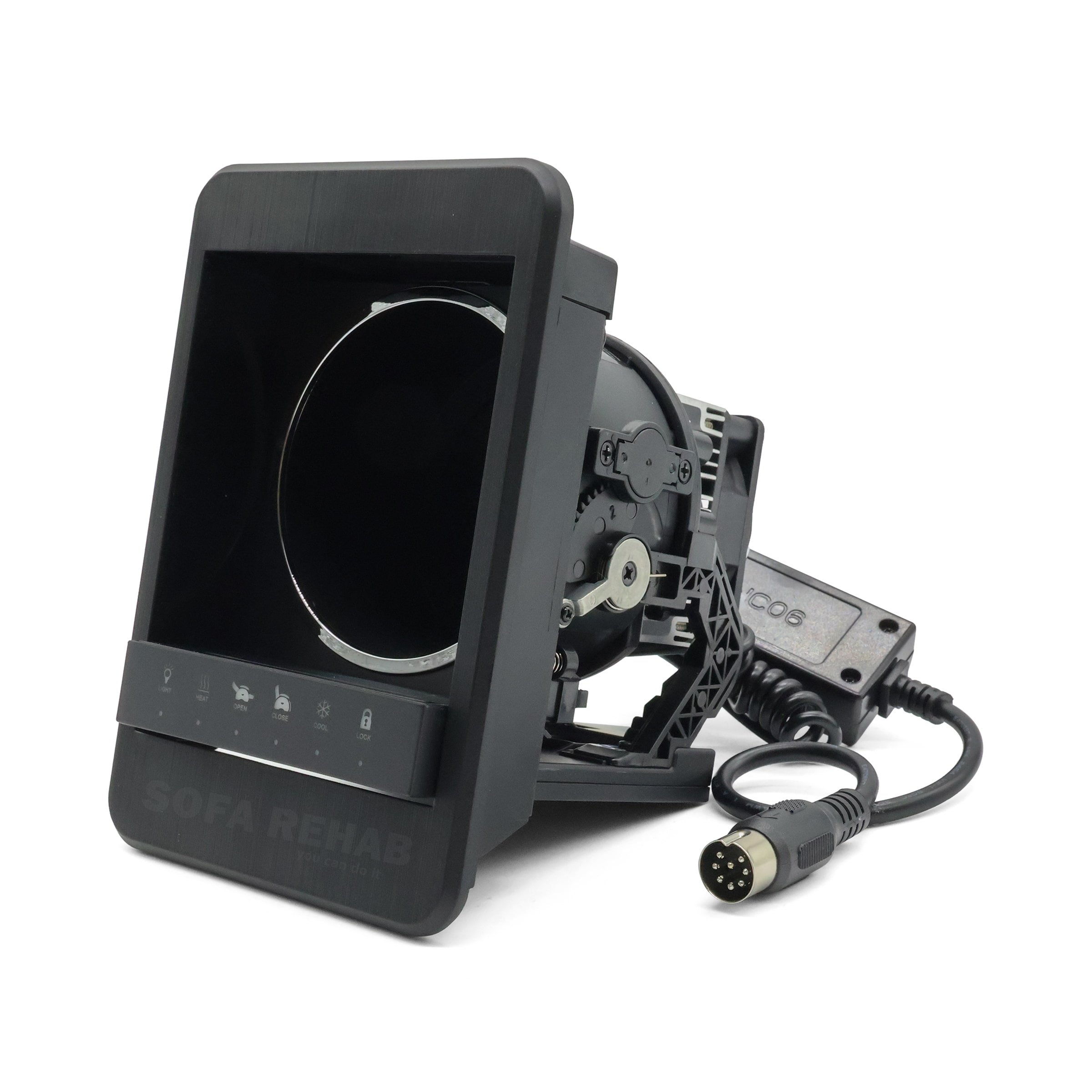

This replacement E201 electric recliner couch black coloured touch sensor cup holder is commonly fitted into the armrest or console of the power recliner chair, couch or theatre lounge and its multifunction design is used to recline the seat/backrest, heat or cool drinks, turn on/off light and child lock and wireless charging all through the 90° revolving panel and Blue LED touch sensors. Included is this kit is 1 x Q-Cup cup holder E201LHRCW-1, 1 x cup holder housing, 1 x control box E201LHRCW-2, screws and instruction booklet.
Save Time & Money and Do It Yourself
The replacement is easy to fit with no experience required. The size of the main cup holder unit is 111mm span across the illuminated touch sensors and will fit a hole diameter of 96mm. Not supplied with the control module box this is sold separately.
Australia's leading supplier of recliner chair spare parts
We’re Australia’s Leading Supplier for Repair Kits and Spare Parts. Get the lowest prices on DIY repairs and if your a trades person who needs to buy in bulk, we also offer bulk buy discounts.
Technical Specifications
Technical Specifications
Make – eMoMo Tech.
Cup Holder Specification’s
Model number – E201LHRCW or E201LHRCW-1 and on barcode is SN: E201LHRCW2#####.
Colour – Black.

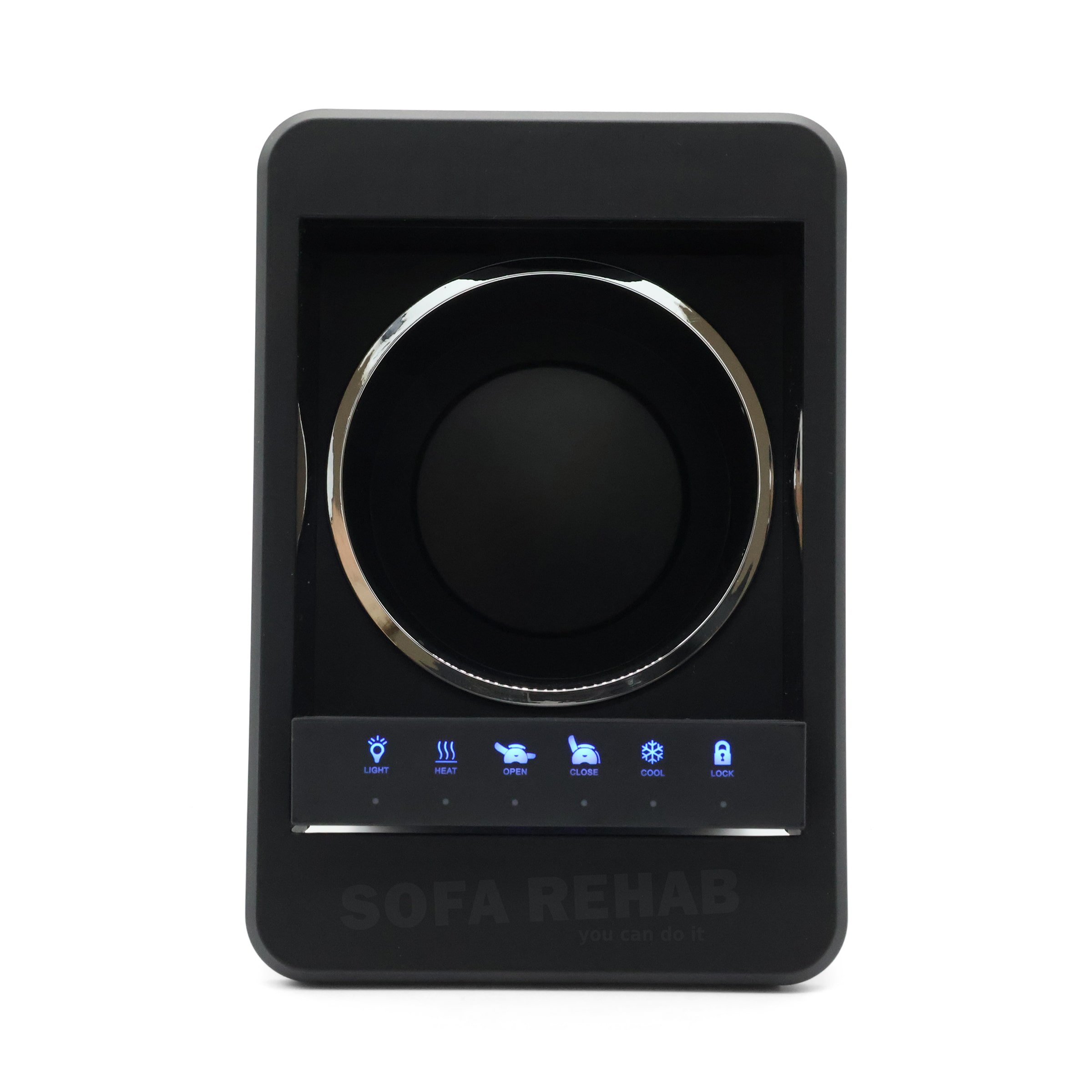

LED Lights – On/Off as required and LED Blue light = Standard function and LED Green light = Cooling function activated.
Cup Holder Size – Outer diameter of cup holder is 157mm x 106mm (Approximately).
Frame hole – Will fit a hole diameter of 146mm x 99mm and depth of 130mm (Approximately).
Plug and Cable – Straight 8 pin din plug and cable 360mm including plug (Approximately).
Power Input – 29V 2A.
Rated Power – 58W.
Control box Specification’s

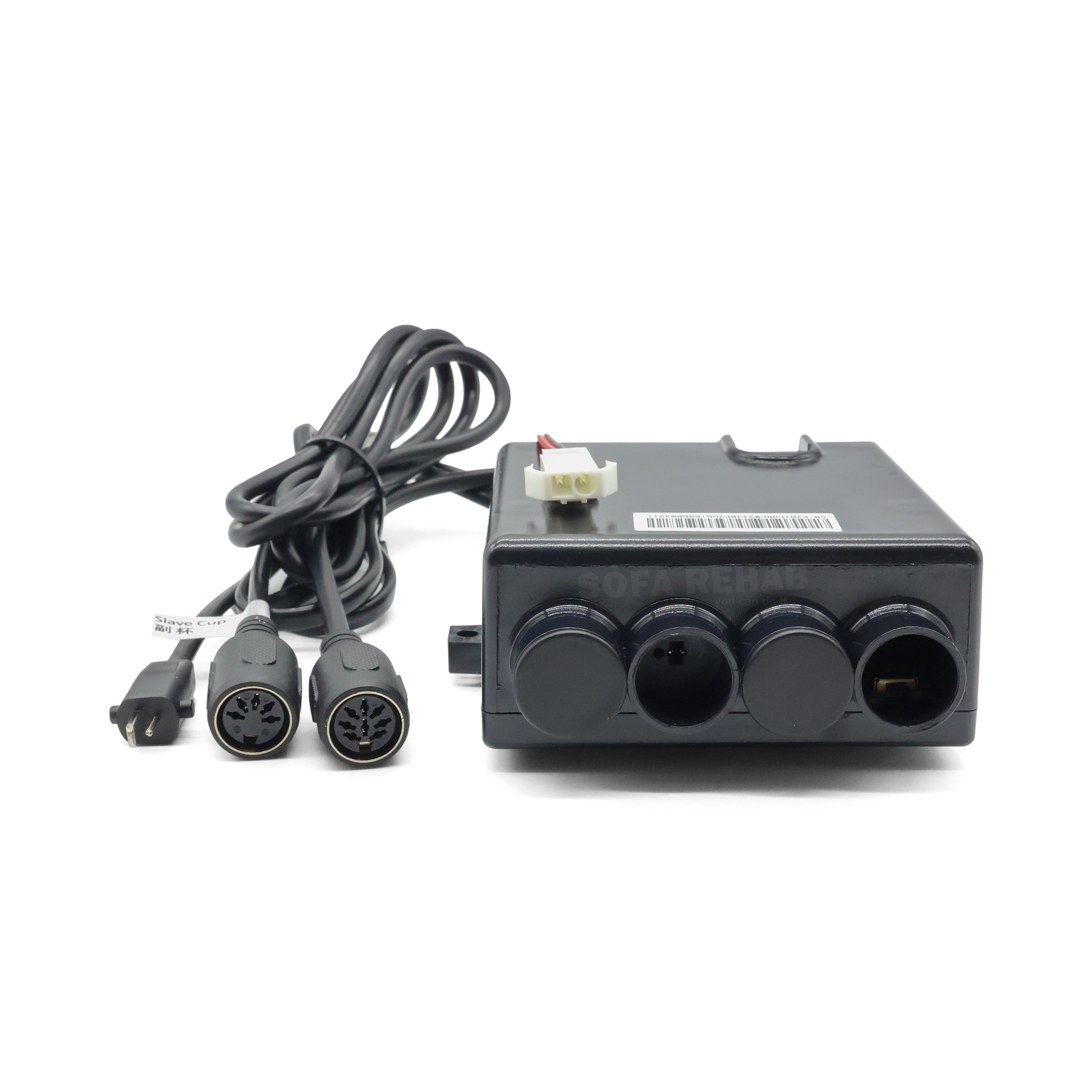

Model number – E201LHRCW-2 and on barcode is SN:E201LHRCW2#####.
Input plugs – 1 x Female OI, 1 x Switch toggle.
Cables- 1 x Female 5 pin din plug and cable 410mm long, 1 x female 8 pin din plug and cable 1300mm long, 1 x male OI plug and cable 1000mm long and Red/Black cable with white system plug 130mm long (all approximately and including the plugs).
How To
How To
WE ALWAYS ADVISE TO PRACTICE SAFE LIFTING TECHNIQUES AND MOVING OF THE FURNITURE TO AVIOD PERSONAL INJURY AND DAMAGE TO PROPERTY.
Disconnect power to the item
Press touch sensors to confirm no power to the cup holder or item
Release the cup holder from the housing by prising off the outer edge of the cup holder from the inner housing
Remove the screws holding the cup holder housing to the upholstery
Tip over lounge/chair and locate the control module normally located inside the arm or console carcass (Possibly hidden behind the dustcover material)
Unscrew the control module
Unplug all cables entering and exiting the control module
Return the lounge/chair back to the standard seating position and remove the cup holder, housing and control module
Connect the cup holder and control module plugs into the corresponding sockets of each other before installing into the furniture
Install the replacement housing first and screw into position using the same screws you took out originally or the new screws supplied with the kit, next feed the control module through the housing, followed by the cup holder ensuring the cables are feed through and clear of any moving parts then secure the cup holder to the housing by aligning the connection clips and clicking into position
Tip the lounge/chair over again
Locate the control module and secure into position using the screws you originally took out
Locate the cup holder cable and plug and control module cables and plugs and connect it to the corresponding plugs and sockets as previously done by the factory
Tip over lounge/chair back over again to the standard seating position
Reinstate the power.
Test all functions of the cup holder and also check that no cabling is going to be trapped or damaged as the recliner functions.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Where do I find the model number?
Remove the cup holder from the arm of the recliner and the model label is found on the neck or towards the bottom of the cup holder housing and there is a label on the control module as well.
Will this fit my recliner?
Check the product model identification label found on the side of the cupholder and control module to see if the codes match, if they do it will fit.
Do this come with a clear acrylic insert?
No.
Does this come with the control module?
Yes.
Can I change the LED colour?
No.
Is it easy to fit this cup holder?
Yes, very simple to do, follow our step by step installation guide found in the 'How to' tab.
How many buttons does it have?
6 touch sensor/buttons, 1 x child lock, 1 x open, 1 x close 1 x light ,1 x heat and 1 x cool touch button.
How many motors does this cup holder operate?
1 x actuator for reclining the footrest and backrest.
