Cup Holders

eMoMo Tech B26RRLA LED Cup Holder

$75.00

In stock

eMoMo Tech power recliner Black cup holder control replacement complete with clear acrylic insert. Has 8 back-lit touch sensor buttons including USB port and child lock feature suitable for electric recliner chairs, sofas and theatre lounges. Model number B26RRLA. Control module box sold separately. Power Recliner Armrest Cup Holder Replacement. This cup holder has 8 touch sensors to control feet up/down, headrest up/down and lights on/off, child lock, inner wall depth adjuster and a Home button feature. eMoMo Tech genuine product. Looking For Another Replacement Cup Holder? We have an extensive inventory of cup holder (click here) replacements but if your having trouble finding the right one then feel free to ask us. read more

SKU:
E-CUP40
Brand:
eMoMo Tech
Weight
0.24 kg
Dimensions
13 × 13 × 5 cm
Cup Holder Types

Integrated Controls

Description

B26RRLA Power Recliner Cup Holder Control Replacement

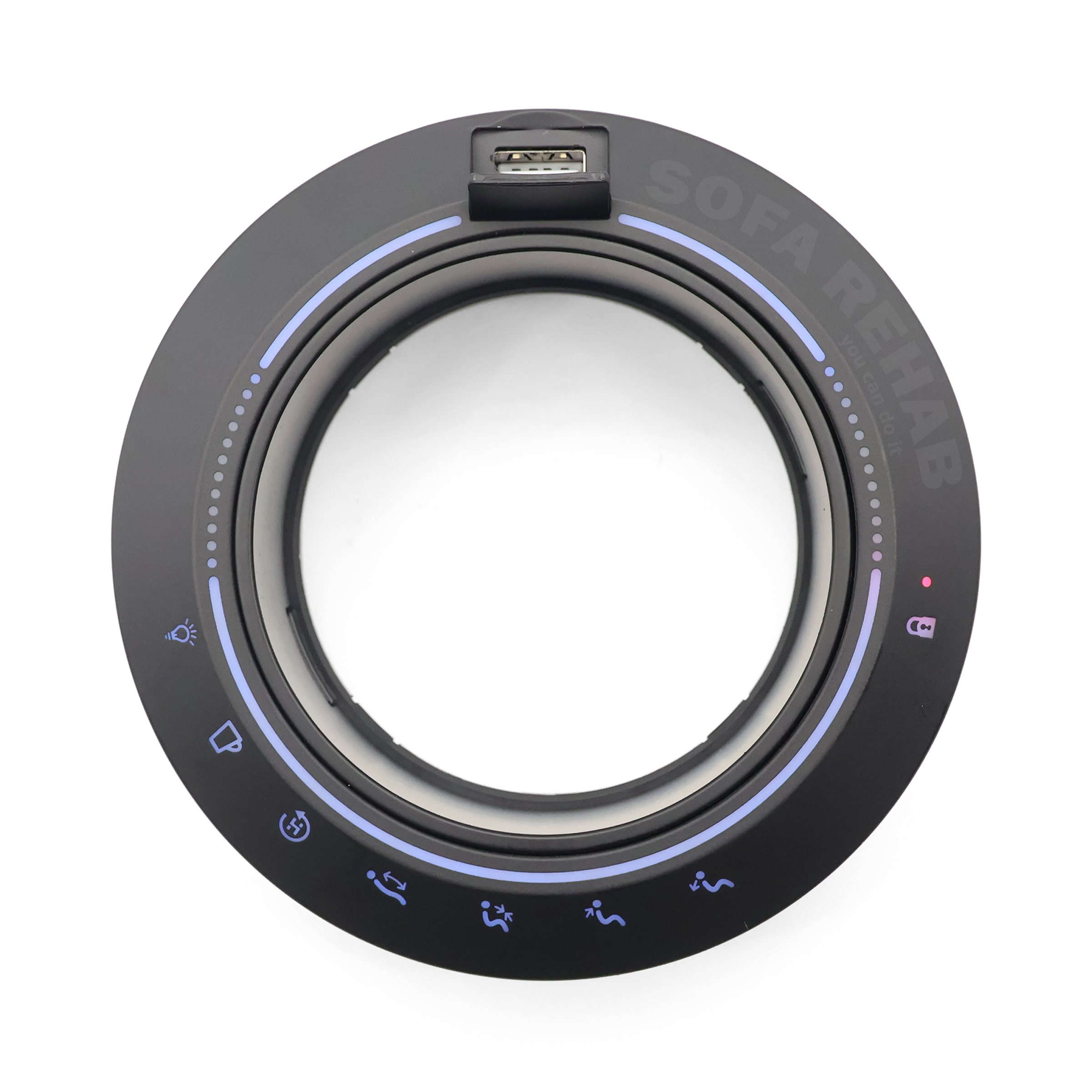

This replacement electric recliner couch black coloured cup holder is fitted into the armrest of the power recliner chair, couch or theatre lounge and has blue LED illuminated touch control sensors to operate the footrest, headrest with a Home button, lights, child lock and the internal wall which raises to double the cup holders depth plus USB port. Commonly fitted into the armrest or console of the electric power recliner for a quality appearance. Does not include the control module box this is sold separately.  eMoMo Electric model number is B26RRLA.

Save Time & Money and Do It Yourself

The replacement is easy to fit with no experience required.  The size of the main cup holder unit is 121mm span across the illuminated touch sensors and will fit a hole diameter of 113mm. Supplied with the clear acrylic insert but not the control module box this is sold separately. Control module junction box that matches this cup holder is B26RRLA (Click Here) to view it.

Australia's leading supplier of recliner chair spare parts

We’re Australia’s Leading Supplier for Repair Kits and Spare Parts. Get the lowest prices on DIY repairs and if your a trades person who needs to buy in bulk, we also offer bulk buy discounts.

Technical Specifications

Technical Specifications

Make – eMoMo Tech.

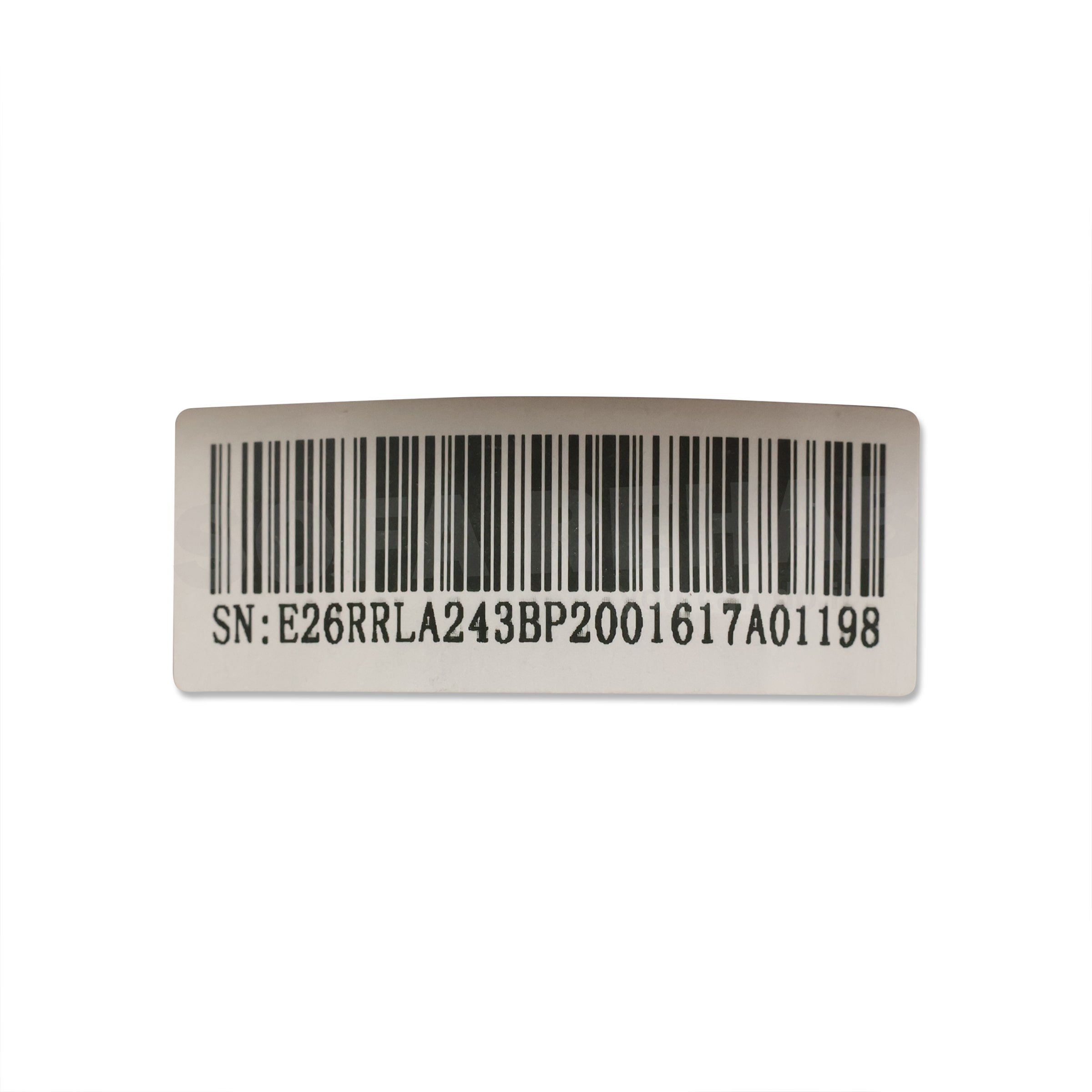

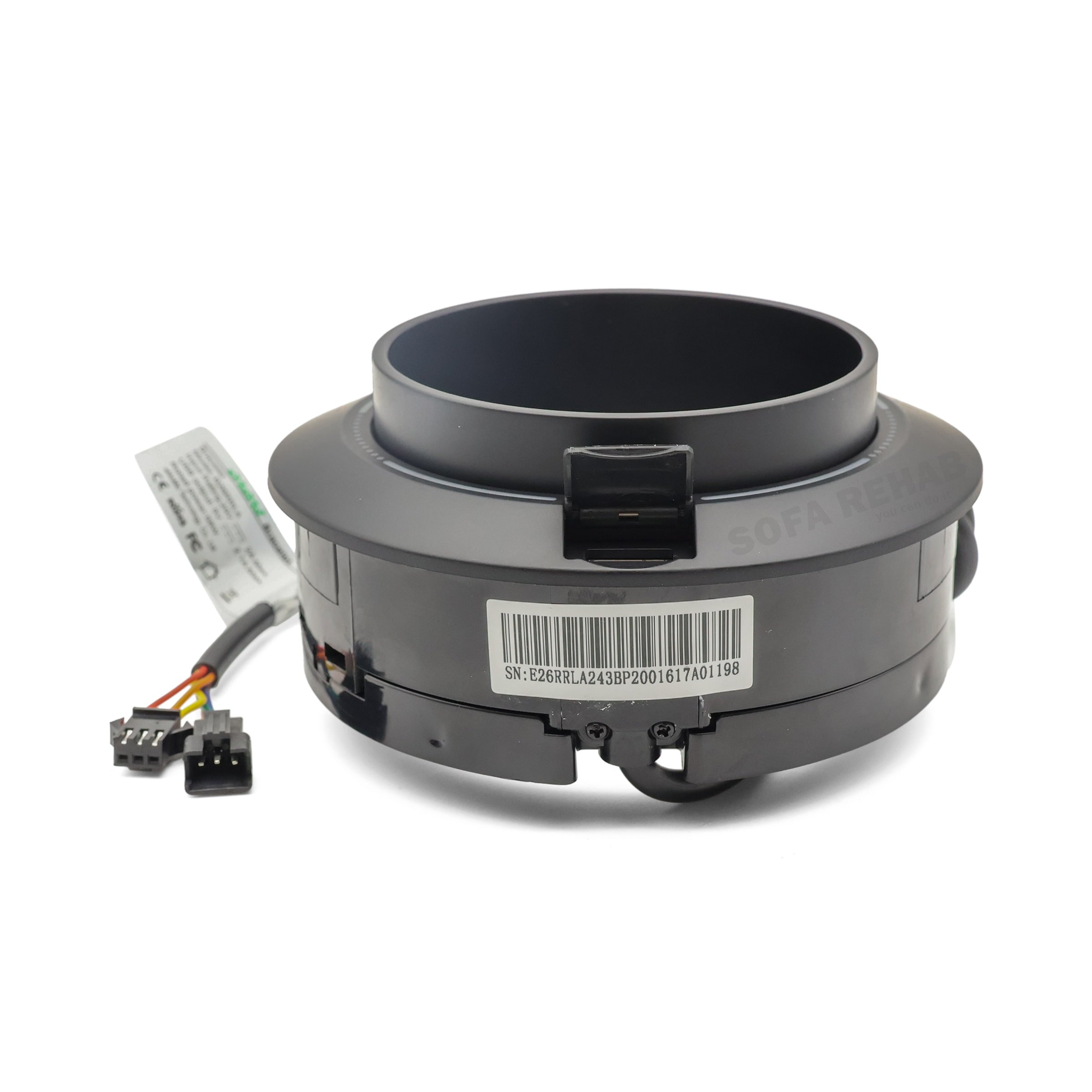

Cup Holder model number – B26RRLA and on barcode is SN: E26RRLA2#####.
Control Box model number – B26RRLA-2 (Sold Separately)
Colour – Black.
Size – 121mm span.
Frame hole – Will fit a hole diameter of 113mm.

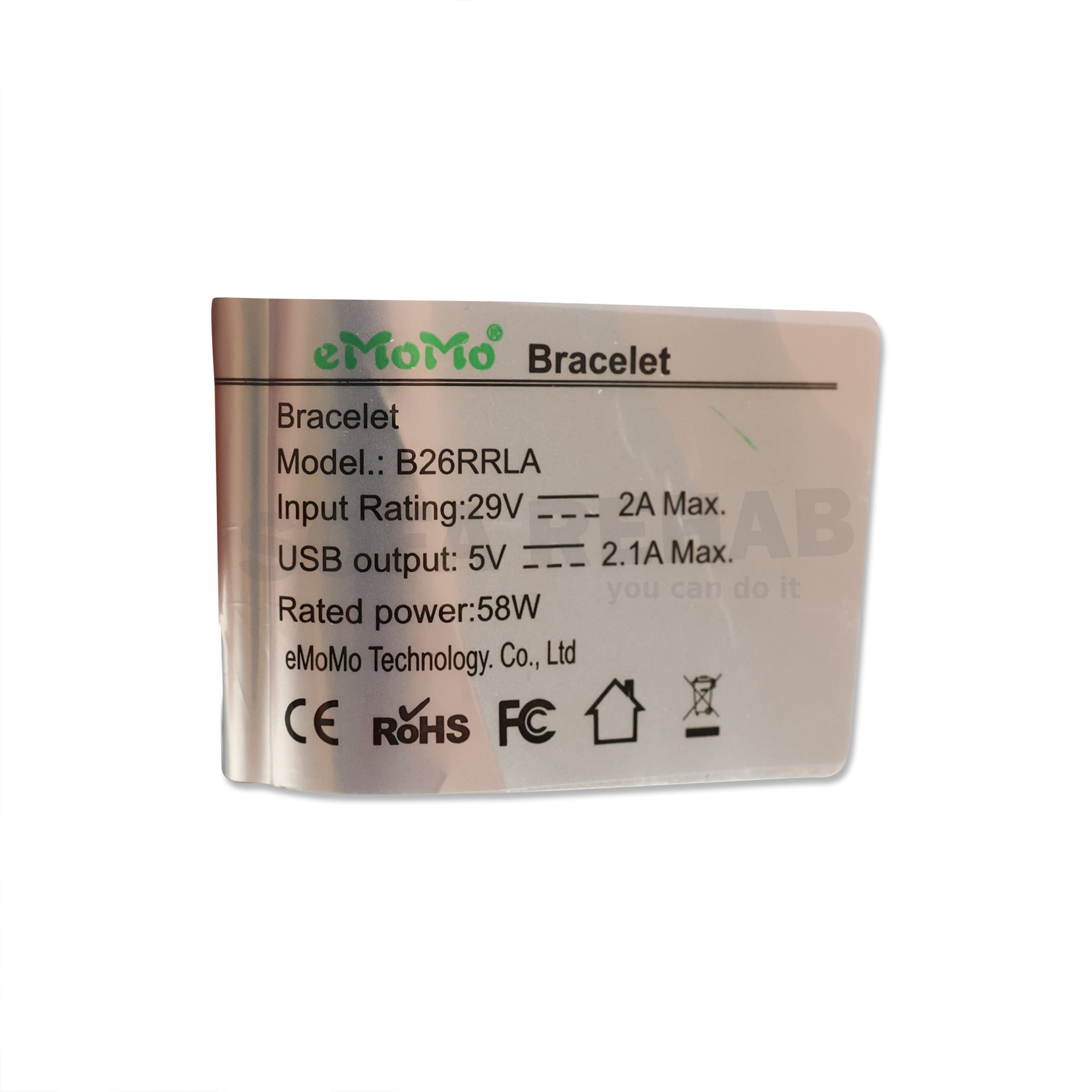

Cup Holder rating – Input DC 29V 2A Max.
USB Port – Output 5V 2.1A Max.

How To

How To

Disconnect power to the item
Press touch sensors to confirm no power to the cup holder or item
Remove clear plastic inner cup
Tip over lounge/chair and unplug the actuator plugs from the control module and any system plugs, unscrew the control module and leave it free and tip lounge/chair back over
Inside the cup holder push the two tabs found at the base of the cup holder inwards to lift off the main cup holder and remove any screws, fully remove cup holder and control module
Insert replacement cup holder leads, control module and plastic housing into position
Screw the base of cup holder back into place and connect main cup holder unit to the base
Tip over lounge/chair again and locate the control module and secure in position and then connect all plugs
Tip back over and insert the clear plastic inner cup
Reinstate the power.

Reviews (0)

Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login

  • There are no reviews yet.

FAQs

FAQs

Where do I find the model number?

Remove the cup holder from the arm of the recliner and the model label is found on the neck of the cup holder housing.

Will this fit my recliner?

Check the product model identification label found on the side of the cupholder and control module to see if the codes match, if they do it will fit.

Do this come with the clear acrylic insert?

Yes.

Does this come with the control module?

No. You will get the Black Cupholder Bracelet and clear acrylic insert only. The control module this is sold separately under model number B26RRLA-2 or E-26RRLA.

Can I change the LED colour?

No, this is single colour Blue LED.

Does the LED lights stay on permanently?

No, the manufacturers have built in a pre-set timer, after a period of time the lights will automatically turn off and then require a button to be pressed to turn back on.

Is it easy to fit this cup holder?

Yes, very simple to do, follow our step by step installation guide found in the 'How to' tab.
