Description
eMoMo Power Recliner Switch with USB

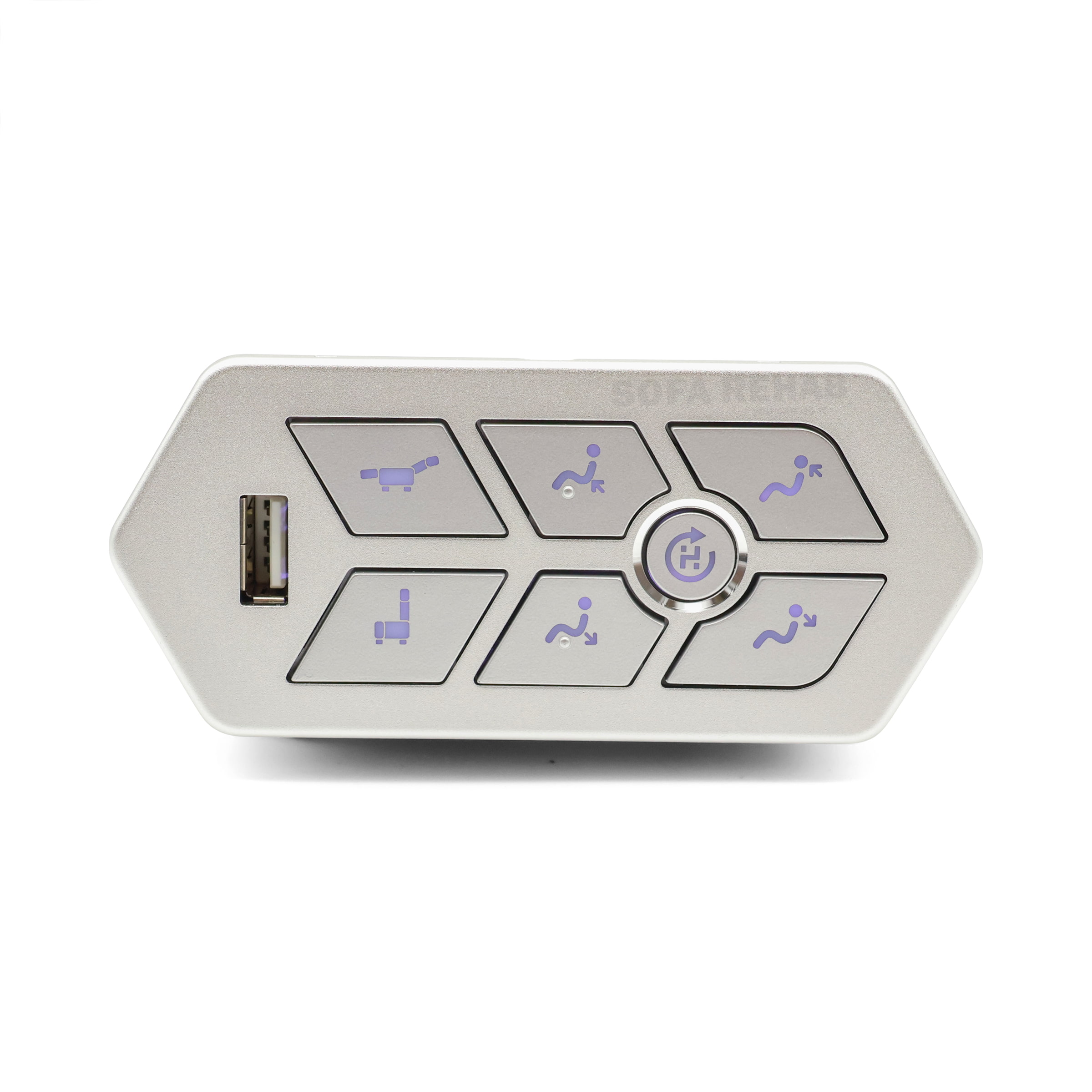

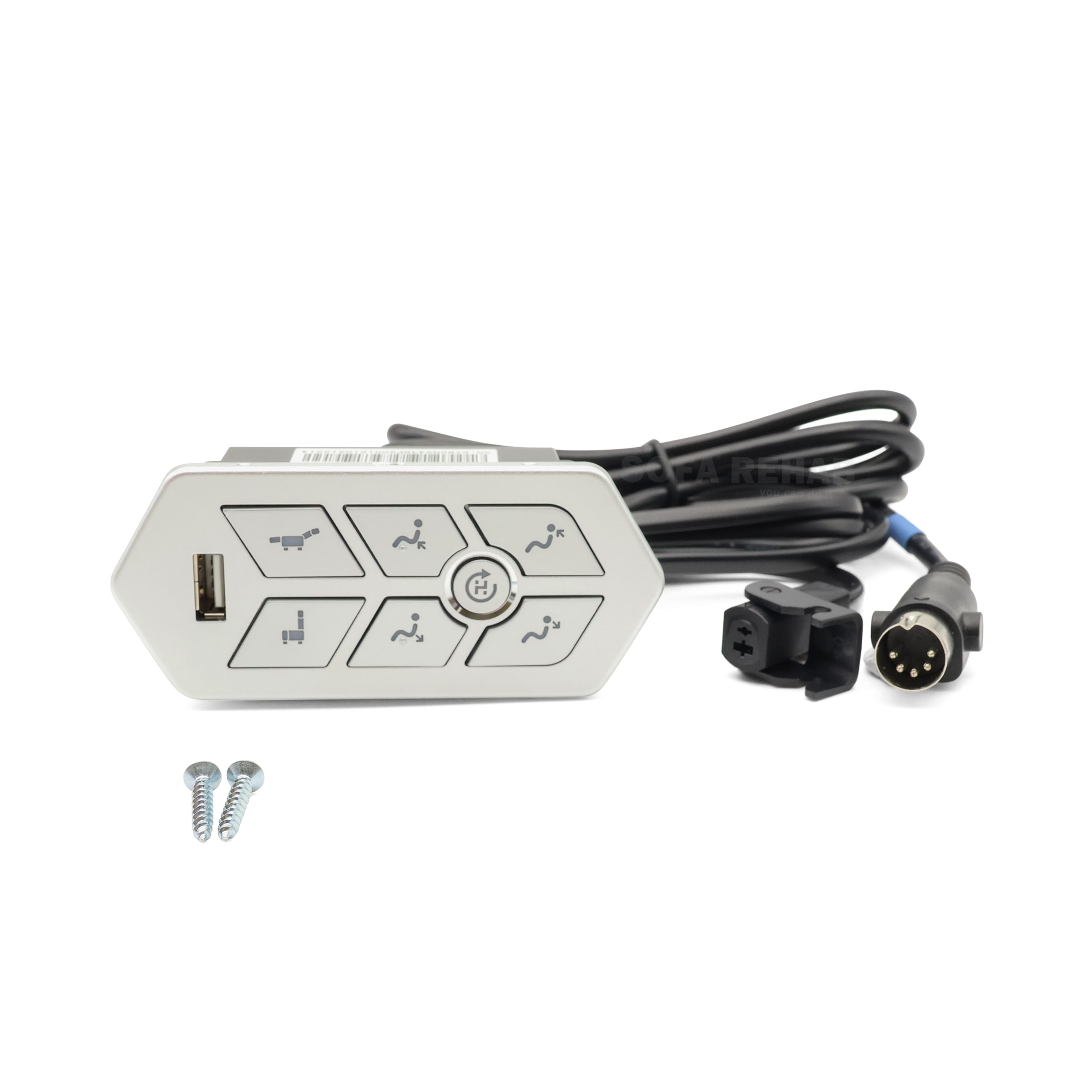

Commonly fitted to the outer arm of electric recliner chairs and sofas having a removable screw cover, it allows for an aesthetically pleasing design and offers a discreet appearance. Our sleek, robust and compact Silver coloured hexagon shaped 7 button power recliner switch with illuminated touch buttons and USB charging port fits most recliner chairs and sofas needing to operate triple mechanisms on the market today.
eMoMo Recliner Switch Replacement
Model number TRSN and the serial number found on the barcode starts with SN:ETRSN. This version of power recliner switch is fitted to the LEFT HAND SIDE when seated. We also sell the TRS version that fits to the RIGHT HAND SIDE when seated or if you were looking for the black or grey coloured metal facia versions we sell these too.
We're Australia's Leading Supplier of Recliner Chair Spare Parts
We’re Australia’s leading supplier for repair kits and spare parts. Get the lowest prices on DIY repairs and if your a trades person who needs to buy in bulk, we also offer bulk buy discounts.
Save Time & Money and Do It Yourself
Easy fitting in under 15 minutes with no experience required. The only tool required is a screwdriver.
Technical Specifications
Technical Specifications
Make – eMoMo Tech.
Model Number –TRSN. Serial number found on the barcode starts – SN:ETRSN#####
Function –Front 2 buttons open/close the footrest, middle 2 buttons open/close the lumber and the rear 2 buttons open/close the headrest and 1 x Home button.
Location –Install on the LEFT HAND SITING or RIGHT HAND FACING.
Colour –Silver.
Material –Plastic housing and metal fascia.

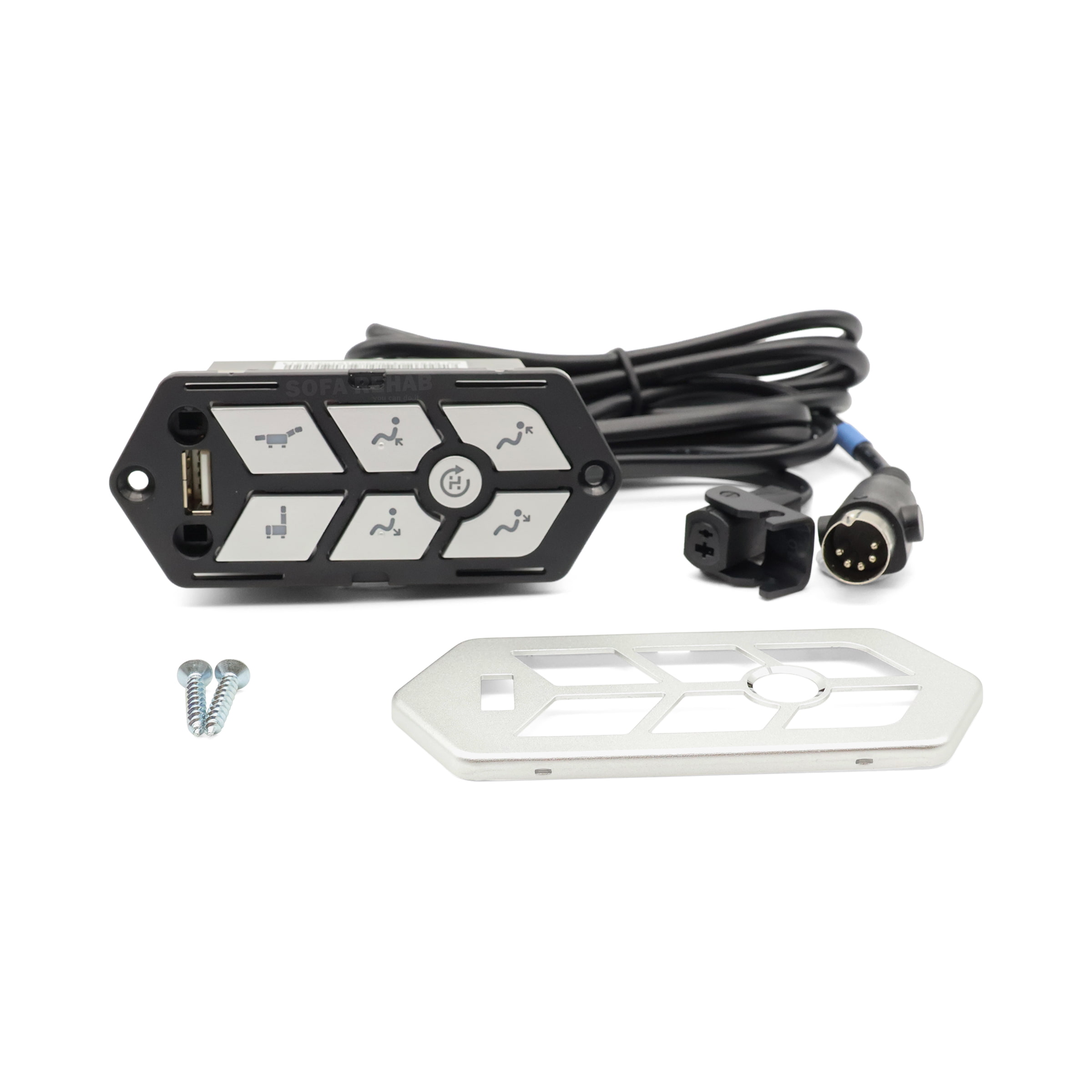

Plugs –1 x straight 5 pin din plug and blue band and 1 x male OI 2 pin plug and clasp.
Dimensions – External fascia is Width 103mm, Depth 45mm. Thickness including housing and buttons is 38mm. Din plug cable length is 1435 mm and the OI 2 pin cable length is 1010mm both including the plugs (approximately)
How to
How to
- Unplug all power to the recliner and remove the mains plug from the wall socket.
- Lay down a drop sheet on the floor in front of the recliner chair.
- Unclip the metal outer screw cover off to expose the 2 screws.
- Remove the screws and then pull out the switch casing to allow it to hang freely by its cable.
- Carefully turn the recliner over on its front side to gain access to the recliner wiring underneath.
- Locate where the original cabling currently fits and make notes of how it’s routed (recommended to take a photo).
- Cut and remove any cable ties holding the switch in place then unplug it from the actuator motor.
- You should be able to remove fully the broken switch from the recliner.
- Feed the replacement switch through the outside arm plug first until the switch housing is snug into the arm hole.
- Connect plugs securely to corresponding plugs.
- Secure any free cabling into the same position as the original using cable ties, be sure to check the cable is not caught up and not too tight or at risk of being trapped during motion.
- Carefully turn the recliner back over to the standing position.
- Angle the switch rotation first and then work on screwing in the 2 housing screws for the toggle switch.
- Put the metal switch cover back on to hide the screws.
- Reconnect the power and switch it on.
- Test the replacement toggle switch by operating the recliner to its maximum opening and closed position. When fully open, look inside to see that the cabling is safely out of harms way and is not stretched or pinched.
- Test the USB charge port.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Will this work my recliner?
This switch is suitable for electric recliners with a triple actuators/motors only and fits to LEFT HAND SEATED ONLY,
Does the USB port charge my device?
Yes, the USB has a 5V 2A power rating this may limit the size of the device you wish to charge. A smartphone, Ipad etc is okay however a laptop etc may be limited.
Will the switch suit left and right sides of the recliner?
No, this switch will only fit to the LEFT HAND SIDE when seated.
My switch looks the same will it still work?
The model number must be the same as ours to work. Model TRSN with serial number found on the barcode starting SN:ETRSN#####.
Is this switch easy to fit ?
Yes, very simple and no experience is required. See our "How to " tab for detailed step by step instructions. We even supply the screws.
