Kaidi KDH089-301 Recliner Switch
$55.00
In stock

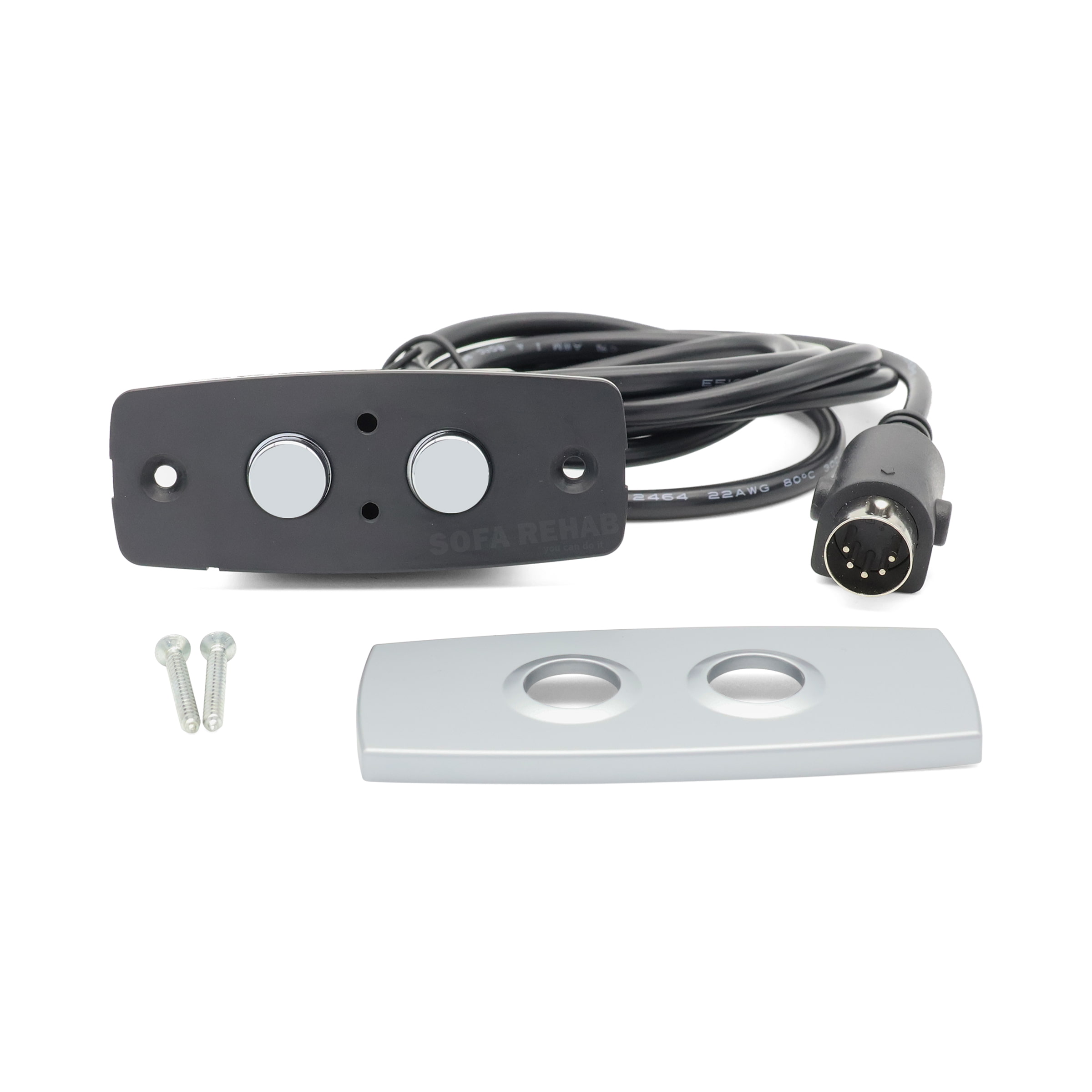

A replacement Kaidi Electrical KDH089-301 power recliner 2 button oval switch with a silver fascia cover. Universal fitment that fits most electric recliner chairs, sofa's and modular lounges. Model number KDH089-301. Commonly found on the La Z Boy Taylor model and many others. Kaidi Recliner Switch Electric 2 button recliner toggle switch used to operate the footrest mechanism of Kaidi power recliner chairs and sofas. Not the Switch Your Looking For? We stock all the popular recliner switches (click here). If you are still not sure which replacement power recliner chair or sofa switch is right for you please contact our helpful team. read more
In stock
- Description
- Technical Specifications
- How to
- Reviews (0)
- FAQs
- Add a review
Description
Kaidi Electrical Recliner Switch Replacement

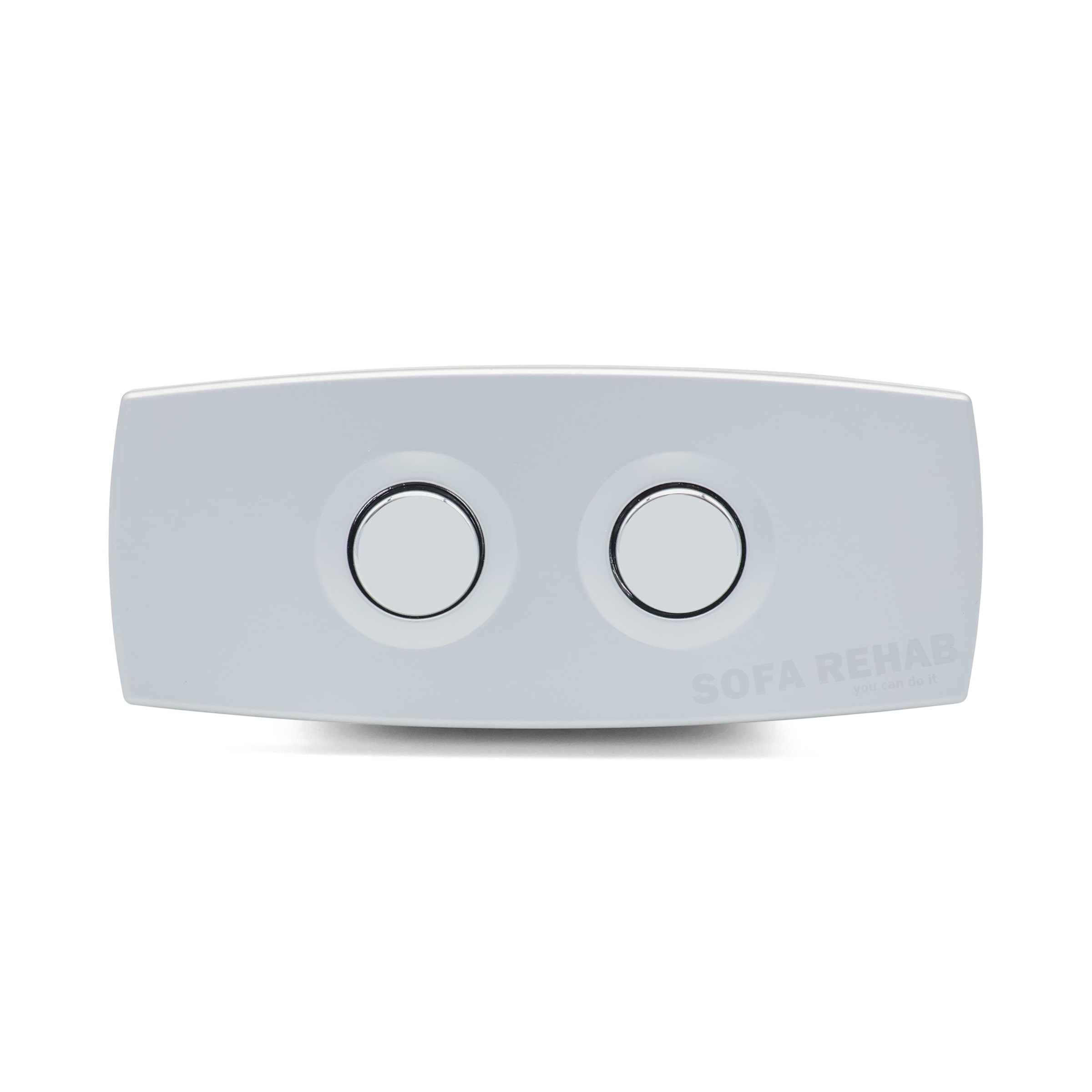

Commonly fitted to the outer arm of electric recliner chairs and sofas having a removable screw cover, it allows for an aesthetically pleasing design and offers a discreet appearance. Our sleek, robust and compact silver coloured oval 2 button power recliner switch fits most recliner chairs and sofas. Commonly found on the La Z Boy models like the Taylor etc…
Power Recliner Replacement Buttons
Model Number KDH089-301. This Kaidi electric recliner toggle switch is universal in fitment meaning it can be installed either side of a power recliner chair, sofa or corner lounge. Not only suited to Kaidi electric recliners this great quality replacement power recliner 2 button switch is suitable for Okin and many other brands like HTL electric recliner lounges.
We're Australia's Leading Supplier of Recliner Chair Spare Parts
We’re Australia’s leading supplier for repair kits and spare parts. Get the lowest prices on DIY repairs and if your a trades person who needs to buy in bulk, we also offer bulk buy discounts.
Save Time & Money and Do It Yourself
Easy fitting in under 15 minutes with no experience required. The only tool required is a screwdriver.
Technical Specifications
Technical Specifications
MAke – Kaidi Electrical.
Model – KDH089-301.
Function – Front button open and rear button close.
Location – Universal can be fitted either left or right sides.
Colour – Silver.
Material – Plastic fascia.
Switch Dimensions – External fascia Width 84mm, Height 34mm and thickness including the housing and buttons is 38mm (Approximately).
Plug – Straight 5 pin din plug.
Cable Length (Inc Plug) – 1410mm (Approximately).
How to
How to
- Unplug all power to the recliner and remove the mains plug from the wall socket.
- Lay down a drop sheet on the floor in front of the recliner chair.
- Prise off the plastic outer screw cover off to expose the 2 screws.
- Remove the screws and then pull out the switch casing to allow it to hang freely by its cable.
- Carefully turn the recliner over on its front side to gain access to the recliner wiring underneath.
- Locate where the original cabling currently fits and make notes of how it’s routed (recommended to take a photo).
- Cut and remove any cable ties holding the switch in place then unplug it from the actuator motor.
- You should be able to remove fully the broken switch from the recliner.
- Feed the replacement switch through the outside arm plug first until the switch housing is snug into the arm hole.
- Locate the din plug and connect it to the corresponding actuator plug.
- Secure any free cabling into the same position as the original using cable ties, be sure to check the cable is not caught up and not too tight or at risk of being trapped during motion.
- Carefully turn the recliner back over to the standing position.
- Angle the switch rotation first and then work on screwing in the 2 housing screws for the toggle switch.
- Put the plastic switch cover back on to hide the screws.
- Reconnect the power and switch it on.
- Test the replacement toggle switch by operating the recliner to its maximum opening and closed position. When fully open, look inside to see that the cabling is safely out of harms way and is not stretched or pinched.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Will this work my recliner?
This switch is suitable for electric recliners with a single footrest motors, you will also need to check your actuator accepts a 5 pin round din plug.
Will the switch suit left and right sides of the recliner?
Yes, you may need to rotate the switch 180 degrees to ensure the buttons are the correct way round. I.E front button to open and rear button to close etc.

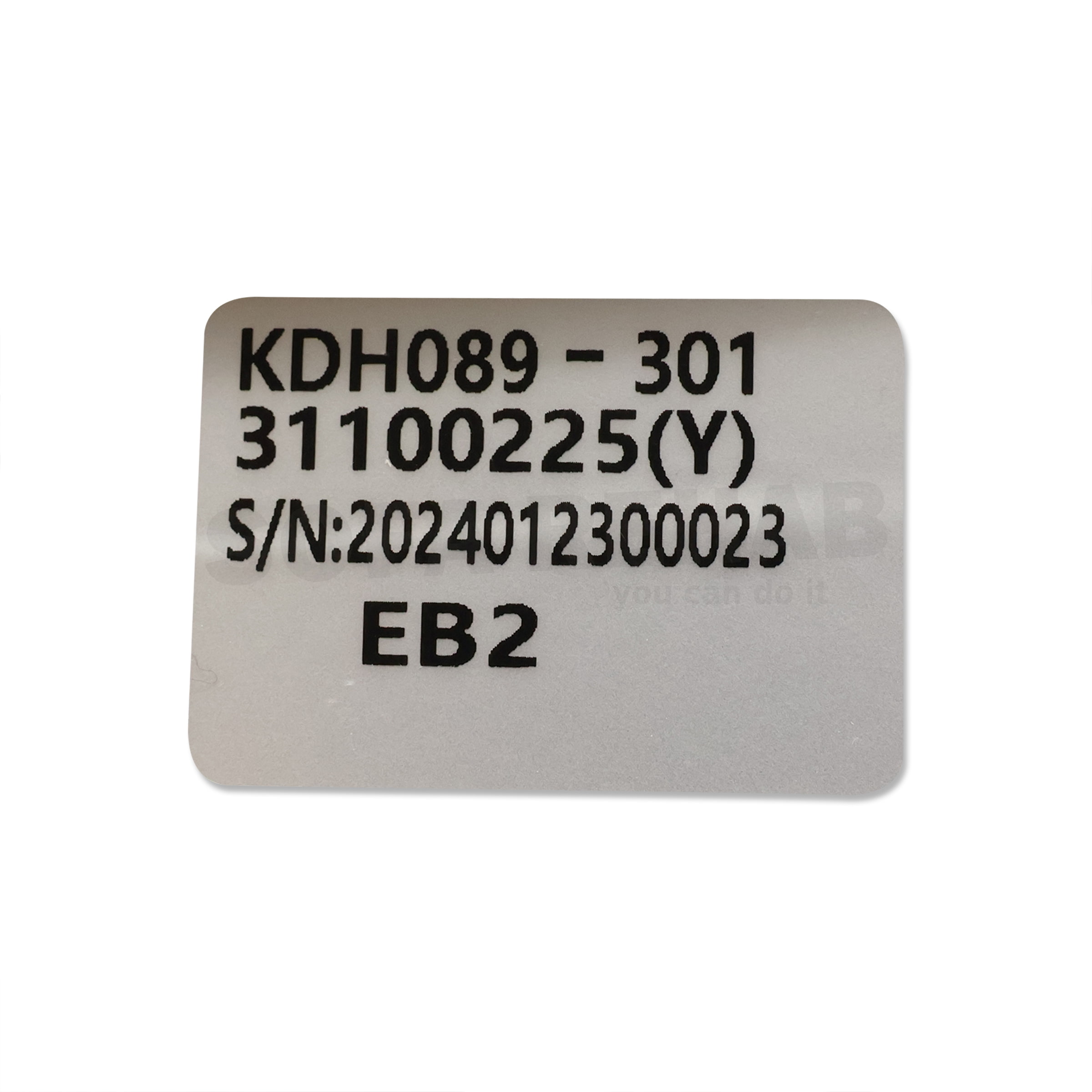

My switch has another number on the end of the KDH089 will this switch still work?
No. The model number needs to be the same for this switch to work.
Is this switch easy to fit ?
Yes, very simple and no experience is required. See our "How to " tab for detailed step by step instructions.
