Kaidi KDH127-052 Recliner Switch
$69.99
In stock
The Kaidi KDH127-052 electric recliner switch, manufacture code 31101015(Y), is a 5 button replacement switch designed for dual motor recliners, lounges and lift chairs. Features separate recliner and headrest controls, a home button, integrated USB-A charging port, and a modern nickel coloured fascia with concealed screw covers. Includes 5 pin DIN and 2 pin OI plugs with retaining clips for easy plug-and-play installation. 5 Button Recliner Switch with USB Charging. Suitable for many electric recliners and lounges, including some La Z Boy models. This switch can be installed on either the left or right side and is ideal for replacing worn or faulty side-mounted recliner controls. Need Help Finding the Right Replacement? We stock replacements for all popular electric recliner & sofa brands and models, see our full range of recliner toggle switches (click here) for a suitable replacement. Ask us if you need help choosing. read more
In stock
- Description
- Technical Specifications
- How To Tutorial
- Reviews (0)
- FAQs
- Add a review
Description
Kaidi KDH127-052 5 Button Recliner Switch with USB Charging Port

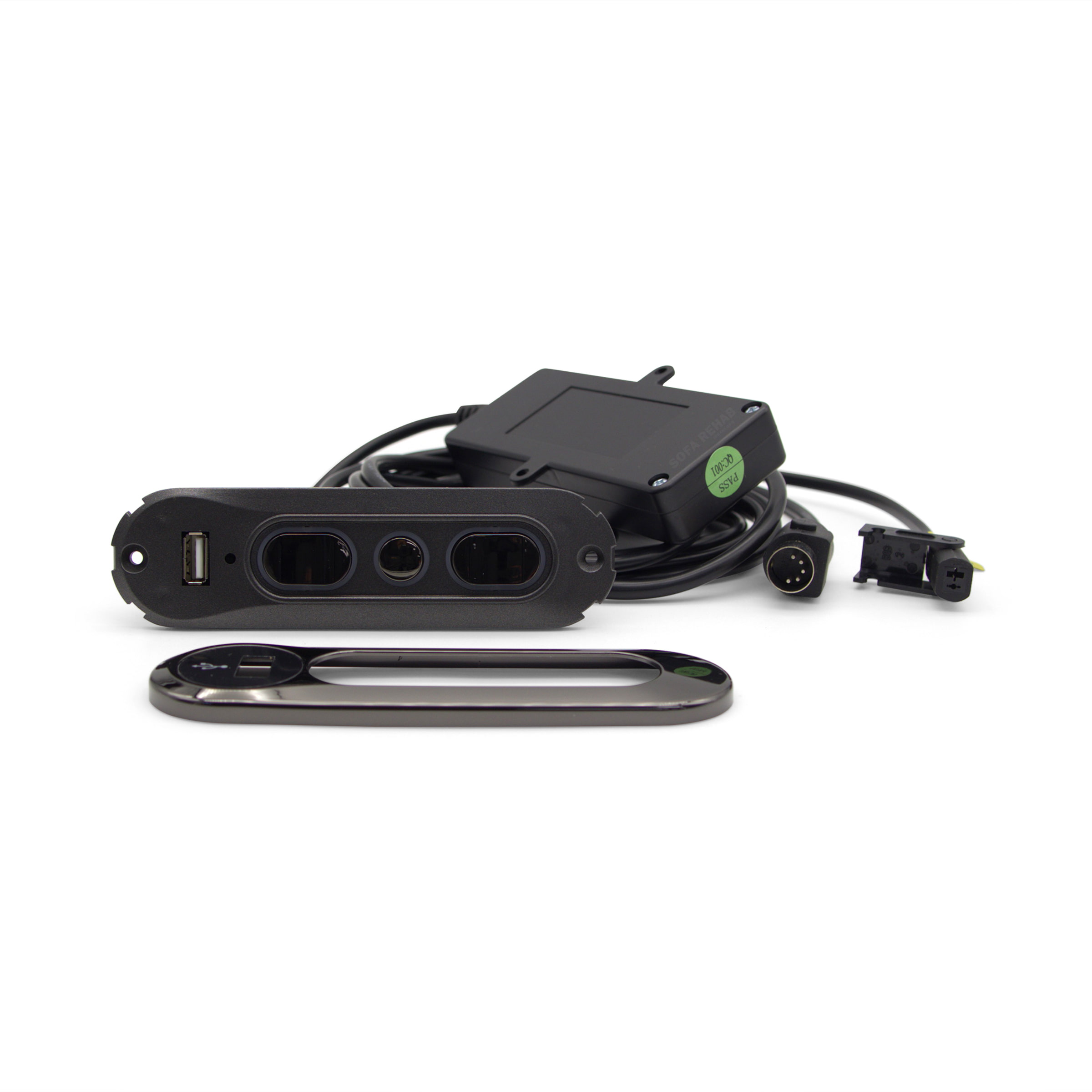

The Kaidi KDH127-052 electric recliner switch, manufacture code 31101015(Y), is a replacement 5 button control switch designed for dual motor recliners, lounges and lift chairs with powered footrest and headrest adjustment. Featuring separate open and close rocker buttons for both recliner and headrest movement, plus a convenient home button, this switch allows smooth and easy control of your seating position. Includes a integrated USB-A charging port rated at 5V 2.0A, concealed screw mounting with a removable nickel coloured fascia cover, and plug-and-play connections with a 5 pin DIN plug and 2 pin OI plug with retaining clips.
Replacement Recliner Switches for Popular Brands
This Kaidi recliner switch is commonly fitted to many premium electric recliner chairs, lounges and lift chairs, including some La Z Boy models and other furniture brands using Kaidi electrical systems.
We stock a comprehensive range of electric recliner switches (click here), transformers, cables, handsets and spare parts for powered recliners and lounges. If you are unsure whether this is the correct replacement, our team can help identify the right switch for your furniture.
Important Measurements and Compatibility Information
Please compare your existing switch model number, plug configuration, button layout and dimensions before ordering. This switch uses a 5 pin male DIN plug and a female 2 pin OI power plug, both fitted with retaining clips for secure installation.
Approximate dimensions are:
- Fascia dimensions: 139mm wide x 41mm high.
- Switch body dimensions: 136mm wide x 38mm high x 39mm deep.
- Required cut-out size: 108mm wide x 25mm high x 42mm minimum depth.

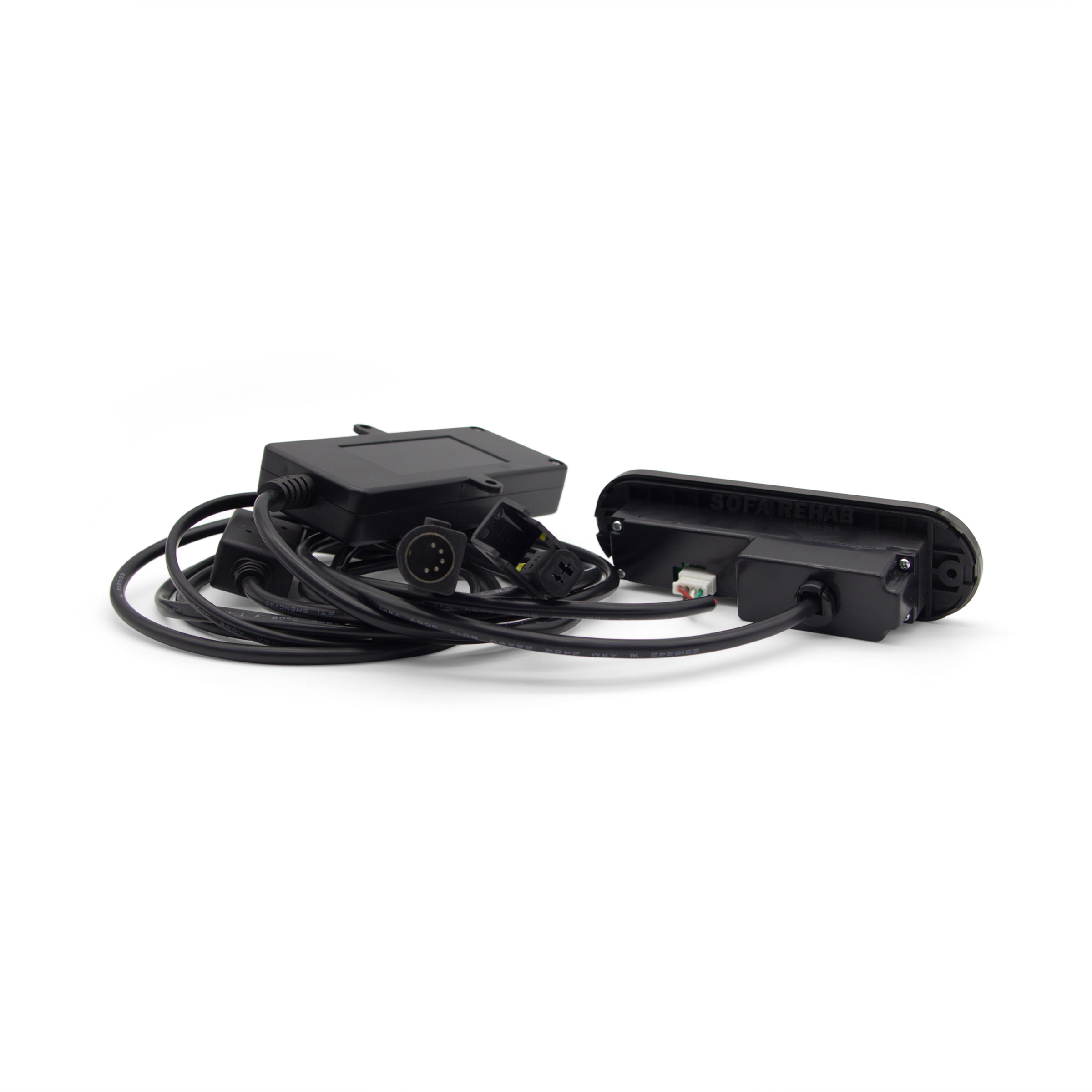

The cable assembly includes one lead measuring approximately 980mm with the attached control module, and a second lead assembly measuring approximately 1570mm including plugs and splitter junction box.
We're Australia's Leading Supplier of Recliner Chair Spare Parts
Sofa Rehab are Australia’s leading supplier of recliner chair spare parts, replacement switches, power supplies, hand controls and electric recliner accessories. We stock a comprehensive range of genuine OEM and universal replacement parts for popular brands including Kaidi, Okin, Limoss, eMoMo, TiMotion and many more.
Whether you’re repairing a electric recliner chair, powered lounge or theatre sofa, we’re here to help make DIY repairs simple and affordable. If you need assistance identifying the correct replacement switch or compatible spare part, our experienced support team is available via phone, email and instant messaging.
Easy DIY Recliner Switch Replacement
Replacing a faulty recliner switch is a quick and easy do-it-yourself repair that usually only requires a screwdriver and a few minutes of your time. Simply disconnect the old switch, remove the mounting screws, reconnect the replacement switch and you’re ready to relax again.
With our wide range of spare parts, helpful support and DIY repair guidance, Sofa Rehab makes it easy to repair your recliner yourself while saving time and money.
Technical Specifications
Technical Specifications
| Product Type | Electric recliner switch |
|---|---|
| Brand | Kaidi |
| Model Number | KDH127-052 |

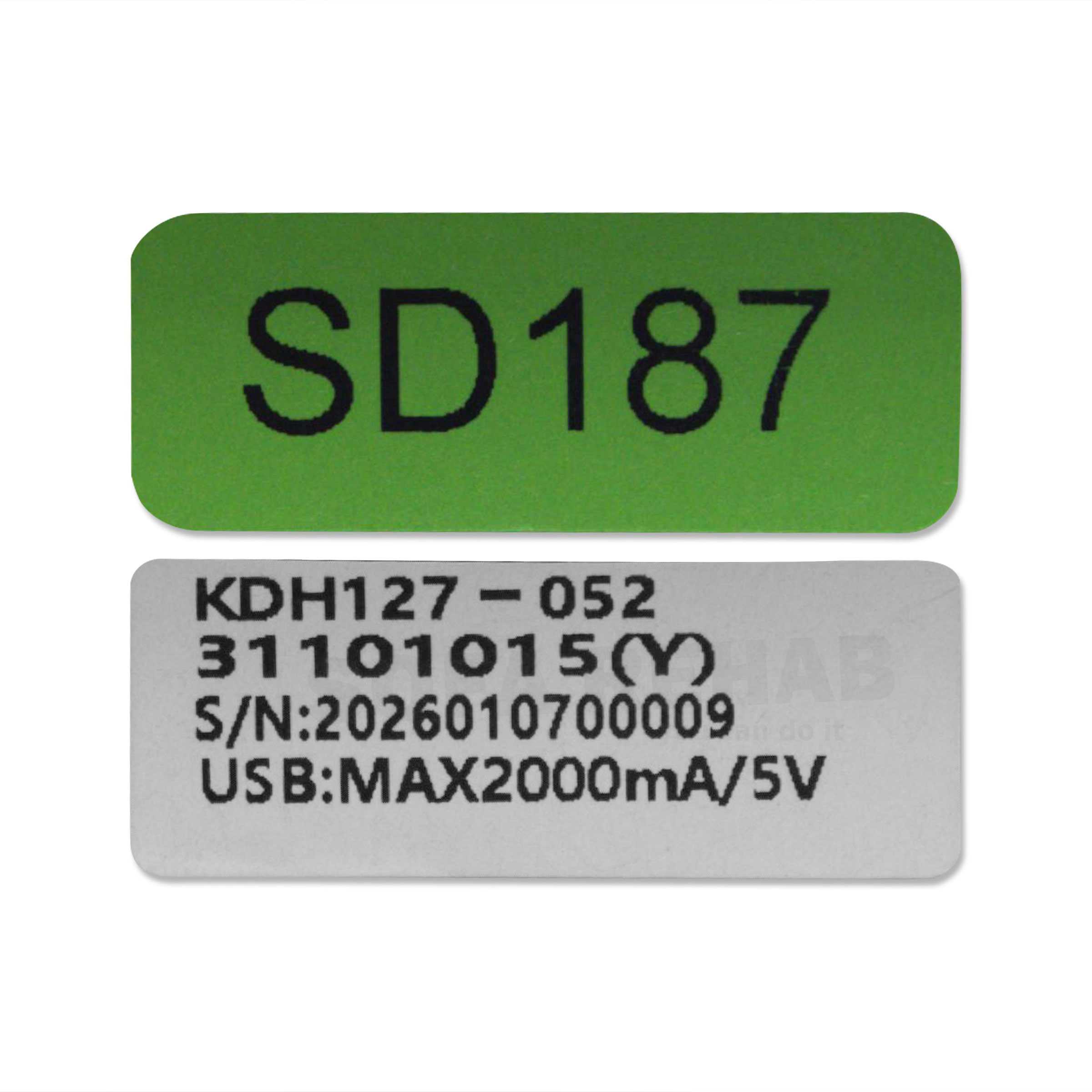

| Sticker / Side Label Code | SD187 |
| Manufacture Code | 31101015(Y) |
| Button Configuration | 5 buttons total: 2 rocker buttons for recliner open/close, 2 rocker buttons for headrest open/close, and 1 home button |
| USB Charging Port | USB-A charge port |
| USB Output Rating | 5V, maximum 2000mA |
| Installation Side | Suitable for left or right side installation |
| Fascia Colour | Nickel coloured removable plastic fascia |
| Mounting Style | Screw mounted with removable fascia to conceal screw holes |
| Screws Included | No |
| Plug 1 | 5 pin male DIN plug with retaining clasp |
| Plug 2 | Female 2 pin OI plug with retaining clasp |
| Fascia Dimensions | Approximately 139mm wide x 41mm high |
| Switch Body Dimensions | Approximately 136mm wide x 38mm high x 39mm deep |
| Minimum Cut-Out Required | Approximately 108mm wide x 25mm high x 42mm deep |
| Lead 1 Length | Approximately 980mm including white plug and attached control module box |
| Lead 2 Length | Approximately 1570mm including splitter junction box, 5 pin DIN plug and 2 pin OI plug |
| Common Applications | Electric recliner chairs, power recliner lounges, theatre lounges and lift chairs with compatible Kaidi wiring systems |
| Possible Furniture Compatibility | Found on some La Z Boy recliner models and other furniture using compatible Kaidi electrical systems |
How To Tutorial
How To Tutorial
How To Install The Kaidi KDH127-052 Recliner Switch
- Take a photo before you start. Before removing anything, take clear photos of your existing switch, plug connections and cable routing. This gives you a helpful reference when installing the replacement switch.
- Disconnect the power. Unplug the recliner from the wall power outlet and disconnect the power supply before working on the chair.
- Use safe lifting techniques. If you need to move, tilt or access the underside of the recliner, use safe lifting methods and get another person to help with heavy furniture. Do not place yourself under unsupported furniture.
- Remove the old switch fascia. Carefully remove the plastic fascia cover from the existing switch to expose the mounting screws.
- Unscrew the old switch. Remove the screws holding the switch in place and gently pull the switch out from the arm of the recliner.
- Disconnect the old plugs. Release the retaining clips and unplug the existing 5 pin DIN plug and 2 pin OI plug. Avoid pulling on the wires themselves.
- Compare before fitting. Check that the button layout, model number, plug types, cable layout and switch dimensions match your original switch before installing.
- Connect the new switch. Push the 5 pin DIN plug and 2 pin OI plug into the matching sockets, making sure the retaining clips lock securely into place.
- Fit the switch into position. Place the switch into the cut-out, making sure the cables are not pinched, crushed or stretched.
- Secure the switch. Reuse your existing screws to secure the switch, then clip the nickel coloured fascia cover into place.
- Reconnect power and test. Plug the recliner back into power and test the footrest, headrest, home button and USB-A charging port before fully moving the chair back into position.
How To Use The Recliner Switch
- Recliner open and close buttons: Use one rocker button set to open and close the recliner footrest.
- Headrest open and close buttons: Use the second rocker button set to adjust the powered headrest position.
- Home button: Press the home button to return the chair functions to the resting position, where supported by your recliner system.
- USB-A charging port: Plug a USB-A cable into the switch to charge compatible phones and small devices. The USB output is rated to a maximum of 5V 2000mA.
Important Safety and Compatibility Notes
- Always disconnect the recliner from power before installation.
- Do not force plugs together. If the connector does not fit easily, stop and compare the plug type with your original switch.
- Make sure all cables are routed safely away from moving mechanisms before testing the chair.
- Keep hands, tools, pets and children clear of moving recliner parts during testing.
- This guide is general advice only. If you are unsure, contact us for help before installation.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How do I know if this recliner switch is compatible with my chair?
Please compare the model number, button layout, plug types and dimensions with your original switch before ordering. This switch uses a 5 pin male DIN plug and a female 2 pin OI plug with retaining clips. If you are unsure, send us photos of your existing switch and plugs and we can help identify the correct replacement.
Can this switch be installed on either side of the recliner?
Yes. The Kaidi KDH127-052 switch is suitable for installation on either the left or right side of compatible recliner chairs and lounges.
What does the home button do?
The home button is designed to return the recliner functions to their resting position on compatible recliner systems. Functionality can vary depending on the furniture’s control system and actuator setup.
Is this an easy DIY replacement?
Yes. Most people can replace this recliner switch themself using only a screwdriver. The switch uses plug-and-play connections with retaining clips, so no electrical wiring or special tools are normally required.
Does the USB charging port fast charge devices?
The integrated USB-A charging port is rated at 5V with a maximum output of 2000mA. It is suitable for charging most phones and small USB devices, however it does not support modern USB fast charging protocols.
