Kaidi KDPT007-115 Recliner Motor
$175.00
In stock
Kaidi KDPT007-115 replacement recliner actuator motor with 145mm install length and 226mm stroke length, giving a maximum extension of 371mm. Designed with a top mounted white slider block and fitted with a male 2 pin OI power plug and a female 5 pin DIN plug with clasp for the handset, this unit is a direct replacement for recliners and motion furniture using this model. Kaidi KDPT007-115 Recliner Motor Actuator. A genuine Kaidi replacement actuator suitable for many electric recliner sofas and chairs. Easy to install with standard fittings and industry-standard plugs for power and handset control. Looking for Another Recliner Actuator? We stock an extensive catalogue of genuine and universal replacement actuators (click here) to suit all popular recliner chair brands and models. If you’re unsure which motor you need, feel free to contact us for assistance. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
Kaidi KDPT007-115 Recliner Actuator Motor Replacement

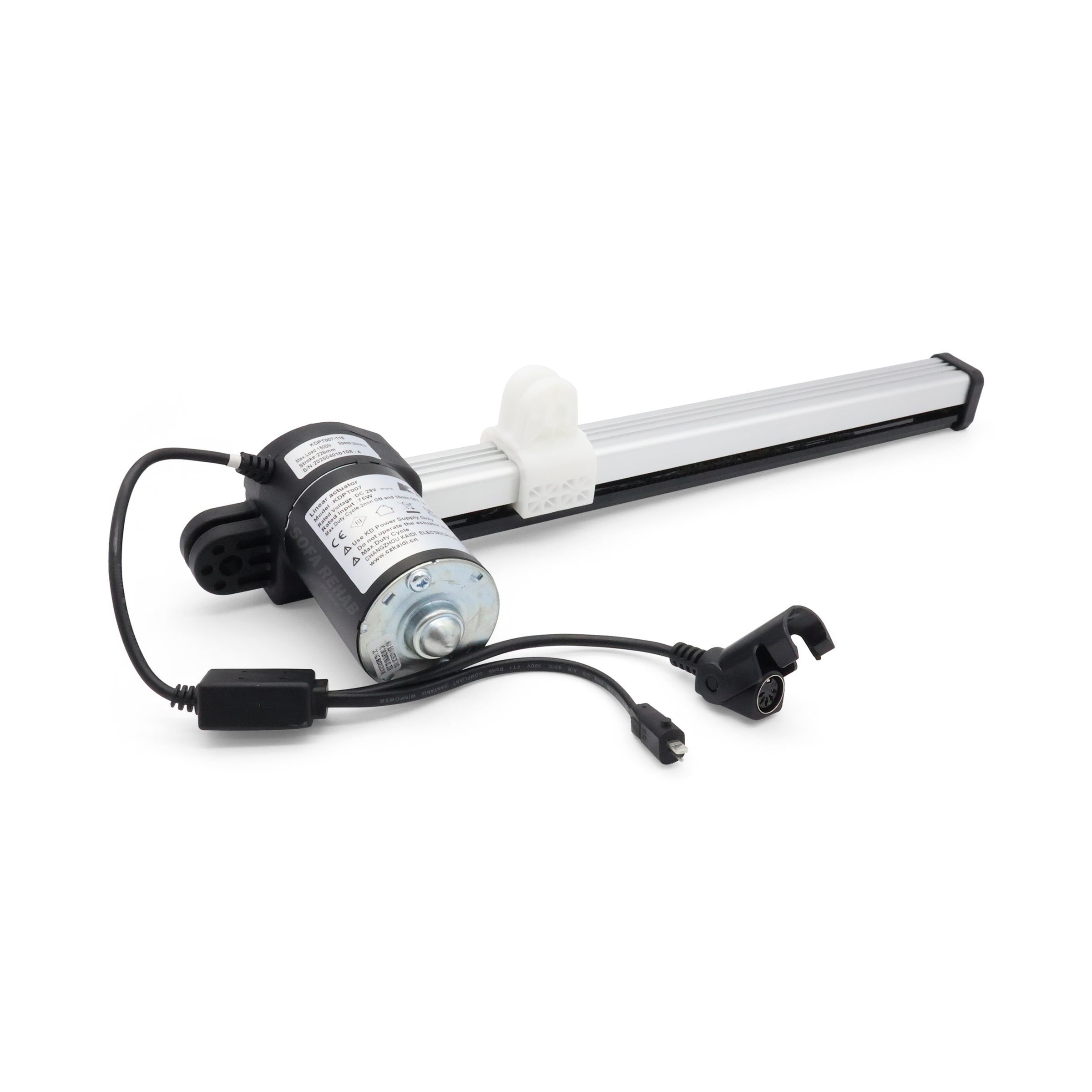

This is a genuine Kaidi KDPT007-115 replacement actuator for electric recliner chairs and motion furniture. It features a 145mm install length and a 226mm stroke, giving a total extension of 371mm. Designed with a white slider block and motor housing ends that both accept actuator rods, this actuator is a direct replacement for the same model number.
Please note that actuator rods and R-clips are not supplied with this unit, you will need to reuse the originals from your old actuator. Fitted with a male 2 pin OI power plug and a female 5 pin DIN plug (with clasp) for the handset, this model is commonly found in many brands of electric recliners.
Check the Measurements and Model Number
Always confirm your actuator’s measurements and model number before ordering. The KDPT007-115 has a 145mm closed length, a 226mm stroke length, and a maximum extension of 371mm. If your existing unit shows the same model number and dimensions, this will be the correct replacement. If you are unsure, contact our support team for help identifying the right part.
Genuine Kaidi Quality for Reliable Performance
As a genuine OEM Kaidi actuator, this part has been manufactured to meet the same quality and durability standards as your original. You can be confident it will deliver the same smooth operation and long service life. Replacing only the failed actuator instead of the entire mechanism is a cost-effective way to keep your furniture working like new.
DIY Friendly Replacement – Save Time and Money
Replacing a recliner actuator is a straightforward DIY task that requires only basic tools like a pair of pliers anda hammer. With Sofa Rehab’s step-by-step guides and video tutorials, you’ll be able to swap out your faulty motor quickly, restore your recliner to full function, and save on costly repair call-outs.
Technical Specifications
Technical Specifications

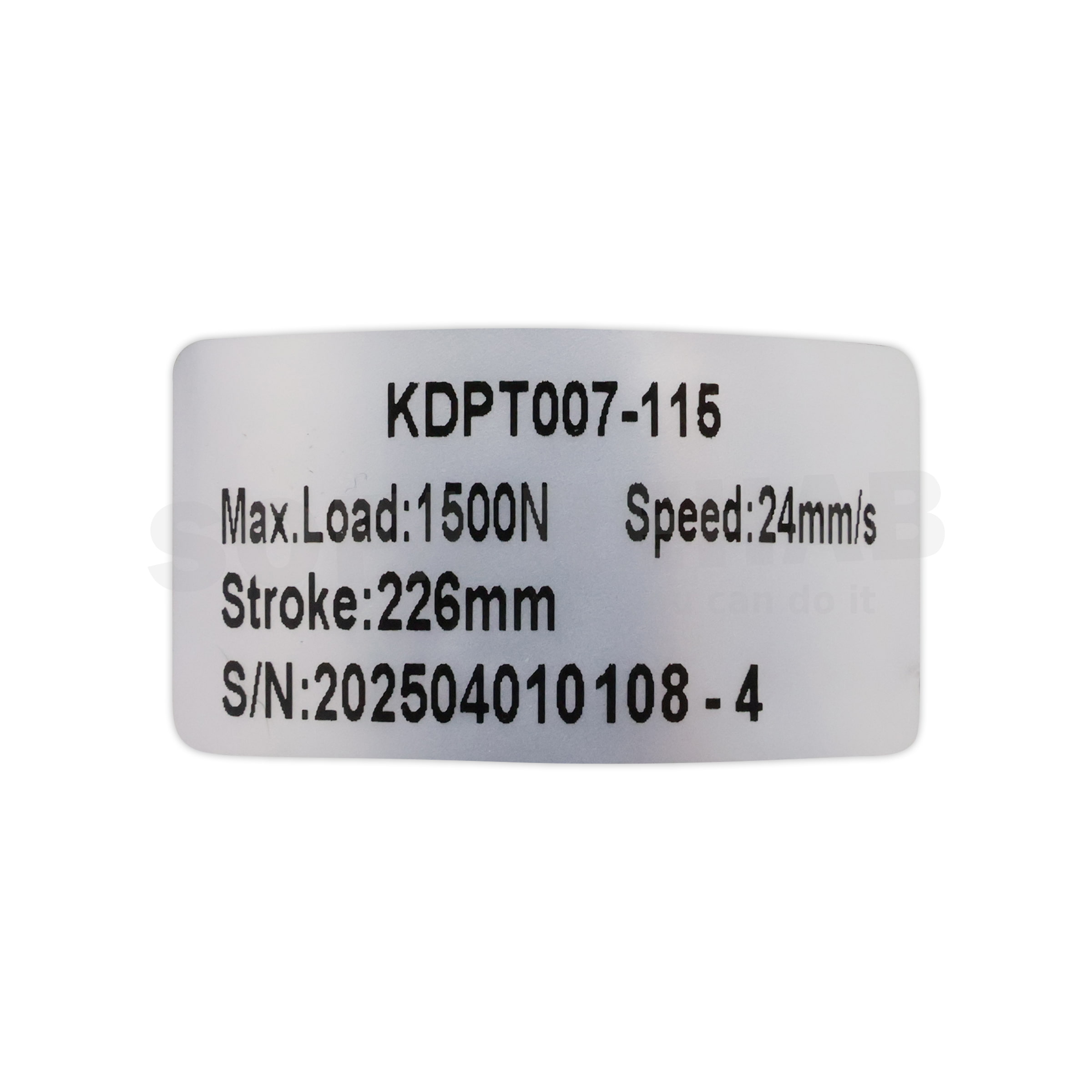

- Model Number: Kaidi KDPT007-115
- Install Length (Closed): 145mm
- Stroke Length (Travel): 226mm
- Maximum Extension: 371mm (install + stroke)
- Mounting Ends: White slider block and motor housing ends accept actuator rods (rods and R-clips not included)
- Power Plug: 2 pin OI style male plug (round & flat pin)
- Handset Plug: 5 pin DIN female plug with clasp/retainer
- Rated Voltage: 29V DC
- Typical Applications: Recliner chairs, sofas, and other motion furniture
- Contents: 1x actuator motor only (no rods or R-clips)
How To
How To
How To Install the Kaidi KDPT007-115 Recliner Actuator
Replacing the KDPT007-115 actuator is a straightforward DIY job that most people can do in under 20 minutes with only a screwdriver and pliers. Follow the steps below for a safe and successful installation.
- Unplug the recliner – Always disconnect the power supply from the wall before starting any work.
- Prepare your workspace – Move the chair into a clear area with good lighting. Use safe lifting techniques if you need to turn the chair over or onto its side. Get assistance if the chair is heavy.
- Take “before” photos – Use your phone to take pictures of the existing actuator, plugs, and rod fittings before removing anything. This will make reassembly quicker and easier.
- Remove the old actuator – Disconnect the 2 pin OI power plug and the 5 pin DIN handset plug. Release the actuator rods and R-clips (keep them safe, as you will reuse them). Unscrew any fixing points if fitted.
- Install the new actuator – Position the KDPT007-115 in the same orientation as your old unit. Slide the actuator rods into the white slider block and motor housing ends, then secure them with the original R-clips.
- Reconnect the plugs – Plug the 2 pin OI male connector back into the transformer lead, and the 5 pin DIN plug into the handset/control box until the clasp clicks in place.
- Test the chair – Reconnect the power supply at the wall and test the recliner’s functions. Ensure smooth travel from fully closed to fully extended positions (145mm to 371mm total).
- Final check – Make sure all rods are securely clipped, cables are clear of moving parts, and the actuator is firmly in place.
Tip: If you encounter any difficulties, refer to our step-by-step video tutorials or contact our support team for guidance.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How do I know if the KDPT007-115 actuator will fit my recliner?
Check the model number printed on the label of your existing actuator. If it matches “Kaidi KDPT007-115” and the install/stroke measurements are the same (145mm closed length, 226mm stroke, 371mm extended), then this is the correct replacement.
Does the actuator come with bolts, rod and R-clip?
No, these are not supplied. You will need to reuse the original bolts, actuator rod and R-clip from your existing installation.
Do I need special tools or professional help to replace this part?
No special tools are required – just basic hand tools like a pair of pliers. Most customers can complete the replacement themselves in under 20 minutes by following our step-by-step guide.
What if I’m not sure this is the right actuator?
If you’re unsure, contact our support team with photos of your existing actuator’s label and plugs. We’ll help you identify the correct replacement. We also stock a wide range of other recliner actuators (click here) for popular brands and models.
What warranty is provided with this actuator?
All genuine Kaidi actuators are covered by a 12-month warranty. If you experience any issues during this time, contact us for assistance and we’ll be happy to help.
