Electric Recliner Spare Parts, Recliner Button Switches
Mulin AC035-2MB-2UQ02(RSF) Switch
$69.99
In stock

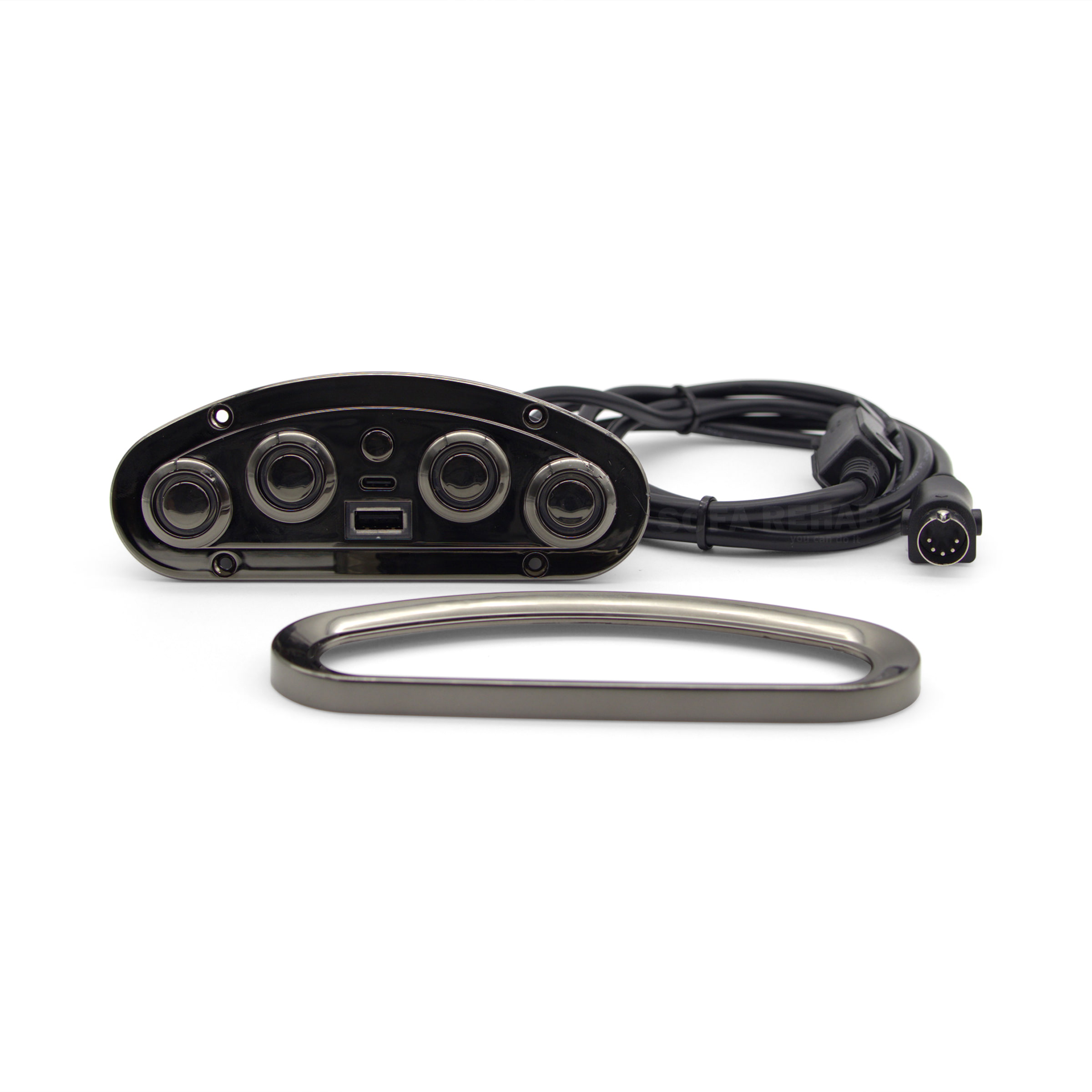

Mulin Electric AC035-2MB-2UQ0(RSF) genuine 5 button recliner switch replacement with USB-A and USB-C charging ports. Finished in a modern nickel colour with hidden screw cover and curved top fascia. Suitable for electric recliner chairs, lounges and theatre seating with dual motor functions. Includes 245mm switch lead and 1590mm extension cable with 5 pin DIN plugs. Nickel Recliner Switch with USB Charging Ports. Easy to install with 4 screw mounting and removable screw cover. Fits the right-hand side when seated and requires a 125mm x 38mm furniture cut-out. Need Help Finding the Right Recliner Switch? We stock all the popular recliner switches (click here). If you are still not sure which replacement power recliner chair or sofa switch is right for you please contact our helpful team. read more
In stock
- Description
- Technical Specifications
- How To Tutorial
- Reviews (0)
- FAQs
- Add a review
Description
Replacement Mulin Electric Recliner Switch with USB-A & USB-C Charging
This genuine Mulin Electric hand controller switch, model AC035-2MB-2UQ02(RSF), is designed for electric recliner chairs, lounges and theatre seating with dual motor functions such as independent footrest and headrest operation. Finished in a modern nickel colour, this premium switch features a curved top fascia, removable screw cover, integrated USB-A and USB-C charging ports, and a convenient home button function.
The switch fascia measures 142mm wide by 56mm high and requires a furniture cut-out size of approximately 125mm x 38mm with a minimum depth of 50mm. Includes an attached 245mm lead with male 5 pin DIN plug, plus a 1590mm extension lead with retaining clasp and matching 5 pin DIN connections for straightforward installation.
Important Left & Right Side Compatibility Information
This model number is AC035-2MB-2UQ02(RSF) and is the left-hand side switch when seated in the recliner chair or lounge. Despite the manufacturer using the “RSF” code, Sofa Rehab identifies recliner switch positions based on the seated position of the user.
If you require the opposite side switch, we also sell the AC035-2MB-2UQ02(LSF) Recliner Switch (click here) for the right-hand side when seated.
If you are unsure which side you require, feel free to contact our support team for assistance before ordering.
Premium Features and Modern Design
This Mulin Electric recliner switch combines practical functionality with a premium appearance. The nickel coloured fascia and concealed screw cover provide a clean modern look suited to contemporary recliner lounges and theatre seating.
Integrated USB-A and USB-C charging ports allow you to conveniently charge phones, tablets and other devices directly from your recliner chair while relaxing. The supplied extension lead also provides generous cable length for larger recliners, sofas and home theatre lounge configurations.
Quality Spare Parts from Sofa Rehab
Sourcing direct from leading OEM factories and trusted aftermarket suppliers, we keep an extensive range of recliner electronics, handles, cables and leather-care kits in stock ready for immediate order. Every item is tested for fit and reliability by our in-house repair technicians before it reaches our shelves, so you receive parts that work first time and last. From the smallest spring to complete power kits, if it belongs on a lounge, chances are we have it – and we stand behind every product with full technical support and clear measuring guides.
Save Time & Money and Do It Yourself
Replacing a faulty switch is a five-minute job with just a screwdriver. Follow our step-by-step video tutorial, feel the pride of a successful DIY repair, and keep money in your pocket instead of paying a call-out fee. Need extra help? Our friendly support team is only a phone call, email or live chat away.
Technical Specifications
Technical Specifications
| Brand | Mulin Electric |
|---|---|
| Product Type | Electric recliner hand controller switch |
| Model Number | AC035-2MB-2UQ02(RSF) |
| Switch Position | Left-hand side when seated in the furniture |
| Colour / Finish | Nickel |
| Button Functions | 5 button control for dual motor recliner functions |
| Charging Ports | USB-A and USB-C |

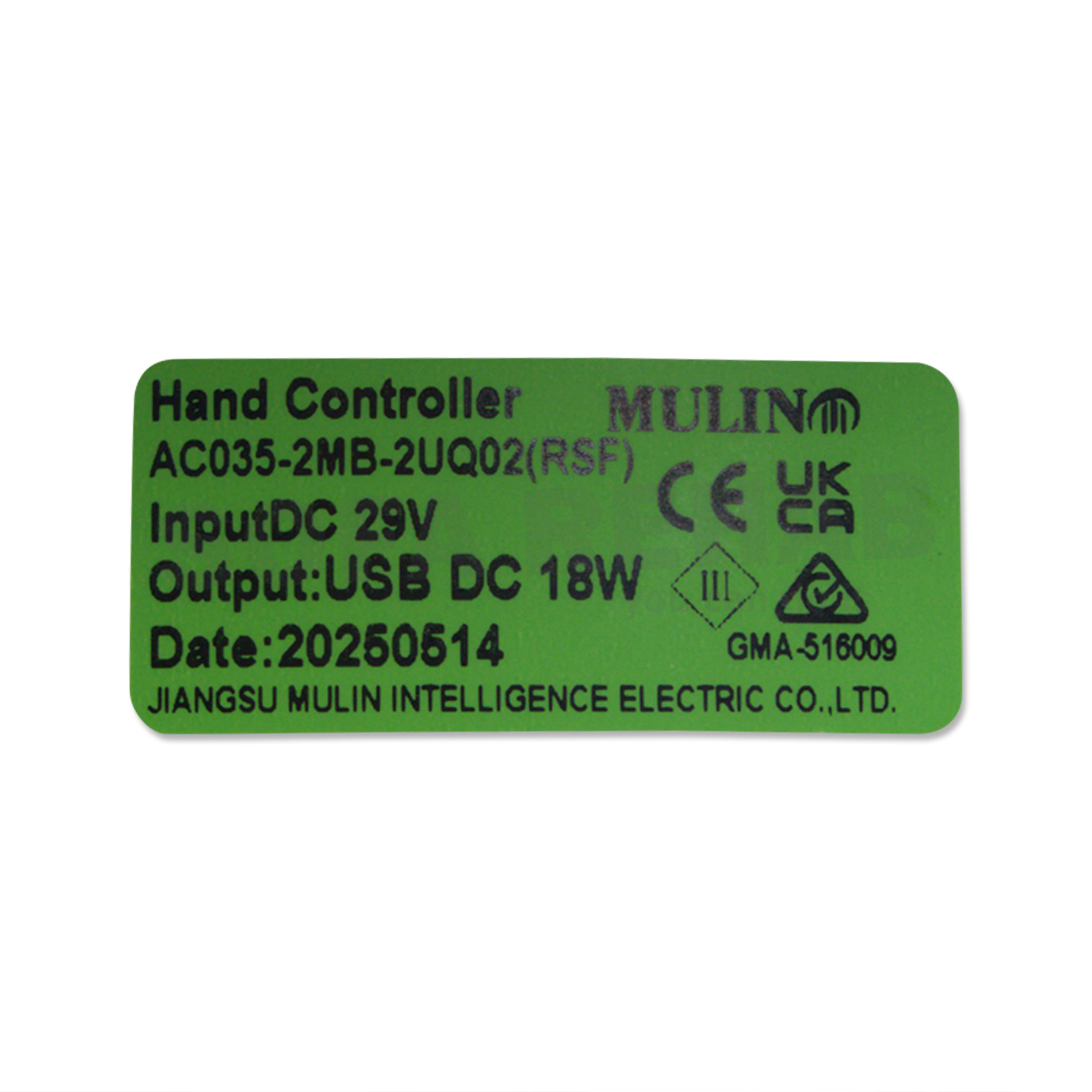

| Input | DC 29V |
| USB Output | DC 18W |
| Fascia Dimensions | 142mm wide x 56mm high |
| Furniture Cut-Out Required | 125mm wide x 38mm high x 50mm deep |
| Switch Body Depth | 50mm |

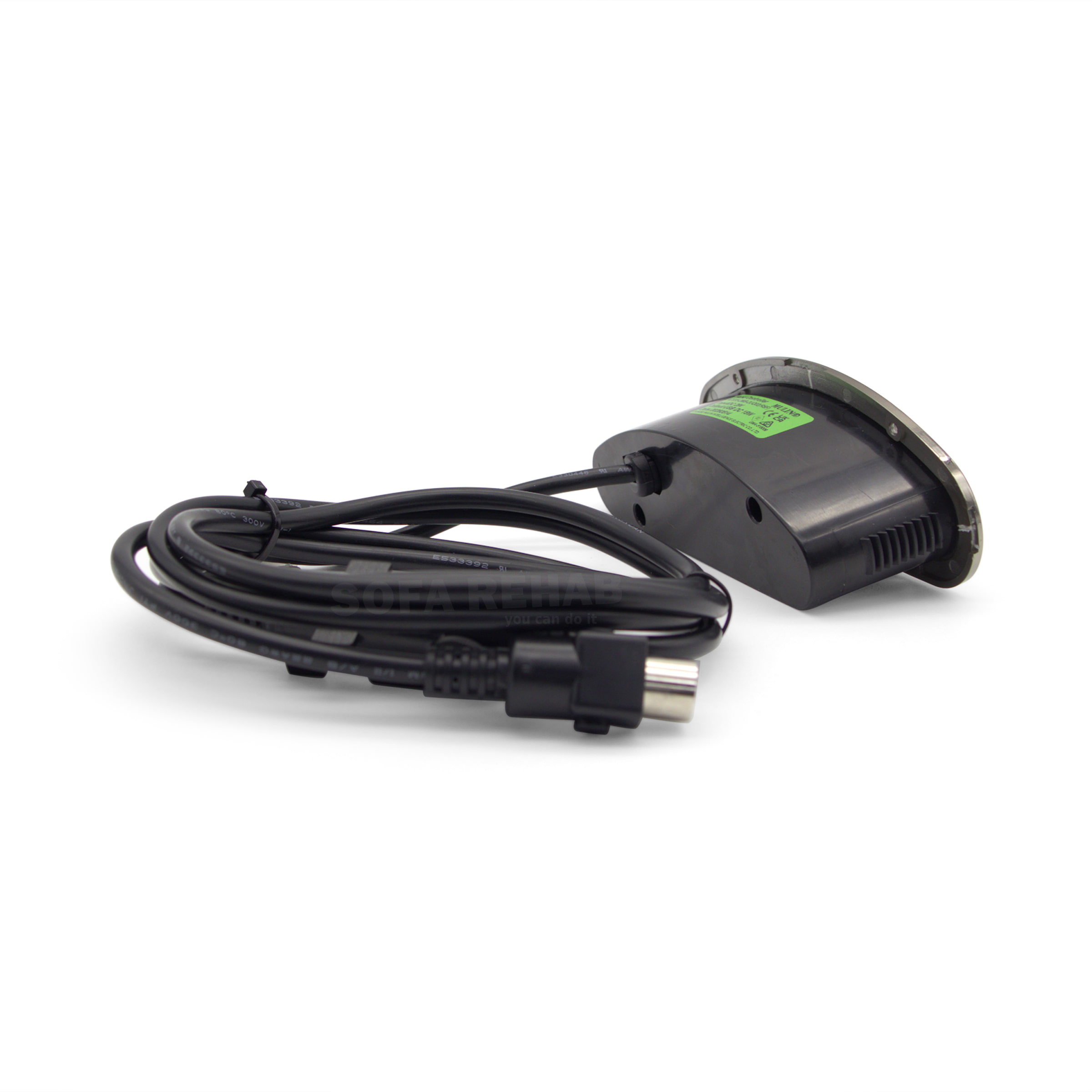

| Attached Switch Lead | 245mm long including male 5 pin DIN plug |
| Extension Lead | 1590mm long with female 5 pin DIN and clasp to male 5 pin DIN |
| Combined Lead Length | Approximately 1835mm including attached lead and extension lead |
| Plug Type | 5 pin DIN |
| Mounting Method | 4 screw mounting under removable screw cover |
| Screws Included | No |
| Suitable For | Electric recliner chairs, sofas, lounges and theatre seating with compatible 5 pin DIN connection |
| Alternative Side Version | AC035-2MB-2UQ02(LSF), right-hand side when seated |
How To Tutorial
How To Tutorial
How To Replace the Mulin AC035 Recliner Switch
1. Disconnect the recliner power supply from the wall socket before starting, and make sure the furniture cannot accidentally operate during the repair.
2. Practice safe lifting techniques if you need to move or tilt the recliner. Recliner furniture can be heavy and awkward, so get assistance if needed and avoid lifting with your back.
3. Take a few clear photos of the original switch, cable routing and plug connections before disconnecting anything. These reference photos can make reassembly much easier.
4. Locate the existing recliner switch and carefully remove the screw cover from the front fascia.
5. Remove the mounting screws securing the switch to the furniture frame. Keep the screws safe as replacement screws are not included.
6. Gently pull the switch outward from the armrest opening to access the wiring and plug connections.
7. Disconnect the existing 5 pin DIN plug connection and retaining clasp.
8. Compare the old switch and plugs against the new replacement to confirm compatibility before installation.
9. Connect the new Mulin AC035-2MB-2UQ02(RSF) switch using the supplied extension lead if required.
10. Ensure the plugs are fully inserted and the retaining clasp locks securely into position.
11. Carefully place the wiring back into the furniture cavity, ensuring cables are not pinched, twisted or resting against moving mechanism parts.
12. Position the new switch into the cut-out opening and secure it using the original mounting screws.
13. Refit the removable screw cover to restore the clean finished appearance.
14. Reconnect the recliner power supply and test all switch functions, including footrest movement, headrest adjustment and USB charging ports.
If you need assistance identifying the correct replacement switch or help during installation, feel free to contact the Sofa Rehab support team.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Will this switch fit my recliner?
This switch is designed for compatible electric recliners, lounges and theatre seating that use the Mulin Electric AC035-2MB-2UQ02(RSF) switch with a 5 pin DIN connection. We recommend comparing your existing model number, plug type and fascia dimensions before ordering. If unsure, contact us with photos and we’ll help identify the correct replacement.
Is this the left-hand or right-hand side switch?
This model is installed on the left-hand side when seated in the furniture. Although the manufacturer code ends in “RSF”, Sofa Rehab identifies switch positions based on the seated position of the user.
Does this switch include USB charging ports?
Yes, this recliner switch features both USB-A and USB-C charging ports built into the fascia panel, making it convenient for charging phones, tablets and other devices while relaxing.
Can I replace this switch myself?
Yes, this is a DIY-friendly replacement that most people can install using only a screwdriver. The switch uses simple plug-and-play 5 pin DIN connections and mounts with 4 screws beneath the removable screw cover.
What size cut-out does this recliner switch require?
The required furniture cut-out size is approximately 125mm wide x 38mm high with a minimum installation depth of 50mm. The outer fascia dimensions are approximately 142mm wide x 56mm high.
