Okin FS.16.04.01 Recliner Switch
$79.99
In stock
Genuine Dewert OKIN FS.16.04.01 4 button electric recliner switch with USB-A and USB-C charging ports. Suitable for dual actuator recliner chairs, lounges and theatre seating. Features a removable nickel coloured fascia with concealed screw covers, male 5 pin DIN plug with retaining lugs, and can be installed on either the left or right side. 4 Button Recliner Switch with USB Charging. Compatible with many dual motor recliners using a 5 pin connection. Please compare your existing switch dimensions, plug type and button layout before ordering. Need Another Recliner Switch? We stock replacements for all popular electric recliner & sofa brands and models, see our full range of recliner toggle switches (click here) for a suitable replacement. Ask us if you need help choosing. read more
In stock
- Description
- Technical Specifications
- How to
- Reviews (0)
- FAQs
- Add a review
Description
Genuine Dewert OKIN 4 Button Recliner Switch with USB Charging Ports
The Dewert OKIN FS.16.04.01 is a genuine replacement electric recliner switch designed for dual actuator recliner chairs, lounges and theatre seating. Featuring 4 easy-to-use buttons, this side mounted switch controls multiple recliner movements while also providing convenient USB-A and USB-C charging ports for charging phones and devices directly from your furniture.

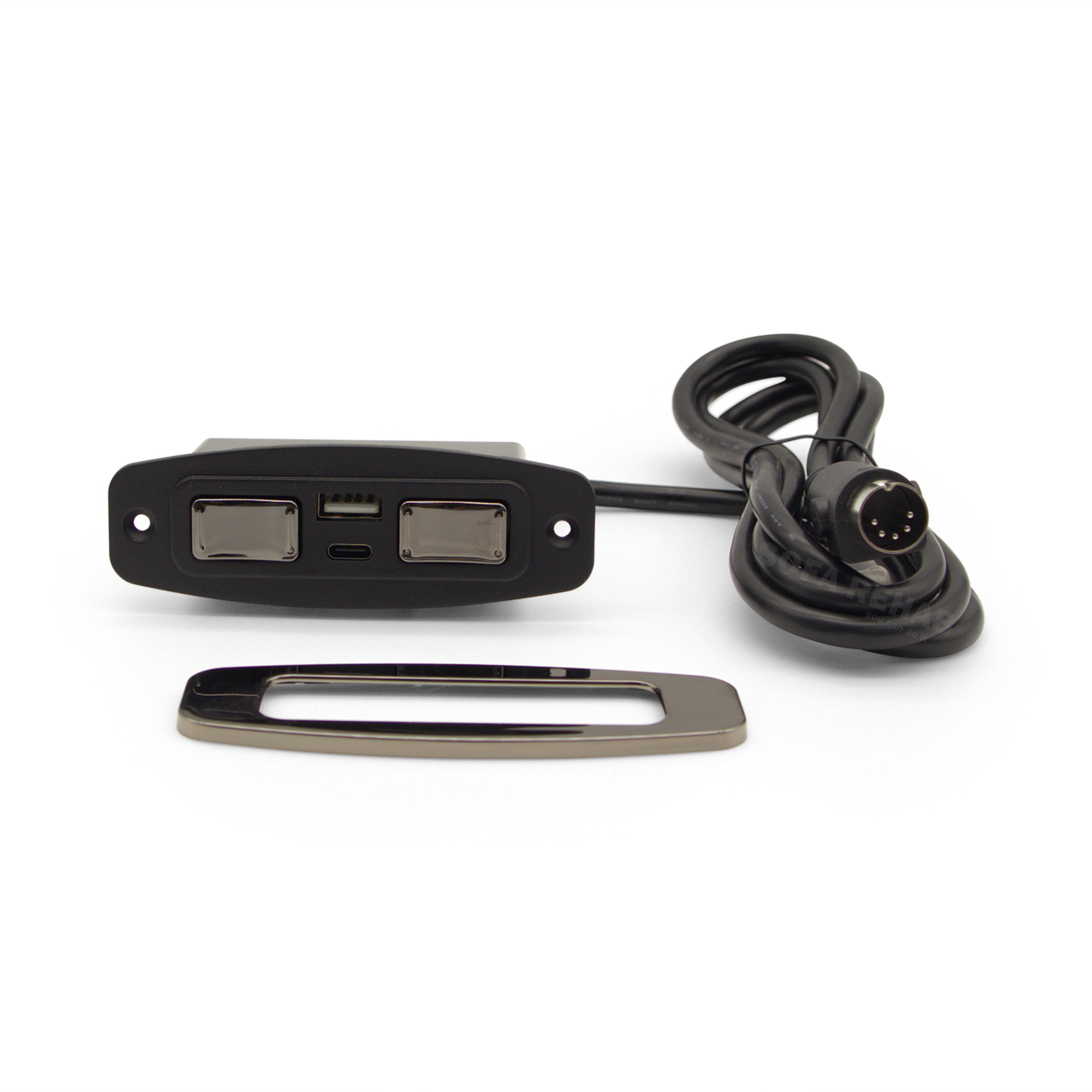

Finished with a removable nickel coloured fascia that conceals the mounting screws, this switch offers a clean modern appearance and can be installed on either the left or right side of the recliner. Suitable for 29V systems with a 5V 2A USB charging output.
Compatible 5 Pin Recliner Switch Replacement

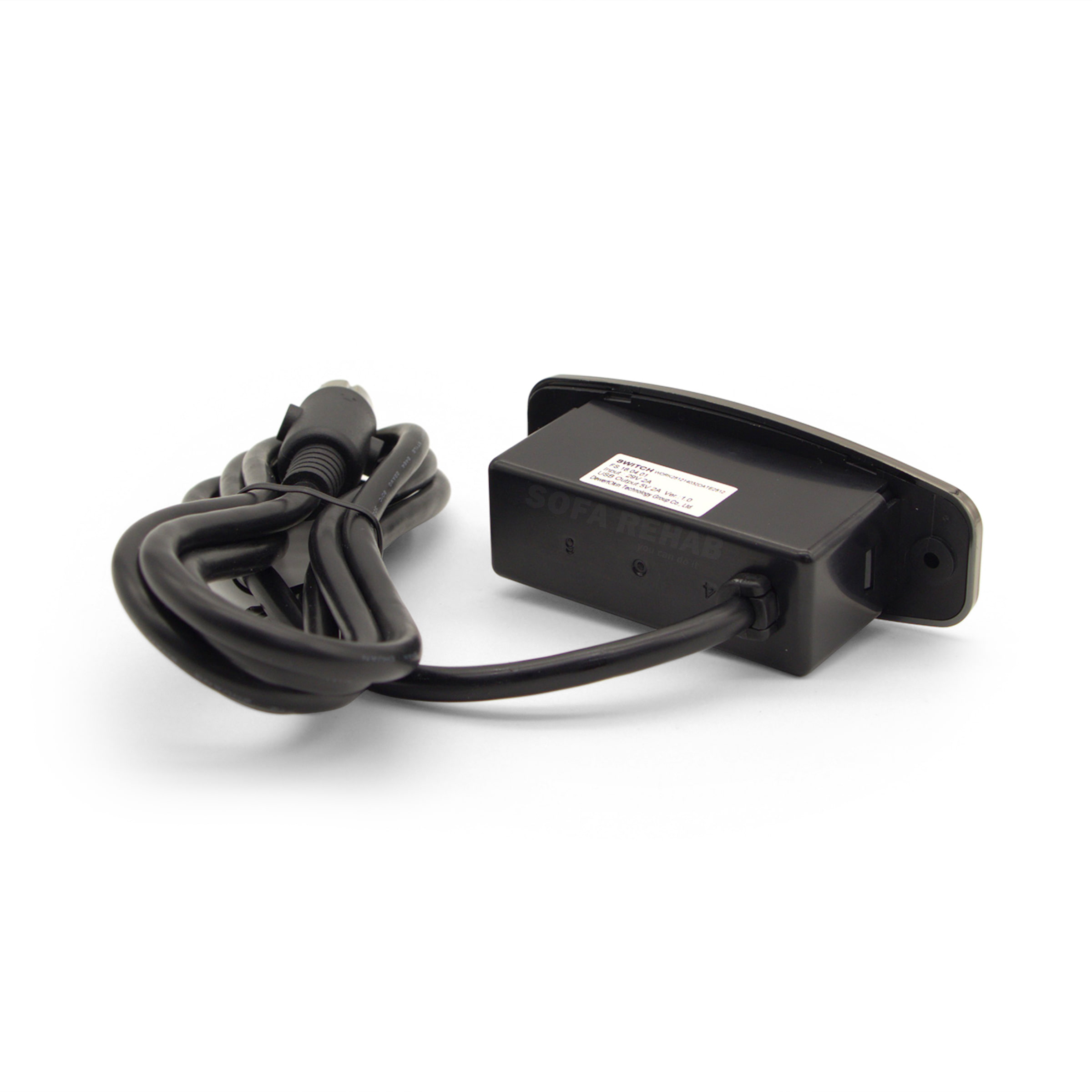

This recliner switch is fitted with a male 5 pin DIN plug complete with retaining locking lugs for a secure connection. The cable length including plug is approximately 1540mm long, making it suitable for many recliner chairs, sofas and theatre lounges.
Approximate dimensions:
- Fascia size: 100mm wide x 36mm high
- Switch body: 100mm wide x 33mm high x 38mm deep
- Required cut-out size: 71mm wide x 26mm high x 42mm deep
Please compare your existing switch dimensions, plug configuration and button layout before ordering to ensure compatibility with your recliner.
We're Australia's Leading Supplier of Recliner Chair Spare Parts
We’re Australia’s leading supplier of recliner chair spare parts, furniture repair products and DIY repair kits, offering quality replacement parts at affordable prices for both everyday consumers and professional repair technicians. Our focus is helping customers repair their furniture themselves with easy-to-install replacement parts, detailed support and helpful advice that makes DIY repairs simple and cost effective.
Easy DIY Recliner Switch Replacement
Replacing your recliner switch is a quick and easy repair that most people can do themselves with only a screwdriver. Simply remove the old switch, disconnect the 5 pin plug connection and install the replacement switch in its place.
With our DIY friendly spare parts, helpful support and step-by-step guidance, you can repair your recliner yourself, save money and enjoy the satisfaction of fixing it yourself.
Technical Specifications
Technical Specifications
| Brand | Dewert OKIN |
|---|---|
| Model Number | FS.16.04.01 |
| Version | 1.0 |
| Product Type | Electric recliner switch |
| Button Configuration | 4 button switch |
| Suitable For | Dual actuator electric recliners, lounges and theatre seating |
| Charging Ports | USB-A and USB-C |

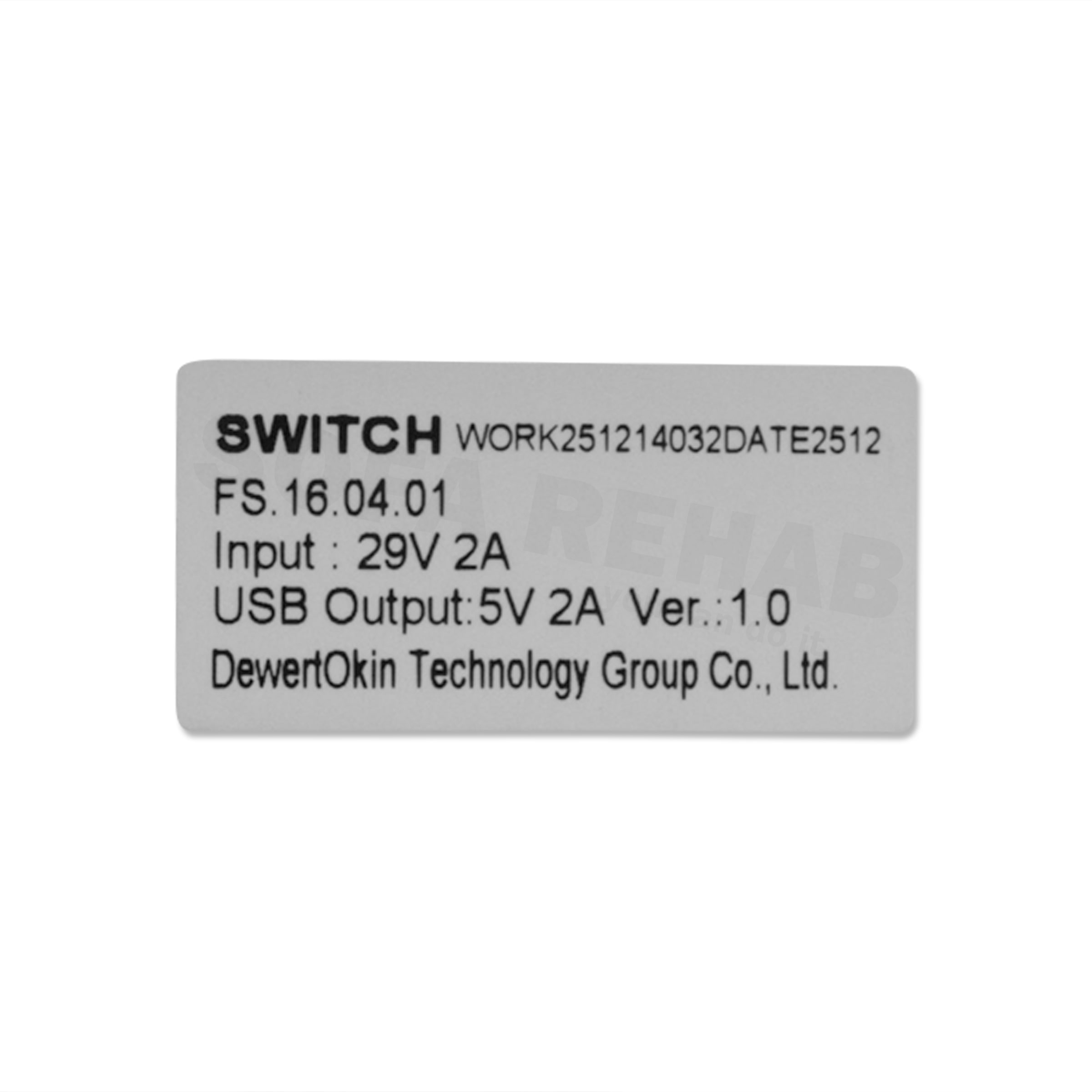

| Input | 29V 2A |
| USB Output | 5V 2A |
| Plug Type | Male 5 pin DIN plug with retaining clip lugs |
| Cable Length | 1540mm approx including plug |
| Fascia Colour | Nickel coloured |
| Fascia Type | Removable fascia that hides mounting screws |
| Fascia Dimensions | 100mm wide x 36mm high approx |
| Switch Dimensions | 100mm wide x 33mm high x 38mm deep approx |
| Required Cut-Out | 71mm wide x 26mm high x 42mm deep approx |
| Installation Side | Suitable for left or right side installation |
| Screws Included | No, mounting screws are not supplied |
| Manufacturer | Dewert/OKIN Technology Group Co. Ltd. |
How to
How to
-
- Disconnect the recliner from power.
Turn the power off at the wall socket and unplug the recliner power supply before starting. Do not work on the switch while the recliner is connected to power. - Move the recliner into a safe working position.
Carefully move the recliner away from the wall so you have enough room to work. Use safe lifting methods and ask another person to help if the chair, sofa or lounge is heavy. - Take a reference photo before removing anything.
Take a clear photo of the existing switch, cable routing and plug connection before disconnecting the old part. This gives you a reference if you need to check how everything was originally fitted. - Remove the old switch fascia.
Carefully remove the front fascia or cover from the existing switch to expose the mounting screws. Keep any reusable screws aside, as mounting screws are not supplied with this replacement switch. - Unscrew and remove the old switch.
Use a screwdriver to remove the mounting screws, then gently pull the switch out from the arm of the recliner. - Disconnect the 5 pin plug.
Follow the switch cable to the plug connection and release the retaining clip or lugs before unplugging it. Do not pull hard on the cable, as this may damage the wiring or socket. - Compare the old and new switch.
Before fitting the replacement, compare the plug type, button layout, fascia size, switch body size and cut-out size to confirm it is suitable for your recliner. - Connect the new switch.
Plug the male 5 pin DIN plug from the new switch into the matching socket, making sure the retaining lugs are properly seated for a secure connection. - Fit the switch into position.
Place the switch into the recliner arm cut-out, making sure the cable is not pinched, crushed or stretched behind the switch. - Secure the switch with screws.
Reuse the original mounting screws if suitable and tighten them gently. Do not overtighten, as this may damage the switch body or furniture panel. - Refit the removable fascia.
Clip the nickel coloured fascia back onto the switch so the mounting screws are hidden and the switch has a neat finished appearance. - Reconnect power and test the switch.
Plug the recliner back into power and test each button function. Check that the recliner operates correctly and that the USB-A and USB-C charging ports are working as expected.
- Disconnect the recliner from power.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How do I know if this recliner switch is compatible with my chair or sofa?
Please compare your existing switch model number, plug type, button layout, dimensions and cut-out size before ordering. This switch uses a male 5 pin DIN plug with retaining lugs and is suitable for many dual actuator electric recliners and lounges.
Can this switch be installed on either side of the recliner?
Yes. The FS.16.04.01 switch can be installed on either the left or right side of the the recliner furniture depending on your setup and preference.
Are the mounting screws included with the replacement switch?
No. Mounting screws are not supplied. In most cases the original screws from your existing switch can be reused during installation.
What are the USB charging ports used for?
The integrated USB-A and USB-C ports provide a convenient way to charge phones, tablets and other compatible devices directly from your recliner. The USB output specification is 5V 2A.
Is this an easy DIY replacement?
Yes. Most customers can replace the switch themselves using only a screwdriver. The switch connects with a simple plug-in 5 pin connection and the removable fascia allows easy access to the mounting screws.
