Okin JLDQ.12.134.333B Recliner Motor
$175.00
In stock

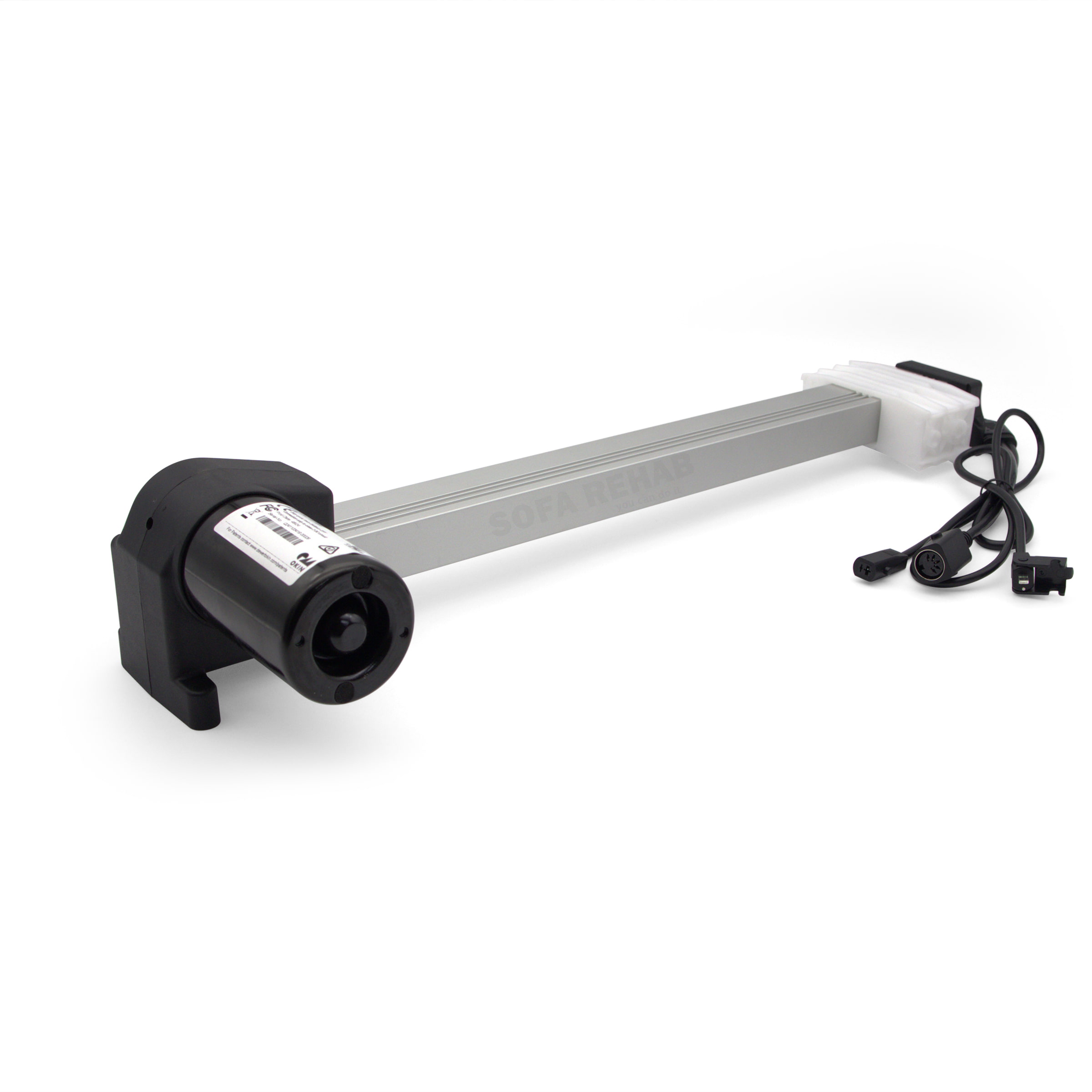

Replacement Okin JLDQ.12.134.333B linear actuator motor for electric recliner chairs, sofas and lounge suites. Featuring a 333mm stroke and 134mm mounting configuration, this actuator includes a 3 plug system with a 2 pin male OI power input, 2 pin female pass-through, and 5 pin DIN handset connection for a simple plug-and-play replacement. eMoMo Okin JLDQ.12.134.333B Recliner Motor Actuator. Designed to suit many electric recliners with direct handset-to-motor setups. The standard 3 plug configuration makes installation straightforward with no rewiring required. Need Help Finding the Right Recliner Motor? We stock an extensive catalogue of genuine and universal replacement actuators (click here) to suit all popular recliner chair brands and models. If you’re unsure which motor you need, feel free to contact us for assistance. read more
In stock
- Description
- Technical Specifications
- How To Tutorial
- Reviews (0)
- FAQs
- Add a review
Description
Okin JLDQ.12.134.333B Recliner Actuator Motor Replacement

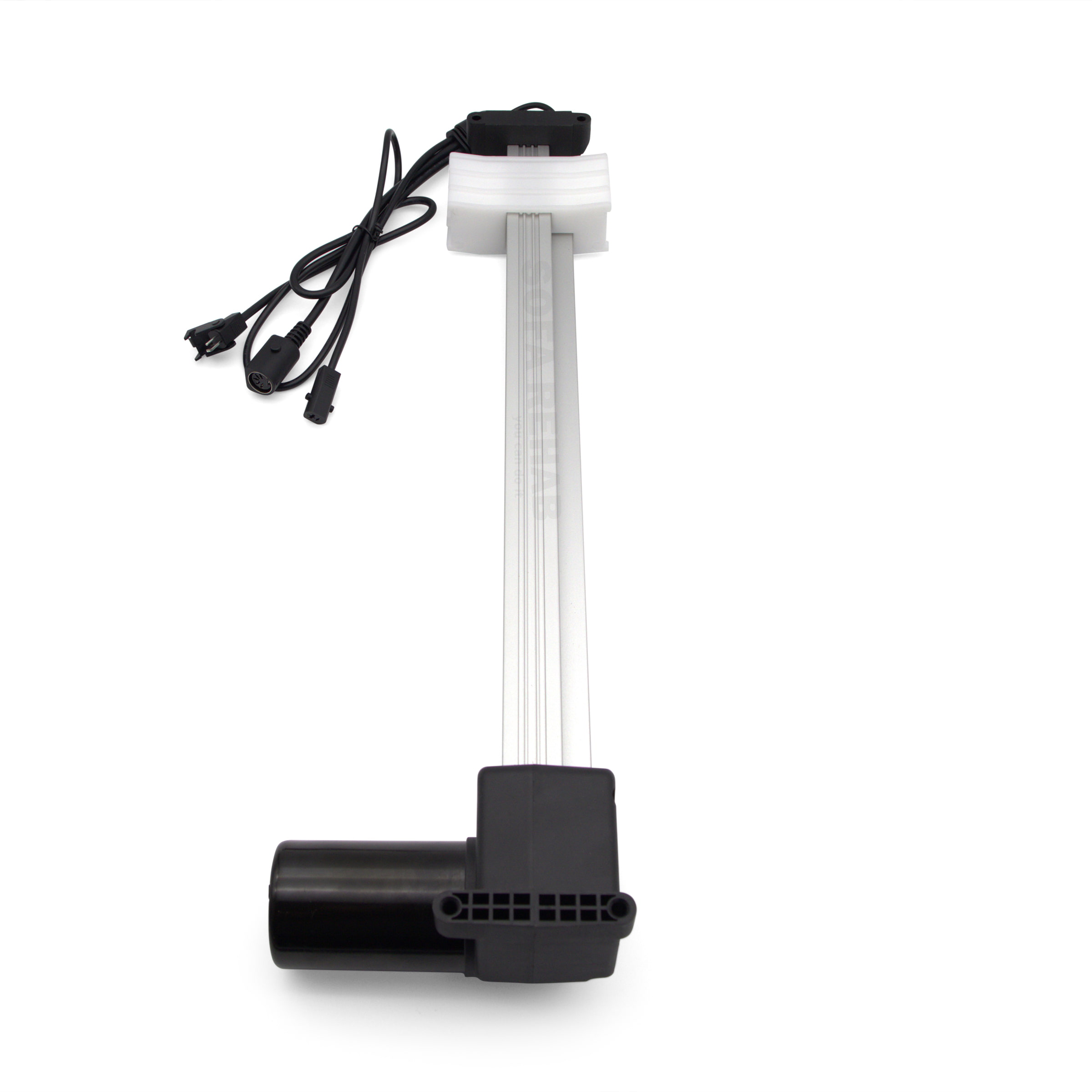

The JLDQ.12.134.333B is a common linear actuator motor used in electric recliner chairs, sofas and lounge suites to drive the reclining motion. With a 333mm stroke length and 134mm mounting configuration, this actuator is designed as a direct replacement for many Okin and compatible systems. It features a 3 plug setup including a 2 pin male OI power input with retaining clip, a 2 pin female pass-through plug, and a 5 pin DIN connection for the handset, allowing for a simple plug-and-play installation.
3 Plug System for Simple Plug & Play Installation
This actuator is designed for systems where the handset connects directly into the motor. The male 2 pin OI plug receives power from the transformer, while the female 2 pin plug allows power to pass through to additional components such as a second actuator or accessories. The 5 pin DIN plug connects your handset, sending the control signals to operate the recliner. No rewiring or special setup is required, just match the plugs and install.
Quality Replacement Parts from Sofa Rehab
We’re Australia’s leading supplier of recliner spare parts, offering both genuine OEM and high-quality compatible replacements. Our focus is on helping you repair your furniture without unnecessary cost, so you can replace only the faulty component instead of the entire chair or mechanism.
DIY Friendly Replacement – Save Time and Money
Replacing a recliner actuator is more straightforward than most people expect. With basic tools and a bit of time, you can remove your old actuator and install the new one without needing professional assistance.
Follow our step-by-step guides and video tutorials to complete the repair yourself. Save on costly service call-outs and enjoy the satisfaction of getting your recliner back to working condition on your own. If you have any questions along the way, our support team is here to help.
Technical Specifications
Technical Specifications
| Product Type | Electric Recliner Linear Actuator Motor |
|---|---|
| Brand | Okin |
| Model Number | JLDQ.12.134.333B |
| Application | Electric recliner chairs, sofas and lounge suites |
| Stroke Length | 333mm |
| Mounting Configuration | 134mm |
| Plug Configuration | 3 Plug System |
| Power Input Plug | 1 x Male 2 Pin OI Plug with retaining clip |
| Pass-Through Plug | 1 x Female 2 Pin Plug |
| Handset Connection | 1 x Female 5 Pin DIN Plug |
| Installation Type | Plug-and-play replacement |
| Suitable For | Direct handset-to-motor recliner systems |
How To Tutorial
How To Tutorial
How To Install the Okin JLDQ.12.134.333B Recliner Actuator
Replacing your recliner actuator is a straightforward do-it-yourself repair for many electric recliner chairs, sofas and lounges. Before starting, make sure the furniture is disconnected from power and positioned so you can safely access the mechanism underneath.
- Disconnect the power supply.
Unplug the recliner from the wall socket and disconnect the transformer from the actuator system. This is important for safety and prevents the motor from moving during installation. - Carefully place the furniture in a safe working position.
Gently tilt the recliner or sofa forward so you can access the underside. Make sure it is stable before continuing. - Locate the old actuator.
Find the existing actuator mounted to the recliner mechanism. Check how it is fitted and take note of the mounting points and plug positions before removal. - Disconnect the plugs.
Unplug the 2 pin power connection, the 2 pin pass-through plug if used, and the 5 pin DIN handset plug. Be careful not to pull on the wires directly. Hold the plug body when disconnecting. - Remove the mounting hardware.
Undo the fixing pins, clips, bolts or brackets securing the actuator to the mechanism. Keep all reusable hardware aside so it is ready for fitting the new actuator. - Remove the old actuator.
Once the mounting points are free, carefully lift the actuator out of the recliner mechanism. - Fit the new actuator into position.
Align the new Okin JLDQ.12.134.333B actuator with the original mounting points and install it in the same position as the old unit. - Secure the actuator.
Refit the original mounting pins, clips, bolts or brackets and make sure the actuator is held firmly in place. - Reconnect the plugs.
Connect the male 2 pin OI plug to the power supply lead, reconnect the female 2 pin plug if your setup uses a pass-through connection, and plug in the 5 pin DIN handset connection. - Test the actuator.
Reconnect the transformer and plug the recliner back into power. Test the movement using the handset to make sure the actuator is operating correctly and the recliner opens and closes smoothly. - Return the furniture to its normal position.
Once testing is complete, carefully place the furniture back into its usual position and enjoy your repaired recliner.
Helpful tip. Before ordering, always check your actuator model number, stroke length, mounting configuration and plug setup to ensure compatibility. If you are unsure, contact us and we will help you identify the correct replacement.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How do I know if this actuator is the correct replacement for my recliner?
Check the model number on your existing actuator, along with the stroke length (333mm), mounting configuration (134mm), and plug setup. This model has a 3 plug configuration including a 2 pin power input, 2 pin pass-through, and 5 pin handset connection. If you're unsure, contact us and we’ll help confirm compatibility.
What are the symptoms of a faulty actuator?
Common signs include no movement, intermittent operation, unusual noises, or the recliner getting stuck in one position. Before replacing the actuator, also check your power supply, cables and handset to rule out other faults.
Can I install this actuator myself?
Yes, this is a DIY-friendly replacement. The actuator uses plug-and-play connections and is typically secured with simple mounting pins or bolts. With basic tools like a screwdriver or spanner, most installations can be completed in under 30 minutes.
Does this actuator come with cables and plugs?
Yes, this actuator includes the pre-fitted cable with 3 plugs, ready to connect to your existing system as long as it matches your current setup.
My recliner has stopped working, is the actuator definitely the problem?
Not always. Common faults can also be caused by the power supply, cables, or handset. If your recliner isn’t moving at all, it’s worth checking these components too. Feel free to contact us and we can help troubleshoot before you buy.
