Raffel ICH LR HR TS BLK DIMP-BDL Box
$75.00
In stock
OEM Raffel Systems junction control box bundle for ICH LR HR TS BLK DIMP cup‑holder recliner chairs. Restores power to the LED light ring plus head‑rest & foot‑rest touch keys. The inline breakout harness carries both the 2‑pin LED feed and 6‑pin motor supply for a quick, plug‑and‑play swap, great for DIY repairs. Genuine Raffel Cup‑Holder Junction Box. Designed to pair perfectly with our matching Raffel LED cup holder controller, yet also drives most ICH‑series cup modules that share the standard 2‑pin/5‑pin wiring layout. Need the Cup Holder Too? Replace the cup holder and junction box together for guaranteed compatibility and brand‑new electronics. See the compatible cup holder & parts range (click here) or chat with us if you need help. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description

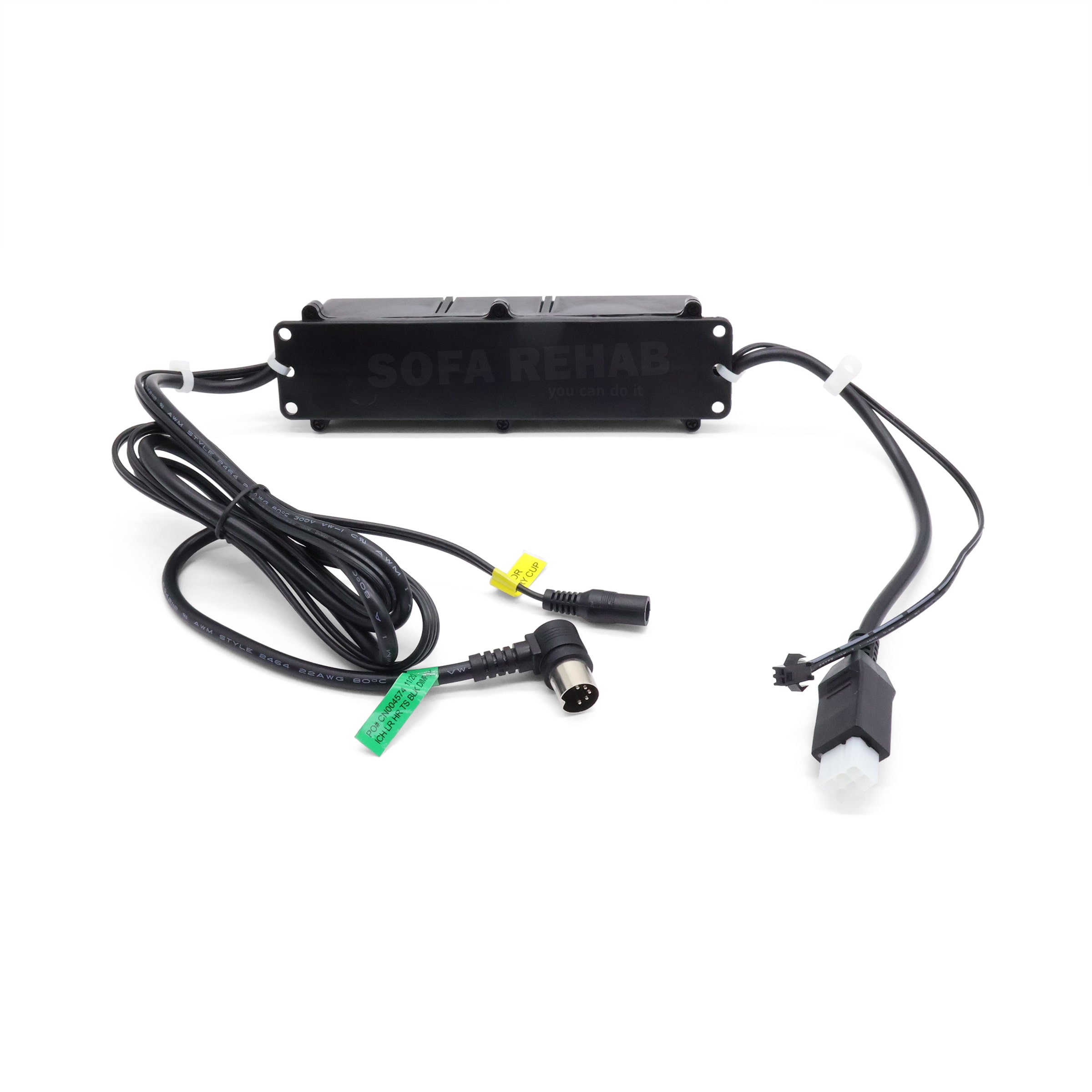

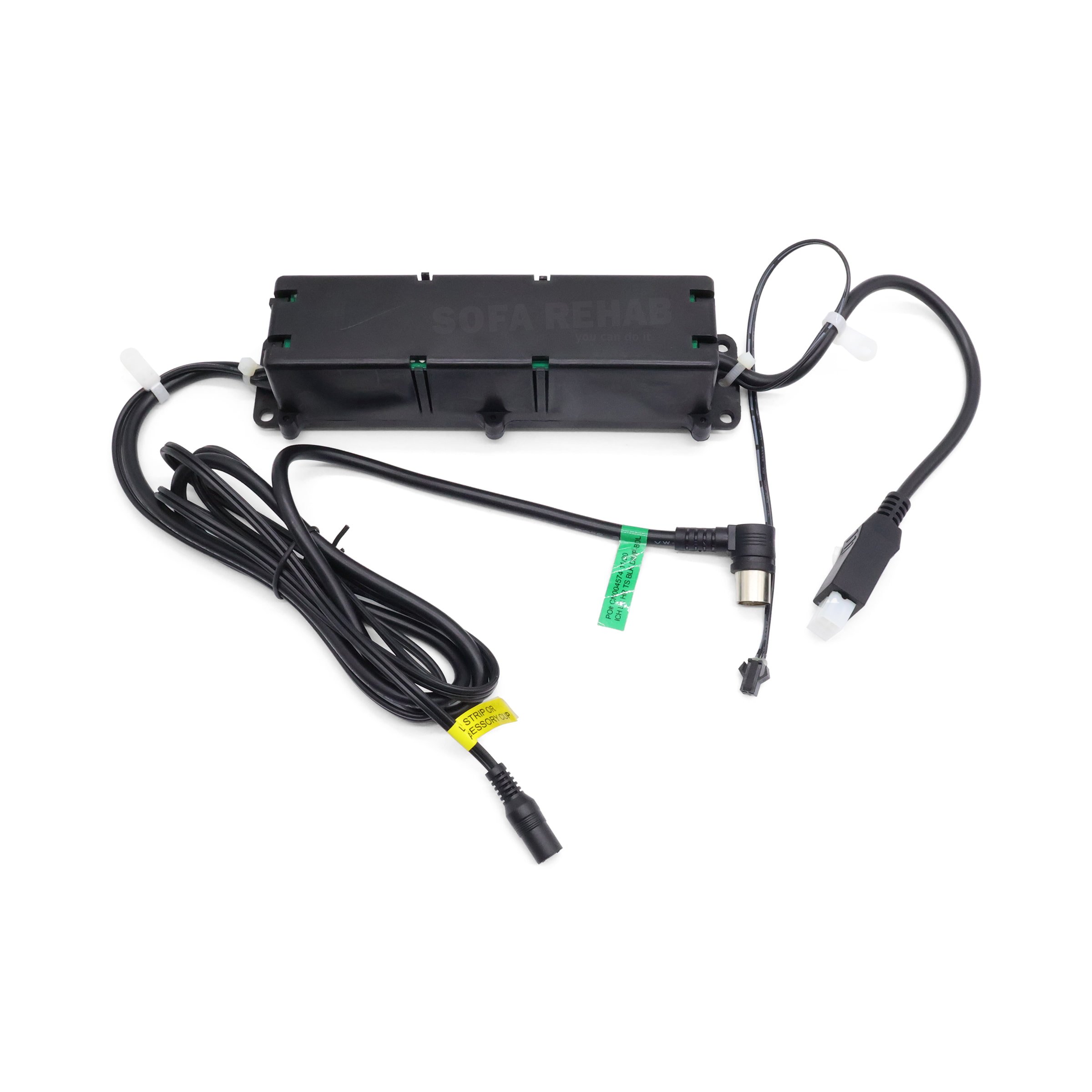

Raffel Junction Control Box for LED Cup Holders – Plug & Play Replacement
Stop dead buttons and flickering light rings in their tracks. This genuine Raffel junction control box (model ICH LR HR TS BLK DIMP‑BDL) snaps straight into the low‑voltage harness between the LED cup holder and the main 29 V recliner motor. A single 2‑pin plug feeds the cup’s lighting & capacitive keys while a 6‑pin plug powers your actuator—no splicing, no guesswork.
Compatible with Harvey Norman & Synargy Smart Comfort “Stanbury”
This LR/HR variant is the exact junction box used in the Harvey Norman Stanbury theatre suite, Synargy Smart Comfort lounges and many frames from Ashley, Catnapper, Cheers/Man Wah and Southern Motion (post‑2018). If your original part number starts with ICH LR HR TS BLK DIMP, this is a straight swap.
Separate ICH LR HR TS BLK DIMP‑BDL Cup Holder Available (Sold Separately)
The junction/control box is the brains behind our matching Raffel LED Cup Holder replacement (click here)—the cup’s touch panel and light ring won’t power up without it. Re‑use your existing cup holder if it’s still healthy, or grab this fresh replacement for a plug‑and‑play fix.
DIY Replacement – ‘You Can Do It’ and Save $$$
Swap the module in under five minutes with just a Phillips screwdriver: unplug the chair, separate the quick‑connects, clip the new box in place and you’re done. Enjoy the satisfaction of fixing it yourself and saving $$$ on service calls.
Technical Specifications
Technical Specifications
Make – Raffel Systems.
Cup Holder model number – ICH LR HR TS BLK DIMP-BDL.
Colour – Black.
Plugs- 90° 5 pin male din for actuator, female DC plug for LEDstrip, female 6 pin function plug and 2 pin LED cup holder light plug.
How To
How To
DIY Installation Guide – Raffel Junction/Control Box
(Model ICH LR HR TS BLK DIMP‑BDL)
Tools & prep
• Phillips‑head screwdriver
• Torch or good task‑lighting
• Cable‑ties (optional, for neat cable management)
• 5 minutes of clear workspace – and make sure the recliner is unplugged from the wall before you start.
1 . Power down & gain access
Disconnect the 29 V transformer from the mains outlet and from the chair.
Tip the recliner forward onto its arms (or remove the backrest if that’s easier) to expose the underside of the armrest where the cup‑holder wiring lives. Remember to practice safe lifting techniques.
2 . Locate the old junction box
Follow the 2‑pin harness that exits your LED cup holder – about 1 m along you’ll see a small black inline box (Raffel p/n JCT ICH LR).
Note how it’s secured: usually two wood screws into the frame or a single cable‑tie to a loom. Snap a quick photo so you can copy the orientation later.
3 . Disconnect the wiring
Press the locking tab and pull apart the 2‑pin plug that runs to the cup holder.
Do the same with the 5‑pin plug that feeds the recliner motor/actuator.
If a second 2‑pin lead daisy‑chains to another cup or LED strip, unplug that as well.
4 . Remove the old box
Undo the mounting screws or snip the securing tie and lift the junction clear of the frame.
5 . Fit the new control box
Position the replacement box exactly where the old one sat and fasten it with the original screws (or a fresh cable‑tie). Keep the printed part‑number label facing out for future reference.
6 . Reconnect the plugs (they only fit one way)
2‑pin cup holder lead → 2‑pin “LED/KEY” socket on the box.
5‑pin actuator lead → 5‑pin “MOTOR” socket.
(Optional) Aux 2‑pin lead for a slave cup/LED strip → spare 2‑pin socket.
7 . Final checks
Make sure no wires are pinched or rubbing on the mechanism. Tidy extras with cable‑ties.
Set the recliner back upright, reconnect the transformer, then plug the transformer into the wall.
8 . Test & enjoy
The cup’s blue light ring should illuminate. Tap Recline ▲ / ▼ and Head‑rest ▲ / ▼ to verify movement.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs

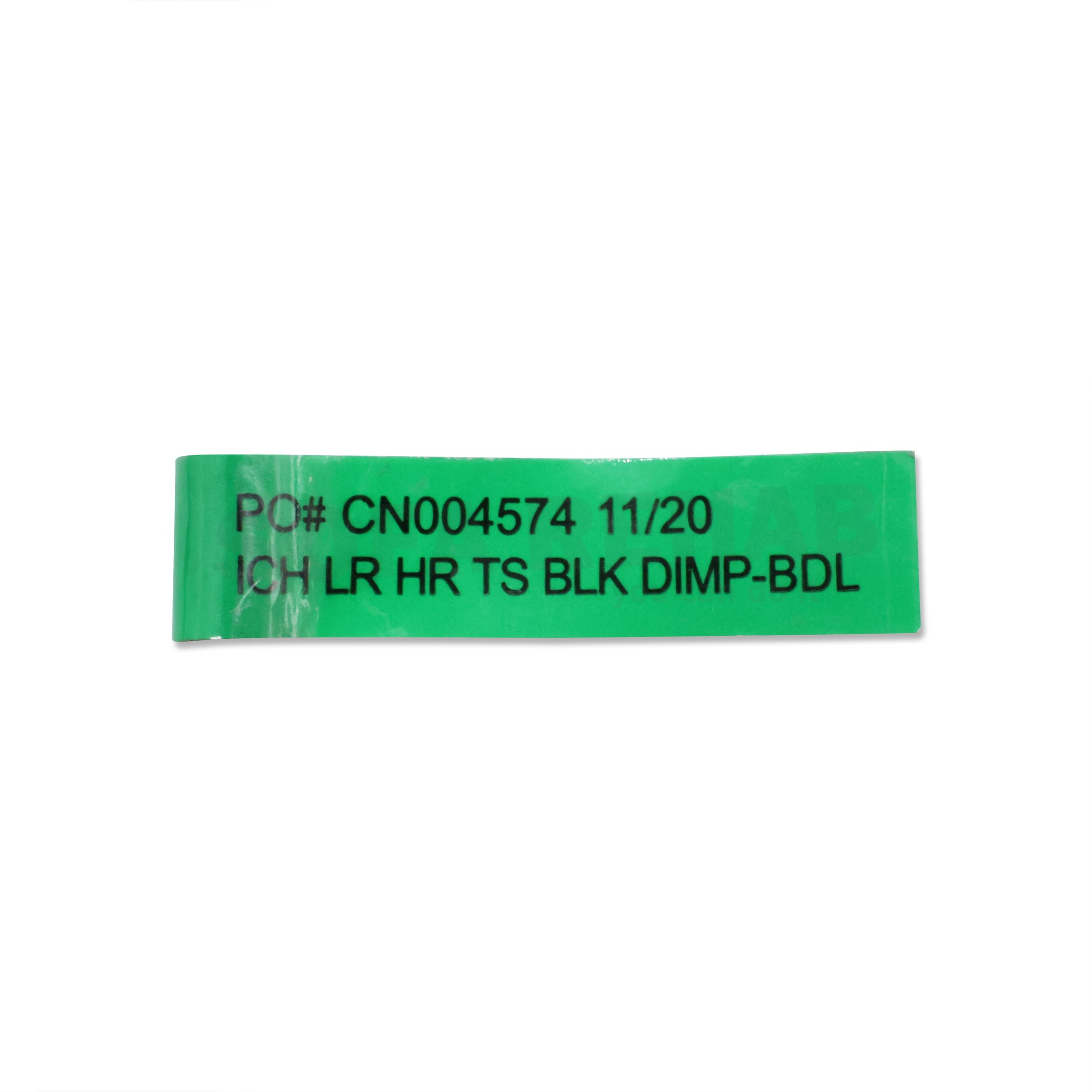

Where do I find the model number?
This is commonly found on the cable harness.
Will this junction box work with my recliner if the cup holder model number is slightly different?
As long as your cup holder is a Raffel ICH‑series unit with the 2‑pin LED feed and 6‑pin motor plug, this control box is a straight swap. Minor suffixes (e.g. BLK, GRY, CHR) only describe bezel colour; the electronics are the same. If you’re unsure, snap a photo of your existing plugs and chat with us.
Do this come with a clear acrylic insert?
No.
Does it come with the cup holder?
No. You will get the junction box and cables only. The cup holder is sold separately through our website.
What connections and power supply does it use?
Two leads exit the cup:
5‑pin male – drives the recline & head‑rest motors via the control box.
2‑pin round‑n‑flat male – powers the LED ring (29 V DC via the chair transformer).
Both are standard Raffel/Okin pattern push‑plugs—no soldering or wiring required.
Do you ship this control box outside Australia?
Yes. We dispatch daily from Brisbane and ship worldwide to 50+ destinations, including NZ, the US, UK, Canada, and most of Europe and Asia. Prices are in AUD, and a currency notice is shown at checkout for overseas customers.
