Theorem HSW306E-B-PT 6 Button Handset
$149.00
In stock
Genuine Theorem 6 button replacement remote control for electric recliners and lift chairs. Model number HSW306-B-PT, this handset has six buttons for easy operation with central arrows for lift and recline, top pair for headrest, and bottom pair for footrest. Features a grey face with black back casing, integrated USB charging port, part-straight and part-coiled cord, and secure 7-pin DIN plug connection with side tabs. Theorem 6 Button Recliner Handset With USB. Rated at 29V 3.0A Class II IP20 and measuring 160mm × 50mm × 29mm, this genuine replacement suits many recliners and lift chairs using the industry standard 7-pin DIN plug. Designed for reliability and comfort in daily use. Need Help Finding the Right Remote? We stock a wide range of replacement recliner remotes (click here) for Theorem and other brands. If you’re unsure which remote is right for your chair, contact us for assistance. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
Theorem 6 Button Recliner Remote Controller With USB - Model HSW306E-B-PT

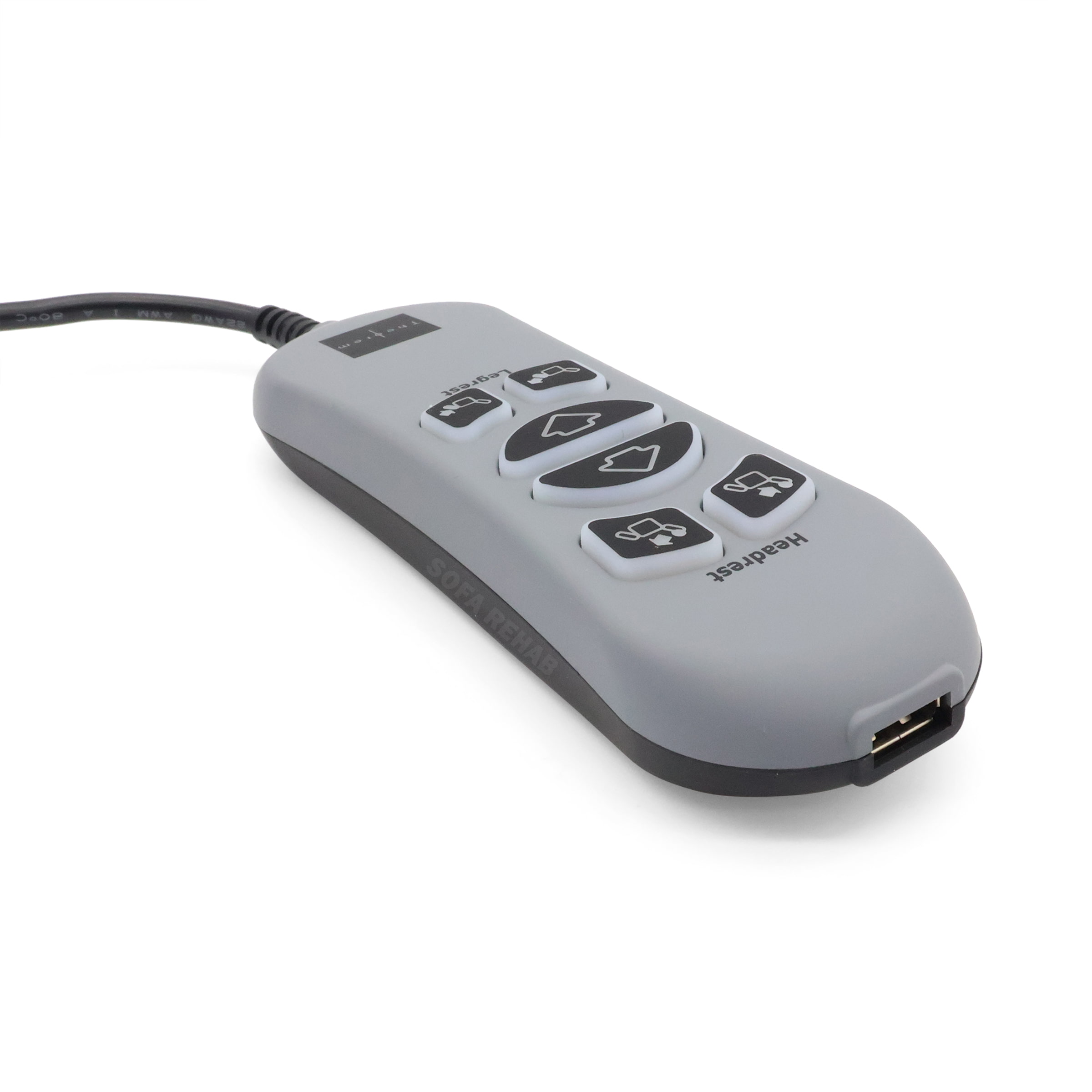

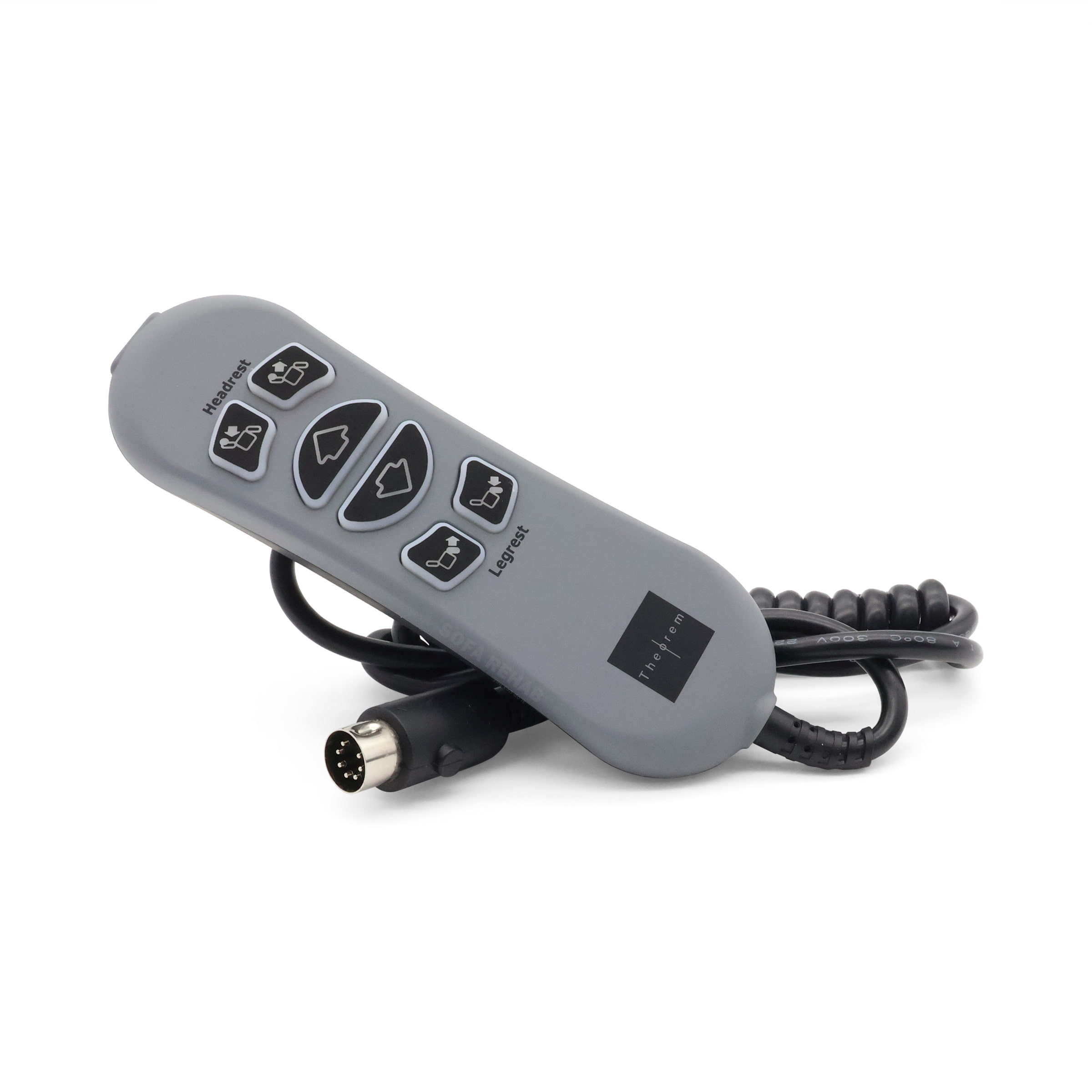

The genuine Theorem HSW306E-B-PT remote control is designed to operate electric recliner chairs and lift chairs with ease. Featuring six clearly labelled buttons, this handset provides full control over your chair’s main functions. The central arrow buttons manage the lift and recline mechanism, the top pair adjust the headrest, and the bottom pair adjust the footrest. Finished with a grey face and black back casing, the controller also includes a convenient USB charging port.
Compatible Recliners and Lift Chairs
The HSW306E-B-PT remote is a common replacement for many electric recliners and lift chairs that utilise the 7-pin DIN connection. If you’re unsure whether this remote is compatible with your chair, please contact our support team for assistance. We’re here to help you identify the correct replacement and avoid wasted time or unnecessary returns.
Convenience with Integrated USB Port
Keep your devices powered without leaving your chair. The integrated USB port allows you to charge smartphones, tablets and more while you use your recliner. This feature makes it practical for everyday use and eliminates the need for separate extension leads or wall sockets nearby.
Australia’s Leading Supplier of Recliner Spares
Sofa Rehab is Australia’s trusted source for both OEM and universal recliner spare parts. We stock a wide range of replacement remotes (click here) along with power supplies, actuators, and accessories to suit all popular brands.
'You Can Do It' – Quick DIY Swap in Under 3 Minutes
Replacing a handset takes under three minutes:
- Unplug the transformer at the wall.
- Unclip the in‑line connector hidden in the arm pocket or under the base.
- Plug in your new remote, re‑latch the clip, restore power and test.
No tools, no call‑out fees—just the satisfaction of a job well done.
Technical Specifications
Technical Specifications
Technical Specifications
- Brand: Theorem
- Model Number: HSW306E-B-PT
- Buttons: 6 total (centre arrows for recline/lift, top pair for headrest, bottom pair for footrest)
- Colour: Grey face with black back casing
- USB Port: Integrated charging port
- Dimensions: 160mm length × 50mm width × 29mm thickness (including buttons)
- Cable: Combination straight and coiled, 880mm relaxed length, 150mm coiled section

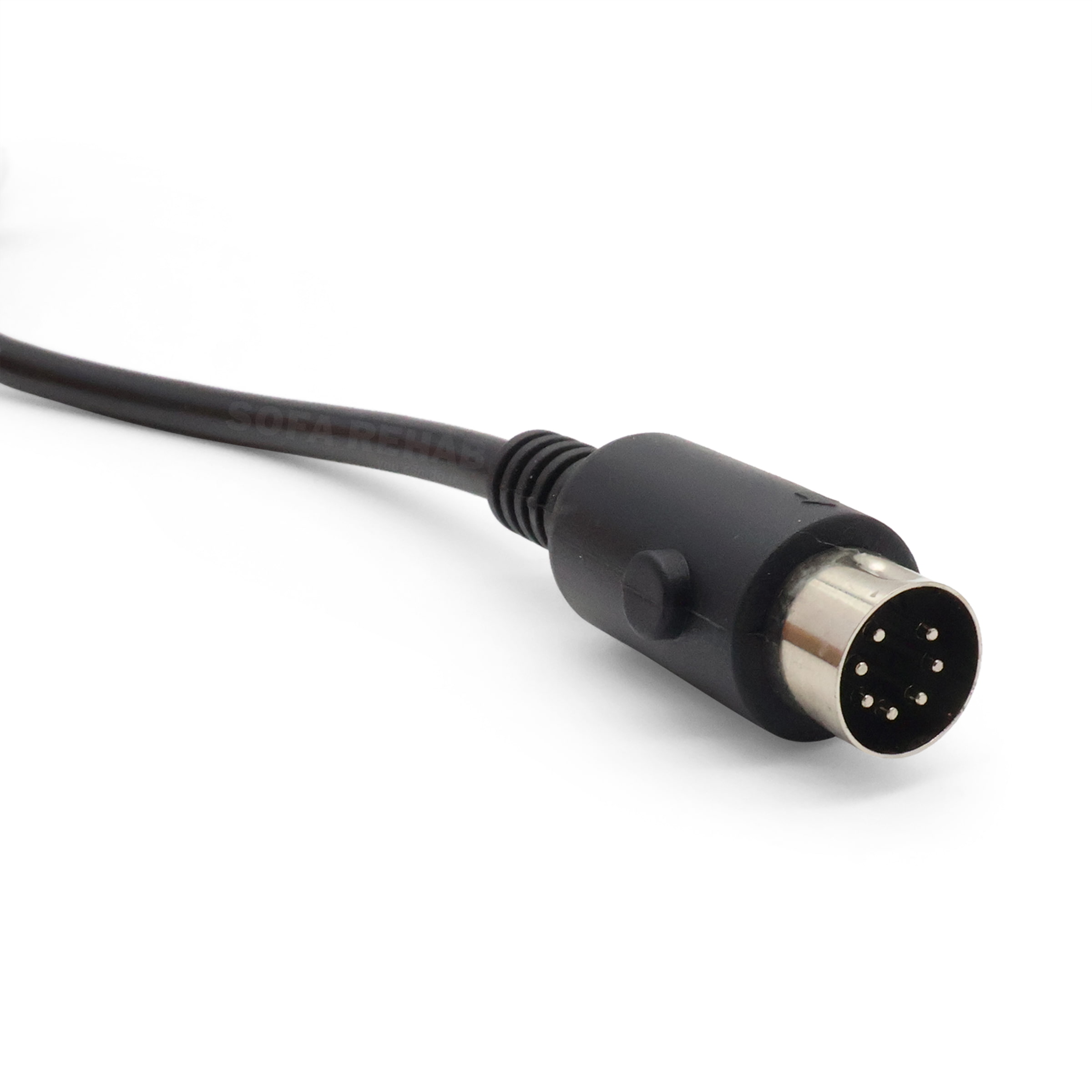

- Connector: Straight 7-pin male DIN plug with side retaining tabs

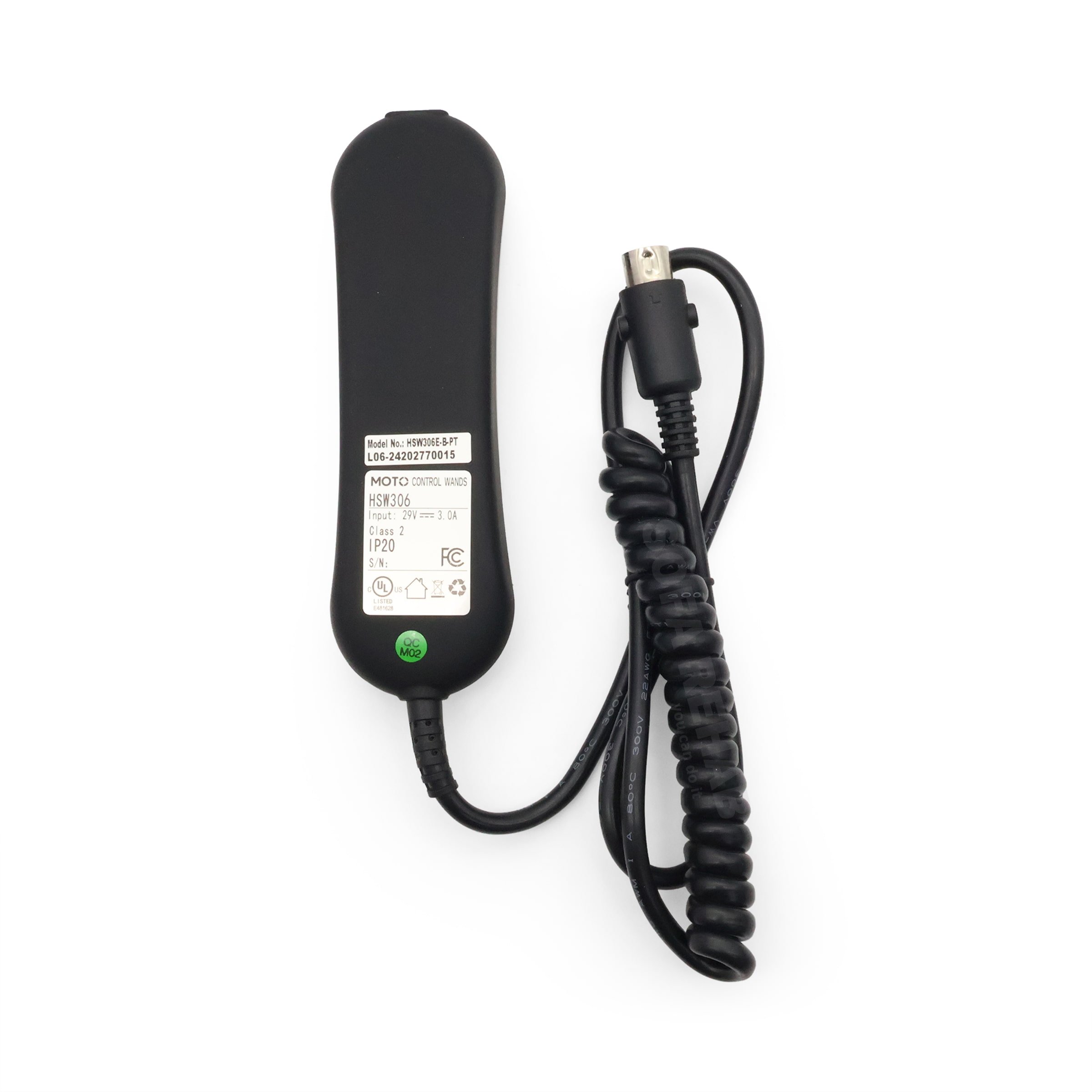

- Electrical Rating: 29V DC, 3.0A, Class II, IP20
- Application: Suitable for many electric recliners and lift chairs with a 7-pin DIN connection
How To
How To
How To Install Theorem 6 Button Recliner Remote
Replacing your Theorem HSW306E-B-PT handset is a quick and simple job that you can do yourself at home. No special tools or technical skills are required, and the only tool you may need is a Phillips head screwdriver to help remove or secure clips if your chair has them fitted.
Important Safety Tips Before You Begin
Always take a clear picture of your existing remote and connections before you disconnect anything. This will help you double-check the correct routing when fitting the new handset. Practise safe lifting techniques if you need to tilt or move your recliner — lift with your legs, not your back, and ask someone for help if the chair is heavy.
Step-By-Step Installation
- Unplug your recliner from the wall power supply before starting any work.
- Locate the current remote cable where it connects under or inside the chair frame.
- Release the retaining clip and gently unplug the 7-pin DIN connector from the socket.
- Carefully remove the old handset and set it aside.
- Plug the new Theorem HSW306E-B-PT remote into the same 7-pin DIN socket, making sure the side tabs are fully engaged to lock it in place.
- Secure the cable so it does not get trapped in the mechanism when the chair operates.
- Plug the recliner back into the wall power supply and test all six buttons, including the USB charging port.
Enjoy Your Restored Recliner
That’s it — your new remote is installed and ready to use. The whole process usually takes less than 10 minutes. Doing the replacement yourself saves the cost of a technician and gives you the satisfaction of a successful DIY repair.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How do I know if this remote will fit my chair?
Check your existing remote plug — this Theorem handset uses a 7-pin DIN male connector with side retaining tabs. If your current remote has the same plug, this is the correct replacement. If you’re unsure, contact our support team for help.
Does the USB port work with all devices?
The integrated USB charging port is designed for most mobile devices such as phones and tablets. It provides a convenient way to keep your devices powered while relaxing in your chair.
Can I install this replacement remote myself?
Yes! Installation is quick and simple. Unplug the old remote, connect the new one to the 7-pin socket, and secure the cable. We recommend taking a photo before disconnecting anything, and always practise safe lifting techniques if you move the chair.
Is this a genuine Theorem part?
Yes, this is a genuine Theorem HSW306E-B-PT replacement remote. Buying genuine ensures reliable operation, correct compatibility, and a long service life.
What if I’m still not sure this is the right remote?
We stock a wide range of replacement recliner remotes . Contact us with your chair’s model or serial number and we’ll help confirm the correct part for you.
