Zig Zag Seat Spring Clips 10 Pack
$12.00
Upholstery Zig Zag seat spring fastening clips. Designed to fit on the face of the frame timber rail as an alternative to Oke plastic clips. This 10 pack of strong replacement metal and plastic upholstery furniture spring clip, used to attach ang size of No-Sag, Zig Zag, Sinuous and Serpentine furniture springs to the timber lounge frame. Sofa spring repair clips for all seats and backs of classic, vintage and modern upholstered armchairs, recliner and modular lounges. Pack Of 10 No Sag Zig Zag Seat Spring Clips Great value - Sold in packs of 10 individual clips. Suitable for use on all Dining chairs, recliners, sofas and ottomans etc... Enough for 5x springs! Alternative to Oke Upholstery Clips Metal frame with plastic insert spring clips designed to eliminate springs slipping, wearing and squeaking. 'You Can Do It' yourself and save $$$ Ideal for DIY use or even the professional upholsterer. read more
- Description
- Technical Specifications
- How To Install
- Reviews (0)
- FAQs
- Add a review
Description

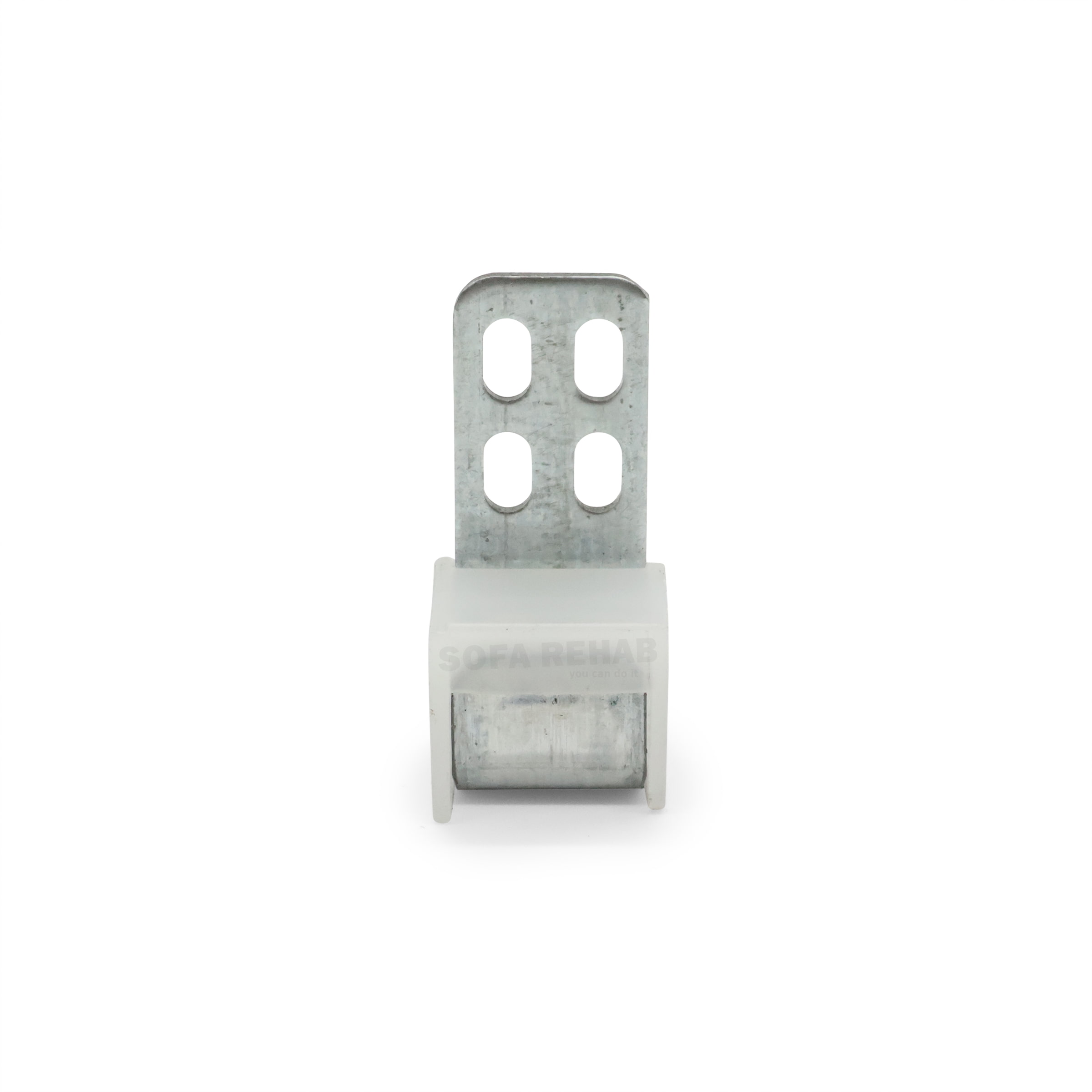

Zig Zag Upholstery Spring S-clips
Handy 10 pack of durable and strong replacement metal framed with plastic insert spring clips suitable for no sag, serpentine or zig zag springs. These 8-13 gauge spring retaining clips are commonly attached to the face of the chair or lounge timber frame rather than the top of the timber frame and used to facilitate the secure connection of the seat and back springs. Each spring requires 2 x Zig Zag Seat spring clips. (Screws, nails and staples not supplied)
Enough Clips To Fix 5 x Springs
Whether you’re undertaking a large DIY restoration project or a just single armchair we supply 10 x Zig Zag Seat Spring Clips for 5 x standard recliner or chair springs. If you need more clips order multiple packs. If you doing a one off spring repair then you’ll have enough spring clips for future repairs too!
Need To Repair a Seat Spring?
Make sure you have all the accessories to help undertake that all important lounge recliner seat spring repairs. Buy the 10 pack of furniture spring clips and be fully prepared to take on the upholstery repair. (screws/nails/staples not included)
Doing a Full Furniture Reno?
We’ve got you covered! We stock a vast selection of replacement seat springs, support wire ,elastic or Jute webbing to help with either classic, vintage or modern furniture you are restoring. Take a look at our full range of accessories- >>>>>CLICK HERE FOR OUR FULL RANGE<<<<<
Technical Specifications

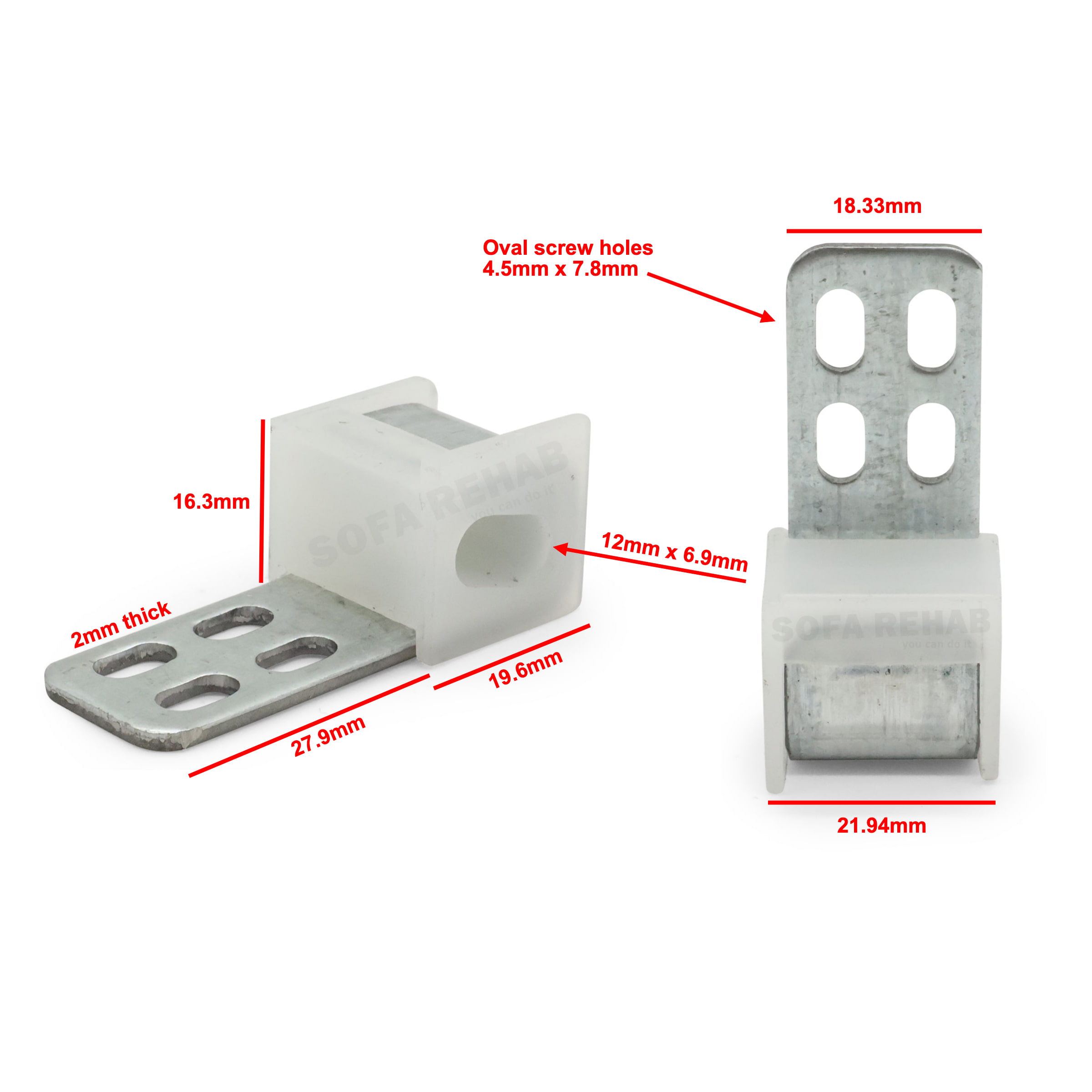

Technical Specifications
Type of clip- Zig Zag Upholstery spring clip
Material – Metal outer frame and plastic insert
Dimensions – Width 22mm x Length 47.5mm
Fixing Holes – 4 x oval holes (4.5mm x 7.8mm)
Spring Hole – 1 x hole (12mm x 6.9mm)
Uses – Attaching furniture seat or back upholstery zig zag, sinuous and no-sag springs to the frame.
What gauge of spring- Can accept all gauges of upholstery serpentine style springs size/gauge 8-13.
*Note all quoted dimensions are approximate and subject to change.
How To Install
How To Install
NOTE THE BELOW INSTRUCTIONS ASSUME YOU HAVE REMOVED ANY ACCESSORIES, FRAME OR FABRIC TO EXPOSE THE SPRING AREA!
Pro tip- Take a photo of the spring area before you start to note any specific areas like spring spaces or clip positions etc to refer back to if needed!
1, Carefully remove the metal retaining hook of the spring by forcing the spring hook to the exit of the plastic insert (Be careful the spring could be under extreme tension and possible risk of injury)
2, Remove the screws, nails or staples securing the spring clip to the timber
3, Place the replacement clip directly in the same position as the original spring clip
4, Next fasten the spring clip to the timber rail with either screws, nails or staples.
5, Carefully pull and retention the spring retainer hook end into the spring clip (Be careful the spring will be under extreme tension and possible risk of injury)
6, Refit any upholstery fabric and padding removed to access the spring area.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How many clips do I get?
We supply 10 x individual spring clips which is enough for 5 springs.
Do you sell the springs to match these clips?
Yes we sell a full range of springs and accessories. Please return to the online shop.
I have Oke clips currently, Can I use these spring clips instead?
Yes, these are a great alternative to Oke style clips.
I have Ek clips will these work?
Yes, Ek and standard Spring clips do the same function as these Zig Zag upholstery clips although these Zig Zag spring clips commonly fit to the face of the frame rather than the top of the frame.
What do I get in the pack?
You will receive 10 x individual Zig Zag Seat Spring Clips. Screws, nails or staples are not supplied.
What fixings are needed to secure these clips?
Screws, nails and staples x 4 per clip and length to be no longer than the frame timber depth.
