Description
eMoMo Power Recliner Switch Replacements

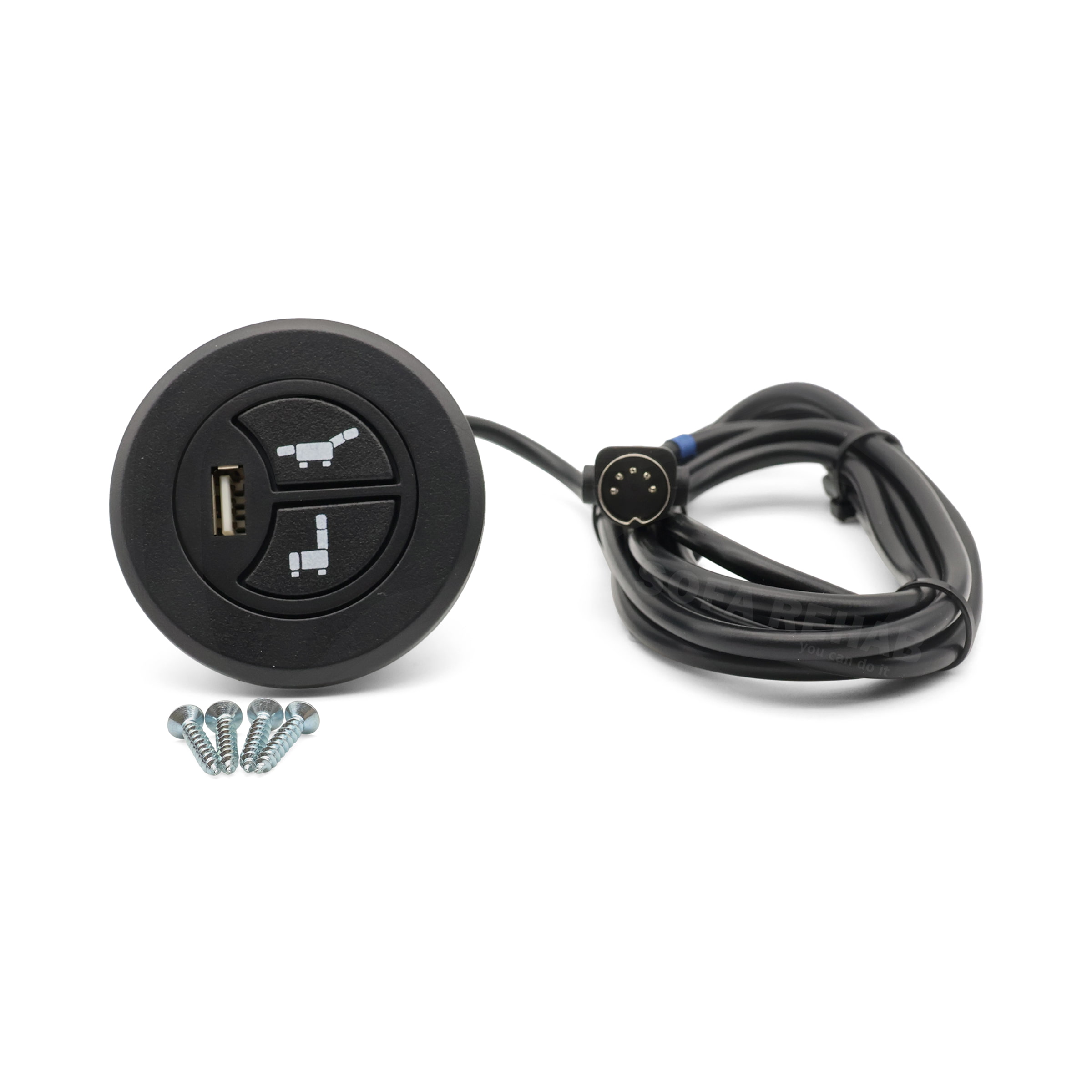

Commonly fitted to the outer arm of power recliners and having a removable screw cover, it allows for an aesthetically pleasing design and offers a discreet appearance. Our sleek, robust and compact eMoMo 2 button round black plastic two button switch with USB charging port also has a modern blue LED backlit feature. Designed to be installed on the LEFT HAND side when sitting in the furniture.
eMoMo Tech 2 Button Toggle Switch for Electric Recliners & Sofas

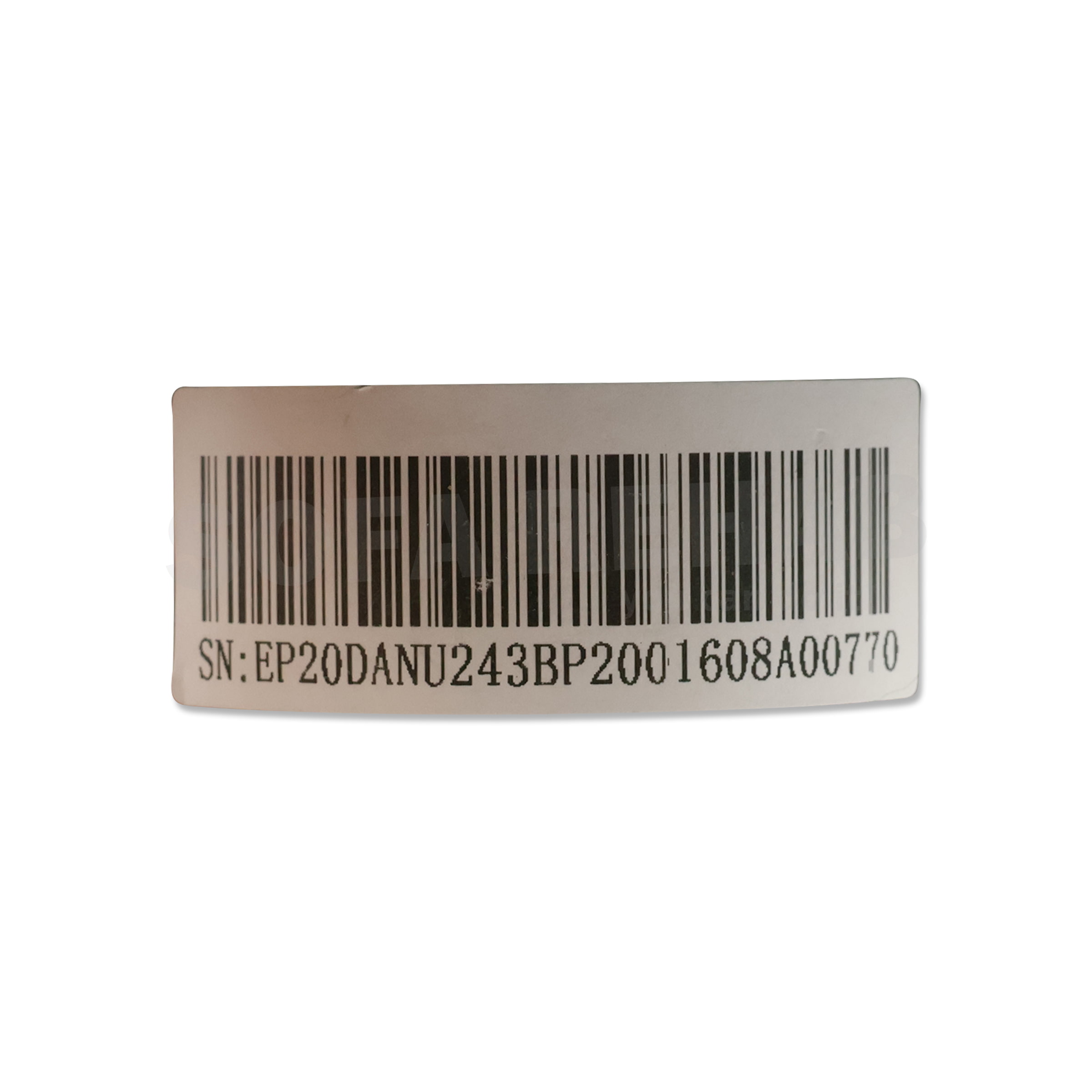

Model Number is RemoP20DANU and the serial number located on the housing begins with SN:EP20DANU. We also stock the RIGHT HAND side switch (when seated) if required and this item has the model number RemoP20DAUand SN:EP20DAU. This electric recliner 2 button toggle switch is compatible with many different brands of power recliners.
We're Australia's Leading Supplier of Recliner Chair Spare Parts
We’re Australia’s leading supplier for repair kits and spare parts. Get the lowest prices on DIY repairs and if your a trades person who needs to buy in bulk, we also offer bulk buy discounts.
Save Time & Money and Do It Yourself
With our wide range of repair products, our easy step-by-step instructions and video tutorials, you’ve got everything you need to repair it yourself. Feel great about having done the repair yourself and saved $$$ on the repair.
Technical Specifications
Technical Specifications
Make – eMoMo Tech.
Model – RemoP20DANU (MUST HAVE THE SERIAL NUMBER STARTING SN:EP20DANU).
Power Rating – Input 29V 2A and Output 5V 2A.
Function – Top button to open and bottom button to close.

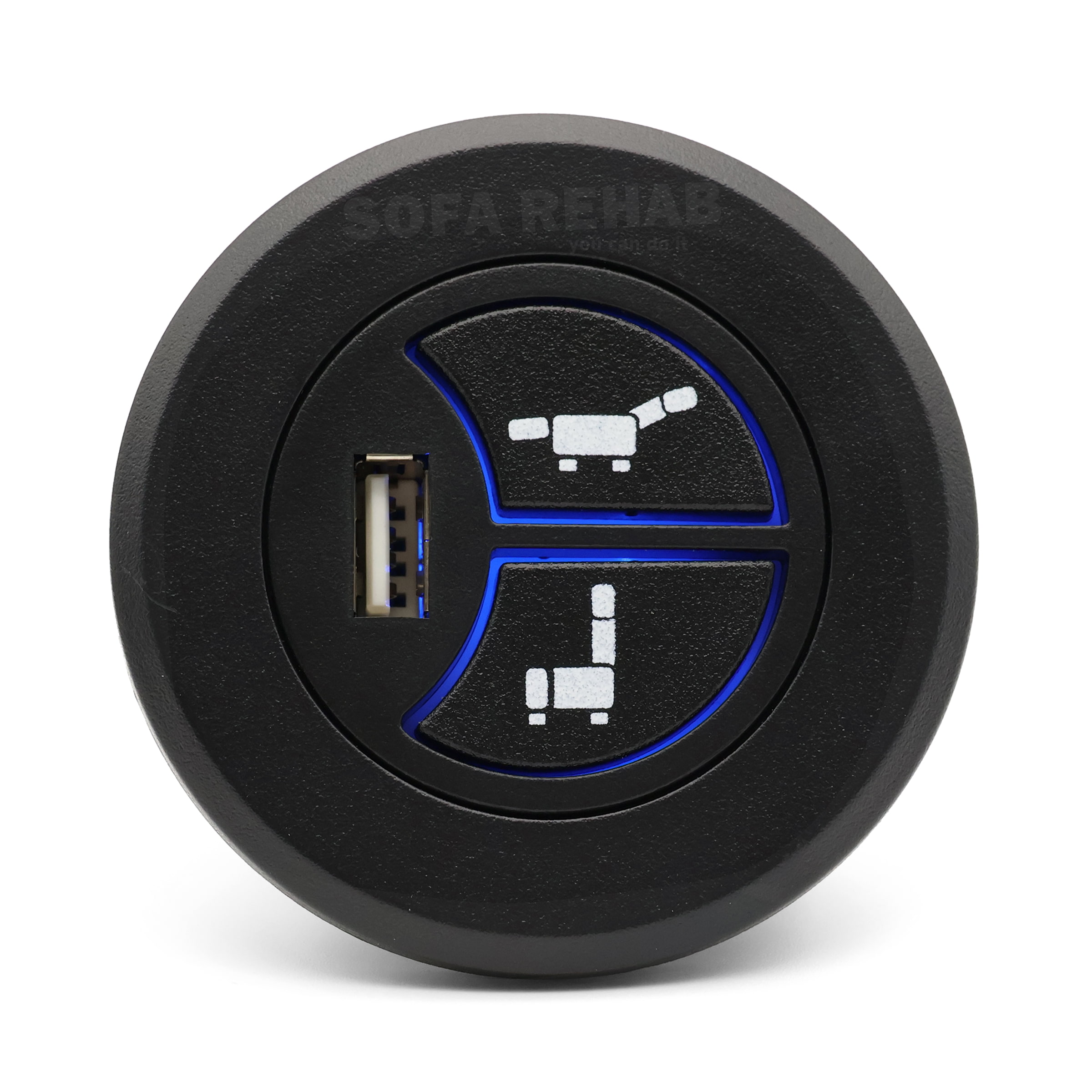

Colour – Black with blue LED backlit buttons.
Material – Plastic.

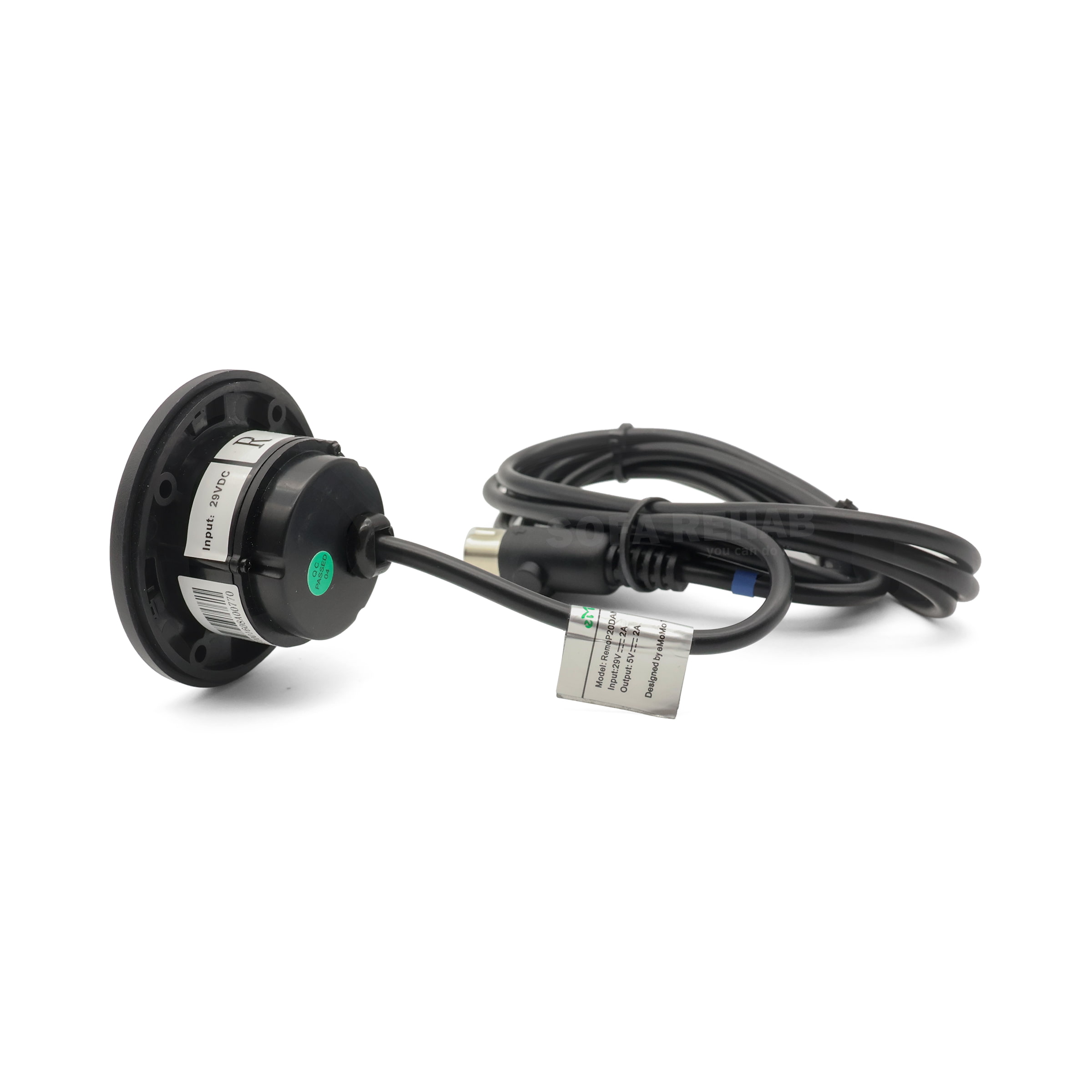

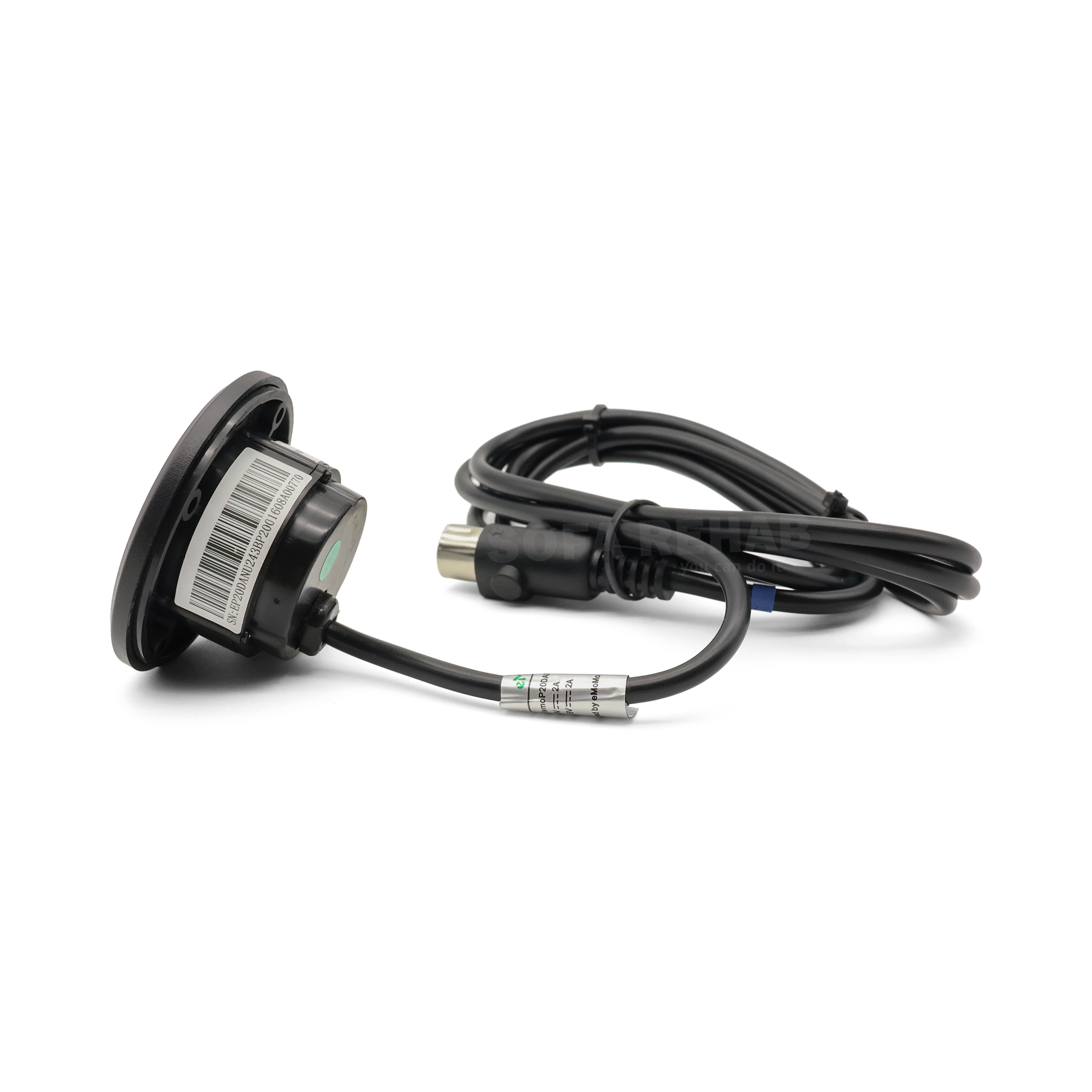

Plug – Straight 5 pin din plug with blue band on the cable.
Dimensions – With facia installed- 67 mm Round, 33 mm thick. Cable length 2020 mm including the plug (approximately).
Required hole size – 44mm round
How to
How to
- Unplug all power to the recliner and remove the mains plug from the wall socket.
- Lay down a drop sheet on the floor in front of the recliner chair.

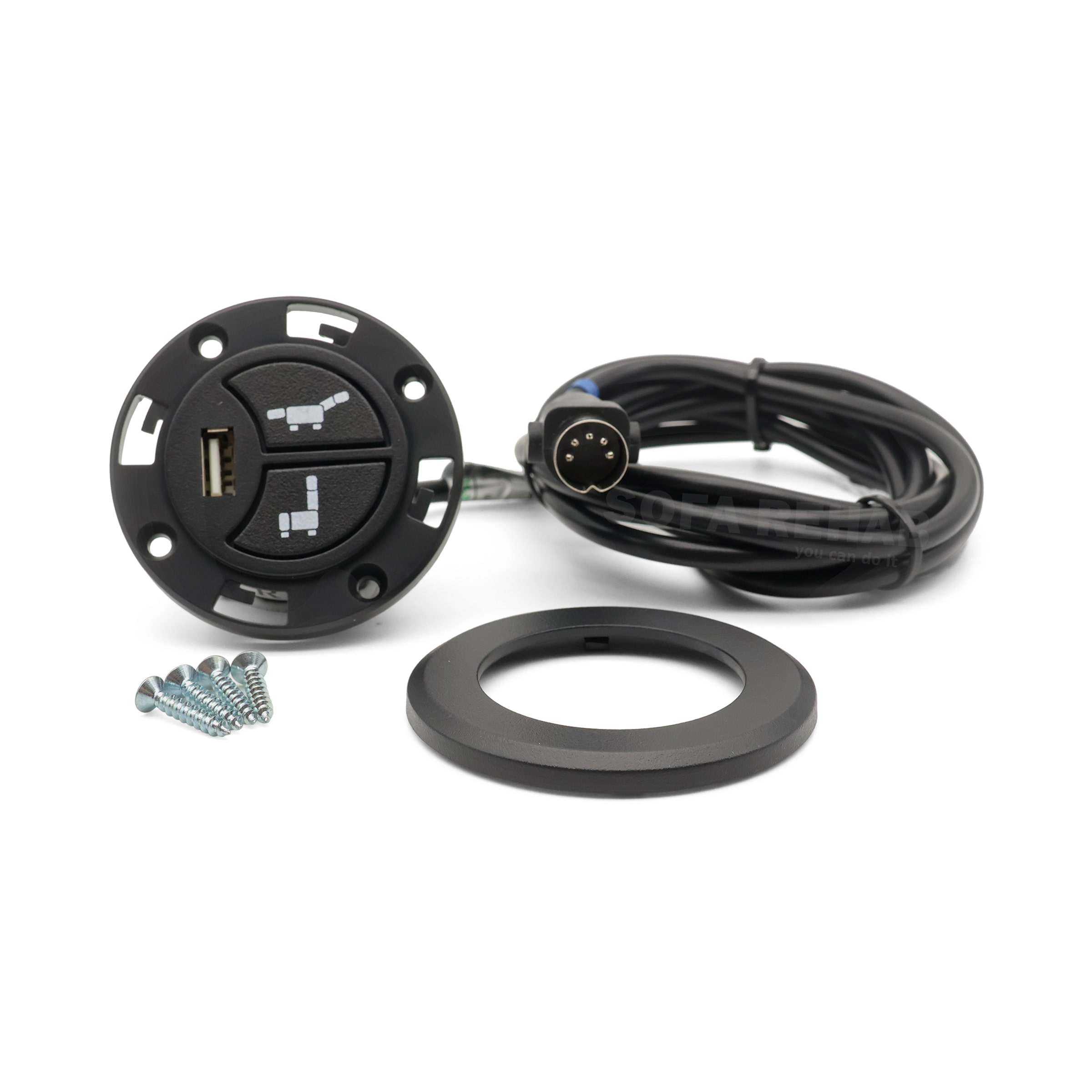

- Twist the plastic outer screw cover off to expose the 4 screws.
- Remove the screws and then pull out the switch casing to allow it to hang freely by its cable.
- Carefully turn the recliner over on its front side to gain access to the recliner wiring underneath.
- Locate where the original cabling currently fits and make notes of how it’s routed (recommended to take a photo).
- Cut and remove any cable ties holding the switch in place then unplug it from the actuator motor.
- You should be able to remove fully the broken switch from the recliner.
- Feed the replacement switch through the outside arm plug first until the switch housing is snug into the arm hole.
- Secure any free cabling into the same position as the original using cable ties, be sure to check the cable is not caught up and not too tight or at risk of being trapped during motion.
- Carefully turn the recliner back over to the standing position.
- Angle the switch rotation first and then work on screwing in the 4 housing screws for the toggle switch.
- Put the plastic switch cover back on to hide the screws.
- Reconnect the power and switch it on.
- Test the replacement toggle switch by operating the recliner to its maximum opening and closed position. When fully open, look inside to see that the cabling is safely out of harms way and is not stretched or pinched.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Will this work my recliner?
This switch is suitable for electric recliners with a single footrest motors, you will also need to check your actuator accepts a 5 pin round din plug and is fitted to the LEFT side when seated.
Does the USB port charge my device?
Yes, the USB has a 5V 2A power rating this may limit the size of the device you wish to charge. A smartphone, Ipad etc is okay however a laptop etc may be limited.
Will the switch suit left and right sides of the recliner?
No, This switch is to be fitted to the LEFT HAND side when seated.
My switch looks the same will it still work?
The model number must be the same as ours and the serial number must start with EP20DANU for this to be compatible.
Is this switch easy to fit ?
Yes, very simple and no experience is required. See our "How to " tab for detailed step by step instructions. We even supply the screws.
