Junction Boxes

eMoMo Tech Control Box HX25BACRRL

$50.00

In stock

eMoMo Tech Master control module junction box HX25BACRRL-2. Suitable for use with the eMoMo HX25BACRRL-1 Cupholder (Sold Separately). This junction box is designed to facilitate the connection between the actuators, power and the cupholder in order for the recliner to function and the cup holder to cool drinks. Model number is known as HX25BACRRL and the serial number on the barcode starts SN:E25BACRRL2#####. Control Boxes From Sofa Rehab eMoMo Control junctions boxes. We sell many types of control modules. eMoMo Main Australian Supplier. Sofa Rehab are the recommended supplier of this genuine replacement master control module so you can be assured of quality and compatibility in the replacement for your electric recliner spare parts. read more

SKU:
E-CONT35
Brand:
eMoMo Tech
Weight
.320 kg
Dimensions
13 × 11.5 × 11 cm
view all details

Description

eMoMo Control Junction Box

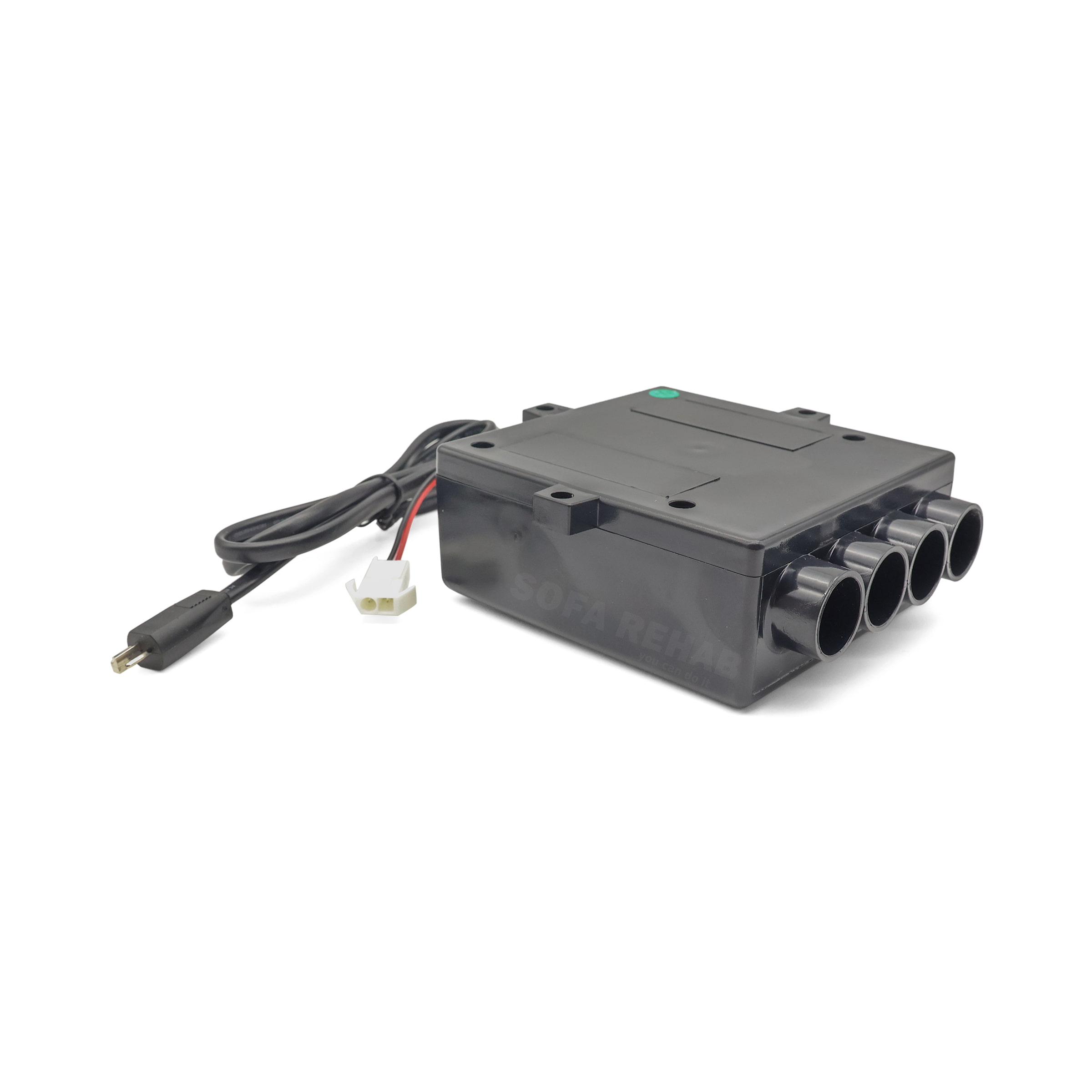

This genuine replacement eMoMo Tech master control module box model HX25BACRRL-2 also know as a junction box which controls the power and signals to the HX25BACRRL-1 Cupholder from eMoMo (Sold Separately). Commonly fitted to the internal structure of the armrest and hidden from view.

If your old control module is damaged part will fix this issue.

Needing The Actual Cup holder HX25BACRRL-1?

The HX25BACRRL is a two part kit that we sell separately so this junction box does not include the cup holder as standard and is an optional extra purchase which you can read about it here  HX25BACRRL-1 Cupholder from eMoMo (Sold Separately).

Australia's Leading Supplier of Recliner Chair Spare Parts

We’re Australia’s Leading Supplier for Repair Kits and Spare Parts. Get the lowest prices on DIY repairs and if your a trades person who needs to buy in bulk, we also offer bulk buy discounts.

Save Time & Money and Do It Yourself

With our wide range of repair products, our easy step-by-step instructions and video tutorials, you’ve got everything you need to repair it yourself. Feel great about having done the repair yourself and saved $$$ on the repair.

Technical Specifications

Technical Specifications

Make – eMoMo Tech.
Type –HX25BACRRL

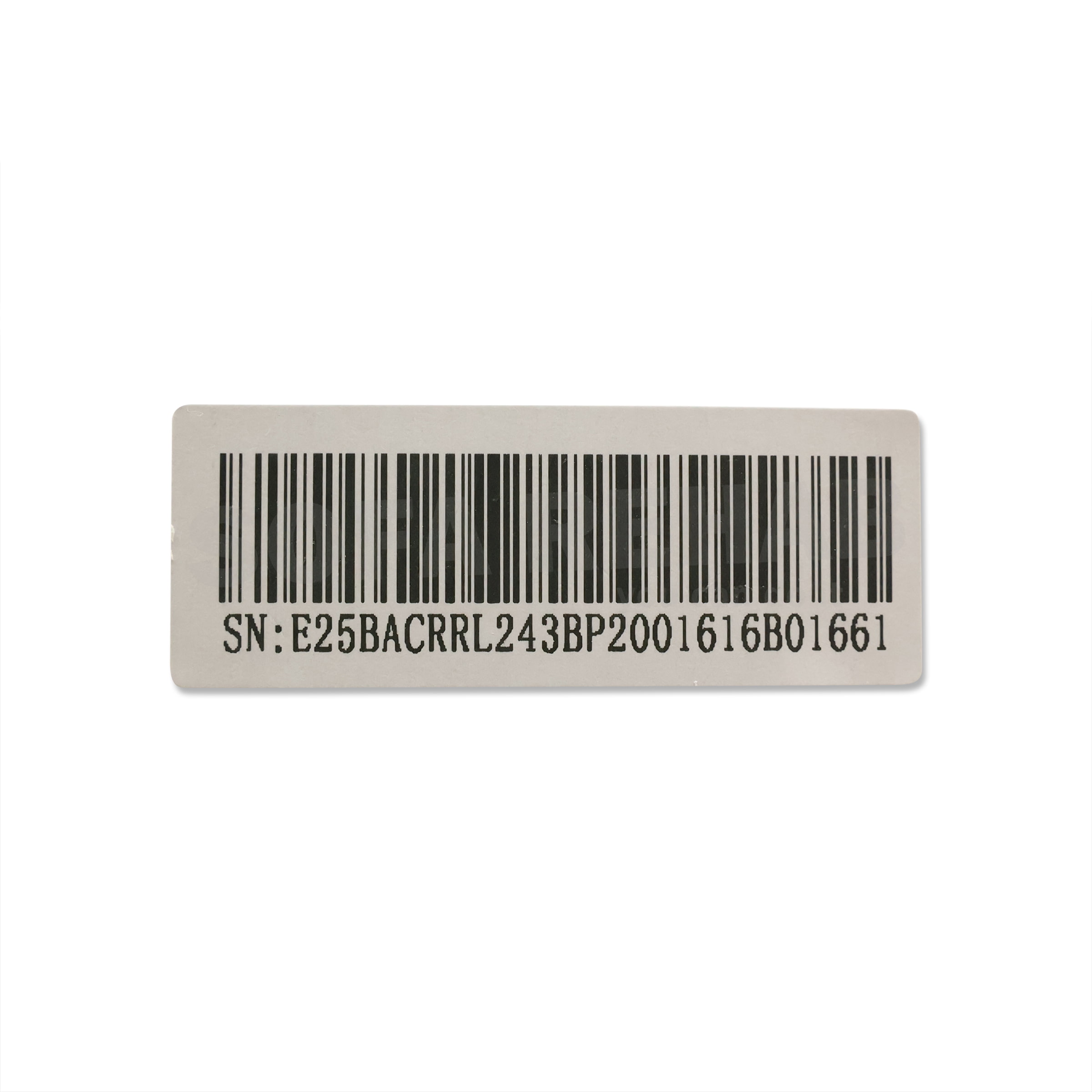

eMoMo Tech P/N –HX25BACRRL-2 or SN:E25BACRRL2#####.

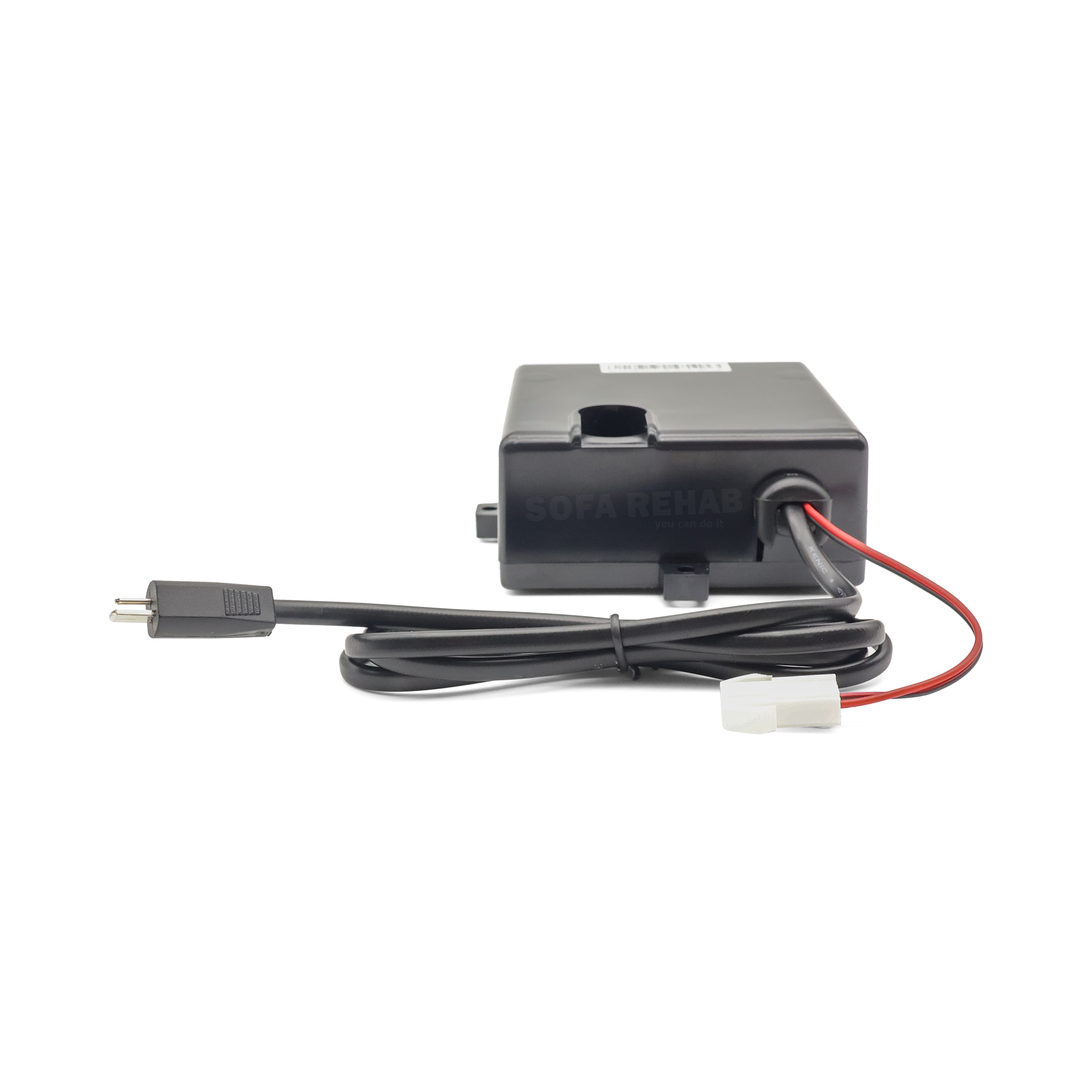

Plug and Cables Types –1 x male OI 2 pin cable (970mm long) and 1 x Red/Black cable (100mm long) with white system plug

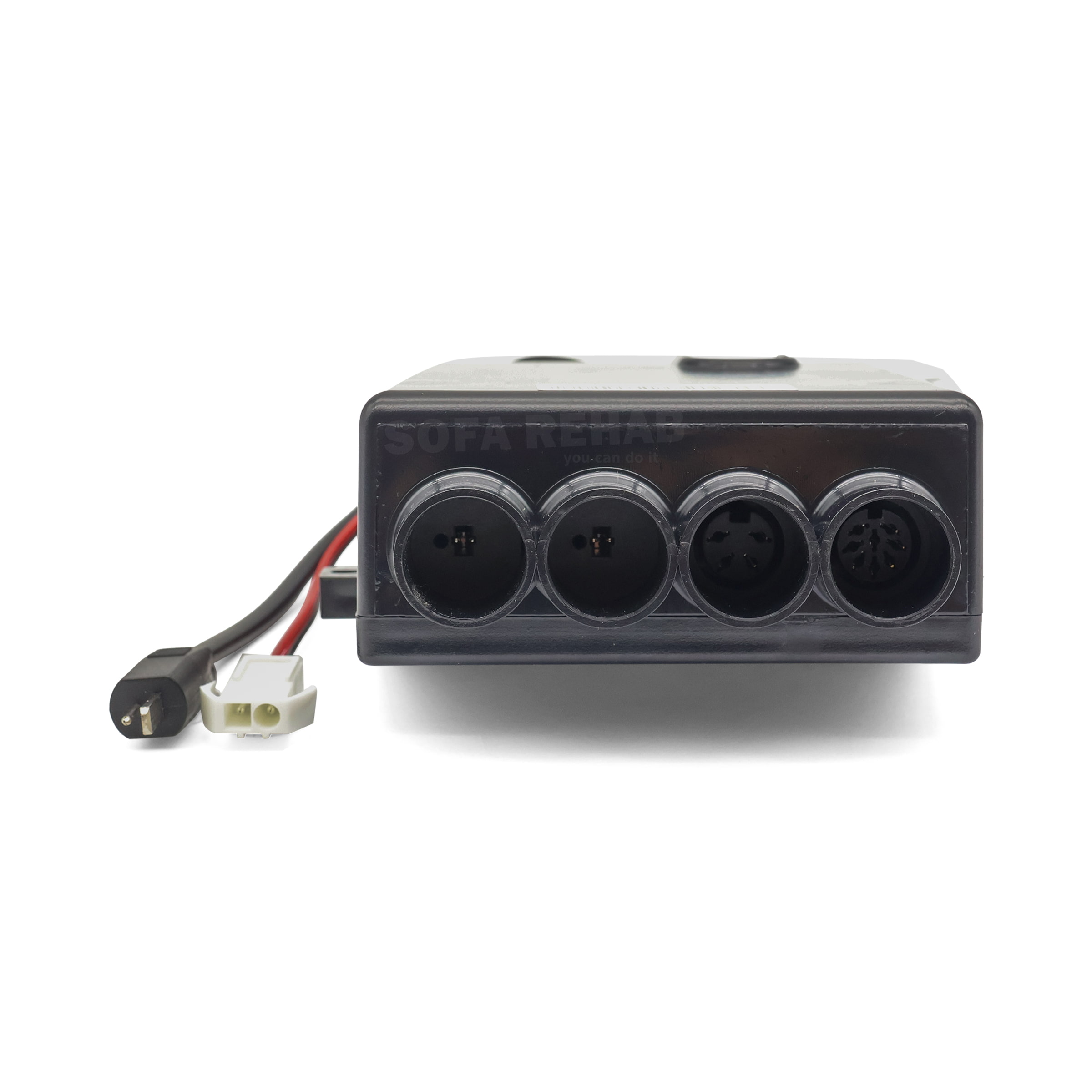

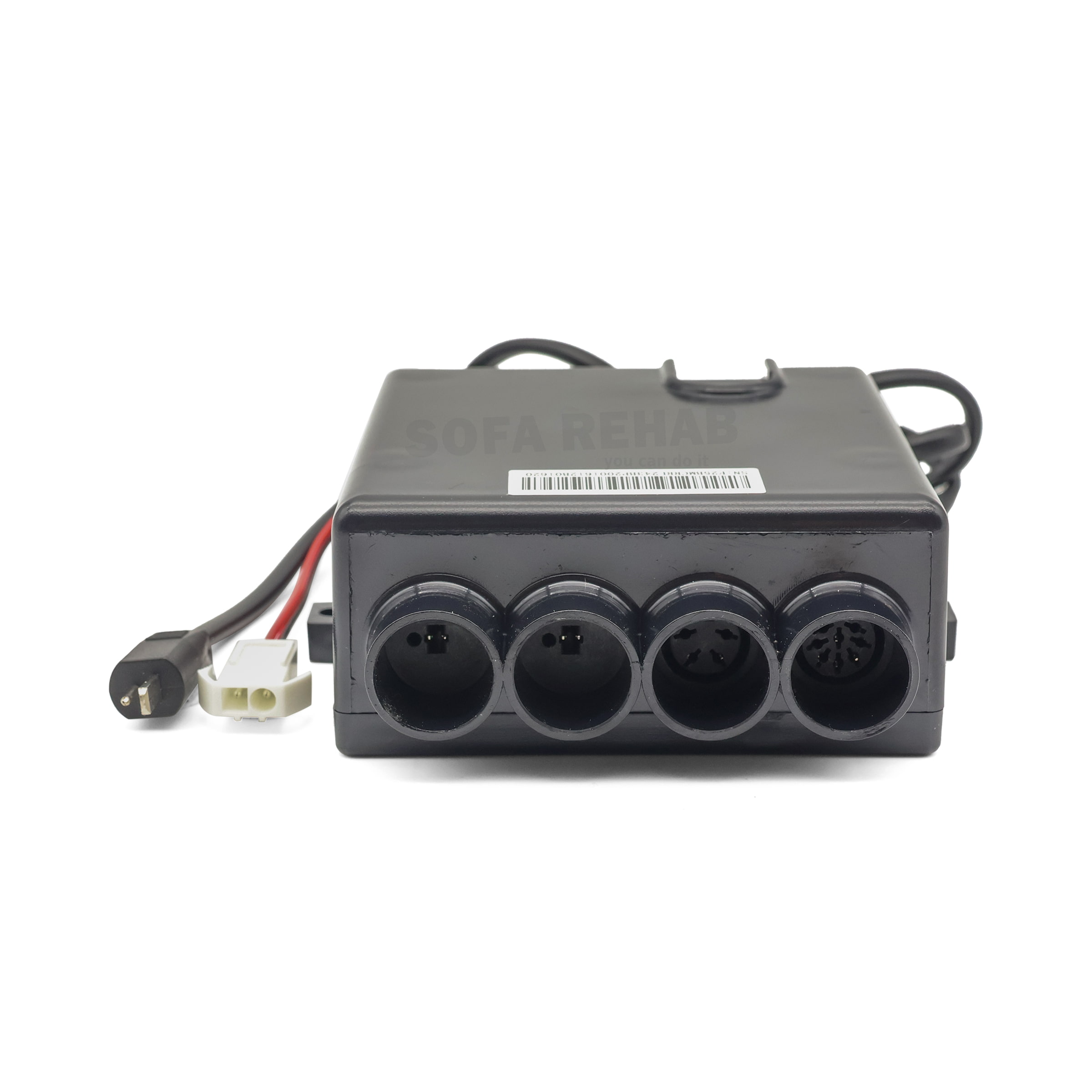

Module Box Housing Connections – 2 x female OI ports and 1 x 8 pin and 1 x 4 pin female din plug sockets.

How To Tutorial

How To Tutorial

  1. To start with we strongly suggest to photograph or make notes of all the plugs and cable positions on the chair so you can easily recall the positions if required.
  2. Switch off all power to the recliner at the wall socket, remove the mains plug from the wall socket and unplug transformer from the chair in this order.
  3. Lay down a drop sheet on the floor in front of the recliner chair.
  4. Carefully turn the recliner over on its front side to gain access to the recliner wiring underneath.
  5. Locate the master control module and unplug all plugs and then unscrew the two mounting screws holding the module to the timber frame and remove the master control module.
  6. Install the new master control module using the original mounting screws and install the colour coded plugs into the corresponding plug socket on the module.
  7. Carefully turn the recliner back over to the standing position.
  8. Reconnect the power by firstly connecting the transformer to the chair, then connect the wall plug to the mains power supply and switch on.
  9. Test the chair functions by operating the recliner to its maximum opening and closed position. When fully open, look inside to see that the cabling is safely out of harms way and is not stretched or pinched.

Reviews (0)

Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login

  • There are no reviews yet.

FAQs

FAQs

Will this fit my chair?

For this to be compatible with your chair it will need to have the same part numbers and functions on the control box of HX25BACRRL-2 or SN:E25BACRRL2######.

Is this easy to fit?

Yes, we provide step by step install instructions, follow these and it will work.
