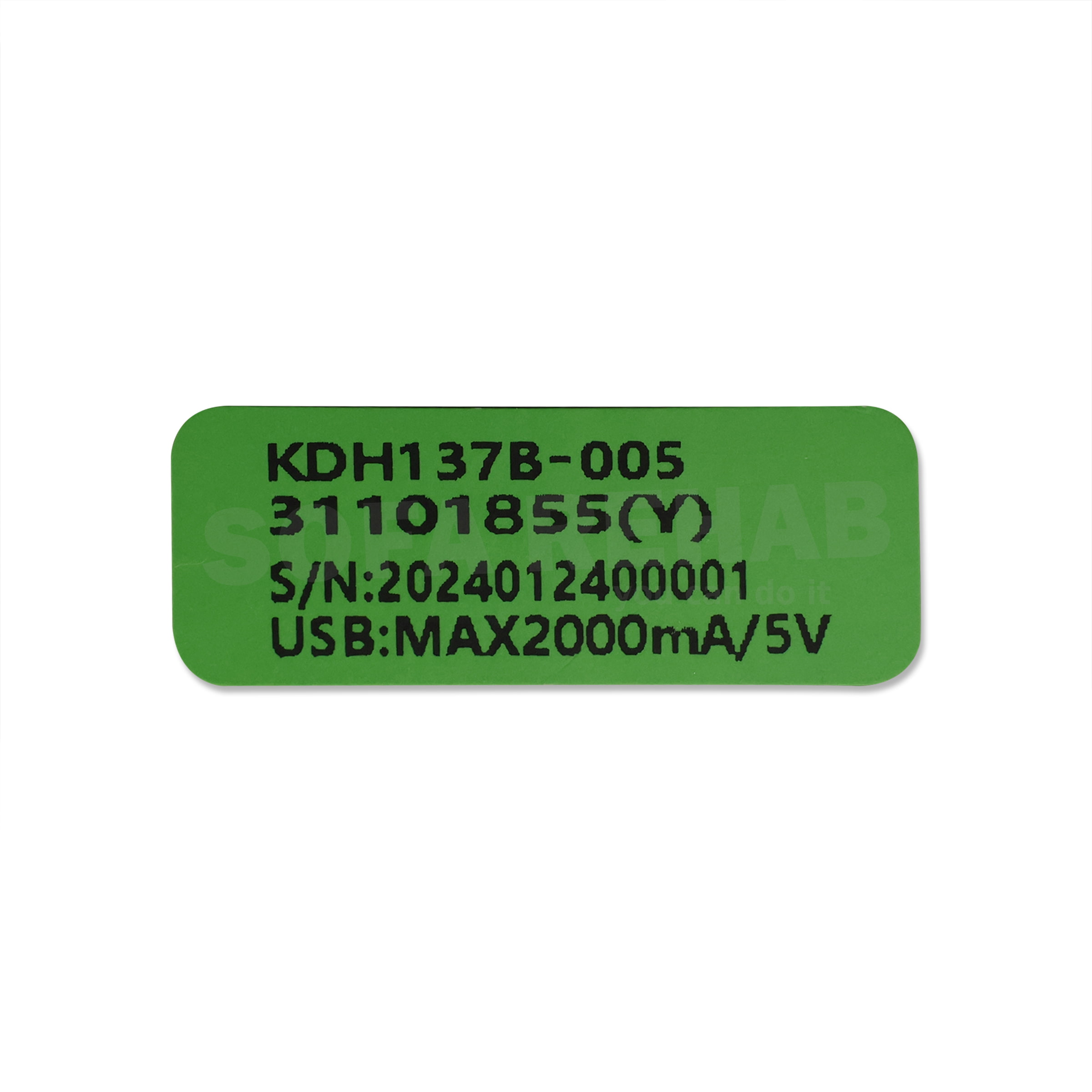

  • serial-number-and-specs-label-of-kaidi-kdh137b-005-recliner-switch
  • screws-cover-removed-of-kaidi-kdh137b-005-switch-6-button-usb
  • rear-view-of-switch-and-3-plugs-of-tripple-motor-kdh137b-005

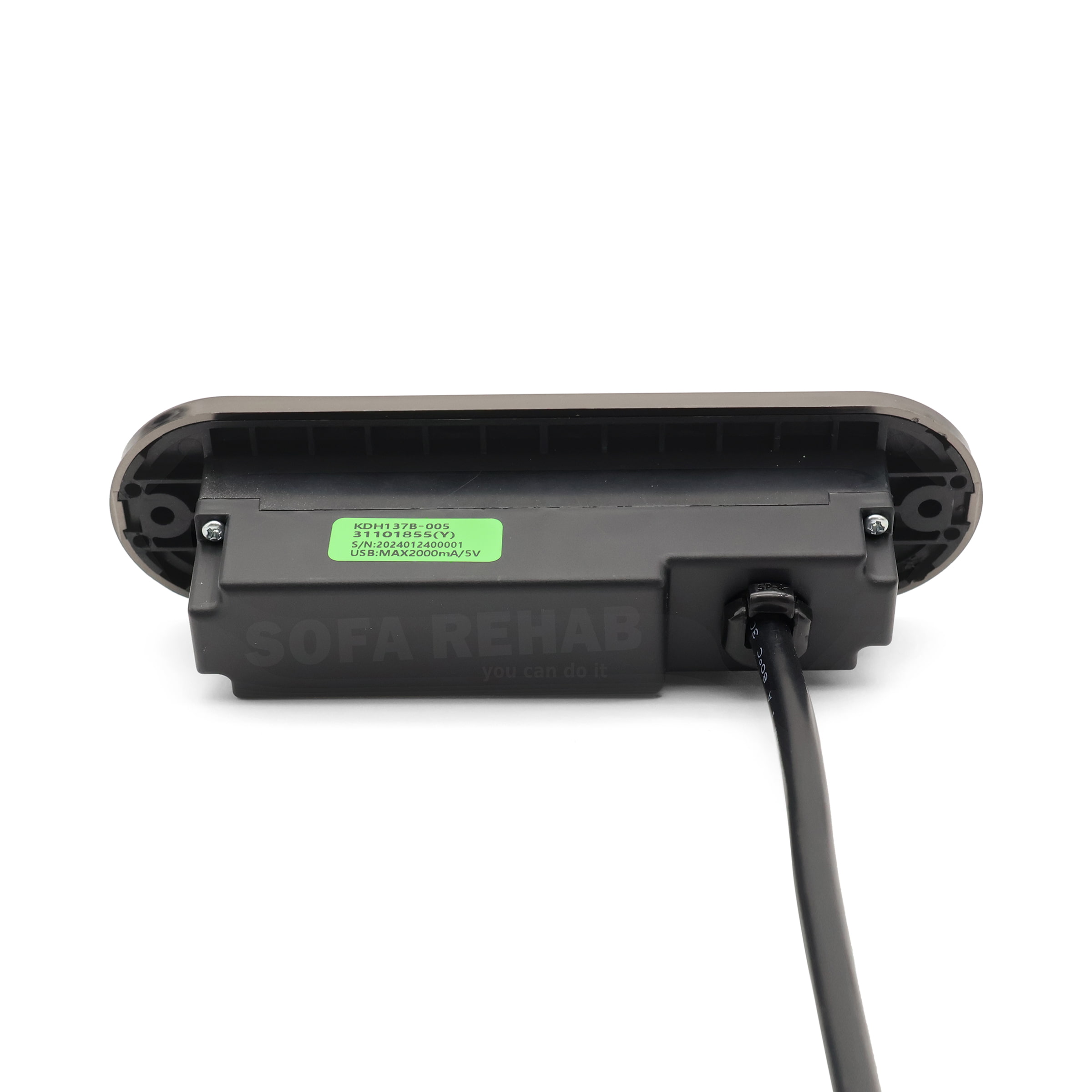

  • rear-close-view-of-kaidi-usb-switch-and-label-kdh137b-005

1 / 6

Zoom In

  • zoom-front-view-of-kaidi-3-button-usb-recliner-switch-kdh137b-005
  • serial-number-and-specs-label-of-kaidi-kdh137b-005-recliner-switch
  • screws-cover-removed-of-kaidi-kdh137b-005-switch-6-button-usb
  • rear-view-of-switch-and-3-plugs-of-tripple-motor-kdh137b-005
  • rear-close-view-of-kaidi-usb-switch-and-label-kdh137b-005

0

Recliner Button Switches

Kaidi 6 Button Switch KDH137B-005 with USB Port

$80.00

In stock

A genuine replacement Kaidi electric recliner switch. Model number KDHH137B-005. Sleek dark tungsten coloured plastic oval 6 button electric recliner switch with USB charging port used to independently operate either the footrest, lumber/backrest and headrest actuators. Suitable for power recliner chairs and sofas with 3 motors. 6 Button Power Recliner Switch with USB. 6 Button recliner switch used to operate the footrest, lumber and headrest mechanisms independently complete with a USB charging port. Not the Switch Your Looking For? We stock all the popular recliner switches (click here). If you are still not sure which replacement power recliner chair or sofa switch is right for you please contact our helpful team. read more

SKU:
E-SWIT385
Brand:
Kaidi
Weight
0.31 kg
Dimensions
16 × 16 × 5 cm
USB Port

USB Charging

Description

Power Recliner 6 Button Switch with USB

Commonly fitted to the outer arm of electric recliner chairs and sofas having a removable screw cover, it allows for an aesthetically pleasing design and offers a discreet appearance. Our sleek, robust and compact KDH137B-005 oval 6 button power recliner switch with USB charging port fits most recliner chairs and sofas  needing to operate independent footrest, lumber and headrest or another combination on the market today.

Kaidi Recliner Switch Replacement

Model number KDH137B-005. This version of power recliner switch is commonly found on many brands including La z boy and HTL etc.

We're Australia's Leading Supplier of Recliner Chair Spare Parts

We’re Australia’s leading supplier for repair kits and spare parts. Get the lowest prices on DIY repairs and if your a trades person who needs to buy in bulk, we also offer bulk buy discounts.

Save Time & Money and Do It Yourself

Easy fitting in under 15 minutes with no experience required. The only tool required is a screwdriver.

Technical Specifications

Technical Specifications

Make – Kaidi.
Model Number –KDH137B-005.
Function –Front 2 buttons operate footrest, centre 2 buttons operate lumber or backrest and rear 2 buttons operate the headrest.
Colour –Dark Tungsten.
Material –Plastic
Plugs –1 x Straight Din 5 pin plug with retaining prongs and 2 x female OI plugs with clasps.
Dimensions – External fascia is Width 140 mm, Depth 41 mm. Thickness including housing and buttons is 40 mm. Cable length is 2060 mm.
Power Rating- USB MAX2000mA-5V
**All measurements are approximate.

How To Tutorial

How To Tutorial

  1. Unplug all power to the recliner and remove the mains plug from the wall socket.
  2. Lay down a drop sheet on the floor in front of the recliner chair.
  3. Unclip the plastic outer screw cover off to expose the 2 screws.
  4. Remove the screws and then pull out the switch casing to allow it to hang freely by its cable.
  5. Carefully turn the recliner over on its front side to gain access to the recliner wiring underneath.
  6. Locate where the original cabling currently fits and make notes of how it’s routed (recommended to take a photo).
  7. Cut and remove any cable ties holding the switch in place then unplug it from the actuator motors.
  8. You should be able to remove fully the broken switch from the recliner.
  9. Feed the replacement switch through the outside arm plug first until the switch housing is snug into the arm hole.
  10. Locate all plugs and connect to corresponding actuators
  11. Secure any free cabling into the same position as the original using cable ties, be sure to check the cable is not caught up and not too tight or at risk of being trapped during motion.
  12. Carefully turn the recliner back over to the standing position.
  13. Angle the switch rotation first and then work on screwing in the 2 housing screws for the toggle switch.
  14. Put the plastic switch cover back on to hide the screws.
  15. Reconnect the power and switch it on.
  16. Test the replacement toggle switch by operating the recliner to its maximum opening and closed position. When fully open, look inside to see that the cabling is safely out of harms way and is not stretched or pinched.
  17. Test the USB charge port.

Reviews (0)

Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login

  • There are no reviews yet.

FAQs

FAQs

Will this work my recliner?

This switch is suitable for electric recliners with a 3 motors, footrest, lumber and headrest or footrest, backrest and headrest, you will also need to check your actuator accepts a 1 x 5 pin round din plug and 2 x female OI plugs.

Does the USB port charge my device?

Yes, the USB has a MAX2000mA/5A power rating this may limit the size of the device you wish to charge. A smartphone, iPad etc is okay however a laptop etc may be limited.

Will the switch suit left and right sides of the recliner?

Yes.

My switch looks the same will it still work?

The model number must be the same as ours KDH137B-005 for this to be compatible.

Is this switch easy to fit?

Yes, very simple and no experience is required. See our "How to " tab for detailed step by step instructions.
