Kaidi KDH137-009 Recliner Switch
$79.99
In stock
Kaidi KDH137-009 recliner switch, also marked with manufacturer code 31100814(Y), with silver fascia, USB-A port and 6 button control across 3 rocker switches. Operates footrest and backrest plus independent lumbar and headrest open and close functions. Includes 3x male 5 pin DIN actuator plugs. 6 Button Dual Actuator Recliner Switch. A replacement power recliner switch for compatible electric recliner chairs, sofas and theatre lounges. The USB-A port is rated MAX 2000mA / 5V and the LED indicator lights white when buttons are pressed. Need Another Recliner Switch Model? We stock replacements for all popular electric recliner & sofa brands and models, see our full range of recliner toggle switches (click here) for a suitable replacement. Ask us if you need help choosing. read more
In stock
- Description
- Technical Specifications
- How To Tutorial
- Reviews (0)
- FAQs
- Add a review
Description
6 Button Kaidi KDH137-009 Recliner Switch with USB Port
This Kaidi KDH137-009 electric recliner switch, also marked with manufacturer code 31100814(Y), is a replacement side switch for compatible power recliner chairs, sofas and theatre lounges. It has a silver fascia, USB-A port, white LED indicator and 6 button control across 3 rocker switches.
The rocker switches operate the footrest and backrest open and close, plus independent lumbar and headrest open and close functions. The USB-A port is rated USB: MAX 2000mA / 5V.
Important Model Numbers, Sticker Codes and Plug Details
Before ordering, please compare this replacement switch with your original switch to ensure it is the correct match. Your existing switch should be marked as Kaidi KDH137-009 and manufacturer code 31100814(Y).

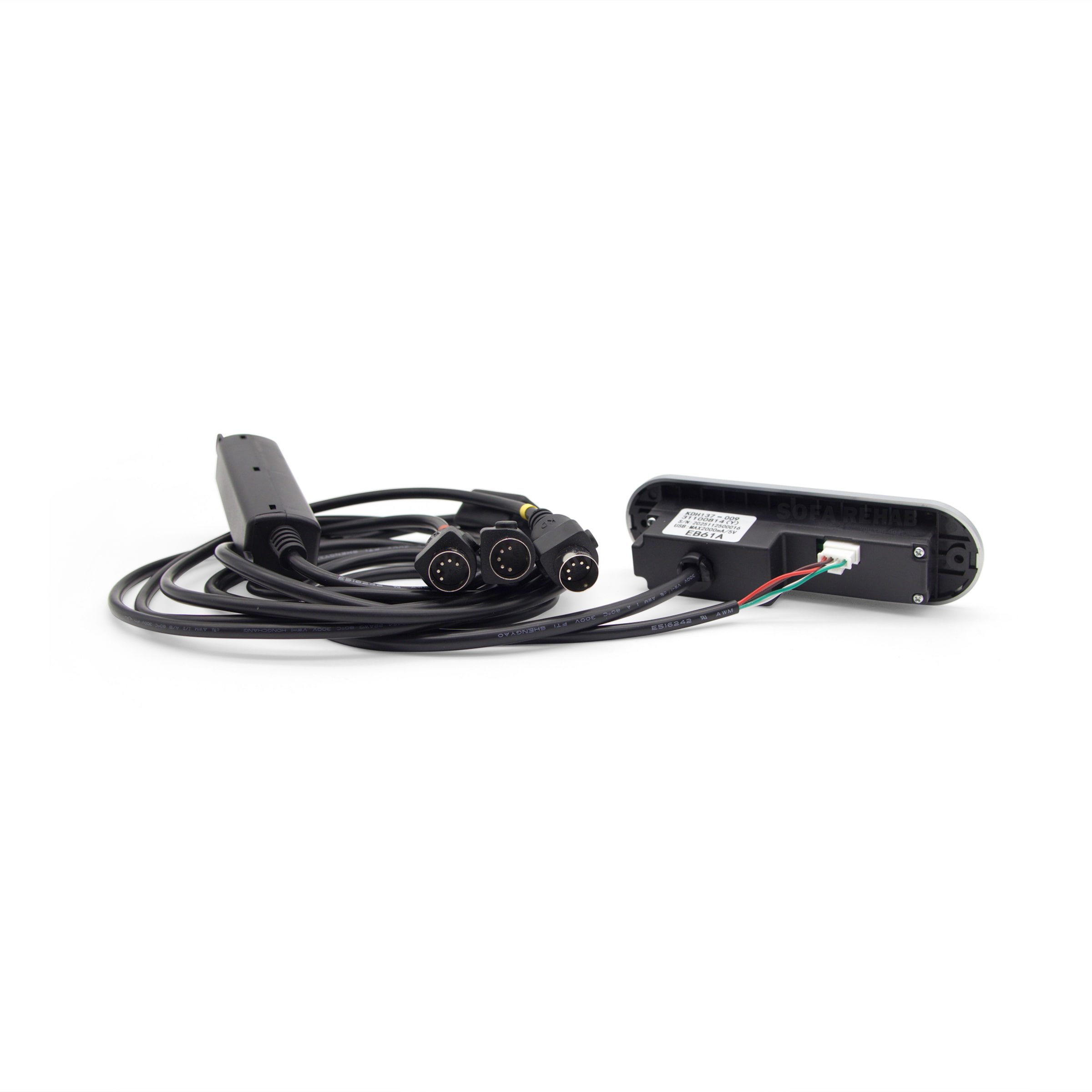

This switch has two leads coming from the switch housing. One lead has a white system plug that connects the switch to the USB control box, with the lead plug and control box measuring 875mm long. The second lead is hard wired into the switch and runs into a splitter joiner box, where 3 actuator cables exit for the footrest and backrest, lumbar and headrest functions.
Each actuator cable has a male 5 pin DIN plug with retaining lugs on the end. Each cable is 1600mm long including the plug. The headrest and lumbar actuator cables have colour coded bands to help identify which cable connects to which actuator.
Universal Layout - This Switch Can Be Installed Either Side
This Kaidi recliner switch can be installed on either side of the furniture, making it suitable for compatible left hand or right hand recliner switch replacements. The button direction and actuator cable routing should still be checked against your original switch and furniture wiring before installation.
The switch requires 2 screws to install. Screws are not supplied, so you may need to reuse your existing screws or source suitable replacements if the originals are missing or damaged.
We're Australia's Leading Supplier of Recliner Chair Spare Parts
Sofa Rehab are Australia’s leading supplier of recliner chair spare parts, replacement switches, power supplies, hand controls and electric recliner accessories. We stock a comprehensive range of genuine OEM and universal replacement parts for popular brands including Kaidi, Okin, Limoss, eMoMo, TiMotion and many more.
Whether you’re repairing a electric recliner chair, powered lounge or theatre sofa, we’re here to help make DIY repairs simple and affordable. If you need assistance identifying the correct replacement switch or compatible spare part, our experienced support team is available via phone, email and instant messaging.
Easy DIY Recliner Switch Replacement
Replacing a faulty recliner switch is a quick and easy do-it-yourself repair that usually only requires a screwdriver and a few minutes of your time. No specialised tools or previous experience required.
With our wide range of electric recliner spare parts, step-by-step support and helpful customer service, Sofa Rehab makes it easy to repair your recliner yourself and save money on unnecessary service call outs. Enjoy the satisfaction of fixing your recliner chair yourself and getting back to relaxing in comfort.
Technical Specifications
Technical Specifications
| Product Type | Electric recliner switch with USB port |
|---|---|
| Brand | Kaidi |
| Model Number | KDH137-009 |
| Manufacturer Code | 31100814(Y) |
| Switch Style | 6 button switch with 3 rocker switches |
| Fascia | Silver fascia |
| Button Functions | Footrest and backrest open and close, lumbar open and close, headrest open and close |
| USB Port | USB-A |
| USB Rating | MAX 2000mA / 5V |
| Indicator Light | White LED indicator lights when buttons are pressed |
| Lead 1 | White system plug lead connecting the switch to the USB control box |
| Lead 1 Length | 875mm including lead plug and USB control box |
| Lead 2 | Hard wired lead from switch housing to splitter joiner box |
| Actuator Cable Layout | 3 actuator cables exit from the splitter joiner box |
| Actuator Cable Plugs | Male 5 pin DIN plugs with retaining lugs |
| Actuator Cable Length | 1600mm each, including plug |
| Cable Identification | Headrest and lumbar actuator cables have colour coded bands |
| Installation Side | Can be installed on either side of compatible furniture |
| Fixing Method | Requires 2 screws to install |
| Screws Supplied | No |
| Suitable For | Compatible electric recliner chairs, sofas and theatre lounges using the same model number, manufacturer code and plug layout |
How To Tutorial
How To Tutorial
How To Install The Kaidi KDH137-009 Recliner Switch
Important: Before starting, disconnect the recliner from power at the wall. Do not work on the switch while the furniture is connected to power. Use safe lifting techniques when moving or tilting furniture. Recliners, sofas and theatre lounges can be heavy, so ask another person to help if needed.
- Take a before photo.
Before unplugging anything, take clear photos of the original switch, cable routing, plug connections and actuator positions. This gives you a helpful reference when fitting the new switch. - Access the switch and wiring.
Carefully move the furniture to give yourself enough working space. If you need to tilt or lift the furniture, keep your back straight, bend your knees and avoid twisting while lifting. Support the furniture securely before reaching underneath. - Remove the old switch.
Locate the fixing screws holding the original switch in place. Remove the screws and gently pull the switch housing away from the furniture, taking care not to pull hard on the cables. - Compare the old and new switch.
Check that your old switch matches the Kaidi KDH137-009 model, manufacturer code 31100814(Y), silver fascia, 6 button layout, USB-A port, white system plug lead, splitter joiner box and 3x male 5 pin DIN actuator plugs. - Disconnect one plug at a time.
Unplug the original switch connections carefully. Do not pull from the cable itself. Hold the plug body and release any retaining lugs or clips before disconnecting. - Connect the USB system plug lead.
Connect the white system plug lead from the new switch to the USB control box connection. Make sure the plug is fully seated and aligned correctly. - Connect the actuator cables.
Connect the 3x male 5 pin DIN actuator plugs to the matching actuators. Use the colour coded bands on the headrest and lumbar actuator cables to help identify which cable goes where. Refer to your before photo if needed. - Secure the new switch.
Fit the new switch into position on the furniture. Reuse your existing screws or suitable replacement screws, as screws are not supplied with this switch. Do not overtighten the screws. - Check cable routing.
Make sure the cables are not pinched, stretched, crushed or positioned where moving recliner parts may catch them. Keep cables clear of hinges, metal frame edges and actuator movement paths. - Reconnect power and test.
Plug the furniture back into power and test each function. Check footrest and backrest open and close, lumbar open and close, headrest open and close, USB power and the white LED indicator when buttons are pressed.
If any function does not operate correctly, disconnect the power again and recheck the plug connections against your before photo. If you are unsure whether this is the correct replacement switch, contact us with photos of your original switch, plugs and product label so we can help you identify the right part.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How do I know if this is the right replacement switch for my recliner?
Check your original switch label and plug layout before ordering. This replacement should match model KDH137-009 and manufacturer code 31100814(Y). It should also have a silver fascia, 6 button layout, USB-A port, 2 leads from the switch housing, a white USB system plug lead and 3x male 5 pin DIN actuator plugs with retaining lugs.
Can this switch be installed on either side of the recliner?
Yes, this Kaidi KDH137-009 recliner switch can be installed on either side of compatible furniture. It has a universal layout, making it suitable for left or right side installation.
Before fitting, compare the cable routing, plug layout and actuator connections with your original switch to make sure it is the correct replacement for your recliner, sofa or theatre lounge.
What functions does this recliner switch control?
The 6 buttons are arranged across 3 rocker switches. They operate the footrest and backrest open and close, lumbar open and close, and headrest open and close functions.
Are the fixing screws included with the switch?
No, screws are not supplied. You will usually reuse the existing screws from your old switch, or source suitable replacements if the originals are missing or damaged.
What should I check before removing my original recliner switch?
Disconnect the furniture from power first, then take clear photos of the original switch, plug connections, cable routing and actuator connections. These before photos are very helpful when connecting the new switch and checking each cable is fitted correctly.
