Kaidi Recliner Button Switch KDH127F-003
$83.50
In stock
Replacement Kaidi KDH127F-003 2 button switch with brushed silver screw cover face and integrated USB charging port. Designed for electric recliners and lift chairs using a standard 5 pin DIN connection. Suitable for installation on either the left or right side of the chair, it provides simple open/close functionality with the added convenience of device charging. 2 Button Recliner Switch with USB Port. This genuine Kaidi replacement switch suits many popular recliner brands and models with a 5 pin DIN control. Silver brushed finish with screw cover for a neat fit. Straightforward to install with no prior experience required. Not the Switch Your Looking For? We stock all the popular recliner switches (click here). If you are still not sure which replacement power recliner chair or sofa switch is right for you please contact our helpful team. read more
In stock
- Description
- Technical Specifications
- How To Tutorial
- Reviews (0)
- FAQs
- Add a review
Description
Kaidi 2 Button Recliner Switch with USB Port – Model KDH127F-003
This genuine Kaidi replacement switch is designed for electric recliners and lift chairs that use a 5 pin DIN connection. Featuring two simple buttons for open and close functions, it offers reliable control and ease of use. The brushed silver faceplate with screw cover provides a clean, modern finish, while the built-in USB port allows you to charge phones, tablets, and other devices directly from your chair. The unit can be mounted on either the left or right side of your recliner for flexible installation.
Technical Details and USB Charging Power
The integrated USB charging port delivers a 5V output with a maximum current of 2000mA, suitable for safely charging most portable electronics. Fitted with a 1400mm long cable and a straight 5 pin DIN plug complete with locking clasp tabs, this switch ensures a secure and dependable connection to your recliner’s motor control system. The face measures 140mm wide by 41mm deep, with a housing thickness of 40mm.
Quality OEM Spare Parts from Sofa Rehab
As a genuine Kaidi spare part, this switch is manufactured to high standards for compatibility and long-lasting performance. Sofa Rehab is Australia’s leading supplier of recliner chair parts and leather repair kits, so you can be confident you’re getting quality components with expert support available if you need help.
DIY Friendly Replacement – Save Time & Money
No technical experience is needed to install this switch. With just a screwdriver, you can replace your broken or worn switch in minutes and restore full functionality to your recliner chair or lift chair. Avoid costly service calls, enjoy the satisfaction of doing it yourself, and get back to relaxing sooner.
Technical Specifications
Technical Specifications
Technical Specifications
- Model: Kaidi KDH127F-003
- Function: 2 button switch (open / close)
- Faceplate Finish: Brushed silver with screw cover
- Mounting: Suitable for installation on both left and right side positions
- Buttons: No LED backlight
- USB Port: 5V, max 2000mA (2.0A) output
- Cable Length: 1400mm

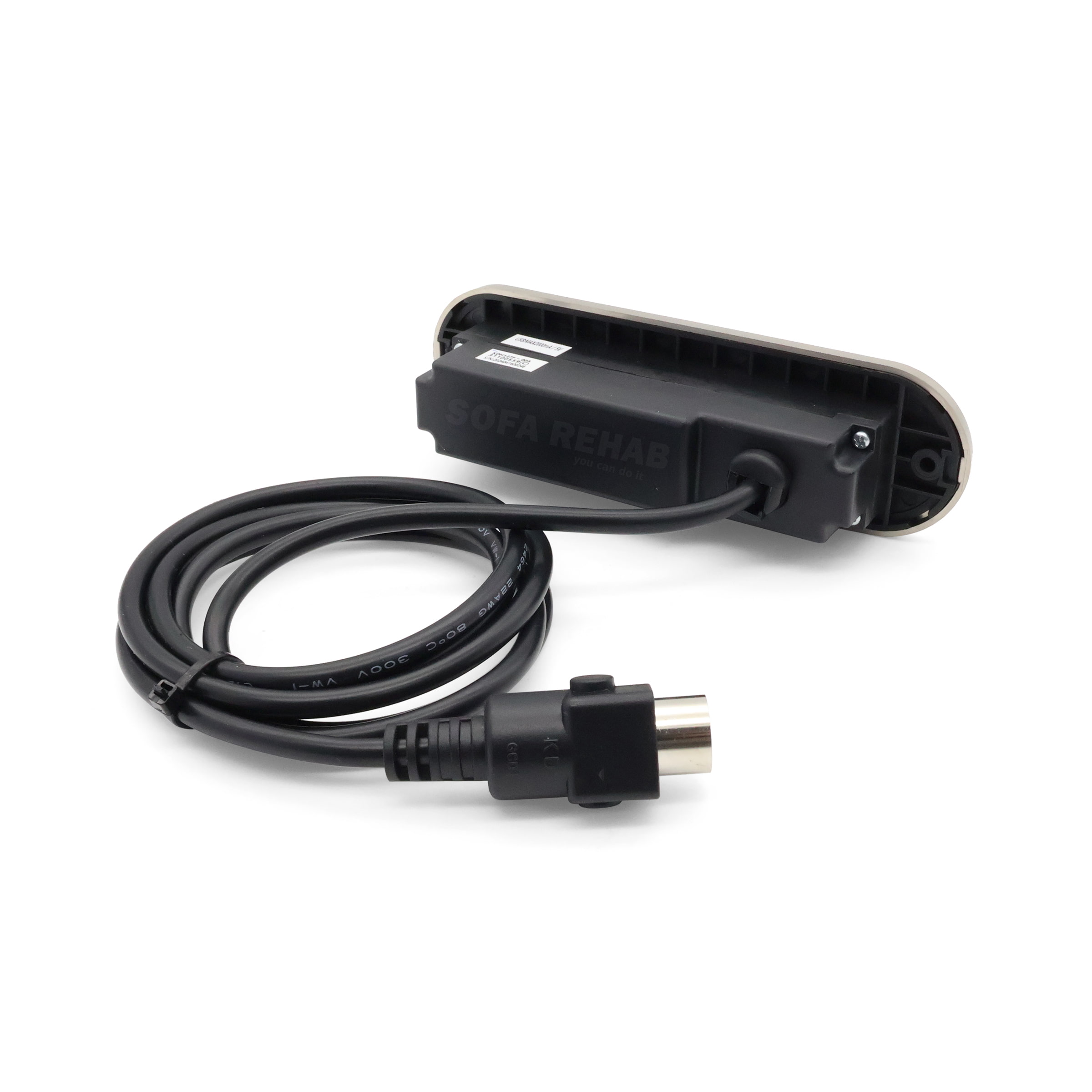

- Connector: Straight 5-pin DIN plug with locking buckle clasp tabs
- Dimensions: Faceplate 140mm (W) × 41mm (D); Housing thickness 40mm
- Compatibility: Electric recliners and lift chairs using 5-pin DIN hand control
- Fixings: Requires 2x mounting screws (not supplied)
How To Tutorial
How To Tutorial
How To Install
Replacing the Kaidi KDH127F-003 2 Button Switch with USB is a simple DIY task. No prior technical experience is required, only a screwdriver. Please follow these steps carefully:
- Safety First: Disconnect your recliner from the power supply before starting. Always practice safe lifting techniques if you need to move the chair.
- Take a Photo: Before removing the old switch, take a clear photo of how it is connected. This will help guide you when reconnecting the new switch.

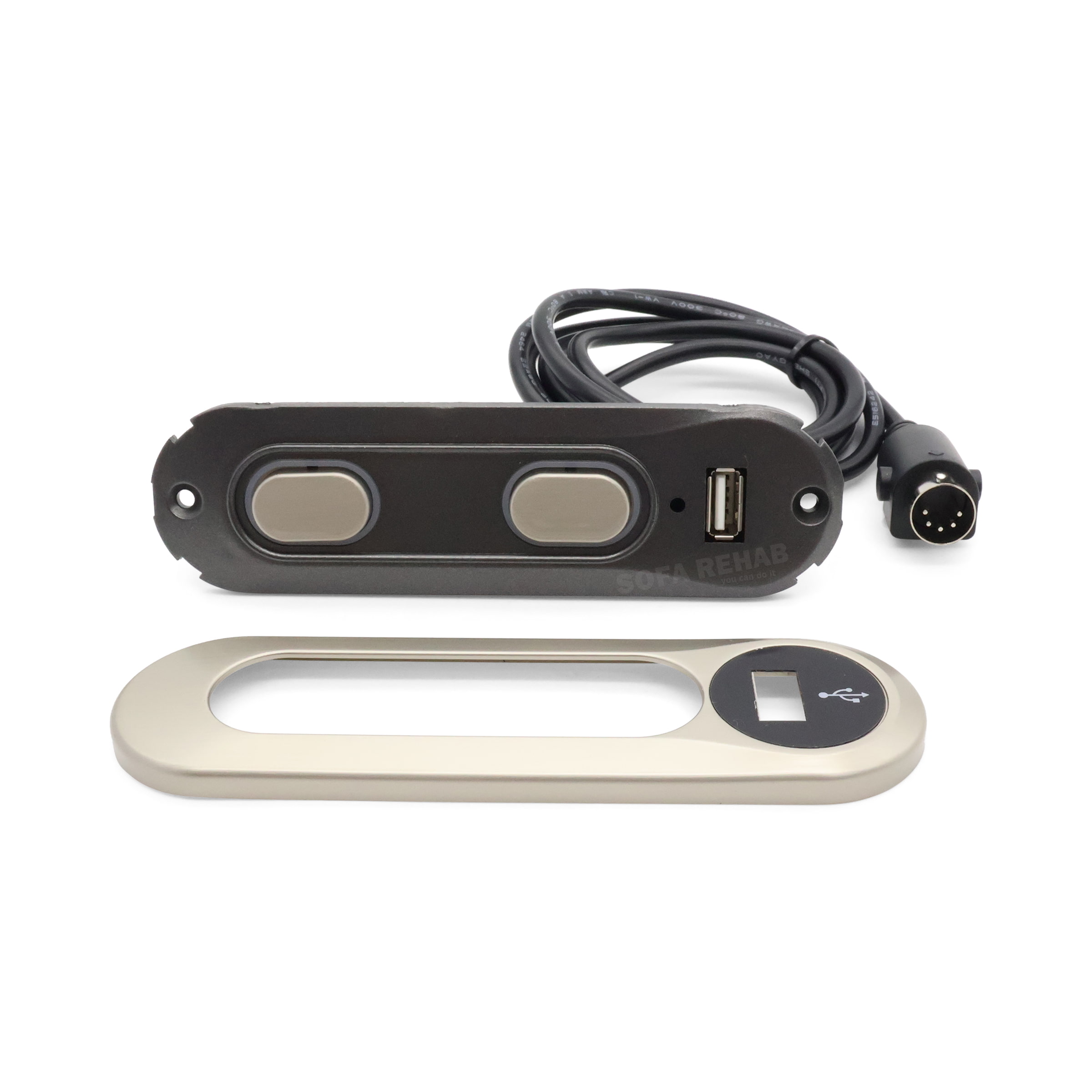

- Remove Old Switch: Locate the screws on the faceplate cover, remove them, and gently pull the old switch from the armrest housing.
- Disconnect Plug: Unplug the 5-pin DIN connector from the control box, releasing the lock buckle tabs.
- Install New Switch: Connect the new switch’s 5-pin DIN plug into the same port, ensuring the lock tabs click securely into place.
- Re-Fit Housing: Place the new switch back into the armrest housing and align the screw holes. Use 2x screws (not supplied) to secure the faceplate cover.
- Test the Switch: Reconnect the recliner to power and test the open/close buttons and USB charging port to ensure everything works correctly.
If you have any concerns during the installation, please contact our support team for guidance. We also provide video tutorials (click here) to help you through the process.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Is this switch compatible with all recliner chairs?
This Kaidi KDH127F-003 switch is suitable for many electric recliners and lift chairs that use a 5-pin DIN connection. If you are unsure, please contact us with photos of your existing switch and plug so we can confirm compatibility for you.
Does this switch have backlit buttons?
No, the buttons on this model are not backlit. They are designed to be simple, reliable, and easy to operate without illumination.
Are the screws included?
No, the 2x mounting screws are not supplied. You can re-use the screws from your existing switch, or use standard replacements of the same size.
How long is the cable?
The attached cable is 1400mm in length, giving plenty of reach for most recliner chair installations.
Can I charge my phone using the USB port?
Yes. The integrated USB port provides 5V at up to 2000mA (2.0A), suitable for charging phones, tablets, and other portable devices.
I’ve never replaced a recliner switch before. Is it difficult?
Not at all! It’s designed as a simple DIY repair. All you need is a screwdriver. We recommend taking a photo before you start, following our installation guide, and always practicing safe lifting techniques when moving your recliner.
