La Z Boy XR Plus Control Box 11.000202
$190.00
In stock
Genuine replacement XR Power Plus, InSeat wiring harness, La‑Z‑Boy part 11.000202 (model 14661). Pre‑terminated plugs reconnect your handset, actuators and power transformer in one quick swap, restoring smooth, reliable recline operation. A direct like‑for‑like fit for most La‑Z‑Boy power recliners that use the standard‑length cable set—no cutting, soldering or special tools required. La‑Z‑Boy InSeat 14661 Replacement Control Harness. Compatible with the vast majority of La‑Z‑Boy XR Power Plus electric recliners. Not suitable for wall‑hugger models—they need the longer 10.000134 (14661T‑24) version. Need another wiring length or model? Browse our full range of Junction boxes (click here) or contact us for help identifying the exact replacement you need. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description

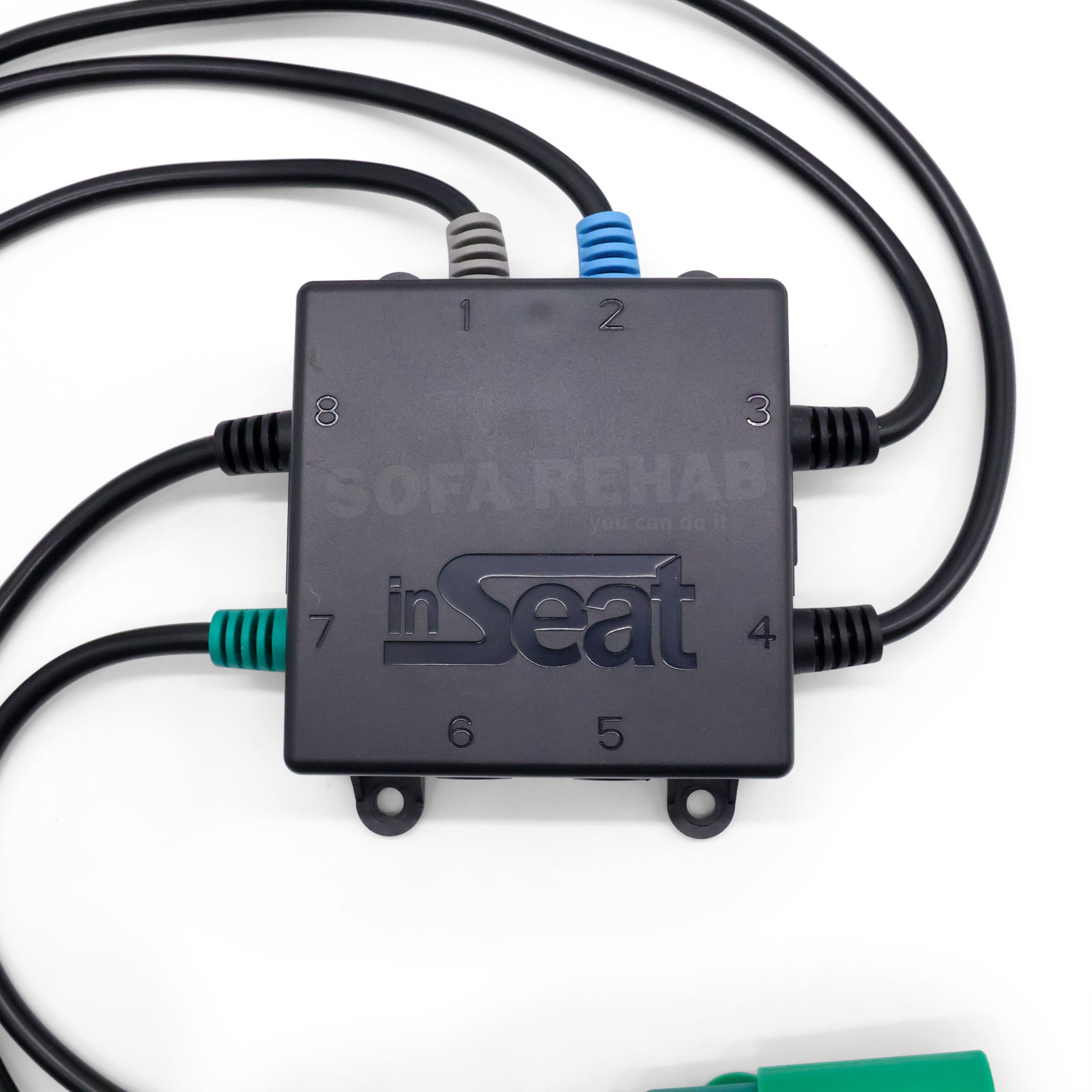

La‑Z‑Boy InSeat 11.000202 Control & Power Wiring Harness – Genuine 14661 Assembly
Restore full functionality to your La‑Z‑Boy electric recliner with this factory‑terminated wiring loom. Part 11.000202 (InSeat model 14661) combines the low‑voltage power lead, five‑pin handset plug and motor plugs into one ready‑to‑fit harness—no cutting, splicing or soldering required. Simply unplug the old loom, route the new one through the same clips, push the keyed connectors home and you’re back to smooth, reliable reclining in minutes.
Needing the Standard XR Wiring Harness?
We also stock the standard XR series loom 75000273-00, If your remote control has 6 buttons and the harness has only 4 plugs then (Click Here) to view the correct product page.
OEM Quality Spare Parts from Sofa Rehab
As a preferred La‑Z‑Boy spare‑parts supplier we stock only genuine InSeat harnesses, guaranteeing perfect plug geometry, strain reliefs and UL‑rated cabling. Every loom ships from our Brisbane warehouse, is covered by a 12‑month warranty and is backed by real furniture‑repair pros—so you can order with confidence.
Save Time & Money, Do It yourself
Swap‑out takes under ten minutes with nothing more than a Torx‑head screwdriver. Follow our step‑by‑step guide for an easy win, feel the satisfaction of fixing it yourself and keep the call‑out fee in your pocket. Need extra help? Phone, email or live‑chat—our team is standing by.
Technical Specifications
Technical Specifications
Make – La Z Boy.
Model – 14661/14661T.
Part Number – 11.000202.

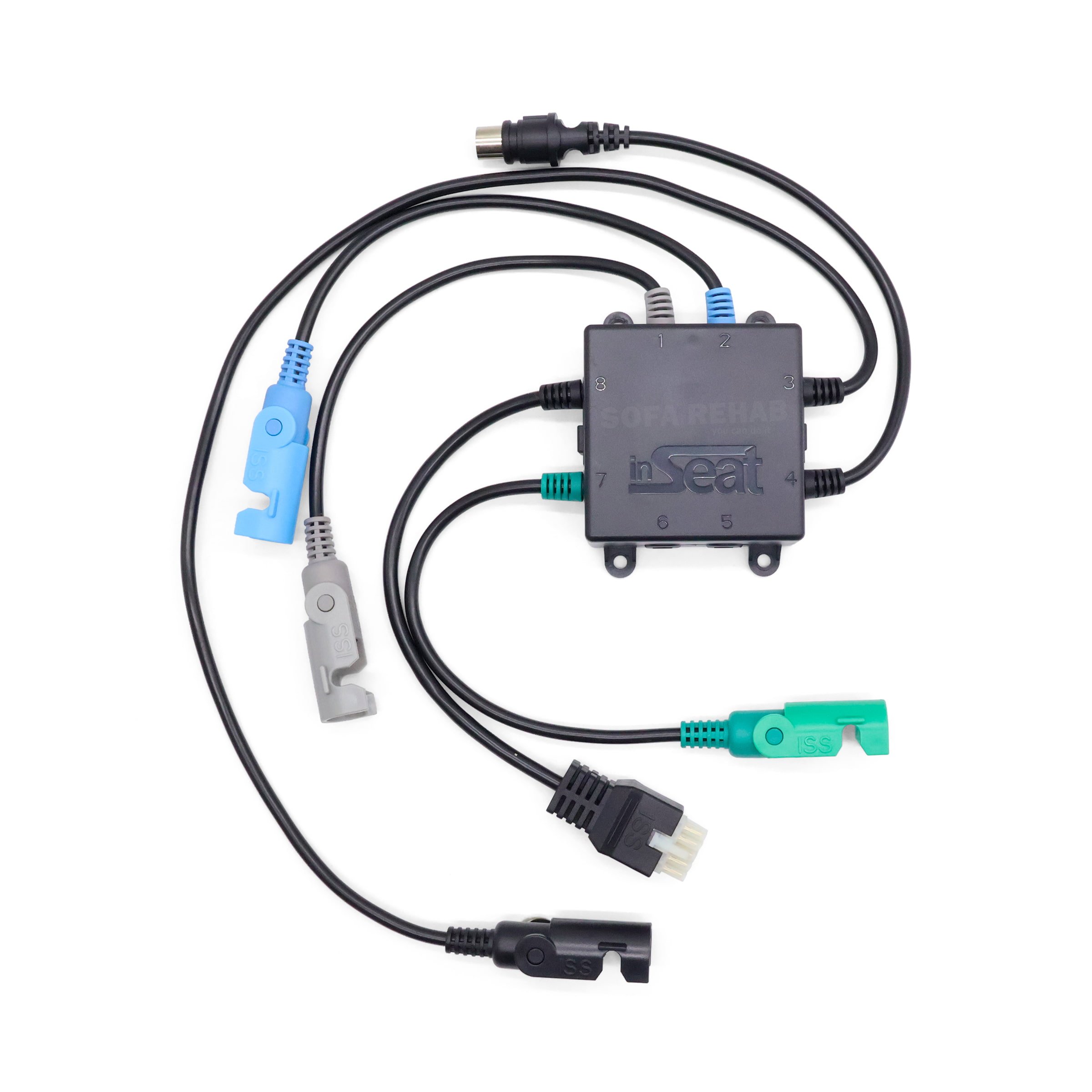

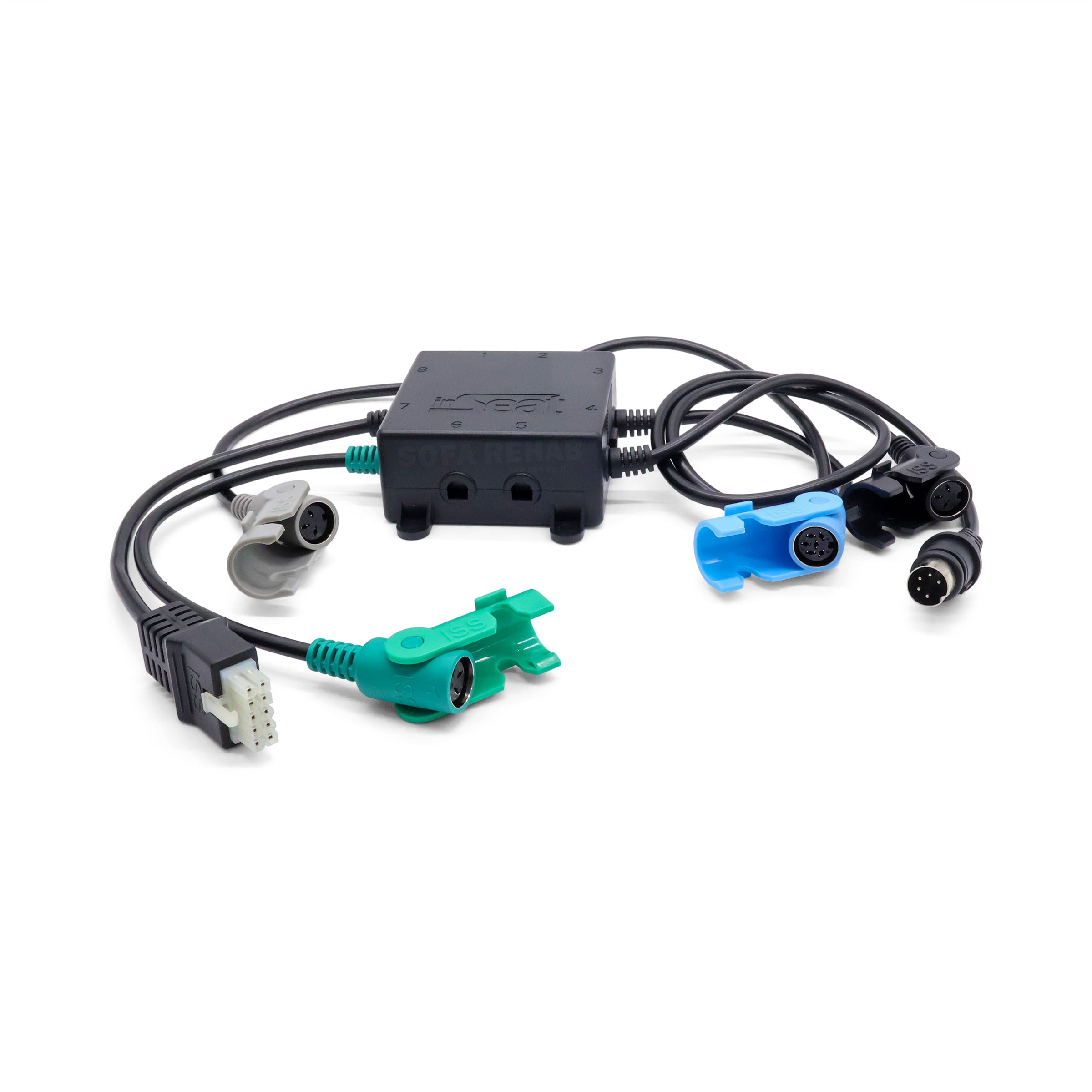

Plug Types – 1x Male 5 pin din, 2 x female 3 pin dins with retainig clasps and a 10 pin system plug with 6 pins allocated
Length- 355mm end to end including the plug.
How To
How To
DIY Installation Guide – Replacing a La‑Z‑Boy XR Plus Wiring Harness (Part 11.000202)
Time needed: 10 – 15 minutes
Tools required: Torx‑head screwdriver, torch/flashlight, side‑cutters or small pliers (for zip‑ties)
1, Power Down & Unplug
Fully close the recliner and remove the mains plug from the wall.
Disconnect the lead from the transformer (the black plug) so the chair is completely isolated from power.
2, Lay the Chair on Its Back
Place an old towel or blanket on the floor to protect the upholstery, then gently tip the recliner onto its front to expose the underside.
Keep the footrest closed to stop the mechanism moving while you work.
3, Photograph the Existing Loom Path (Optional but Smart)
Take a quick phone photo of the original wiring route and any clip locations. Having a visual reference makes re‑routing the new harness fool‑proof.
4, Removing the Old Harness
Remove any screws, clips or zip ties holding the cables to the frame
Unplug the Old Harness
Feed the harness out of the frame, noting its path around the scissor mechanism to avoid pinch points.
5, Installing the New Harness (11.000202)
Follow the same path as the original harness, clipping or tie‑wrapping it to the frame as you go. Keep slack away from moving links.
Leave enough free cable at the actuator so it doesn’t stretch during full recline.
6, Reconnect All Plugs
Locate and connect the harness plugs to the corrosponding part plugs.
7, Secure & Tidy
Replace any cable clips or add fresh zip‑ties so the loom can’t rub on moving parts.
8, Test Before Uprighting
Reconnect the transformer’s mains lead and plug the chair back into the wall.
With the recliner still on its front, press “Legrest Open” and “Legrest Close” briefly to confirm the actuator moves smoothly and the handset lights up.
If everything works, unplug the chair again and return it to the upright position.
9, Final Check & Enjoy
Plug in once more, cycle fully open and closed, and confirm all buttons respond correctly.
Your recliner is now back in action—job done!
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Will this harness fit my La‑Z‑Boy XR plus recliner?
This loom suits XR Plus models that use the 10‑button hand control If your chair has the earlier XR 6 button handset it will need a different loom.
Do I need any special tools to install it?
No. A torx‑head screwdriver and a pair of side‑cutters for any old zip‑ties are all you’ll need. Most customers finish the swap‑over in under fifteen minutes by following our step‑by‑step guide or video tutorial.
Is this an original La‑Z‑Boy / InSeat part or an aftermarket copy?
It’s 100 % genuine OEM. Every harness is factory‑terminated with the correct keyed plugs, proper strain reliefs and UL‑rated cabling—so it’s a true plug‑and‑play replacement with no cutting or soldering.
Do you ship this item outside Australia?
Yes. We dispatch daily from our Brisbane warehouse and ship worldwide—including New Zealand, the US, UK, Canada, Singapore and over 40 other destinations. International customers will see a notice that all prices are in Australian dollars, and checkout will show live postage options at the current exchange rate.
How do I confirm the correct part number on my existing harness?
Look for the white barcode tag or heat‑shrink label on your chair’s loom. The standard‑length XR Plus harness will show “11.000202” (La‑Z‑Boy) and/or “InSeat 14661”. If your tag reads “10.000134” / “14661T‑24” (extra‑long wall‑hugger) or “75000273‑00” (early XR series), you’ll need one of those specific looms instead.
