MLZB020-D4 Electric Recliner Cup Holder
$80.00
In stock

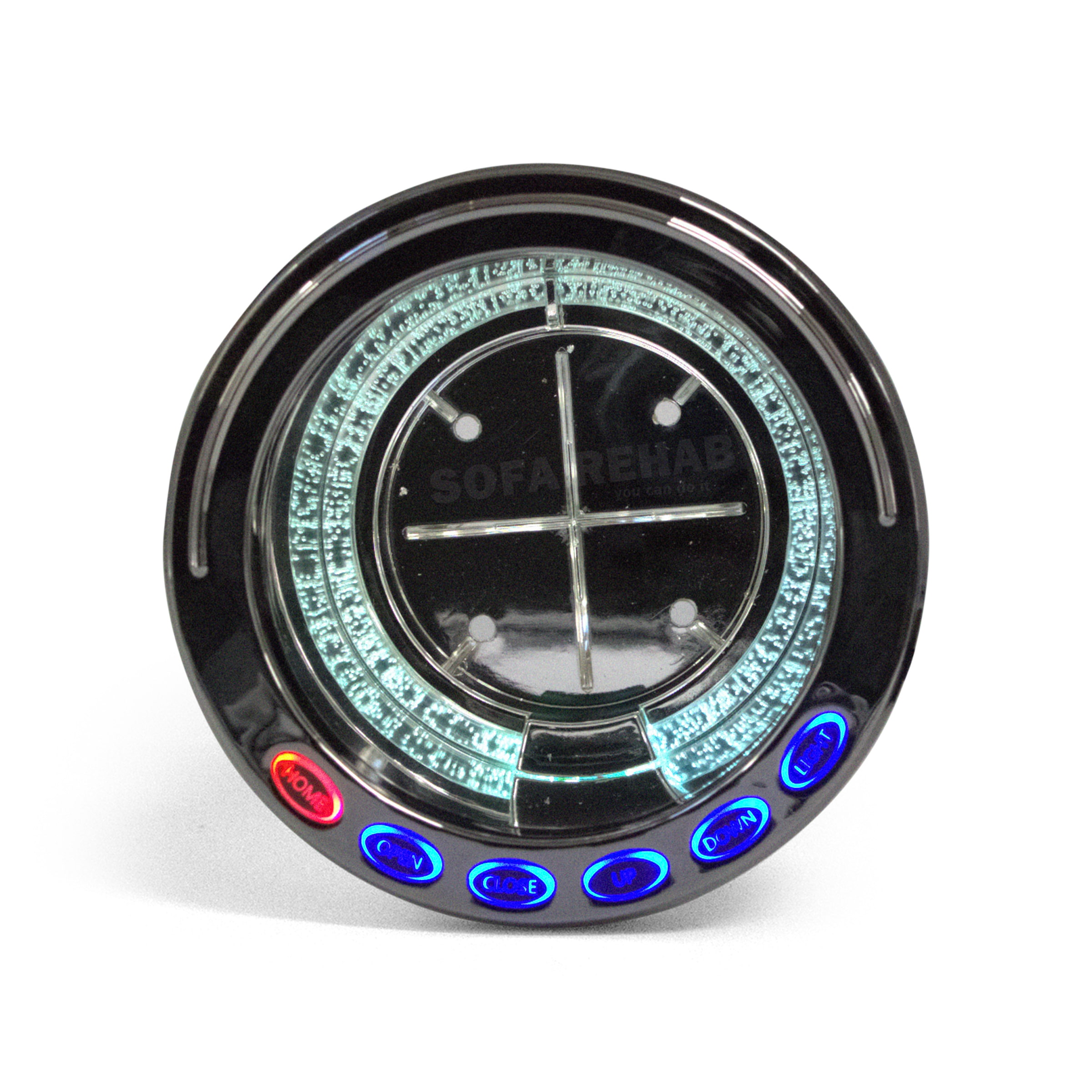

Multifunction electric recliner cup holder controller Mulin MLZB020-D4 with 6 backlit touch buttons and LED base lighting. Features a 5 pin male DIN plug for motor control and a 5 pin female semi-circle plug with clasp for lighting connection. Includes 7 LED colour options and supports connection to compatible LED strips and additional cup holders. MLZB020-D4 Recliner Cup Holder Controller. Features softer silicone touch buttons and 7 LED colour options. Press and hold the light button to change colours. Model number MLZB020-D4 must match exactly. Not Sure If This Is The Right Model? We stock multiple versions with different plug types. Browse our electric recliner cup holders (click here) range or contact us for help identifying the correct replacement. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
MLZB020-D4 Electric Recliner Cup Holder Controller with LED Lighting
Upgrade or replace your existing recliner armrest control with the Mulin MLZB020-D4 multifunction cup holder controller. Designed for modern electric recliners, sofas and theatre lounges, this unit combines a built-in cup holder with a full control panel and LED lighting system. Featuring 6 silicone touch buttons, it allows you to control footrest movement, headrest adjustment, lighting functions and the home/reset position all from one convenient location.
This model includes 7 selectable LED base light colours and can be connected to compatible LED strips and additional cup holders, allowing you to restore or expand your lounge’s ambient lighting setup.
Note this is not compatible with MLZB020 (click here) or MLB020-D1 (click here) we sell these also.
* This cup holder is not suitable for use in the USA and Canada.
Important Compatibility Information – Check Model & Plugs
This cup holder controller must match your existing unit exactly. The MLZB020 range includes multiple versions that are not interchangeable, even if they look similar.
This MLZB020-D4 model features:
- 5 pin male DIN plug (main control connection)
- 5 pin female semi-circle plug with clasp (LED lighting connection)
- Variant: 1.5M-L
- Input: DC 29V
- Output: 12V 1.5A
Before ordering, please check both the model number on your existing unit and the plug configurations. If you are unsure, contact us with a photo of your current cup holder and plugs and we’ll help you confirm compatibility.
Plug & Connection Configuration
This replacement unit is supplied with the correct wiring configuration to match the MLZB020-D1(A):

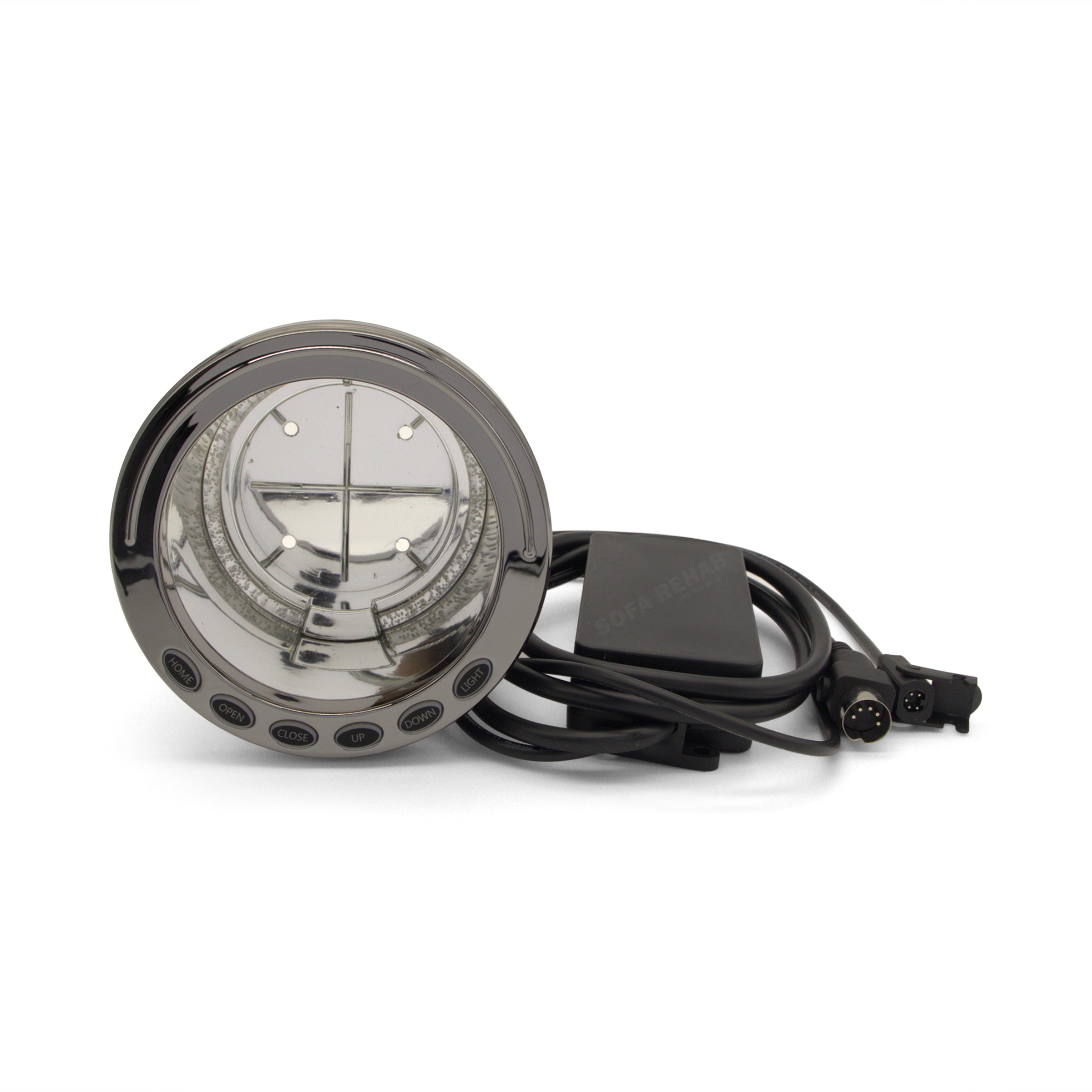

- 1x Male 5 pin round DIN plug (main control connection)
- 1x Female 5 pin semi-circle plug for lighting system (with retaining clasp)
- Supplied with control box for full operation
Please ensure your existing plugs match these connections before ordering.
Restore Your Recliner’s Features and Functionality
If your existing cup holder controller has stopped working, has unresponsive buttons, or lighting that no longer functions, this replacement will restore full operation. The silicone buttons provide a smooth and responsive feel, while the integrated lighting system brings back the modern look and convenience of your recliner setup.
Ideal for theatre lounges and premium recliner suites where lighting and control functions are built into the armrest.
Australia’s Leading Supplier of Recliner Spare Parts
Sofa Rehab is Australia’s leading supplier of recliner spare parts and repair solutions. We stock a wide range of cup holders, switches, cables and electrical components for all popular brands and models. If you’re unsure which replacement you need, our experienced team is here to help you find the correct part.
Do It Yourself and Save Time & Money
Replacing your cup holder controller is quick and easy. Simply remove the old unit, disconnect the plugs and install the new one using the existing screw points. No special tools or experience required, just a screwdriver and a few minutes of your time.
Follow our step-by-step guides or reach out to our support team if you need assistance. Do it yourself, save money, and enjoy the satisfaction of getting your recliner back to full working order.
Technical Specifications
Technical Specifications
Technical Specifications
- Model: Mulin MLZB020-D4
- Product Type: Multifunction electric recliner cup holder controller
- Variant: 1.5M-L
- Input: DC 29V
- Output: 12V 1.5A

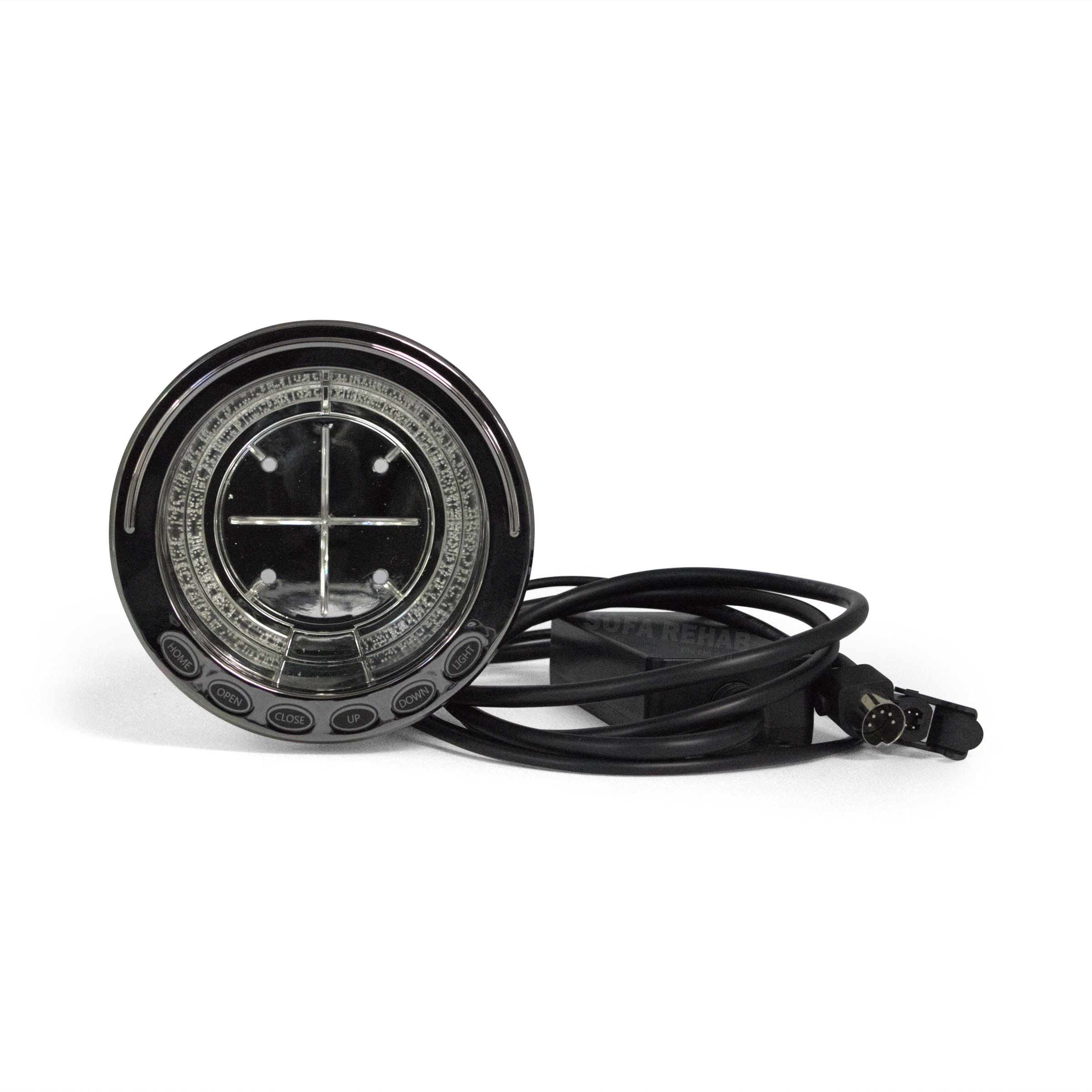

- Main Control Plug: 5 pin male DIN plug
- Lighting Plug: 5 pin female semi-circle plug with clasp

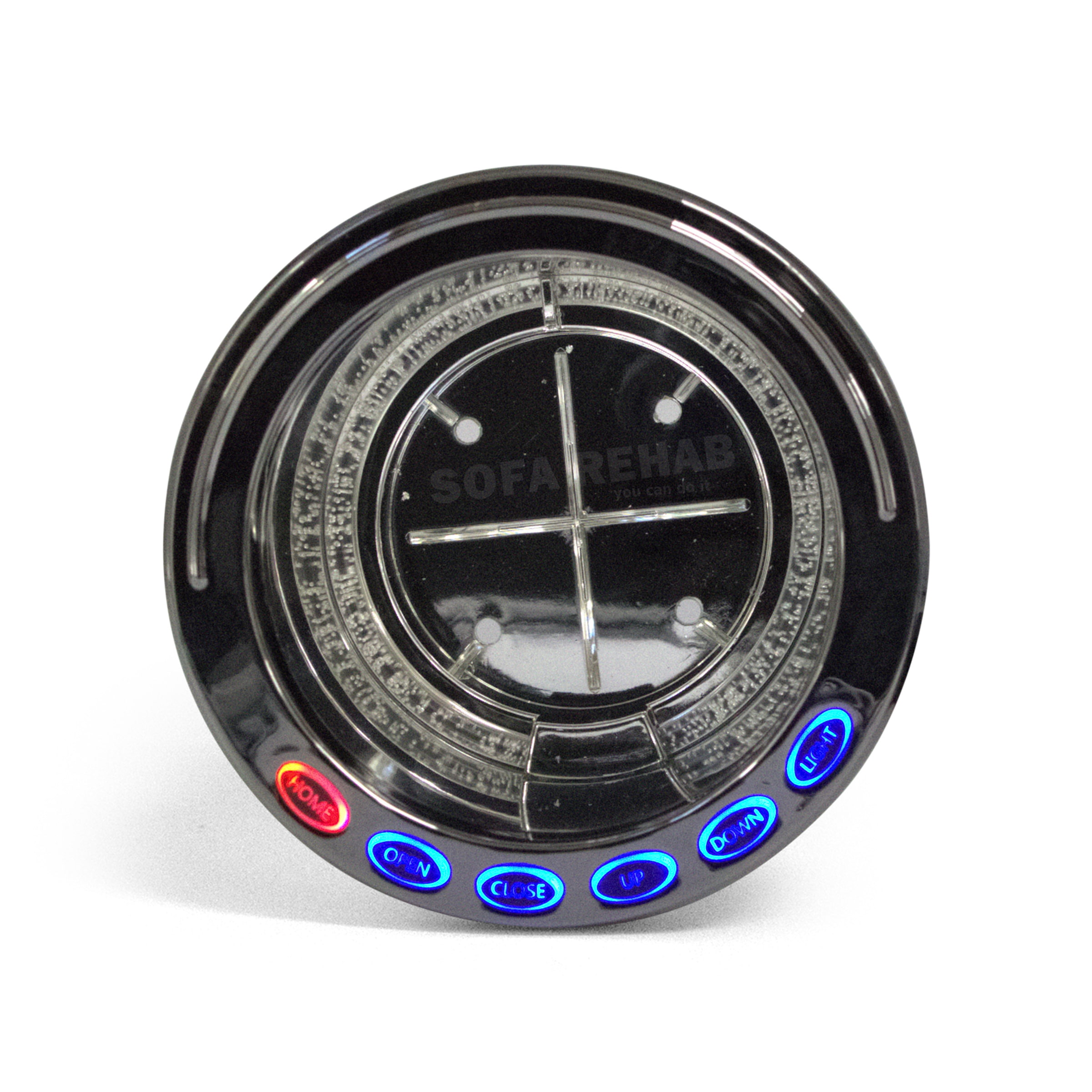

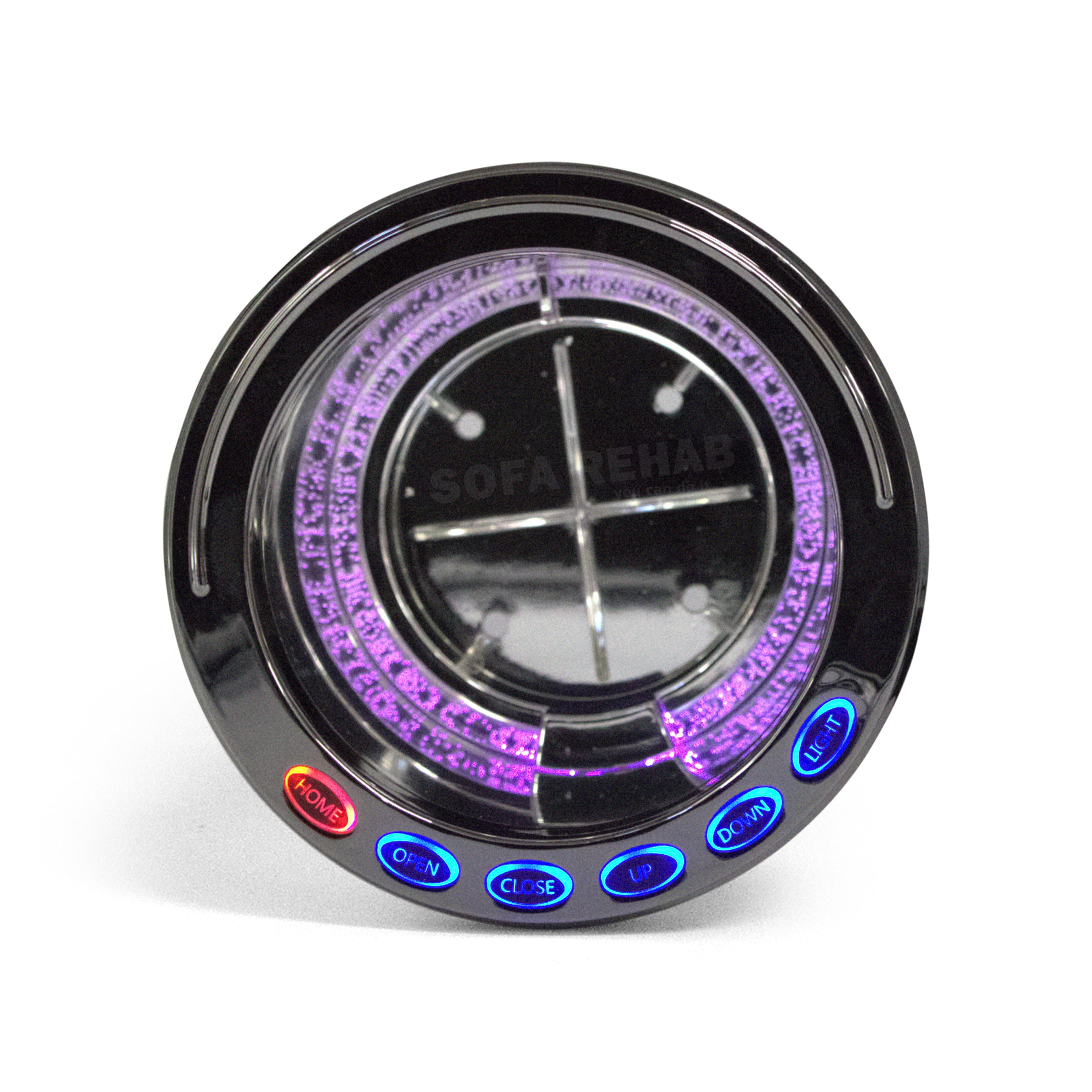

- Button Type: 6 silicone buttons

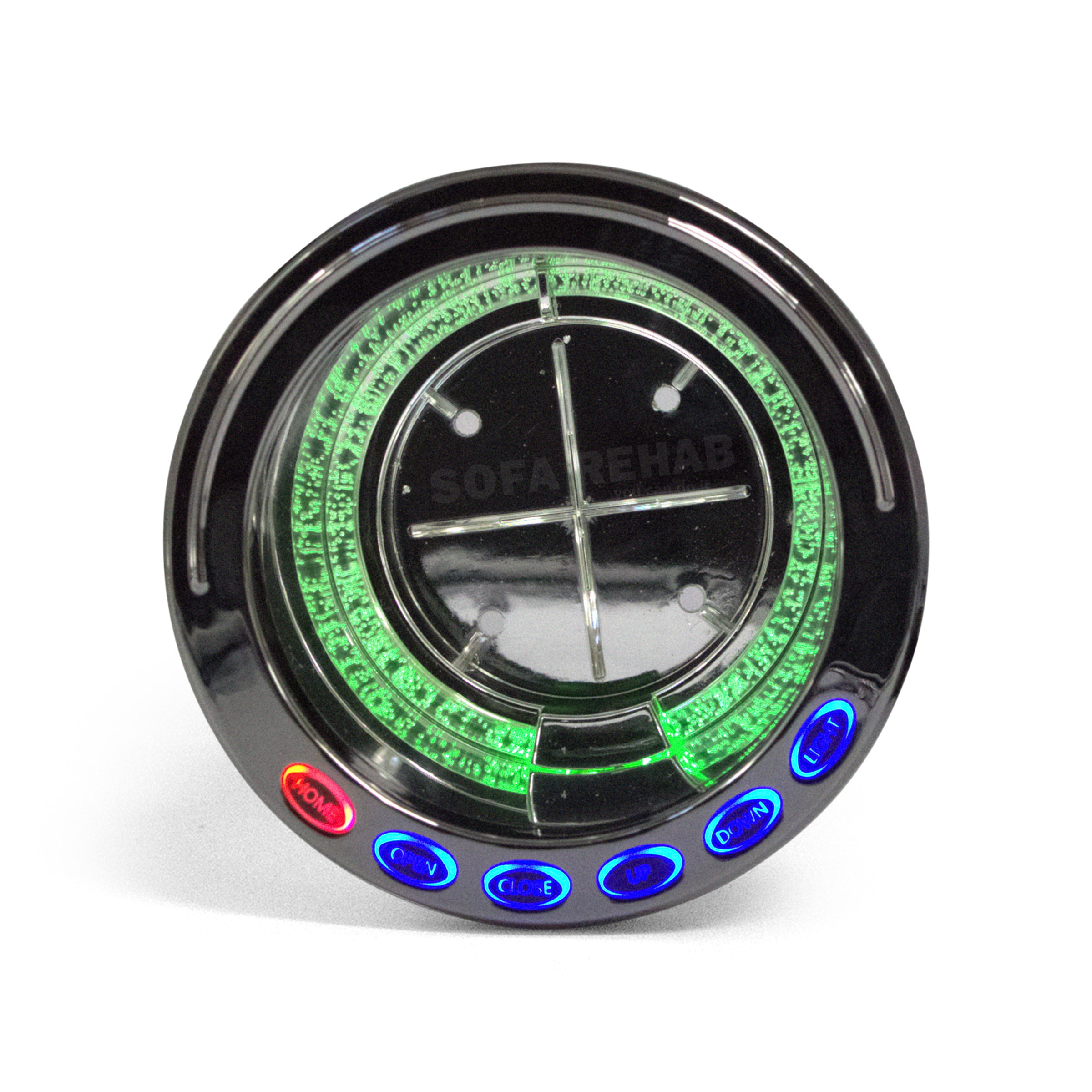

- Functions: Footrest, headrest, lighting and home function

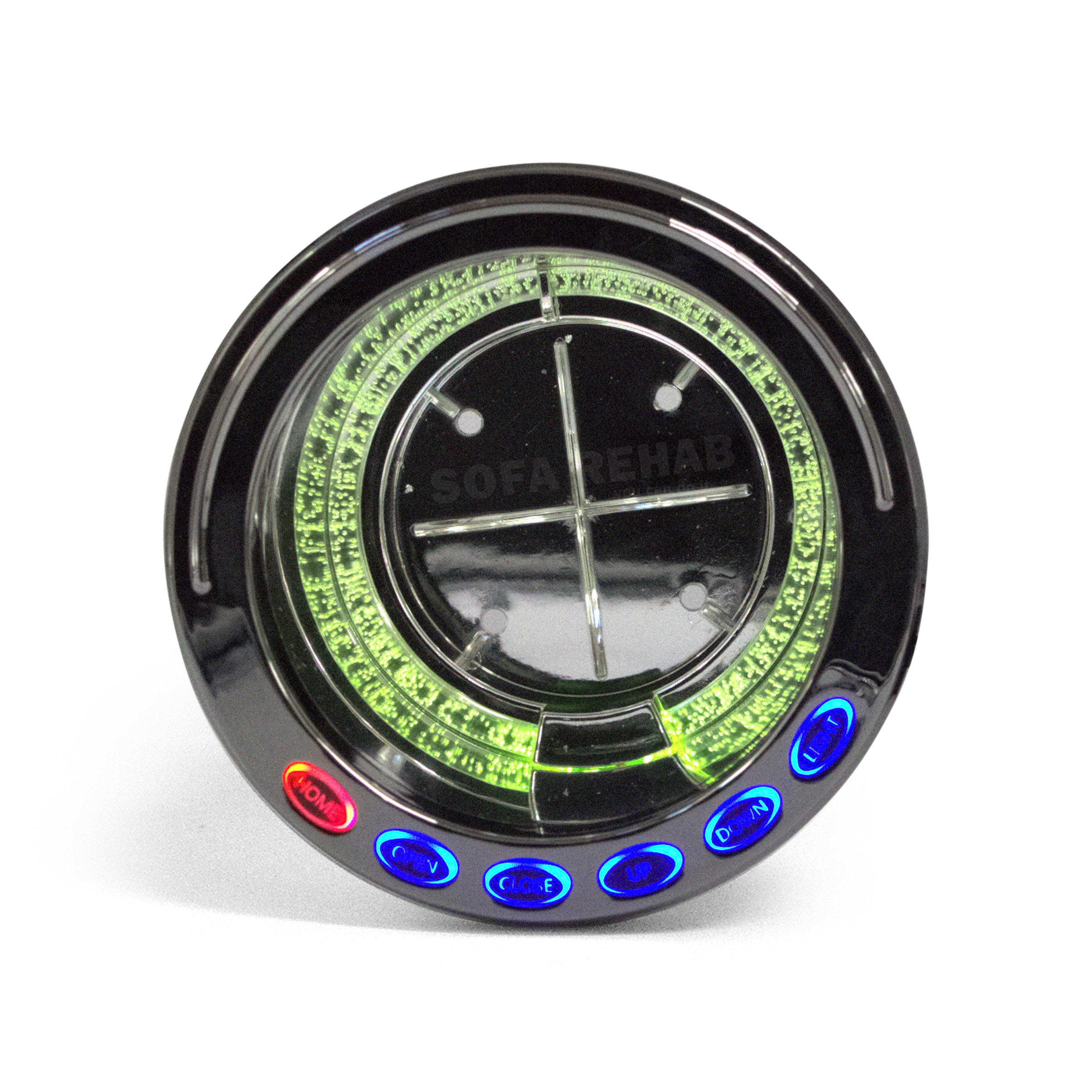

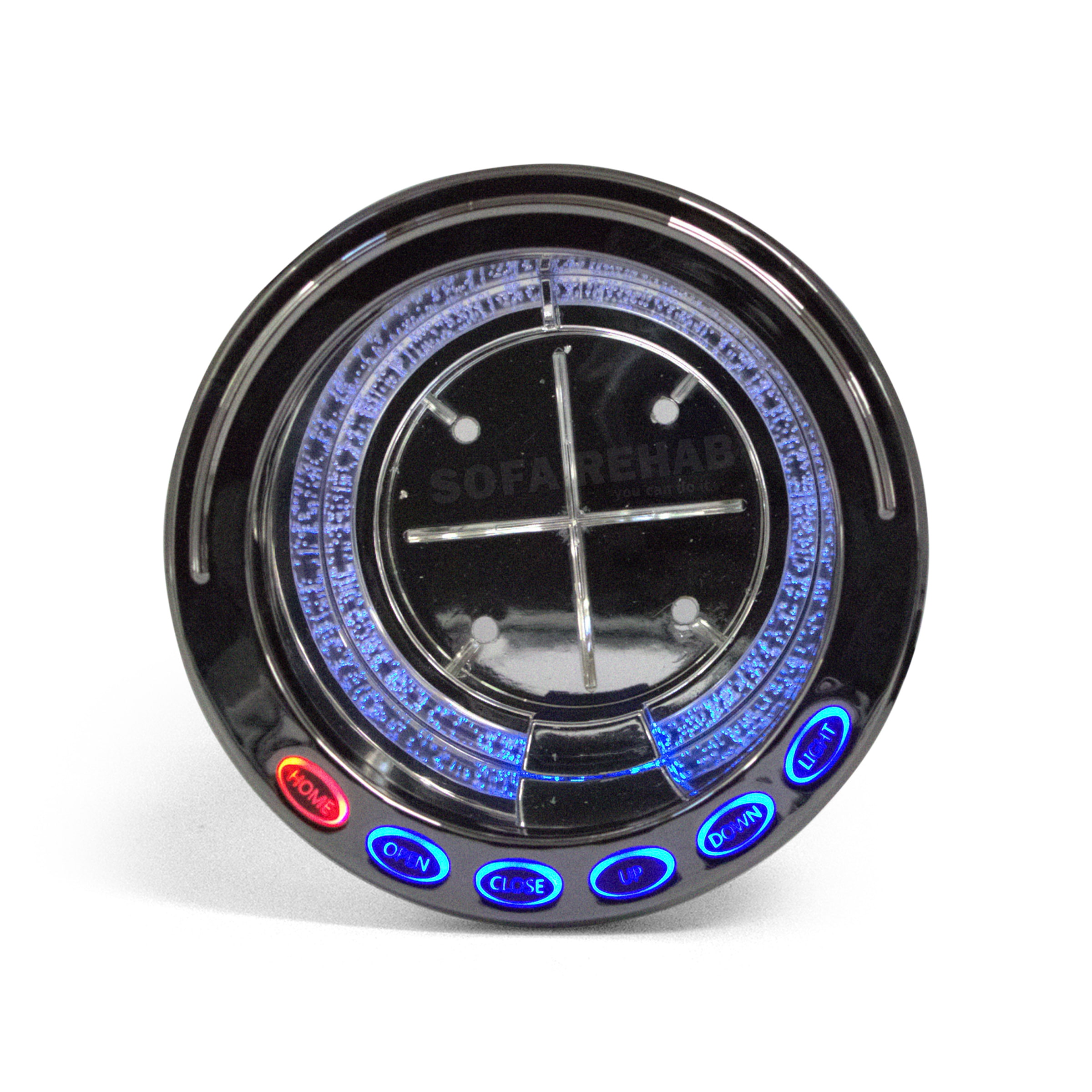

- LED Lighting: 7 base light colour options
- Lighting Compatibility: Can connect to compatible LED strips and additional cup holders if required
- Application: Electric recliners, sofas and theatre lounges
- Installation: Screw-mounted replacement
How To
How To
How To Install and Use
Before starting, turn off power at the wall and unplug your recliner or lounge. These units can be heavy, so use safe lifting practices and get assistance if needed when tilting or accessing the armrest area. We strongly recommend taking a photo of your existing cup holder and plug connections before removal so you can easily reference it during installation.
Remove the existing unit by lifting out the cup insert and undoing the mounting screws located underneath. Once free, gently lift the controller out and disconnect the plugs by holding the connectors firmly. Avoid pulling on the wires.
Before installing the new unit, confirm that your original matches the MLZB020-D4 model and has the same plug configuration, including the 5 pin male DIN plug and 5 pin semi-circle lighting plug with clasp.
Connect the new cup holder by plugging each connector into the matching socket. Ensure all plugs are fully inserted and the clasp connection is secure. Carefully place the unit back into the armrest opening, making sure no cables are pinched, then refit the screws.
Restore power and test all functions before regular use. Check the silicone buttons for footrest and headrest movement, lighting control, and home function. Cycle through the LED base light colours and confirm any connected compatible LED strips or additional cup holders are working correctly.
If you are unsure at any stage or your plugs do not match, contact our support team for assistance before proceeding.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How do I know if this MLZB020-D4 is the correct replacement?
You must match the exact model number and plug configuration. This unit uses a 5 pin male DIN plug and a 5 pin semi-circle lighting plug with clasp. If you’re unsure, send us a photo of your existing unit and plugs and we’ll confirm for you.
Are MLZB020 models interchangeable?
No. Variants such as D1, D4, B1 and others may look similar but have different wiring and plug configurations. Always match the exact model to ensure compatibility.
What functions does this cup holder control?
This unit controls footrest movement, headrest adjustment, lighting functions and the home/reset position. It also features 7 LED base light colour options and can connect to compatible LED strips and additional cup holders.
Is this difficult to install?
No, this is a DIY-friendly replacement. It typically takes just a few minutes using a screwdriver. Simply remove the old unit, unplug it and connect the new one. No special tools or experience required.
Does the LED lights stay on permanently?
No, the manufacturers have built in a pre-set timer, after a period of time the lights will automatically turn off and then require a button to be pressed to turn back on.
What should I do if I’m unsure about compatibility?
If you’re unsure, contact us before ordering. Our team can help you identify the correct replacement for your recliner.
Can the LED lighting colours be changed?
Yes, this unit features 7 different LED colour options. It can also be connected to other compatible cup holders or LED light bars to create a matching lighting setup across your recliner or lounge.
