AccessoriesRecliner Motors/Actuators

Okin Metal Clevis

$40.00

In stock

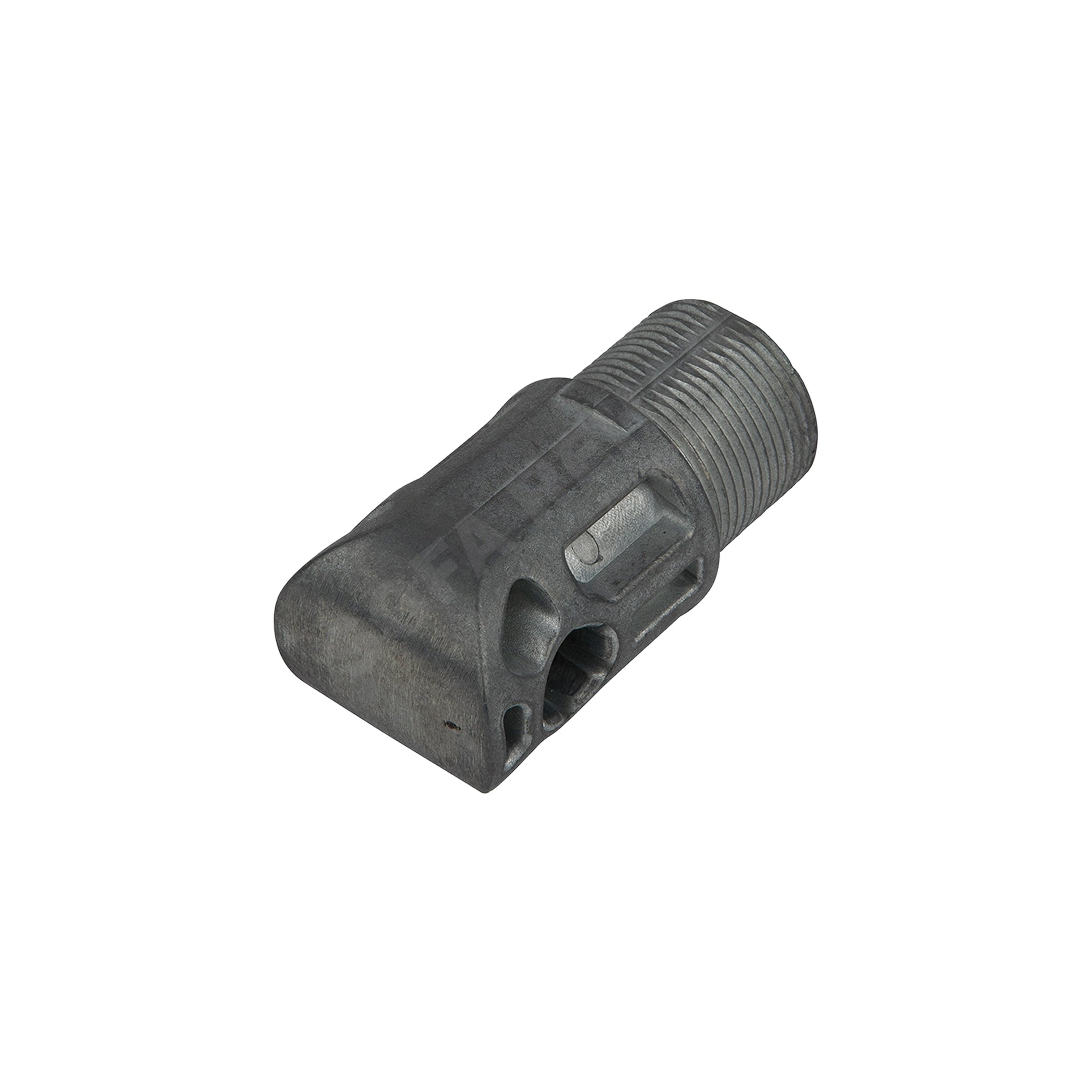

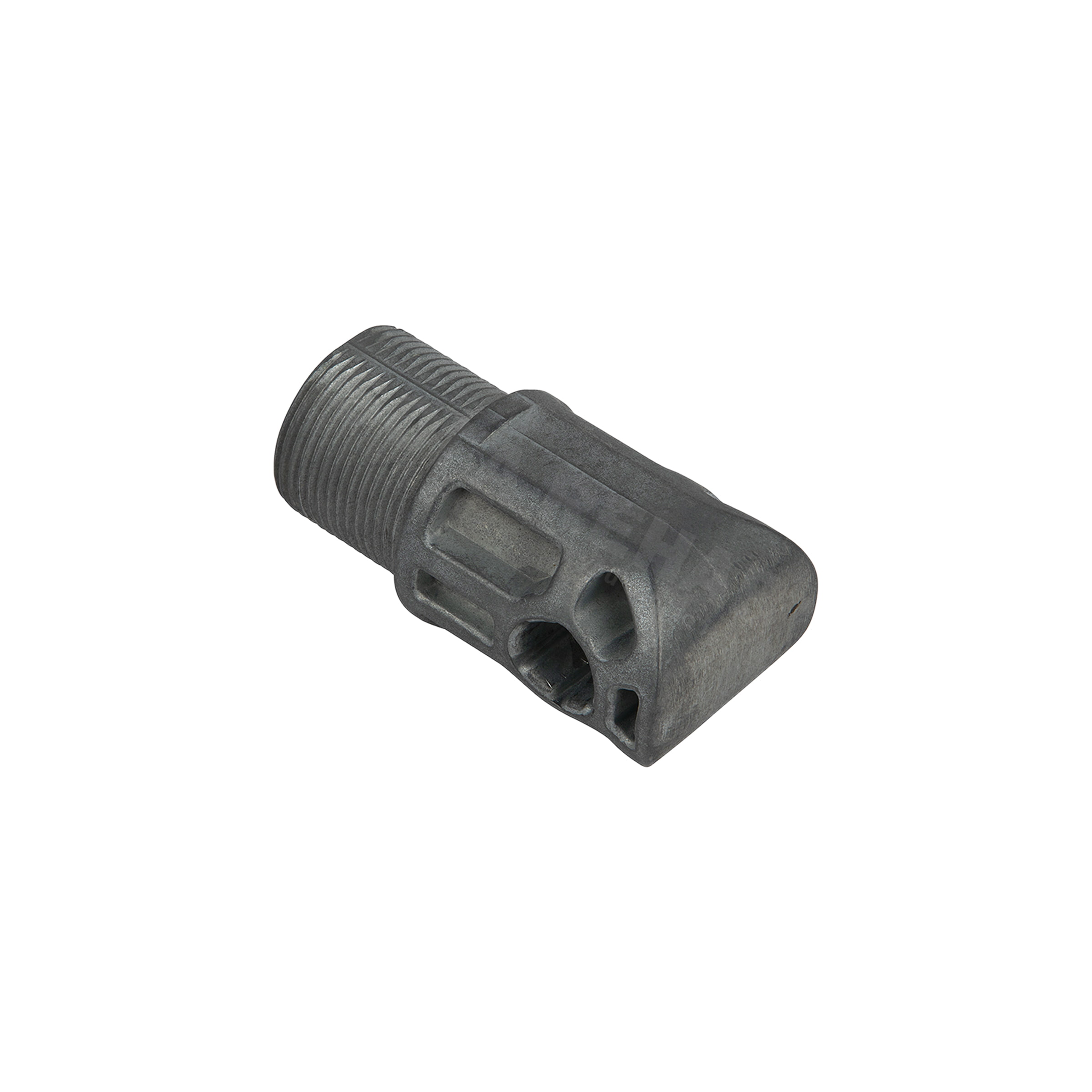

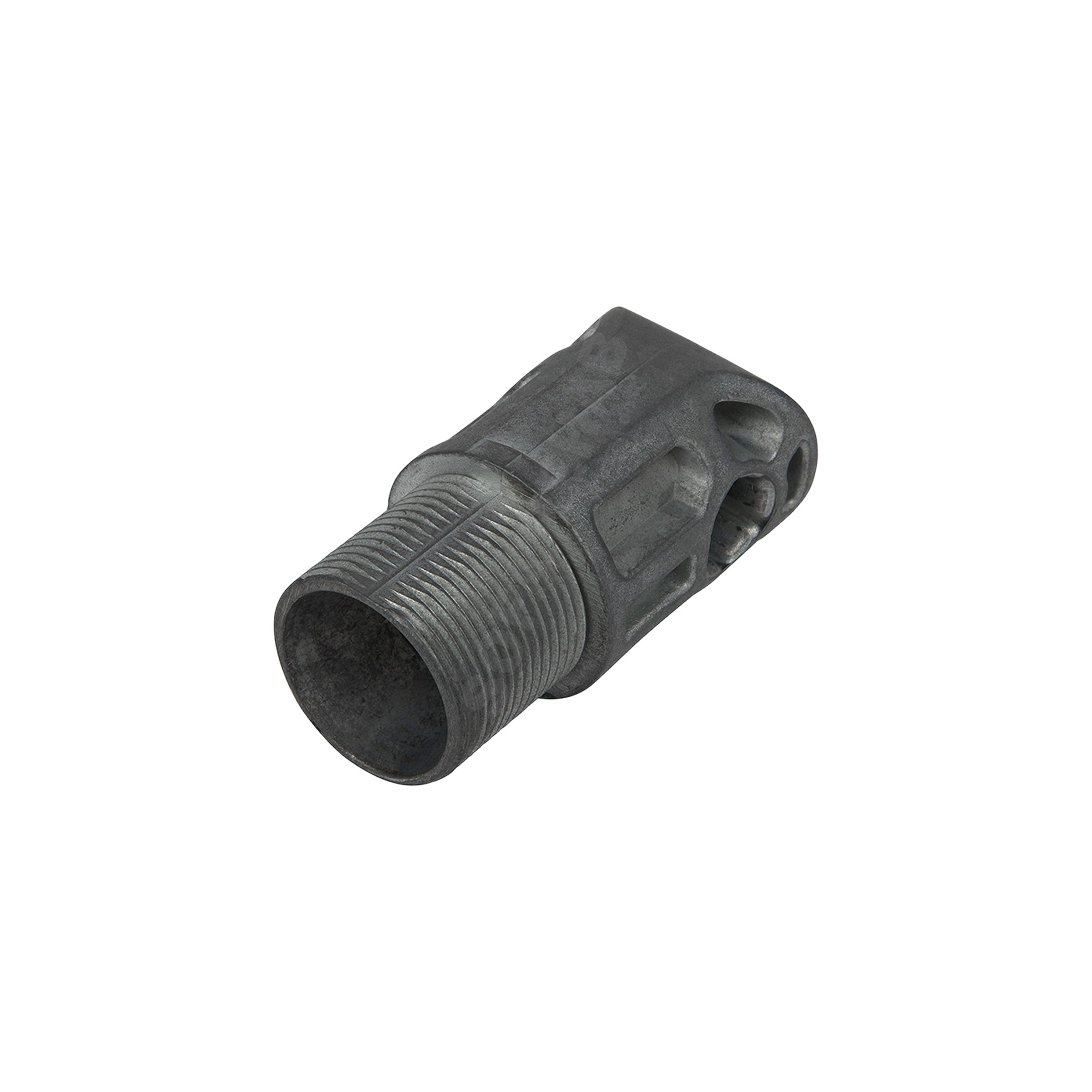

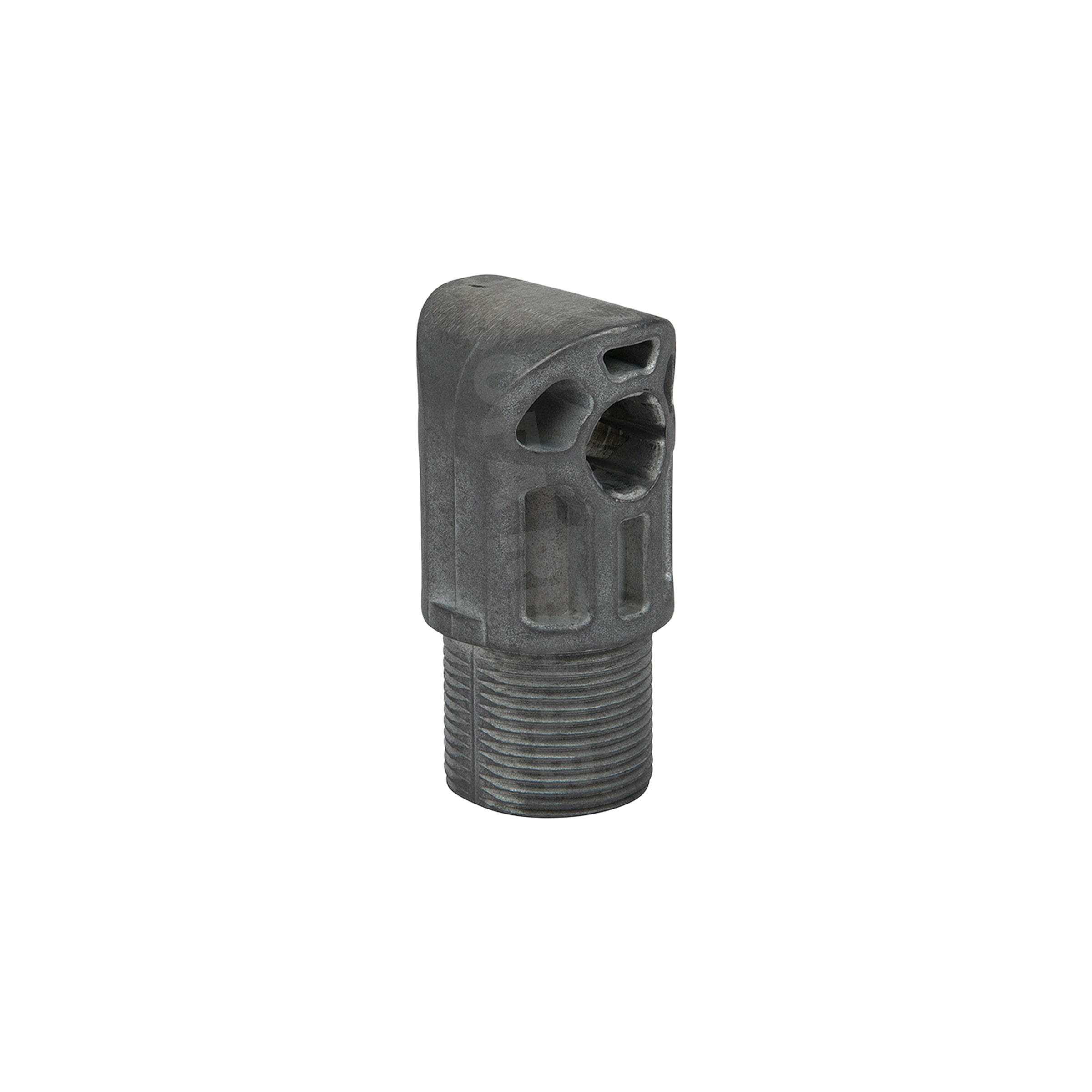

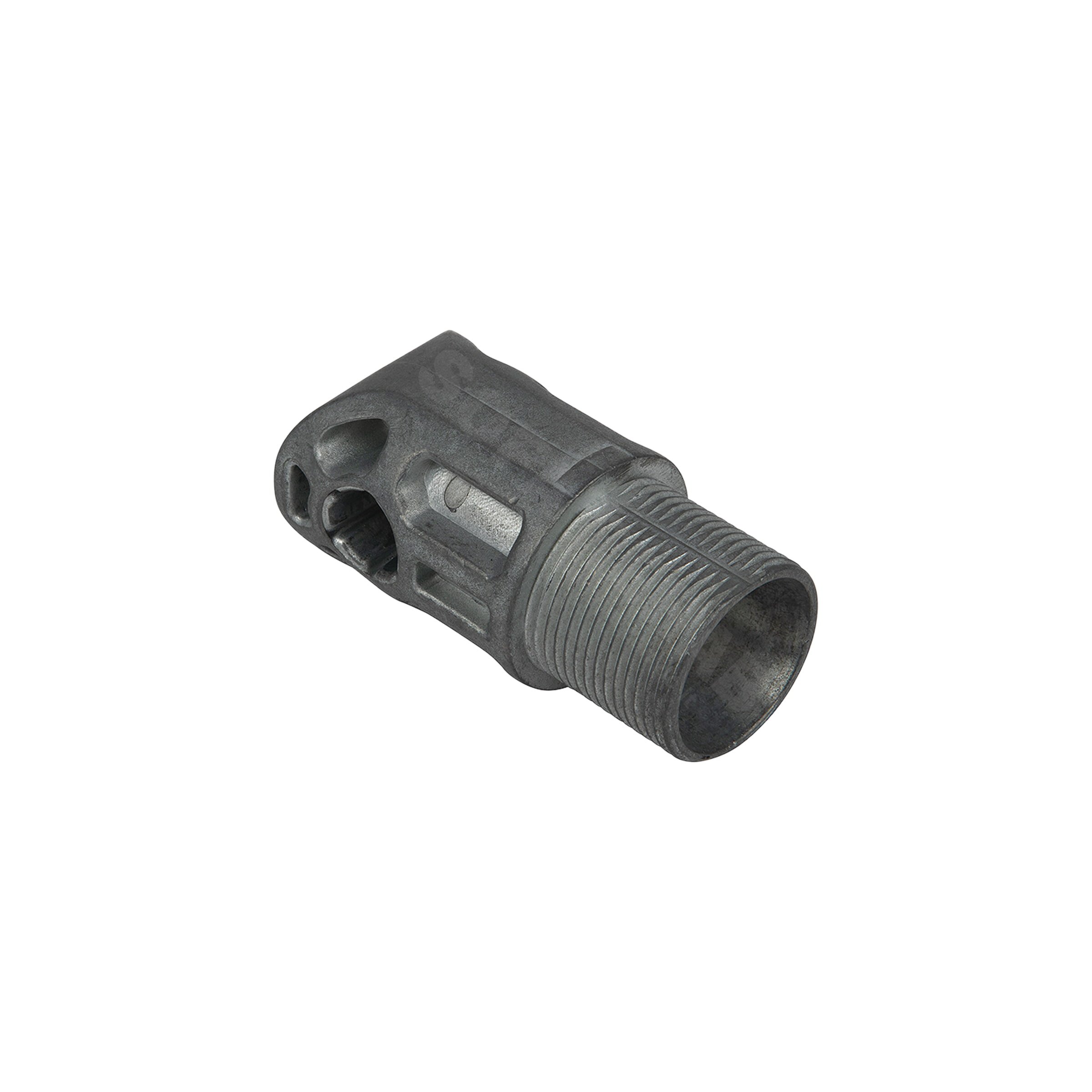

A genuine Okin replacement recliner chair and sofa linear actuator/motor screw on alloy end clevis fork. A solid one piece alloy part used to attach the actuator shaft to the recliner metal mechanism. A Okin Replacement Component. A size of 60mm long, 29mm wide, actuator rod hole 10mm round and with a 25mm left hand thread. We Stock Genuine Okin Electrical Parts. Okin model number 2.00.717.363.00 spare part. 'You Can Do It' Yourself and Save $$$ Simple and easy to fit in under 5 minutes. No experience required. read more

SKU:
E-MOTO160
Brand:
Okin
Weight
0.16 kg
Dimensions
7 × 4 × 4 cm
view all details

Description

Compatible With Many Okin Brands

This is new high quality replacement metal clevis component that is fully factory assembled and ready for installation. A one piece solid alloy metal part complete with a left hand 25mm screw thread. Compatible with Okin brands such as Okidrive, Megadrive, Gammadrive and Deltadrives actuators only. The installation is quick and easy by removing the old broken clevis and screwing in the new clevis.

Supplier of Recliner Chair Parts

Were a Leading Supplier of electric recliner spare parts. Get the best prices for repairing yourself, and if you’re a trades person, we offer discounts on bulk purchases.

Do It Yourself and Save Time and Money

With our extensive range of repair products, our easy step-by-step instructions and free video tutorials, you’ll be ready to repair it yourself.  Feel great about having done the repair yourself and saved money.

Technical Specifications

Technical Specifications

Make –Okin
Model Number –2.00.717.363.00
Length –60mm
Width –29mm
Actuator rod hole –10mm
Material –Alloy

How To

How To

1, Unplug all power to the recliner and remove the mains plug from the wall and check no power.
2, Lay a drop sheet on the floor and carefully turn the recliner over on its side or front, please remember safe lifting techniques.
3, Detach the Actuator pin and retaining clip from the broken clevis and unscrew clevis.
4, Install the replacement Actuator clevis by tightening to the left.
5, Install the Actuator/Motor pin and retaining clip.
6, Carefully turn the furniture back over to the standard position
7, Reinstate the power and then fully test the recliner carefully checking all cables are in the correct position and are not being pinched or stretched.

Reviews (1)

Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login

  • Courtney

    Very speedy. Easy to talk to and had what I needed.

FAQs

FAQs

Will this fit other brands?

No, this is designed and produced by Okin for Okin actuators only.

My clevis is plastic, will this metal one fit?

If the dimensions and thread direction match our specifications then yes it will fit.

What material is this made from?

This is a one piece solid alloy component.

What size is this?

It's 60mm long, 29mm wide, actuator rod hole 10mm round and with a 25mm left hand thread.
