Moving Blocks and Clevis

Fork Shape Actuator Moving Block

$60.00

In stock

Replacement fork-shaped actuator moving block, commonly found on Kaidi actuators. Made from a sturdy white plastic, this guide block connects the actuator shaft to the chair mechanism. Plastic guide blocks are a common point of failure for recliners & lift chairs. Opt for this OEM replacement moving block to avoid the unnecessary expense of entirely replacing an otherwise functional actuator. Replacement Fork-Shaped Plastic Moving Block for Actuators. Compatible with various models of Kaidi electric recliner motors. Verify compatibility by comparing yours with the product images and dimensions detailed below. Not The Right One? Explore Our Other Actuator Plastic Blocks. Our inventory includes 6 distinct shapes and sizes tailored to fix a multitude of actuator models. If this fork-shaped block isn't an exact match, see our selection of actuator moving blocks (click here) to find the right one. read more

SKU:
E-BLOCK20
Brand:
Kaidi, Sofa Rehab
Weight
0.09 kg
Dimensions
11 × 6 × 4 cm
view all details

Description

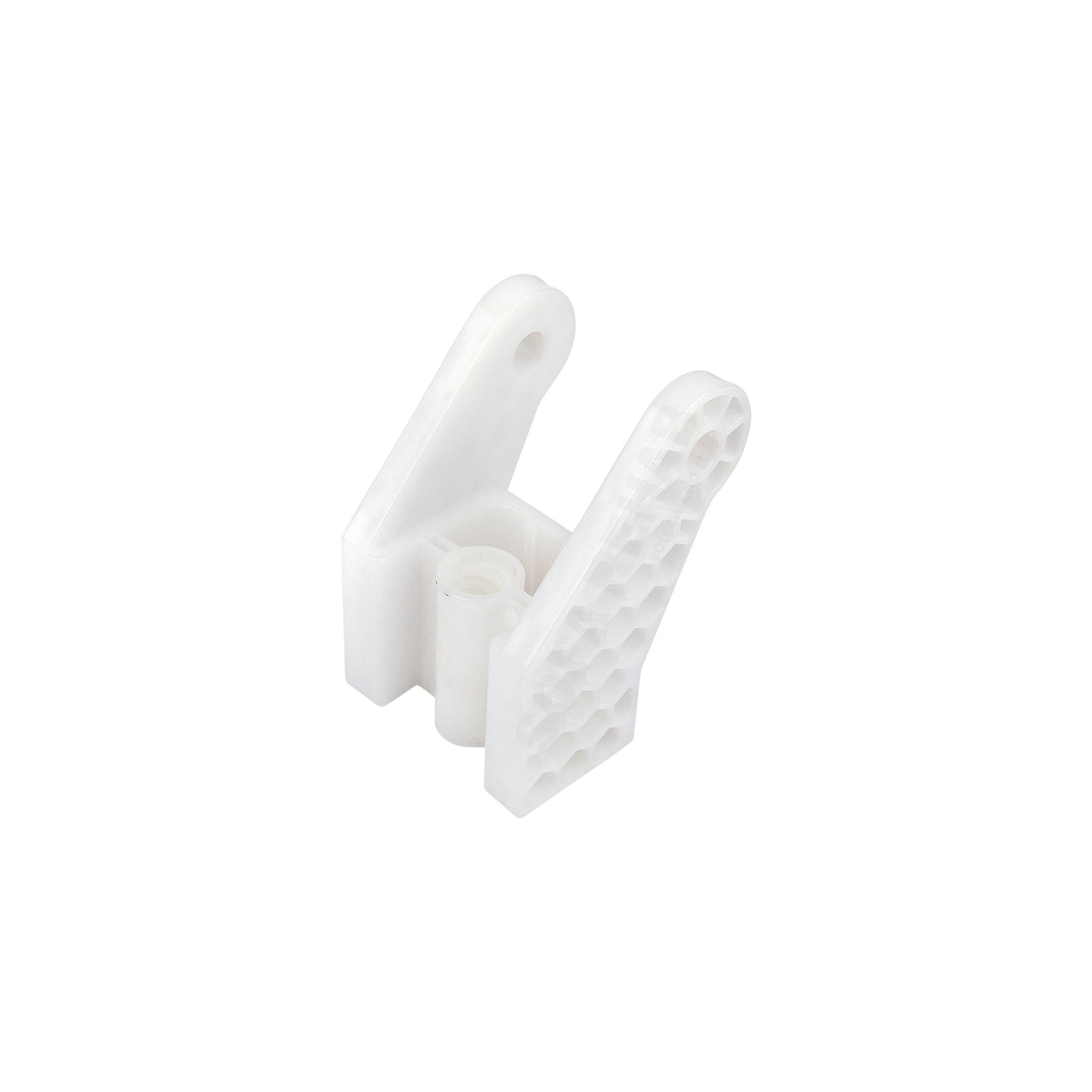

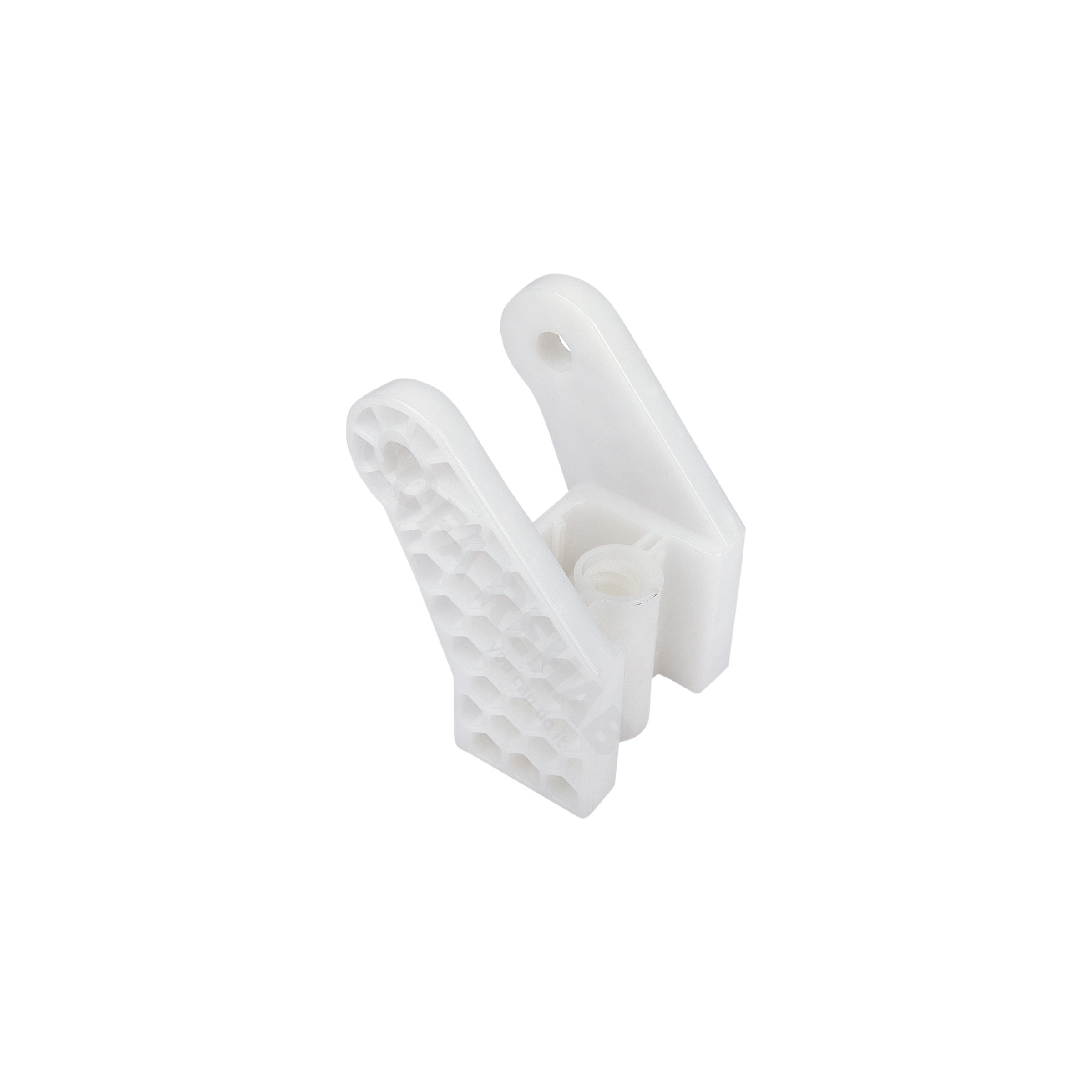

Plastic Fork-Shaped Actuator Guide Block for Electric Recliners Motor

This white plastic fork-shaped moving block is designed specifically for electric recliner actuator motors. If your actuator is otherwise in working condition, then selecting this spare part for your repair can achieve substantial savings as opposed to the cost of an entire actuator replacement.

Should your repair needs extend beyond the moving block, we also offer a comprehensive choice of electric recliner actuators (click here) for any recliner or lift chair on the market.

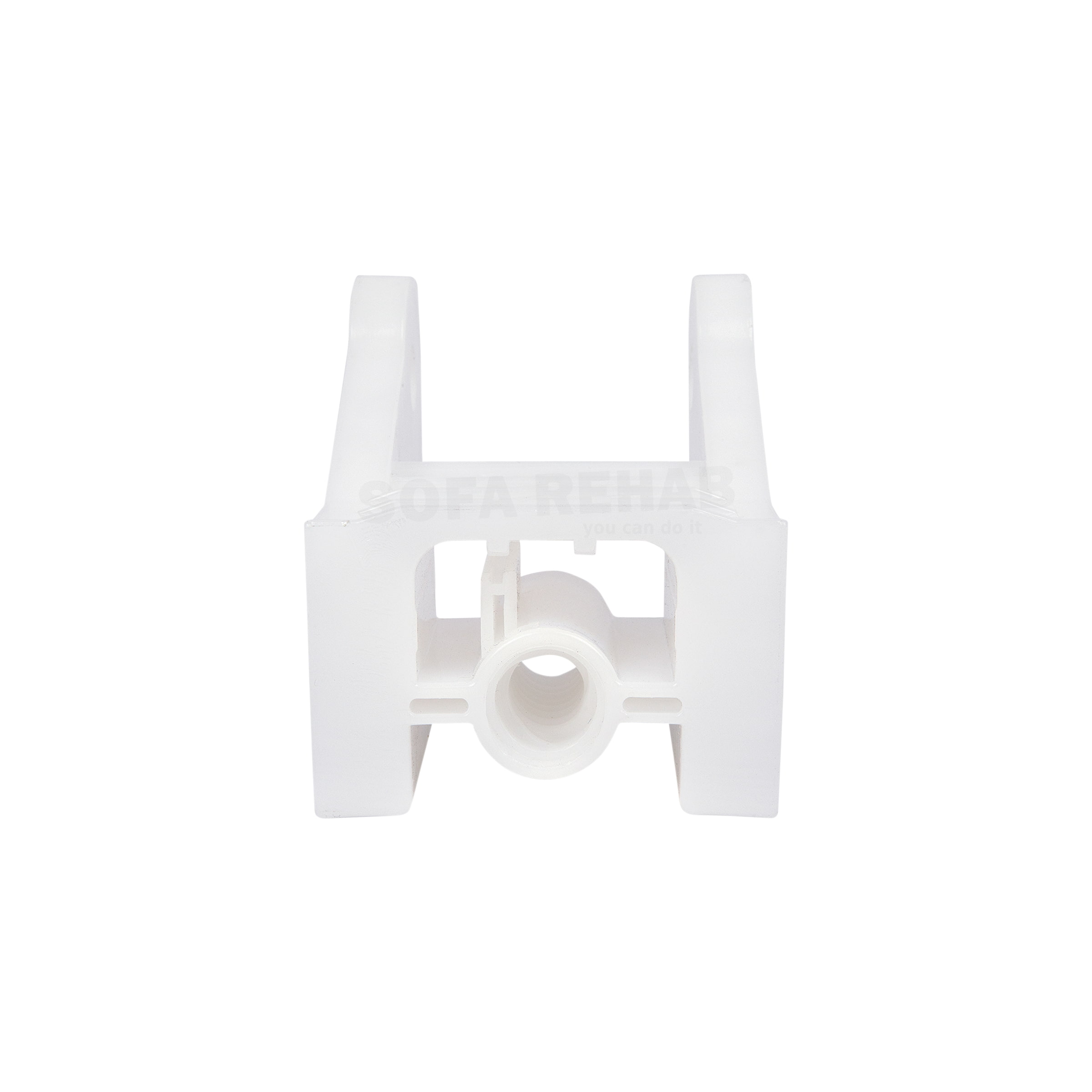

Measuring Guide for Fork-Shaped Moving Block

This block has a sturdy base that secures to the actuator shaft with a length of 48mm and a width of 61mm. The fork ends have a gap of 44mm between them, and a pin hole diameter of 10mm where the recliner’s mechanism connects.

At the base’s centre is the hole designed for the actuator’s worm drive, which accommodates the industry standard drive rod of approximately 9.7mm in diameter.

Identifying Your Required Actuator Moving Block Shape

Most electric recliner motors utilise one of 6 prevalent movement/glide block designs, and this fork-shaped variant caters to those with a corresponding mechanism attachment. Should you require a different shape, take a look over our actuator moving blocks and clevis (click here) catalogue for a match.

We’re likely to have the exact one for your needs, feel free to contact us if you need any assistance confirming a match or help finding the right replacement part.

Compatible Models

Compatible Models

This actuator moving block is used by the OEM for the following brands & models of recliner actuators:

  • Kaidi KDPT007-75
  • Kaidi KPT007-141
  • Kaidi KDPT007-43
  • Kaidi KDPT007-156



This is not a full list & we update as and when we are aware of compatible brands & models.
