Old Leggett & Platt La Z Boy Pivot Bolt Kit
$19.99
In stock
Replacement pivot bolt kit for Leggett & Platt 41T and 41TT electric recliner and lift chair mechanisms. This older style kit features a brass load bearing washer and suits linkage holes measuring approximately 12.7mm. Commonly used on La Z Boy 2 button lift chairs, it restores smooth and stable movement by replacing worn pivot components without needing a full mechanism replacement. 41T / 41TT Lift Chair Pivot Bolt Kit. Designed for older style mechanisms using a brass load bearing washer. Includes shoulder bolt, brass bush, nylon washer and lock nut for a complete pivot repair. Need Another Size or Recliner Spare Part? We stock a wide range of recliner hardware including actuator moving blocks, clevis tips, power recliner cables and complete replacement motors. Browse our comprehensive range of recliner spare parts (click here) or contact us if you need assistance finding the right item. read more
In stock
Description
41T & 41TT Recliner Lift Chair Pivot Bolt Kit with Brass Load Bearing Washer
This pivot bolt kit is a precision replacement component used in Leggett & Platt recliner mechanisms, particularly the 41T system commonly found in La Z Boy 2 button lift chairs.
Designed to restore smooth and stable movement, this kit replaces worn or damaged pivot points within the mechanism linkage. Rather than replacing the entire mechanism, you can repair the specific worn joint and get your recliner functioning properly again.
The brass load bearing washer provides a durable and smooth rotation surface between moving metal components, helping reduce friction, minimise noise, and extend the life of your recliner mechanism.
Restore Smooth, Stable Lift Chair Movement
Over time, pivot points within the mechanism can wear, loosen or become noisy due to worn washers or bushings. This can lead to movement issues such as wobble, knocking sounds or uneven operation when reclining or lifting.
Replacing worn hardware with this kit helps restore smooth and stable movement by tightening up the joint, reducing excess play and protecting surrounding components from further wear. In many cases, replacing these small parts can resolve issues without needing to replace the entire mechanism.
Original Style Brass Washer Design
This kit features the original design configuration used on older 41T and 41TT mechanisms, which includes a brass load bearing washer. This design provides smooth operation within the pivot joint and helps reduce wear between moving components.
The brass washer works together with the spacer bush to minimise friction and maintain consistent movement through the full range of motion of the mechanism.
Also Available – Nylon Washer Version
We also stock the current version of this kit which uses a nylon load bearing washer, however these two versions are not interchangeable.
This original design kit (brass load bearing washer) is suited to mechanisms with a linkage hole size of approximately 12.7mm. The newer nylon washer version is designed for mechanisms with a larger linkage hole size of approximately 15.8mm.
If your mechanism has the larger hole size, you will need the current version which you can view here: new Leggett & Platt La Z Boy pivot bolt kit (click here).
It is important to check the hole size in your mechanism linkage before ordering to ensure you select the correct version. If you are unsure which kit you require, feel free to contact us with a photo and we can help you identify the right replacement.
DIY Friendly – Replace It Yourself and Save
This is a simple repair that can be completed with basic hand tools such as a spanner or socket set. No specialised skills are required, and most replacements can be done in a short amount of time.
By replacing worn pivot hardware yourself, you can avoid the cost of a full mechanism replacement or service call. With our support, guides and advice available, you can confidently carry out the repair and enjoy the satisfaction of fixing it yourself.
If you need any help identifying the correct part or guidance with your repair, feel free to contact our team — we’re here to help you every step of the way.
Technical Specifications
Technical Specifications
Technical Specifications (Approximate)
| Compatibility | Leggett & Platt 41T and 41TT mechanisms (older style), commonly used on La Z Boy 2 button lift chairs |
| Required Linkage Hole Size | Approx. 12.7mm diameter |
| Shoulder Pivot Bolt | 14mm hex head (requires 14mm spanner or socket) Total length: 36mm Thread length: 19mm Shoulder (smooth section): 7mm Finish: Black |
| Brass Load Bearing Washer | Outer diameter: 22mm Inner diameter: 9mm Thickness: 6mm Material: Brass |
| Nylon Washer | Outer diameter: 25mm Inner diameter: 10mm Thickness: 1.5mm Material: Nylon |
| Lock Nut | 12mm hex (requires 12mm spanner or socket) Nyloc locking type Finish: Silver |
| Important Fitment Note | Designed for approx. 12.7mm linkage holes only Not compatible with 15.8mm pivot systems All measurements are approximate |
How To
How To
How To Install – Pivot Bolt Kit Replacement
- Take a Photo Before You Start
Before removing anything, take a clear photo of the existing pivot bolt setup. This will help you reference the correct orientation and assembly when installing the new parts. - Disconnect Power and Prepare the Area
If working on an electric recliner or lift chair, unplug it from the power source. Position the chair to give yourself safe and easy access to the mechanism. - Use Safe Lifting Techniques
Recliners can be heavy and awkward to handle. Always use proper lifting techniques, get assistance if needed, and ensure the chair is stable before working underneath or around moving parts. - Remove the Old Pivot Bolt
Using a 14mm spanner or socket on the bolt head and a 12mm spanner on the lock nut, carefully remove the existing pivot bolt assembly. Take note of how the washers and components are positioned. - Inspect the Linkage Hole
Check that the linkage hole is approximately 12.7mm and free from excessive wear or damage. Clean away any debris before installing the new components. - Install the New Pivot Bolt Kit
Insert the new shoulder bolt through the linkage, positioning the brass load bearing washer and nylon washer as per your reference photo. Ensure the smooth shoulder section aligns with the pivot point. - Tighten the Lock Nut
Secure the assembly using the supplied lock nut. Tighten firmly, but do not overtighten, as the joint must be able to rotate freely on the shoulder and washer. - Test the Movement
Carefully move the recliner mechanism through its range of motion to ensure smooth operation. Reconnect power if applicable and perform a full function test.
If you’re unsure about any step or need help identifying the correct setup, feel free to contact our team for guidance. We’re here to help you complete your repair with confidence.
What's in the Box
What's in the Box
What’s Included In The Box

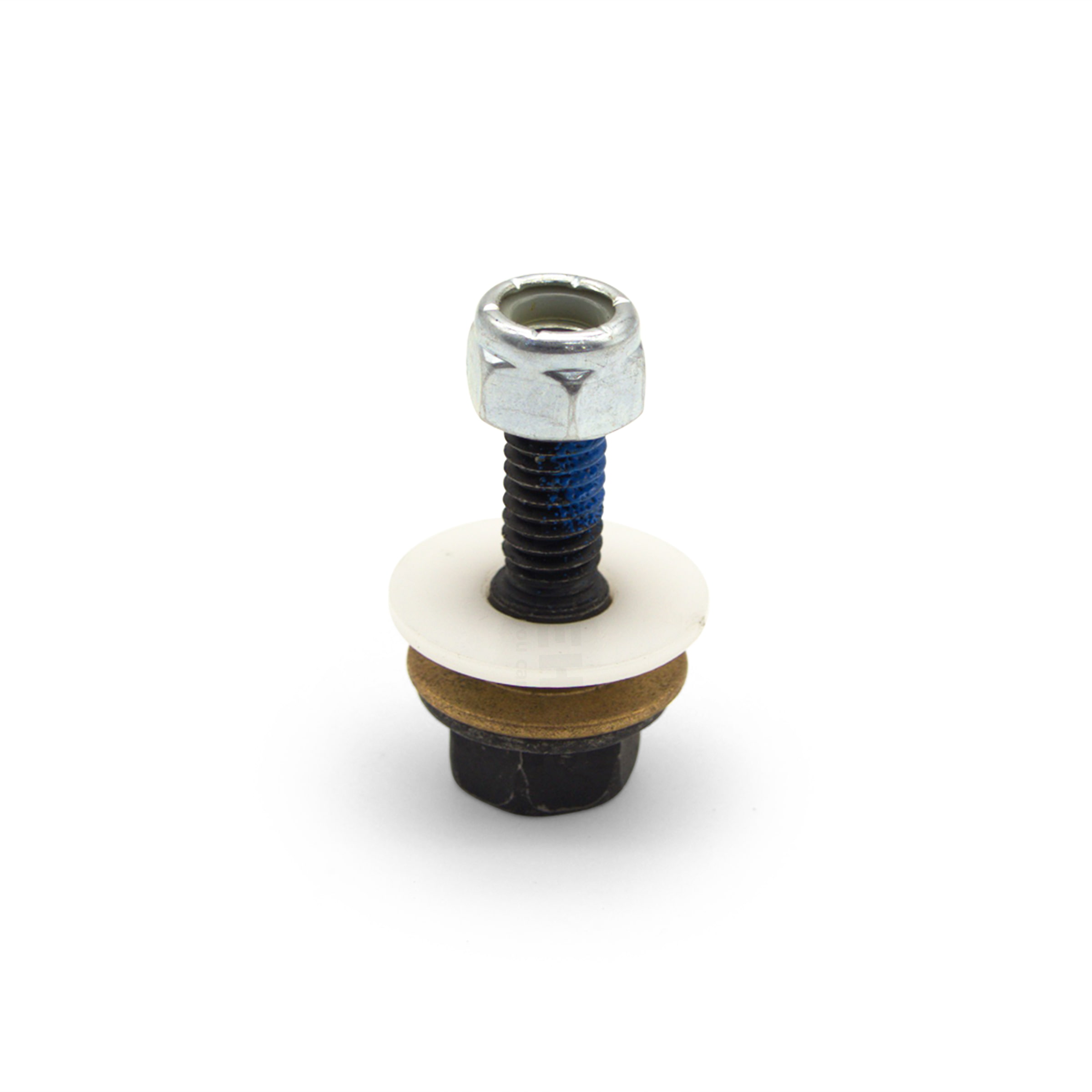

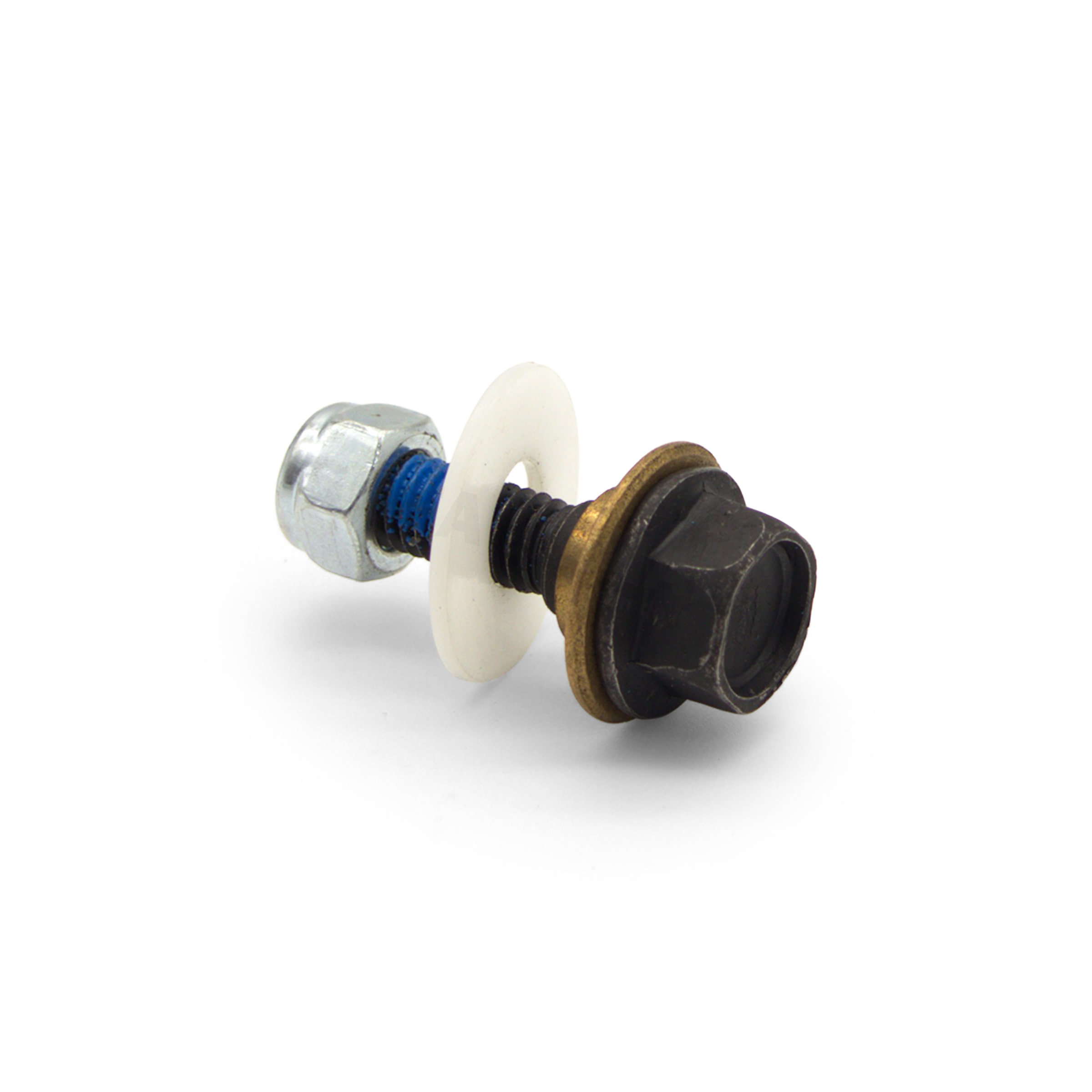

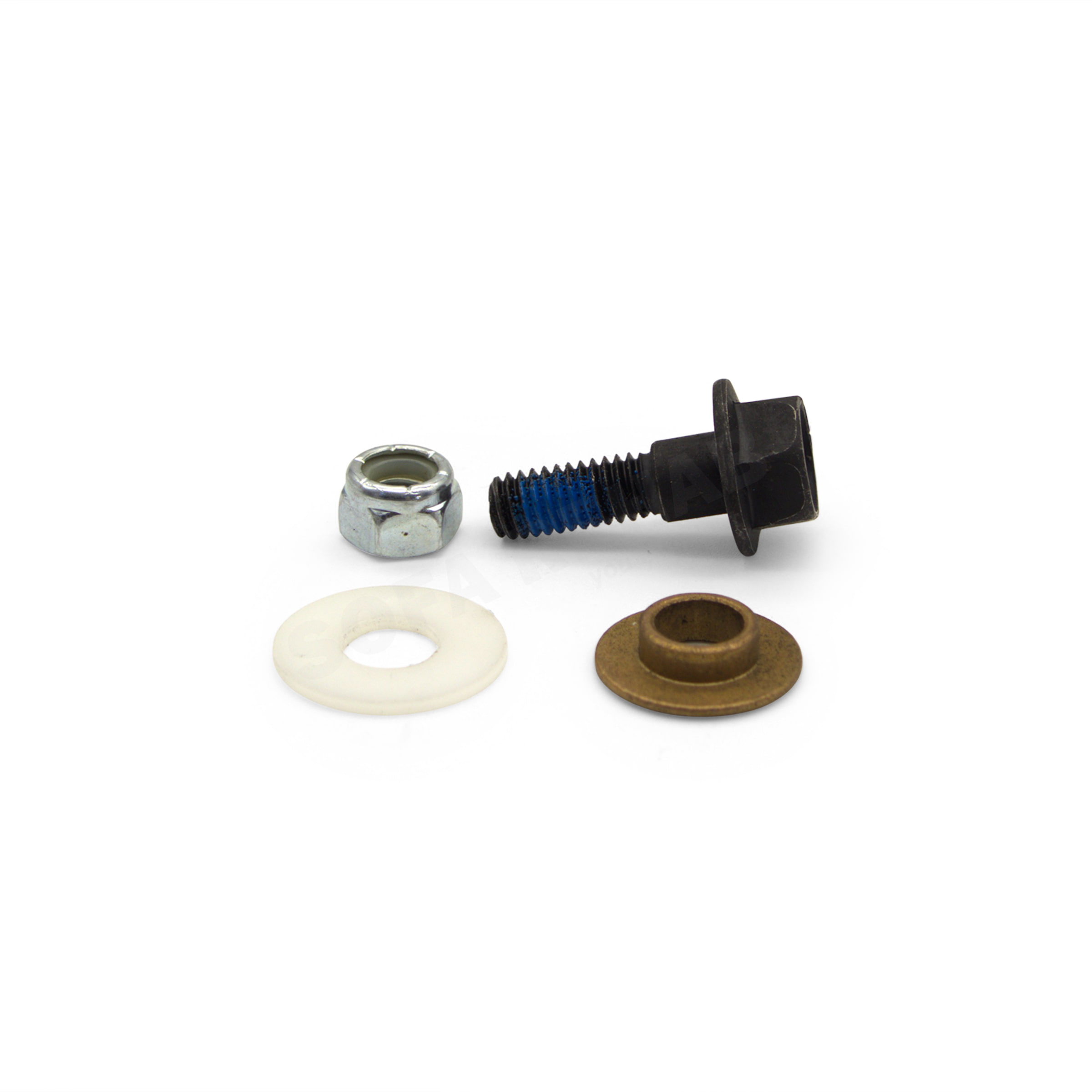

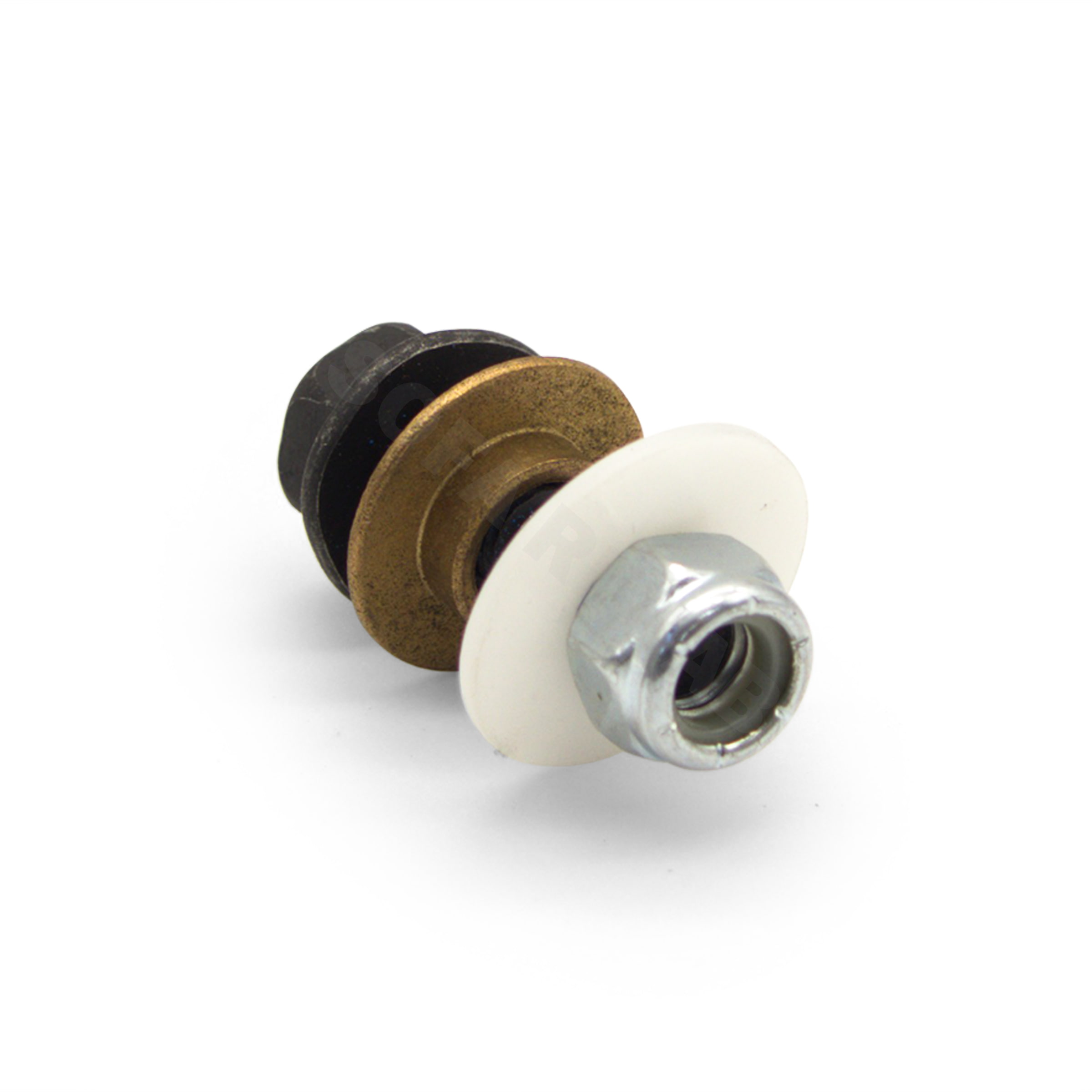

- 1 × Shoulder Pivot Bolt (Black, 14mm hex head)
- 1 × Brass Load Bearing Washer
- 1 × Nylon Washer
- 1 × Nyloc Lock Nut (Silver, 12mm hex)
All components required to replace a single pivot point on your recliner mechanism are included in this kit.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How do I know if this pivot bolt kit is the correct size?
This kit suits mechanisms with a linkage hole of approximately 12.7mm. If your hole measures closer to 15.8mm, you will need the newer style pivot kit instead. Measuring before ordering is strongly recommended.
What problems does this kit fix?
This kit is used to repair worn pivot joints within the mechanism. It can help fix issues such as wobble, loose movement, clicking or knocking noises, and uneven lifting or reclining.
Are the 12.7mm and 15.8mm pivot bolt kits interchangeable?
No, they are not interchangeable. Each kit is designed for a specific linkage hole size and pivot design. Using the wrong size will result in poor fitment or failure to install correctly.
What type of recliners is this kit used on?
This kit is commonly used on Leggett & Platt 41T and 41TT mechanisms, often found in La Z Boy 2 button lift chairs and similar electric recliners.
Is this a difficult repair to do myself?
Not at all. This is a straightforward DIY repair that most people can complete in a short amount of time. Taking a photo before removal helps ensure everything goes back together in the correct order.
