New Leggett & Platt La Z Boy Pivot Bolt Kit
$19.99
In stock
Replacement nut, bolt and washer kit for Leggett & Platt 41T and 41TT lift chair mechanisms, also compatible with many La Z Boy 2 button lift chairs. This is the current nylon washer design and suits mechanisms with a 15.8mm linkage hole. Includes a high-tensile bolt, nyloc nut and nylon washers, designed to restore smooth movement and reduce play in worn pivot joints. 41T / 41TT Lift Chair Pivot Bolt Kit. Current design kit featuring a nylon load bearing washer for smooth, quiet operation. Suitable for many La Z Boy lift chairs using these industry standard mechanisms. Need Another Size or Recliner Spare Part? We stock a wide range of recliner hardware including actuator moving blocks, clevis tips, power recliner cables and complete replacement motors. Browse our comprehensive range of recliner spare parts (click here) or contact us if you need assistance finding the right item. read more
In stock
Description

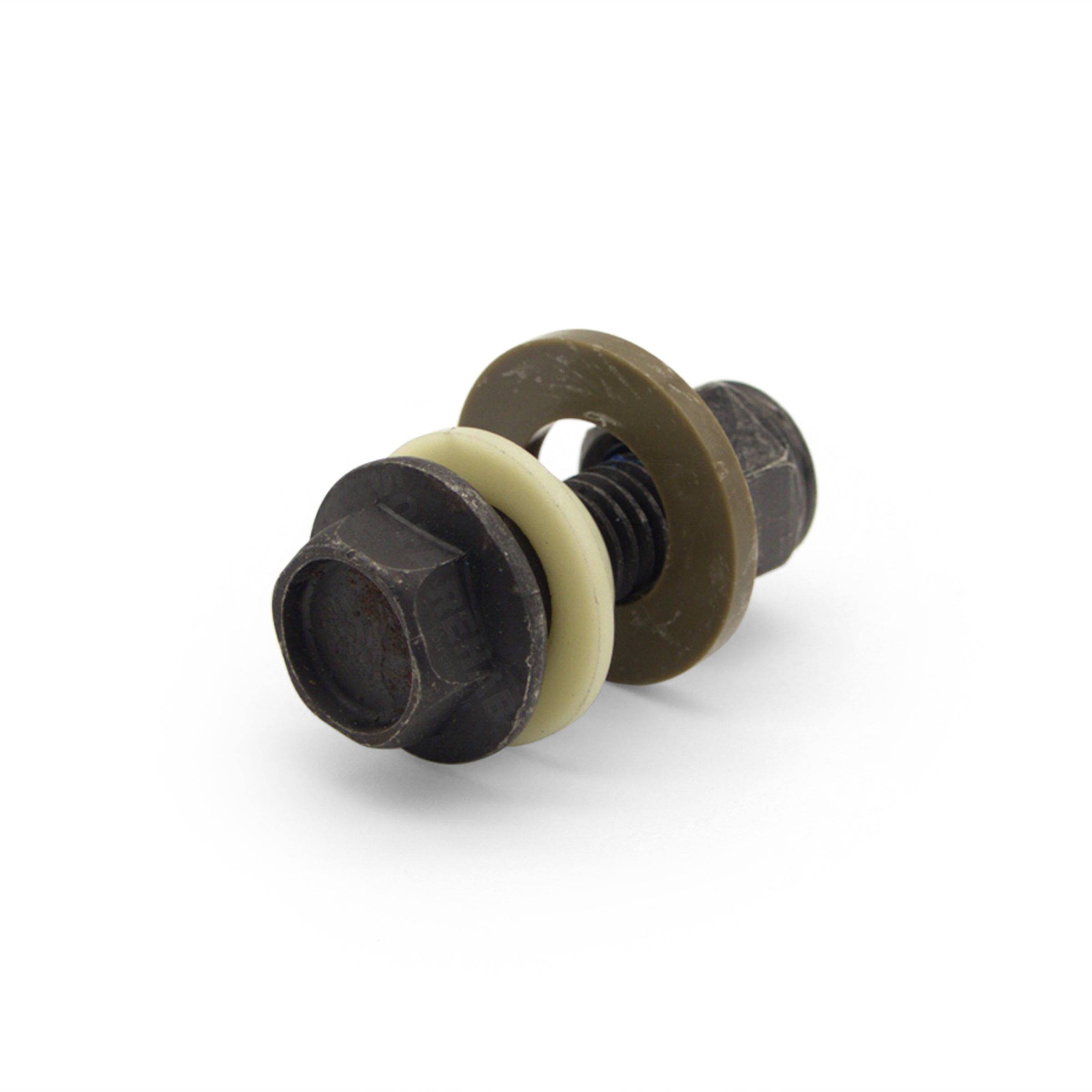

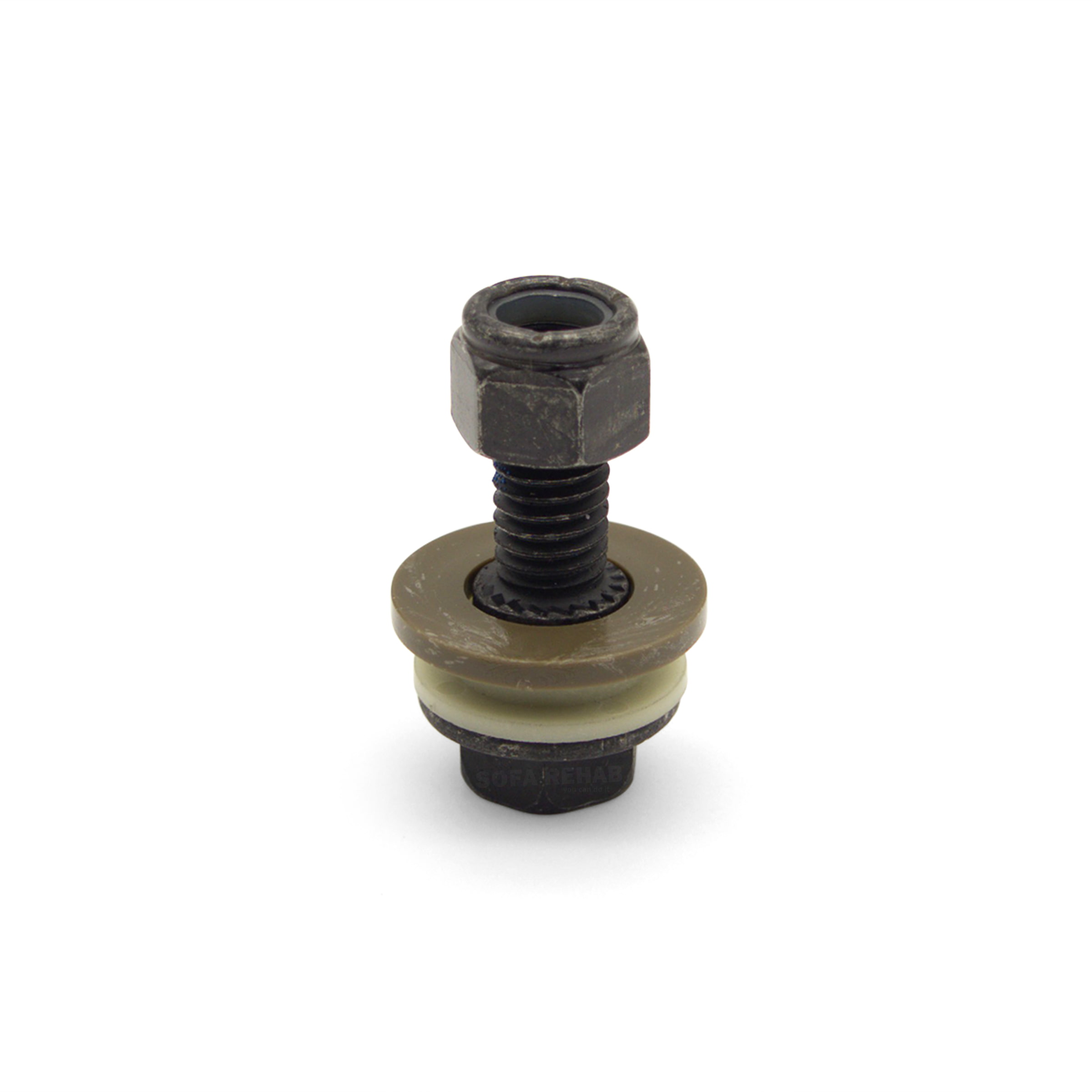

41T / 41TT Lift Chair Pivot Bolt & Washer Kit
This replacement nut, bolt and washer kit is designed for use on Leggett & Platt 41T and 41TT lift chair mechanisms, and is also compatible with many La Z Boy 2 button lift chairs that use the same industry standard mechanism. It is used in the pivot joints of the mechanism where smooth, controlled movement is essential for proper recline and lift function.

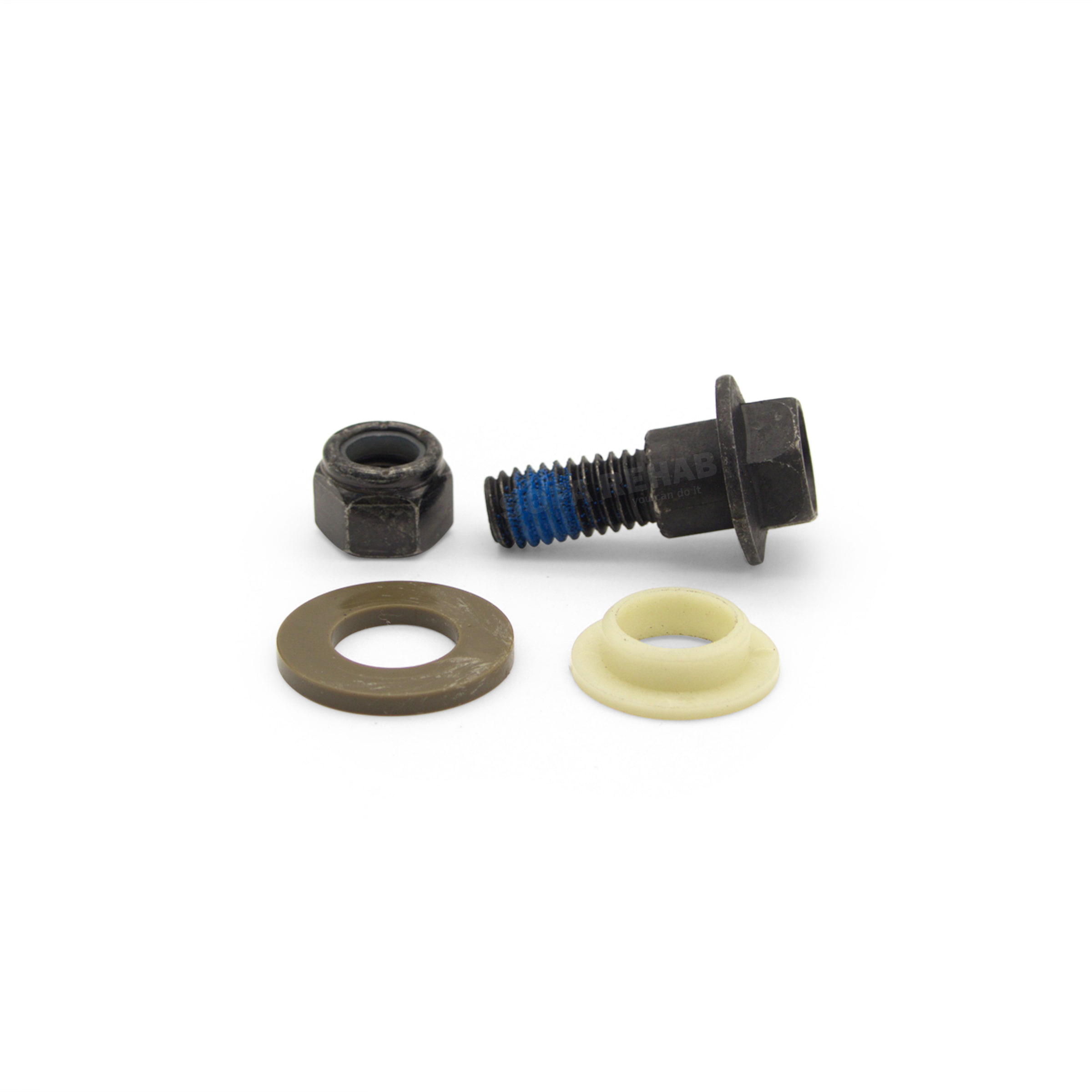

The kit includes a high-tensile bolt, nyloc locking nut, nylon spacer bush and nylon load bearing washer, all working together to maintain correct alignment, reduce friction and ensure reliable operation in high-use linkage points.
Restore Smooth, Stable Lift Chair Movement
Over time, pivot points within the mechanism can wear, loosen or become noisy due to worn washers or bushings. This can lead to movement issues such as wobble, knocking sounds or uneven operation when reclining or lifting.
Replacing worn hardware with this kit helps restore smooth and stable movement by tightening up the joint, reducing excess play and protecting surrounding components from further wear. In many cases, replacing these small parts can resolve issues without needing to replace the entire mechanism.
New Style Nylon Washer Design

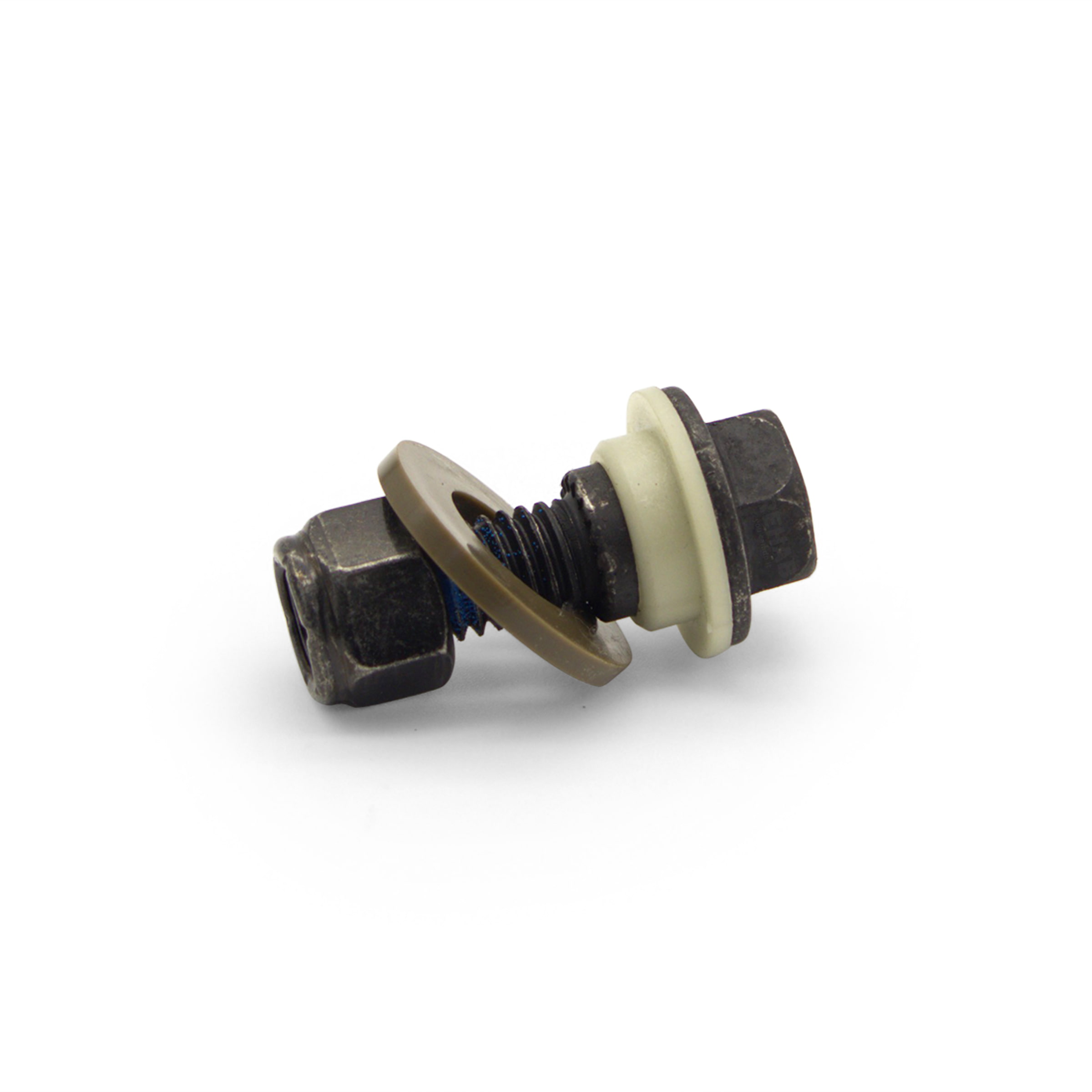

This kit features the current design configuration used on modern 41T and 41TT mechanisms, which includes a nylon load bearing washer. This design provides smooth operation within the pivot joint and helps reduce wear between moving components.
The nylon washer works together with the spacer bush to minimise friction and maintain consistent movement through the full range of motion of the mechanism.
Also Available – Older Brass Washer Version (Different Size)
We also stock the older style version of this kit which uses a brass load bearing washer, however these two versions are not interchangeable.
This current design kit (nylon load bearing washer) is suited to mechanisms with a linkage hole size of approximately 15.8mm. The older brass washer version is designed for mechanisms with a smaller linkage hole size of approximately 12.7mm.
If your mechanism has the smaller hole size, you will need the older version which you can view here: old Leggett & Platt La Z Boy pivot bolt kit (click here).
It is important to check the hole size in your mechanism linkage before ordering to ensure you select the correct version. If you are unsure which kit you require, feel free to contact us with a photo and we can help you identify the right replacement.
DIY Friendly – Replace It Yourself and Save
This is a simple repair that can be completed with basic hand tools such as a spanner or socket set. No specialised skills are required, and most replacements can be done in a short amount of time.
By replacing worn pivot hardware yourself, you can avoid the cost of a full mechanism replacement or service call. With our support, guides and advice available, you can confidently carry out the repair and enjoy the satisfaction of fixing it yourself.
If you need any help identifying the correct part or guidance with your repair, feel free to contact our team — we’re here to help you every step of the way.
Technical Specifications
Technical Specifications
| Product Type | Nut, bolt and nylon washer kit for lift chair mechanism pivot joints |
|---|---|
| Compatible Mechanisms | Leggett & Platt 41T and 41TT lift chair mechanisms |
| Compatible Chairs | Suits many La Z Boy 2 button lift chairs using 41T or 41TT mechanisms |
| Required Linkage Hole Size | 15.8mm (this is the current nylon washer version – not compatible with 12.7mm brass washer version) |
| Bolt Colour | Black |
| Bolt Head Size | 14mm |
| Bolt Overall Length | 37mm |
| Bolt Thread Length | 19mm |
| Bolt Shoulder Thickness | 9mm |
| Lock Nut Size | 14mm |
| Standard Nylon Washer | 25mm outside diameter, 13mm hole diameter, 2.5mm thickness |
| Nylon Load Bearing Washer | 22mm outside diameter, 12.6mm hole diameter, 6mm thickness |
| Tools Required | 14mm spanner, socket set or equivalent hand tool |
How To
How To
How To Install – Lift Chair Pivot Bolt & Washer Kit
Replacing your lift chair pivot bolt kit is a straightforward DIY repair that can be completed with basic hand tools. Before you begin, take a clear photo of the existing setup so you can use it as a reference when installing the new components.
For safety, ensure the chair is switched off and unplugged. Carefully position the chair to access the mechanism and always use safe lifting techniques when tilting or moving the chair, as lift chairs can be heavy.
- Locate the worn pivot joint: Identify the bolt assembly that needs replacing. Compare it with your new kit to confirm it’s the correct position.
- Remove the old hardware: Using a 14mm spanner or socket, loosen and remove the existing nut and bolt. Keep note of the order and orientation of washers and bushings.
- Inspect the area: Check the surrounding linkage arms for wear or damage before installing the new parts.
- Install the new bolt: Insert the new bolt through the pivot point, ensuring the nylon spacer and washers are positioned correctly (refer to your photo if needed).
- Fit the load bearing washer: Place the nylon load bearing washer over the shoulder section of the bolt where required.
- Secure with the lock nut: Thread the nyloc nut onto the bolt and tighten using your 14mm tools. Tighten firmly but do not overtighten, as the joint must still pivot freely.
- Test the movement: Manually move the mechanism to ensure smooth operation before returning the chair to its normal position.
Once installed, plug the chair back in and test the lift and recline functions. If you need any assistance during installation, feel free to contact our team for guidance.
What's in the Box
What's in the Box
- 1x Black Shoulder Pivot Bolt – 14mm hex head, approx. 36mm total length, 19mm thread length and 7mm smooth shoulder section.
- 1x Brass Load Bearing Washer – approx. 22mm outer diameter, 9mm inner hole and 6mm thickness. Suits approx. 12.7mm mechanism linkage holes.
- 1x Nylon Washer – approx. 25mm outer diameter, 10mm inner hole and 1.5mm thickness.
- 1x Silver Lock Nut – 12mm hex nut for securing the pivot bolt assembly.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How do I know if this kit will fit my lift chair?
This kit is designed for Leggett & Platt 41T and 41TT mechanisms, which are commonly used in many La Z Boy 2 button lift chairs. If your chair uses one of these mechanisms, this kit is likely suitable. If you're unsure, feel free to contact us with photos and we can help confirm.
What problems does this kit fix?
This kit is used to repair worn pivot joints within the mechanism. It can help fix issues such as wobble, loose movement, clicking or knocking noises, and uneven lifting or reclining.
Is this the same as the original hardware in my chair?
This is the current design used on modern 41T and 41TT mechanisms, featuring a nylon load bearing washer and requiring a 15.8mm linkage hole. Some older mechanisms use a brass washer version with a smaller 12.7mm hole, and the two are not interchangeable. If you're unsure, check your hole size or contact us for help identifying the correct version.
Do I need any special tools to install this?
No special tools are required. A 14mm spanner or socket set is all you need to remove and install the bolt and nut.
Is this a difficult repair to do myself?
Not at all. This is a straightforward DIY repair that most people can complete in a short amount of time. Taking a photo before removal helps ensure everything goes back together in the correct order.
