Electric Recliner Spare Parts, Leads/Plugs
Actuator Two Plug Wiring Harness
$35.00
In stock

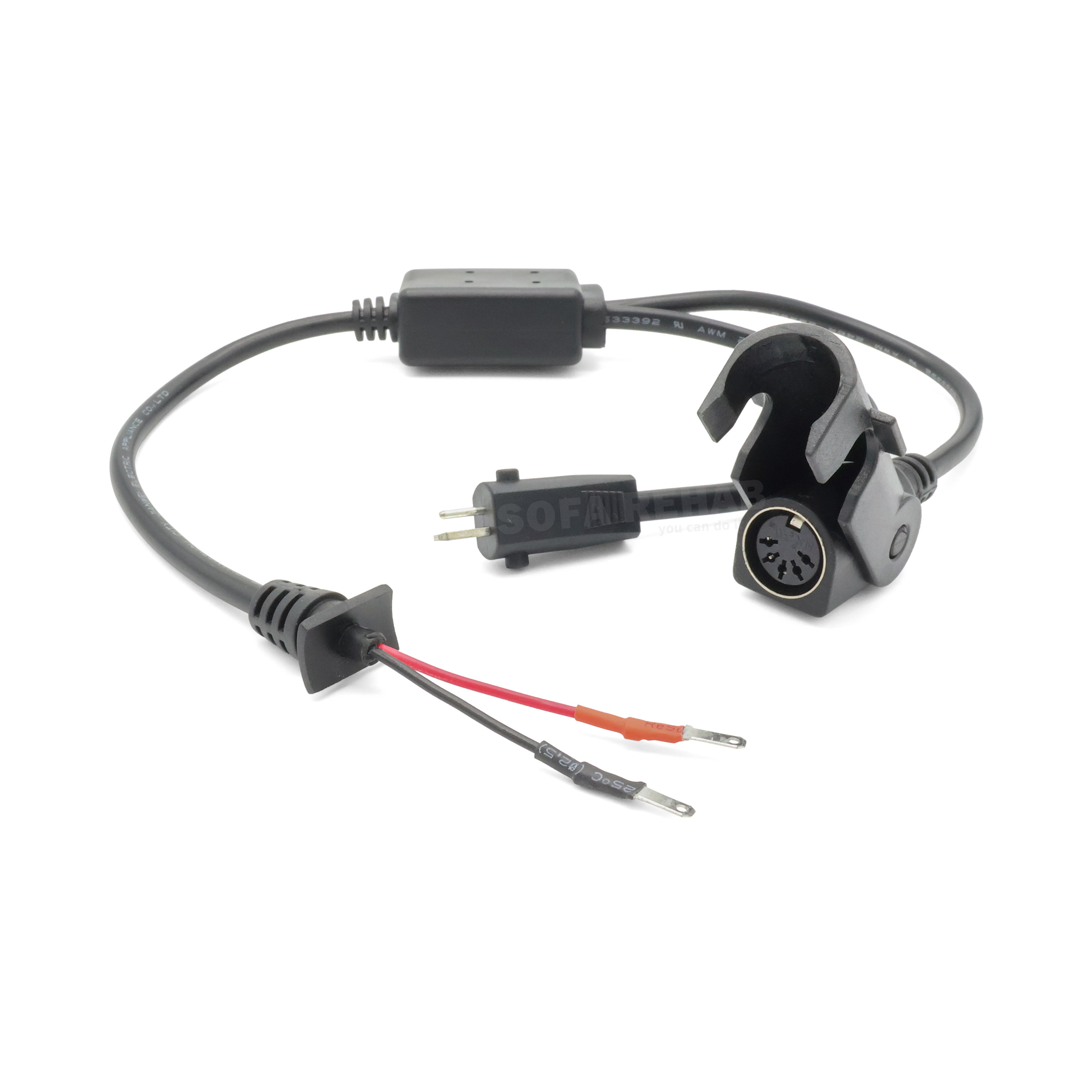

Replacement actuator motor 2 plug wiring harness cable is commonly used to replaced damaged, cut, crushed or faulty single actuator leads on electric recliner chairs, sofa and theatre lounges. Manufactured with 1x male 2 pin Hi-FI plug and 1x female 5 pin din plug connection and 2x motor cables red and black to connect to the motor wiring. This is not a DIY repair. Single Actuator Wiring For Electric Recliners. Has your motor cable has been crushed, cut, damaged or stretched breaking the connections? This harness may fix the issue! Standard Length To Suit All Applications. This part should only be installed by a qualified trades person like an electrician. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
Standard Single Actuator Wiring Harness
A high quality replacement electric recliner chair and sofa single actuator wiring cable harness used to replace damaged cables coming out of the actuator and connecting the power supply and remote/switch/cupholder to the actuator. If your recliner has a 2 pin AC/DC power supply and 5 pin plug from the controller this potentially is the harness for your actuator.
Need A Cable With 1, 3 or 4 Plugs?
We stock many different styles of cables, plugs and cords to suit various electric recliners found on the market. So if you are looking for a wiring harness with 1, 3 or 4 connection plugs please look here to see our full range of replacement leads and plugs.
This Is Not A Universal Cable
Please note this cable is not a universal type and therefore you would need to check our pictures and specifications against the broken actuator to confirm compatibility.
Recommended To Be Installed By Qualified Persons Only!
This spare part is not a DIY repair. To correctly and safely install this part requires a suitably qualified trades person such as an electrician.
Technical Specifications
Technical Specifications
Make – Unbranded.
Model – Single actuator motor two plug wiring harness.
Plug Types – Female 5 pin din plug with retaining clasp and male OI pin and straight spade also know as Hi-Fi or OI plug plus 1 x red and black pin terminals.
Operation – 2 pin is the power plug from the AC/DC transformer and the 5 pin din is to connect the switch, remote controller or cupholder.
Length- 420mm from strain relief moulding to end of 5 pin din plug.
How To
How To
DO NOT ATTEMPT TO INSTALL THIS PART IF YOU ARE NOT QUALIFIED!
1, Discount power supply to the electric recliner and check NO power is getting to the recliner parts
2, Locate the actuator and note how the actuator is assembled and take a photograph for future reference
3, Unplug the power supply and switch/remote/cupholder plug and remove actuator from the furniture
4, Remove motor housing, cover or fixtures of actuator assembly to locate the wiring terminals and disconnect
5, Install replacement harness by connecting the red and black pin connectors
6, Reassemble the housing, cover or fixtures ensuring no wires are trapped and the cable strain relief is correctly fitted
7, Refit the actuator to the furniture and secure in place
8, Reconnect the power supply plug and switch/remote/cupholder plug
9, Reinstate the mains power and turn on
10, Test the actuator for full clearance of any obstacles or trapped cables.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Will this fit my actuator?
This is not a universal actuator wiring harness, it is suitable for single actuators only and will not allow connection to a second actuator. The rubber strain relief moulding may be different from the original so therefore be a little looser or tighter.
Is this a DIY project?
As this is an electrical replacement cable that requires wiring to be reconnected please check with your local authority as to whether this needs to be installed by an appropriately qualified trades person like an electrician. We do not recommend installing this part if you are not qualified.
What plugs are supplied ?
1 x power supply male 2 pin also know as HI-FI and OI and a female 5 pin female switch,/remote plug and retaining clip at one end and the connection end to the actuator is 1 x red and 1 x black terminals.
If I need more plugs what do I do?
You will need to look back at our website and search for the LEADS/PLUGS section where we sell other configurations.
