Electric Recliner Spare PartsRecliner Button Switches

eMoMo HX90A Electric Recliner Switch

$48.00

In stock

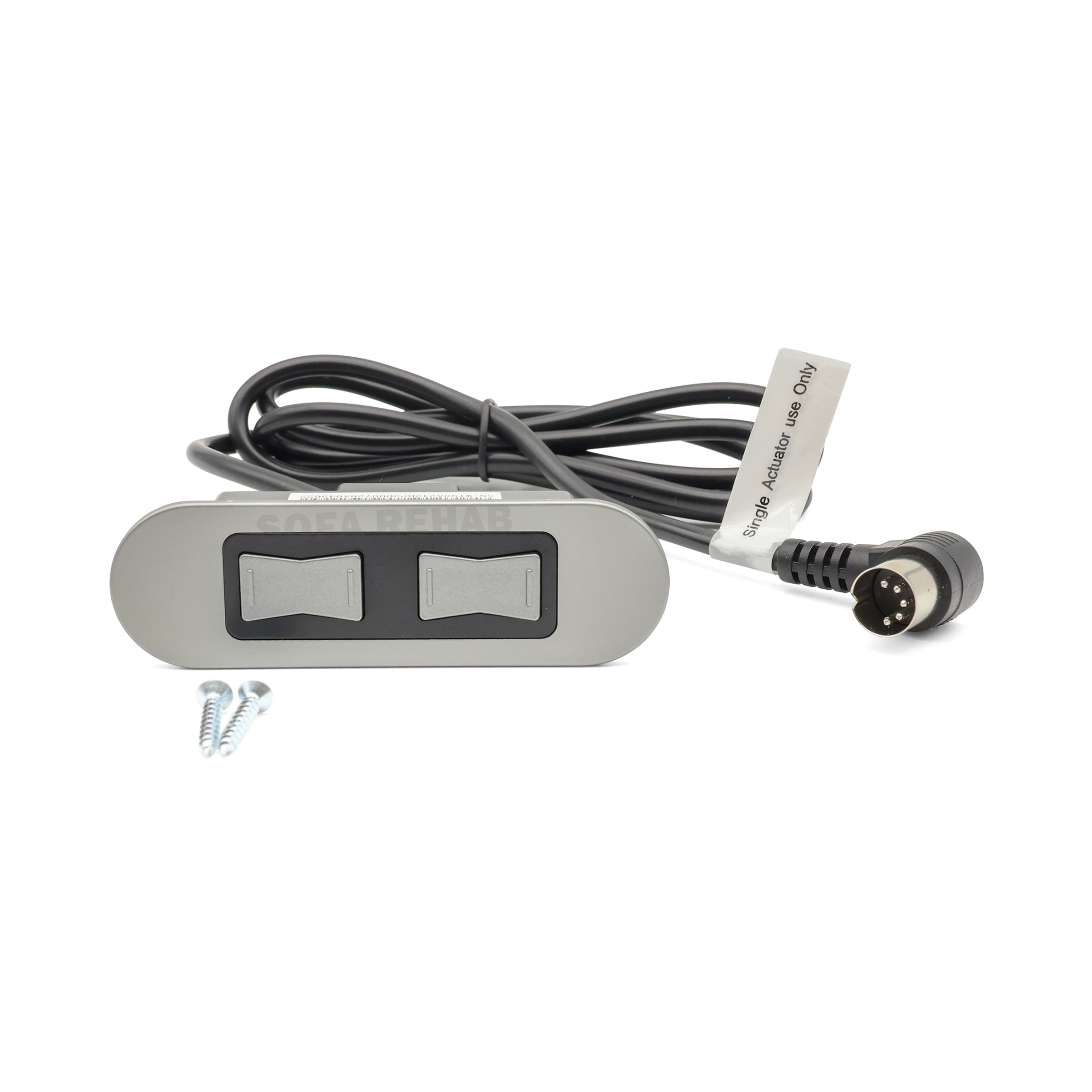

A genuine replacement eMoMo universal electric recliner switch. A sleek silver coloured metal oval 2 button electric recliner switch with no USB port. Universal power recliner switch suitable for power recliner chairs and sofas with the switch fitted on either side. Model number HX90A and has the serial number starting SN:WT90A or SN:E90A. 2 Button Power Recliner Switch with USB. eMoMo 2 Button recliner switch used to operate a single footrest actuator on most electric recliners. Not the Switch Your Looking For? We stock all the popular recliner switches (click here). If you are still not sure which replacement power recliner chair or sofa switch is right for you please contact our helpful team. read more

SKU:
E-SWIT280
Brand:
eMoMo Tech
Weight
0.11 kg
Dimensions
16.5 × 10 × 5 cm
USB Port

Without USB

Description

eMoMo Power Recliner Switch with USB

Commonly fitted to the outer arm of electric recliner chairs and sofas having a removable screw cover, it allows for an aesthetically pleasing design and offers a discreet appearance. Our sleek, robust and compact oval 2 button power recliner switch with no USB charging port fits most recliner chairs and sofas needing to operate a single footrest mechanisms on the market today.

eMoMo Recliner Switch Replacement

Model number HX90A.  This version of power recliner switch is fitted to either side of the recliner and designed to operate a single footrest actuator only. This model is commonly found on many brands.

We're Australia's Leading Supplier of Recliner Chair Spare Parts

We’re Australia’s leading supplier for repair kits and spare parts. Get the lowest prices on DIY repairs and if your a trades person who needs to buy in bulk, we also offer bulk buy discounts.

Save Time & Money and Do It Yourself

Easy fitting in under 15 minutes with no experience required. The only tool required is a screwdriver.

Technical Specifications

Technical Specifications

Make – eMoMo Tech.
Model Number –HX90A.

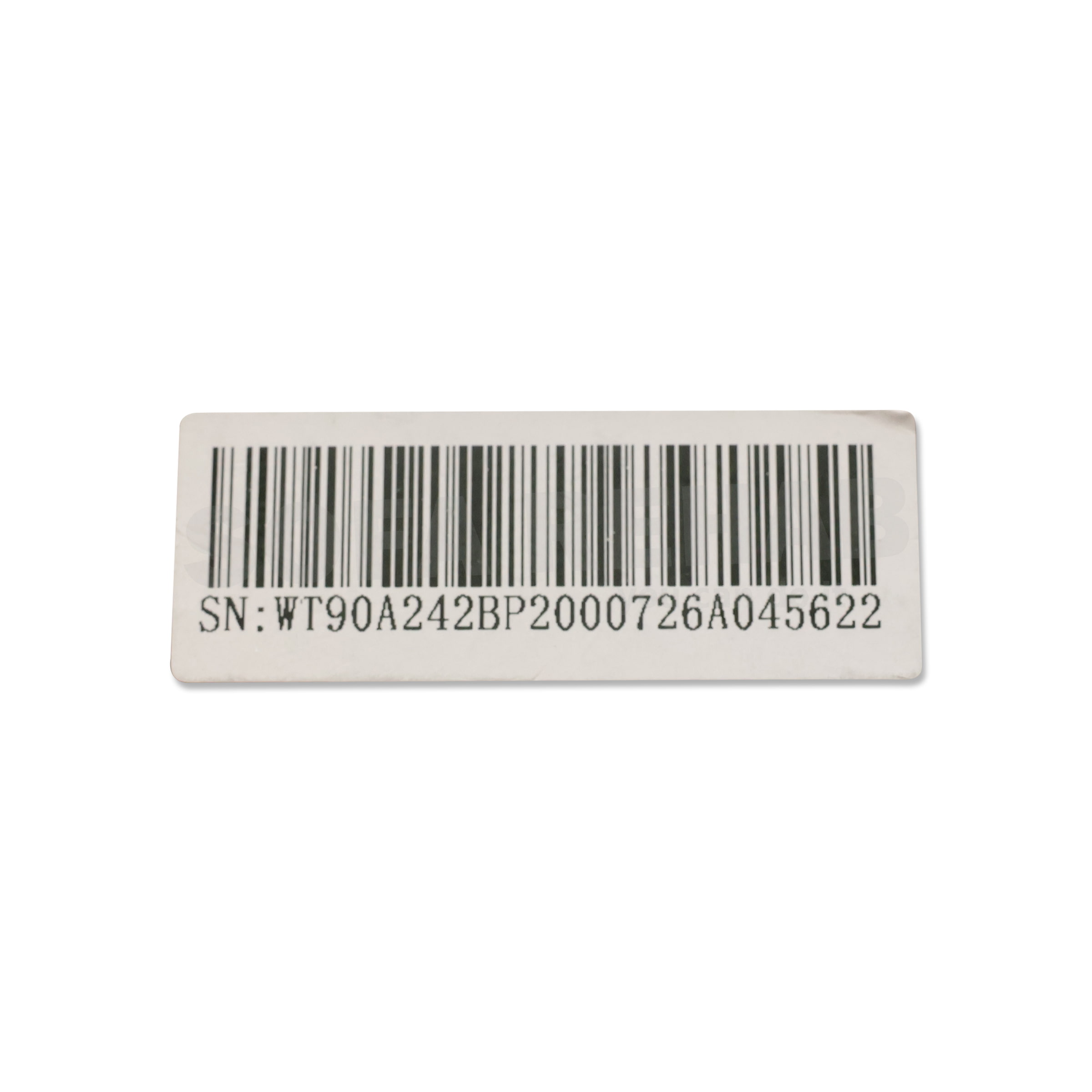

Serial Number- SN:WT90A##### or SN:E90A#####.
Function –Front button opens the footrest and the rear  button closes the footrest.
Location –Universal, can be installed to either left or right sides.

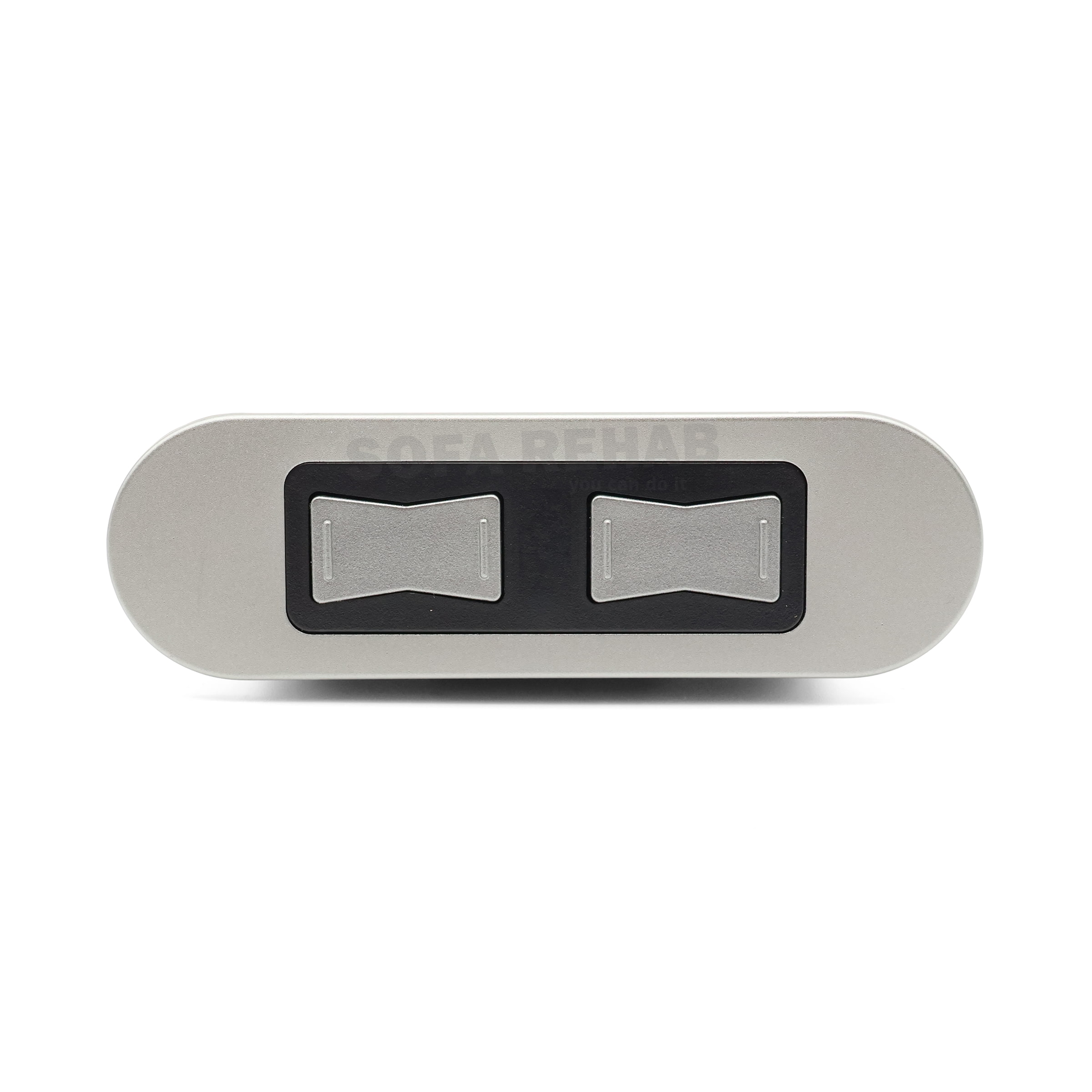

Colour –Silver.
Material –Plastic housing and metal fascia.

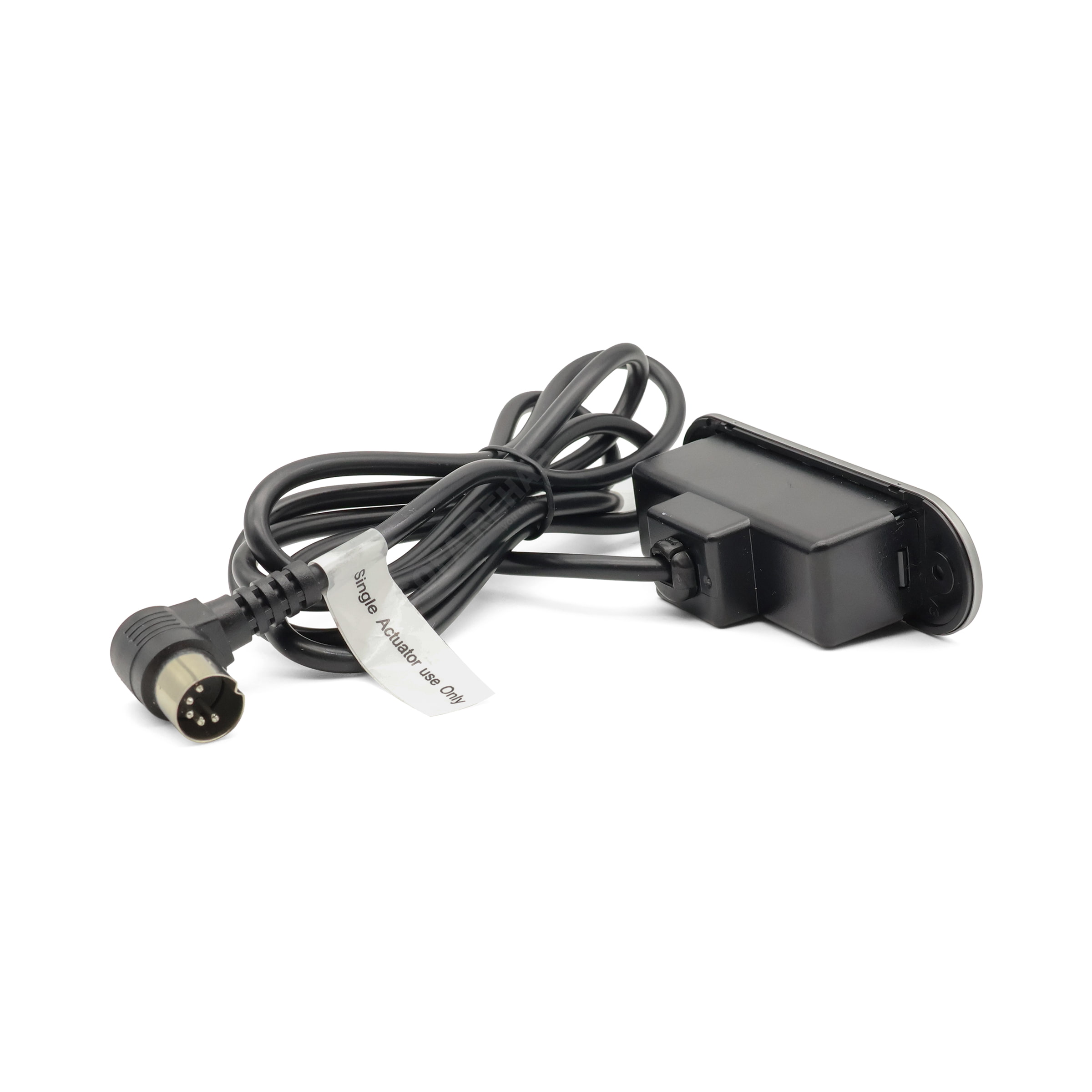

Plug –90° male 5 pin din plug.
Dimensions – External fascia is Width 101mm, Depth 31mm. Thickness including housing and buttons is 29mm. Cable length is 1485mm including the plug.

How to

How to

  1. Unplug all power to the recliner and remove the mains plug from the wall socket.
  2. Lay down a drop sheet on the floor in front of the recliner chair.

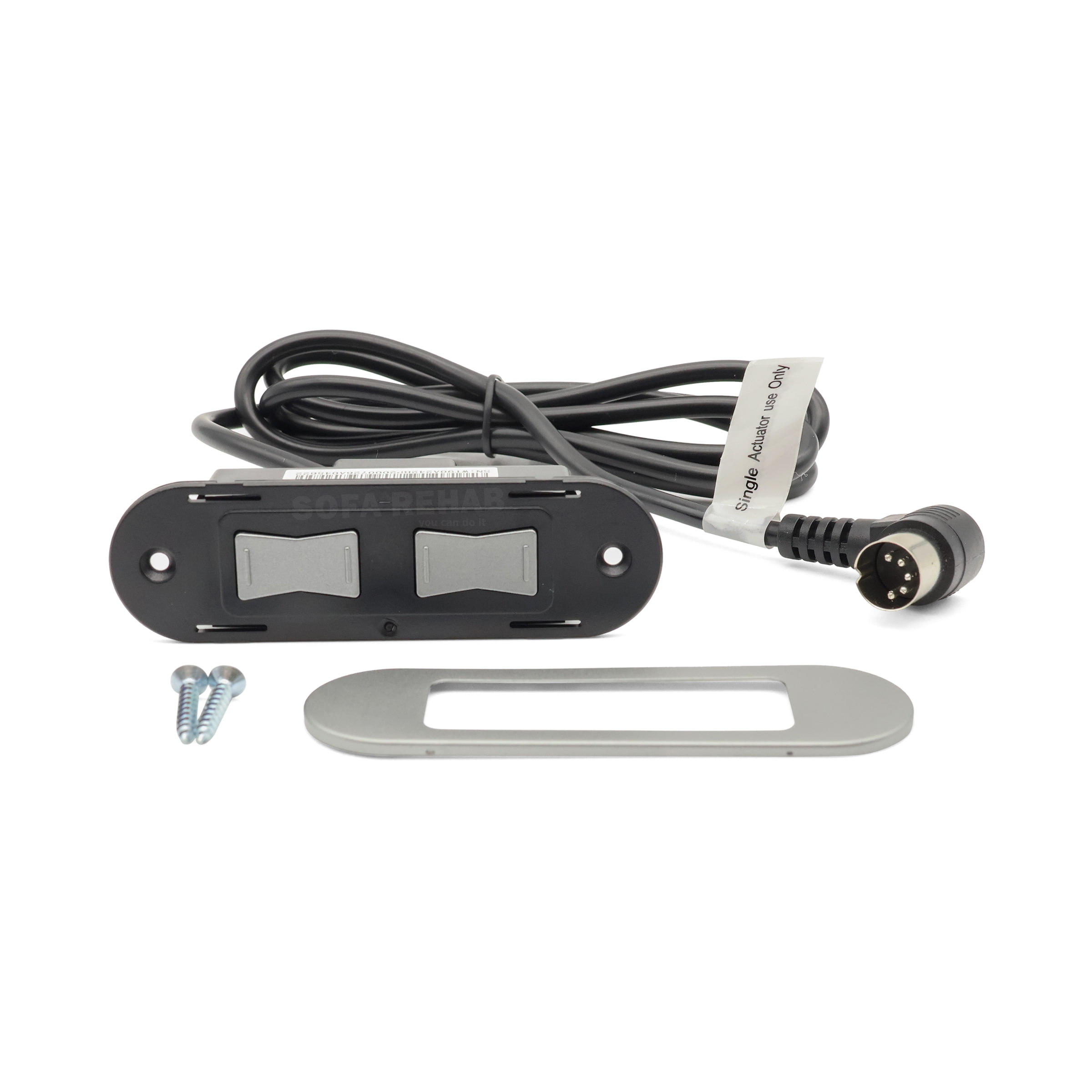

  3. Unclip the metal outer screw cover off to expose the 2 screws.
  4. Remove the screws and then pull out the switch casing to allow it to hang freely by its cable.
  5. Carefully turn the recliner over on its front side to gain access to the recliner wiring underneath.
  6. Locate where the original cabling currently fits and make notes of how it’s routed (recommended to take a photo).
  7. Cut and remove any cable ties holding the switch in place then unplug it from the actuator motor.
  8. You should be able to remove fully the broken switch from the recliner.
  9. Feed the replacement switch through the outside arm plug first until the switch housing is snug into the arm hole.
  10. Secure any free cabling into the same position as the original using cable ties, be sure to check the cable is not caught up and not too tight or at risk of being trapped during motion.
  11. Carefully turn the recliner back over to the standing position.
  12. Angle the switch rotation first and then work on screwing in the 2 housing screws for the toggle switch.
  13. Put the metal switch cover back on to hide the screws.
  14. Reconnect the power and switch it on.
  15. Test the replacement toggle switch by operating the recliner to its maximum opening and closed position. When fully open, look inside to see that the cabling is safely out of harms way and is not stretched or pinched.
  16. Test the USB charge port.

Reviews (0)

Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login

  • There are no reviews yet.

FAQs

FAQs

Will this work my recliner?

This switch is suitable for electric recliners with a single actuators/motors only and fits to either side of the recliner. You will also need to check your actuator accepts a 5 pin round din plug.

Will the switch suit left and right sides of the recliner?

Yes.

My switch looks the same will it still work?

The model number must be the same as ours to work. Model HX90A or Serial number on the barcode starts SN:WT90A###### or SN:E90######

Is this switch easy to fit ?

Yes, very simple and no experience is required. See our "How to " tab for detailed step by step instructions. We even supply the screws.

Does this switch have a USB port?

No.

Will this switch work the headrest or lumber?

No, this is suitable or single footrest actuators recliner only.

I am custom fitting a electric recliner mechanism will this switch work?

Yes, this is a universal single motor switch for general electric recliners.
