Electric Recliner Spare Parts, Recliner Button Switches

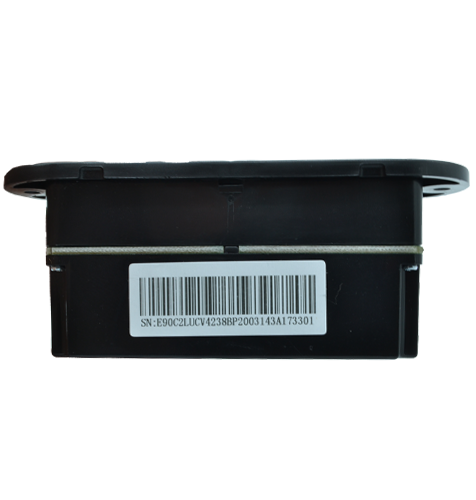

eMoMo Silver 2 Button Recliner Switch with USB
- Description
- Technical Specifications
- How to
- Reviews (0)
- FAQs
- Add a review
Description
eMoMo Power Recliner Switch with USB
Commonly fitted to the outer arm of electric recliner chairs and sofas having a removable screw cover, it allows for an aesthetically pleasing design and offers a discreet appearance. Our sleek, robust and compact oval 3 button power recliner switch with light button and USB charging port connects to eMoMo LED lights and cupholder lights.
Available and Left and Right Mounted Configurations
We offer this button controller switch in configurations for both left-hand side and right-hand side mounting. The designation of left or right is determined from the viewpoint of sitting in the electric recliner chair.
- Model number HX90C2LUCN – Is the button controller mounted to the left side.
- Model number HX90C2LUC – Is the button controller mounted to the right side.
We're Australia's Leading Supplier of Recliner Chair Spare Parts
We’re Australia’s leading supplier for repair kits and spare parts. Get the lowest prices on DIY repairs and if your a trades person who needs to buy in bulk, we also offer bulk buy discounts.
Save Time & Money and Do It Yourself
Easy fitting in under 15 minutes with no experience required. The only tool required is a screwdriver.
Technical Specifications
Technical Specifications
Make – eMoMo Tech.
Model Number –HX90C2LUCN
Function –Front button opens footrest, rear button closes the footrest and middle button is the light illumination button.
Location – Left hand side when seated in the recliner.
Colour –Silver.
Material –Plastic housing and metal fascia.
Plug –Straight Din 5 pin plug with retaining prongs.
Dimensions – External fascia is Width 103 mm, Depth 34 mm. Thickness including housing and buttons is 42 mm.
Main Cable – Length is 1450 mm maximum.
Blue Light Cable – Length is 800 mm.
Red Light Cable – Length is 790 mm.
How to
How to
- Unplug all power to the recliner and remove the mains plug from the wall socket.
- Lay down a drop sheet on the floor in front of the recliner chair.
- Unclip the metal outer screw cover off to expose the 2 screws.
- Remove the screws and then pull out the switch casing to allow it to hand freely by its cable.
- Carefully turn the recliner over on its front side to gain access to the recliner wiring underneath.
- Locate where the original cabling currently fits and make notes of how it’s routed (recommended to take a photo).
- Cut and remove any cable ties holding the switch in place then unplug it from the actuator motor, LED lights and cupholder.
- You should be able to remove fully the broken switch from the recliner.
- Feed the replacement switch through the outside arm plug first until the switch housing is snug into the arm hole.
- Connect the 3 plugs into the corresponding plugs securely.
- Secure any free cabling into the same position as the original using cable ties, be sure to check the cable is not caught up and not too tight or at risk of being trapped during motion.
- Carefully turn the recliner back over to the standing position.
- Angle the switch rotation first and then work on screwing in the 2 housing screws for the toggle switch.
- Put the metal switch cover back on to hide the screws.
- Reconnect the power and switch it on.
- Test the replacement toggle switch by operating the recliner to its maximum opening and closed position. When fully open, look inside to see that the cabling is safely out of harms way and is not stretched or pinched.
- Test the USB charge port and light features.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Will this work my recliner?
This switch is suitable for electric recliners with a single motor and fits to the left hand facing side of the recliner. You will also need to check your actuator accepts a 5 pin round din plug and 2 x 2 pin light plugs.
Does the USB port charge my device?
Yes, the USB has a 5V 2A power rating this may limit the size of the device you wish to charge. A smartphone, Ipad etc is okay however a laptop etc may be limited.
Will the switch suit left and right sides of the recliner?
It will only fit to the left hand side. If you need the left look at the model HX90C2LUC.
My switch looks the same will it still work?
The model number must be the same as ours to work. Model HX90C2LUCN.
Is this switch easy to fit ?
Yes, very simple and no experience is required. See our "How to " tab for detailed step by step instructions. We even supply the screws.
