Kaidi KDH120-001 Recliner Switch
$59.99
In stock
Kaidi KDH120-001 electric recliner switch, manufacturer part number 31100274(Y), with 4 button dual rocker controls and USB-A charging port. Suitable for left or right sided installation. Designed for dual actuator recliners with 2x male 5 pin DIN plugs featuring retaining clasp lugs. Includes removable silver fascia cover and mounting screws. Dual Motor Recliner Switch with USB Port. Controls two actuators independently and suits many electric recliner chairs, sofas and theatre lounges. Please match the model number and plug configuration before ordering. Need Another Recliner Switch? We stock replacements for all popular electric recliner & sofa brands and models, see our full range of recliner toggle switches (click here) for a suitable replacement. Ask us if you need help choosing. read more
In stock
- Description
- Technical Specifications
- How to
- Reviews (0)
- FAQs
- Add a review
Description
Kaidi KDH120-001 Dual Motor Recliner Switch with USB Charging Port
The Kaidi KDH120-001 electric recliner switch is a genuine replacement 4 button controller designed for dual actuator recliner chairs, lounges and theatre seating. Manufacturer part number 31100274(Y), this switch features two independent rocker switches for controlling multiple recliner movements such as the footrest and headrest. This Kaidi switch can be mounted on either side of the recliner.

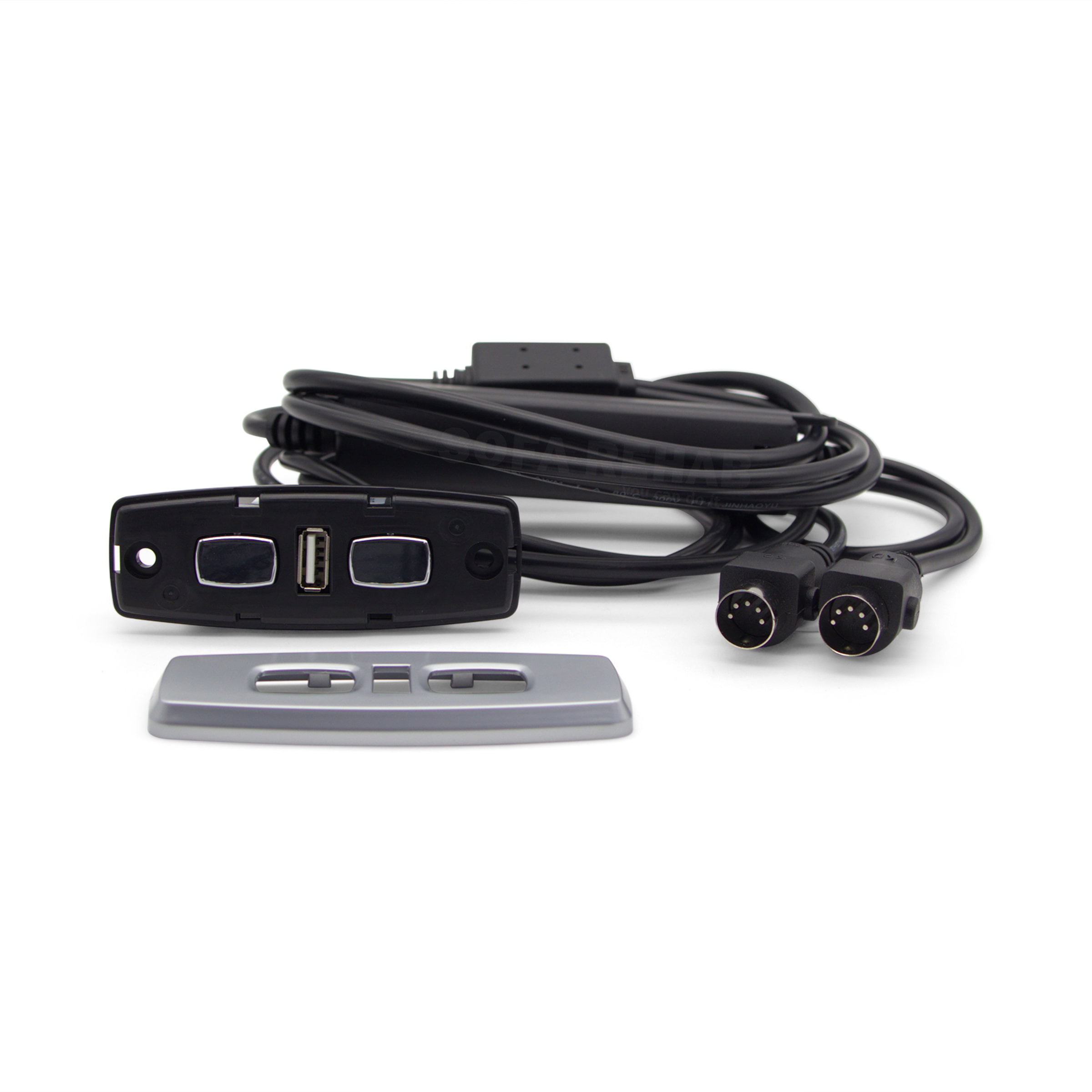

Finished with a modern silver removable fascia cover and silver buttons, this switch provides a clean concealed screw appearance once installed. The fascia dimensions are approximately 96mm wide by 36mm high, while the switch body measures approximately 92mm wide, 33mm high and 34mm deep including the buttons.
The switch includes mounting screws and features an integrated USB-A charging port for conveniently charging phones and devices while relaxing.
Match the Plug Configuration and Model Number
Many recliner switches can appear visually identical while using different internal wiring and plug configurations. This replacement switch uses 2x male 5 pin DIN plugs with retaining clasp lugs and is designed for dual motor applications.

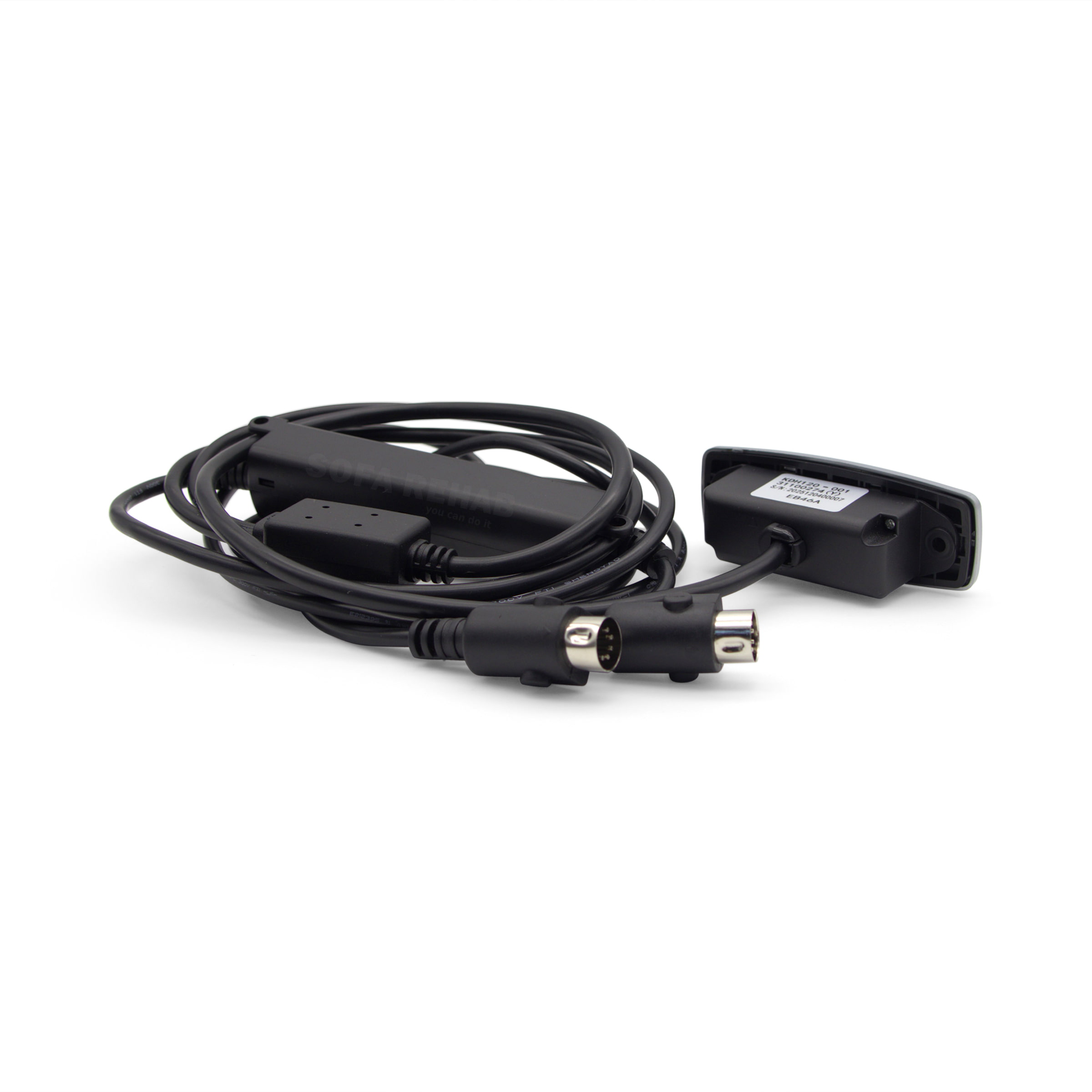

One cable includes an inline control box and measures approximately 2160mm including the plug, while the second cable measures approximately 1910mm including the plug. The minimum recommended cut-out hole size is approximately 64mm wide, 25mm high and 32mm deep.
Please compare your existing switch model number, plug style, plug gender and dimensions before ordering. If you need assistance identifying the correct replacement switch, our team is happy to help.
We're Australia's Leading Supplier of Recliner Chair Spare Parts
We’re Australia’s leading supplier of recliner chair spare parts, furniture repair products and DIY repair kits, offering quality replacement parts at affordable prices for both everyday consumers and professional repair technicians. Our focus is helping customers repair their furniture themselves with easy-to-install replacement parts, detailed support and helpful advice that makes DIY repairs simple and cost effective.
Easy DIY Recliner Switch Replacement
Replacing your recliner switch is a quick and easy repair that most people can do themselves with only a screwdriver. Simply remove the old switch, disconnect the 5 pin plug connection and install the replacement switch in its place.
With our DIY friendly spare parts, helpful support and step-by-step guidance, you can repair your recliner yourself, save money and enjoy the satisfaction of fixing it yourself.
Technical Specifications
Technical Specifications
| Product Type | Electric recliner switch |
|---|---|
| Brand | Kaidi |
| Model Number | KDH120-001 |

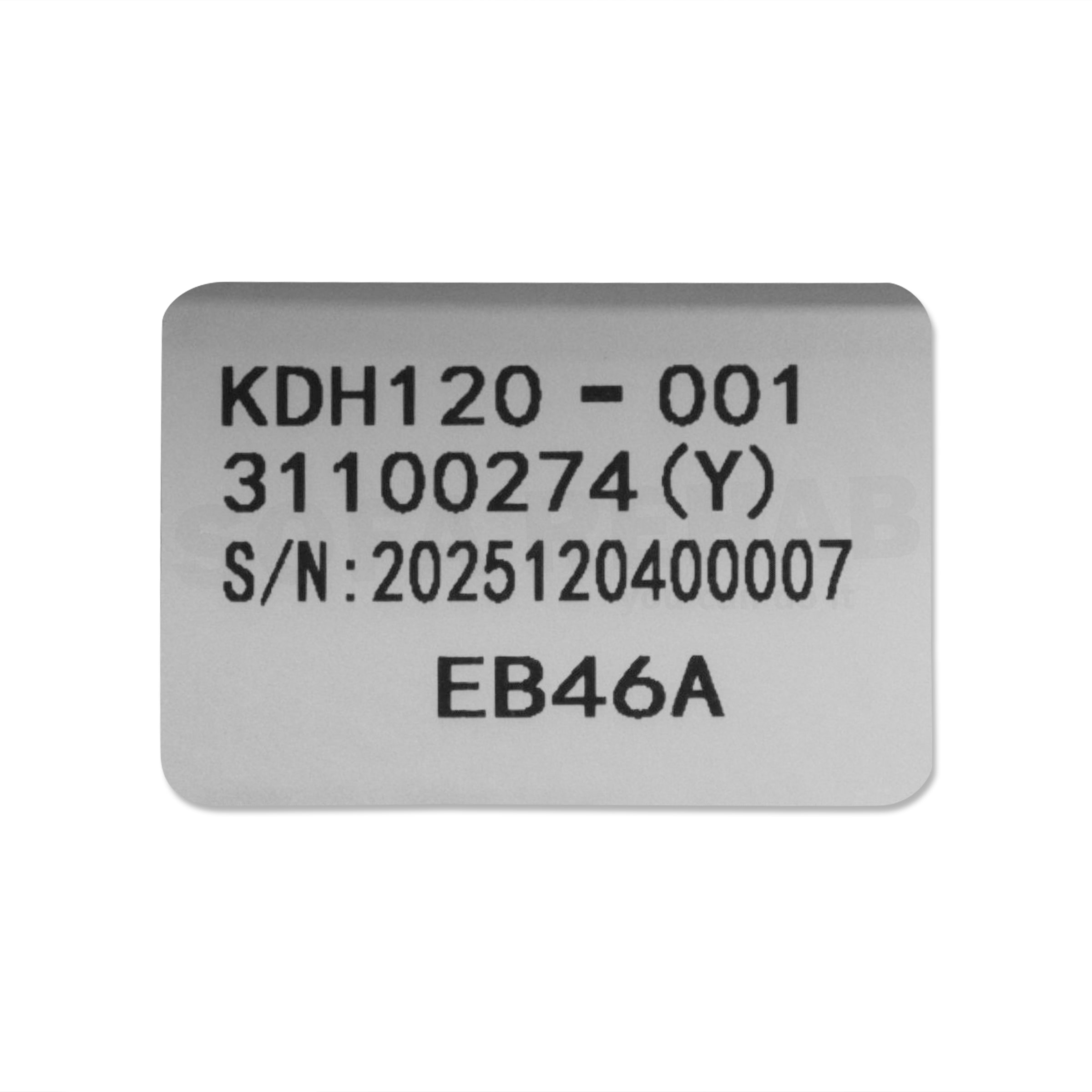

| Manufacturer Part Number | 31100274(Y) |
| Button Configuration | 4 button, 2x rocker switches |
| Actuator Control | Dual actuator control |
| Mounting Orientation | Universal sided switch suitable for left or right hand installation |
| USB Port | USB-A charging port |
| Plug Type | 2x male 5 pin DIN plugs with retaining clasp lugs |
| Fascia | Removable silver plastic fascia to conceal mounting screws |
| Fascia Dimensions | Approx. 96mm wide x 36mm high |
| Switch Dimensions | Approx. 92mm wide x 33mm high x 34mm deep including buttons |
| Minimum Cut-Out Hole | Approx. 64mm wide x 25mm high x 32mm deep |
| Cable 1 Length | Approx. 2160mm including plug and inline control box |
| Cable 2 Length | Approx. 1910mm including plug |
| Mounting Hardware | Screws supplied |
| Application | Electric recliner chairs, sofas and theatre lounges |
How to
How to
How To Install The Kaidi KDH120-001 Recliner Switch
-
- Disconnect the power.
Unplug the recliner from the wall power socket before starting. Do not work on the switch while the recliner is connected to power. - Practice safe lifting.
Carefully move the recliner into a safe working position. Recliners can be heavy, so use two people if needed and avoid lifting beyond your ability. - Take a before photo.
Before disconnecting anything, take a clear photo of the existing switch, cable routing and plug connections. This gives you a reference when fitting the replacement switch. - Remove the old switch fascia.
Gently remove the existing fascia cover to access the mounting screws. Take care not to damage the surrounding fabric, leather or upholstery. - Unscrew the old switch.
Remove the mounting screws holding the switch in place, then carefully pull the switch out from the armrest or side panel. - Disconnect the old plugs.
Follow the cables from the switch and disconnect the two 5 pin DIN plugs. Release the retaining clasp lugs carefully rather than pulling on the cables. - Compare the new and old switch.
Check that the model number, plug type, plug gender, retaining clasp style and switch dimensions match before installing the new Kaidi KDH120-001 switch. - Connect the new switch plugs.
Plug in the two male 5 pin DIN plugs, making sure each plug is firmly seated and the retaining clasp lugs are secured. - Test before final fitting.
Reconnect the recliner power and carefully test both rocker switches to confirm each actuator operates correctly. Once tested, disconnect the power again before securing the switch. - Secure the new switch.
Place the switch into the cut-out hole and fasten it using the supplied screws. Do not overtighten the screws. - Fit the silver fascia cover.
Clip the removable silver plastic fascia back into position so the mounting screws are hidden and the switch has a clean finished appearance. - Final test.
Reconnect the recliner to power and test all switch functions again, including both actuator controls and the USB-A charging port.
- Disconnect the power.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
What does the Kaidi KDH120-001 switch control?
This switch is designed for dual actuator recliners and commonly controls two independent movements such as the footrest and headrest on electric recliner chairs, sofas and theatre lounges.
Does this recliner switch include a USB charging port?
Yes, the switch has an integrated USB-A charging port which is convenient for charging phones and other small devices while using your recliner.
How do I know if this is the correct replacement switch?
You should match the model number KDH120-001, manufacturer part number 31100274(Y), plug configuration, plug gender and dimensions with your existing switch before ordering. Many recliner switches can look similar but use different wiring configurations.
Can this switch be installed on either side of the recliner?
Yes, the Kaidi KDH120-001 is a universal sided switch and can be installed on either the left or right hand side of compatible recliner chairs and lounges.
What type of plugs does this switch use?
This switch uses 2x male 5 pin DIN plugs with retaining clasp lugs for secure connections to compatible recliner systems.
Can I replace this recliner switch myself?
Yes, this is generally a simple DIY replacement that only requires a screwdriver and a few minutes. We recommend taking a photo of your existing wiring before disconnecting the old switch to make installation easier.
