Kaidi KDH134L-001 Recliner Switch
$64.99
In stock
Genuine Kaidi KDH134L-001 four button electric recliner switch with USB-A charging port. MOT-TS-99L is a right hand operated replacement switch controls the footrest/recline and headrest functions on compatible electric recliner chairs and lounges. Nickel finish with illustrated buttons and supplied with wiring harnesses. 4 Button Recliner Switch with USB Charging. Suitable for dual actuator recliners with independent headrest and recline movement. Easy plug-in replacement with 5 pin DIN connection and removable screw cover. Need Another Recliner Switch Model? We stock all the popular recliner switches (click here). If you are still not sure which replacement power recliner chair or sofa switch is right for you please contact our helpful team. read more
In stock
- Description
- Technical Specifications
- How To Tutorial
- Reviews (0)
- FAQs
- Add a review
Description
Kaidi KDH134L-001 Right Hand Recliner Switch with USB
The Kaidi KDH134L-001 electric recliner switch is a genuine replacement 4 button controller designed for dual actuator recliner chairs, sofas and theatre lounges. This right hand operated switch controls both the footrest recline movement and powered headrest adjustment independently.

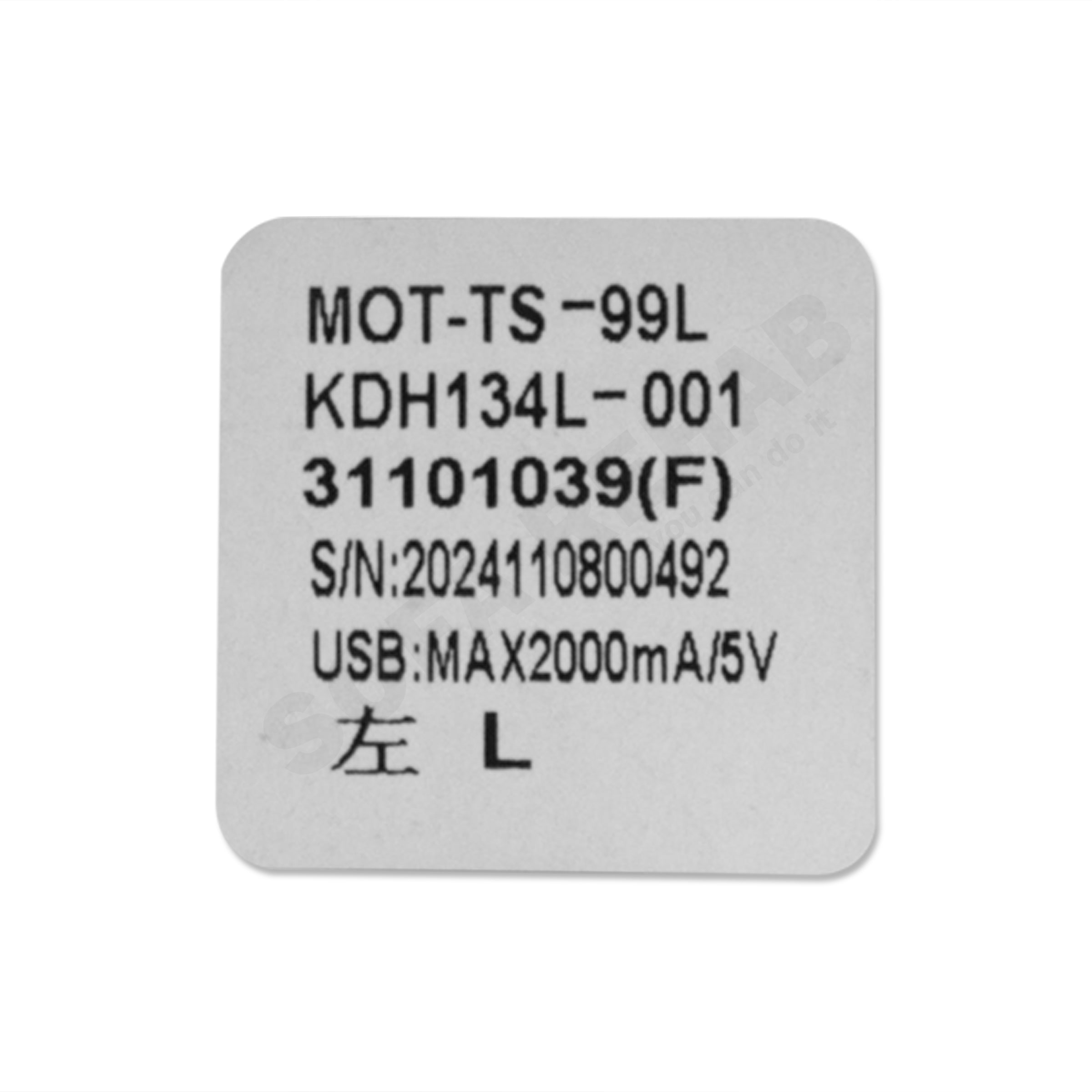

Finished in a modern nickel colour, the switch features illustrated buttons, a removable screw cover and integrated USB-A charging port rated at 5V 2000mA. Manufacturer reference numbers include KDH134L-001 and MOT-TS-99L.

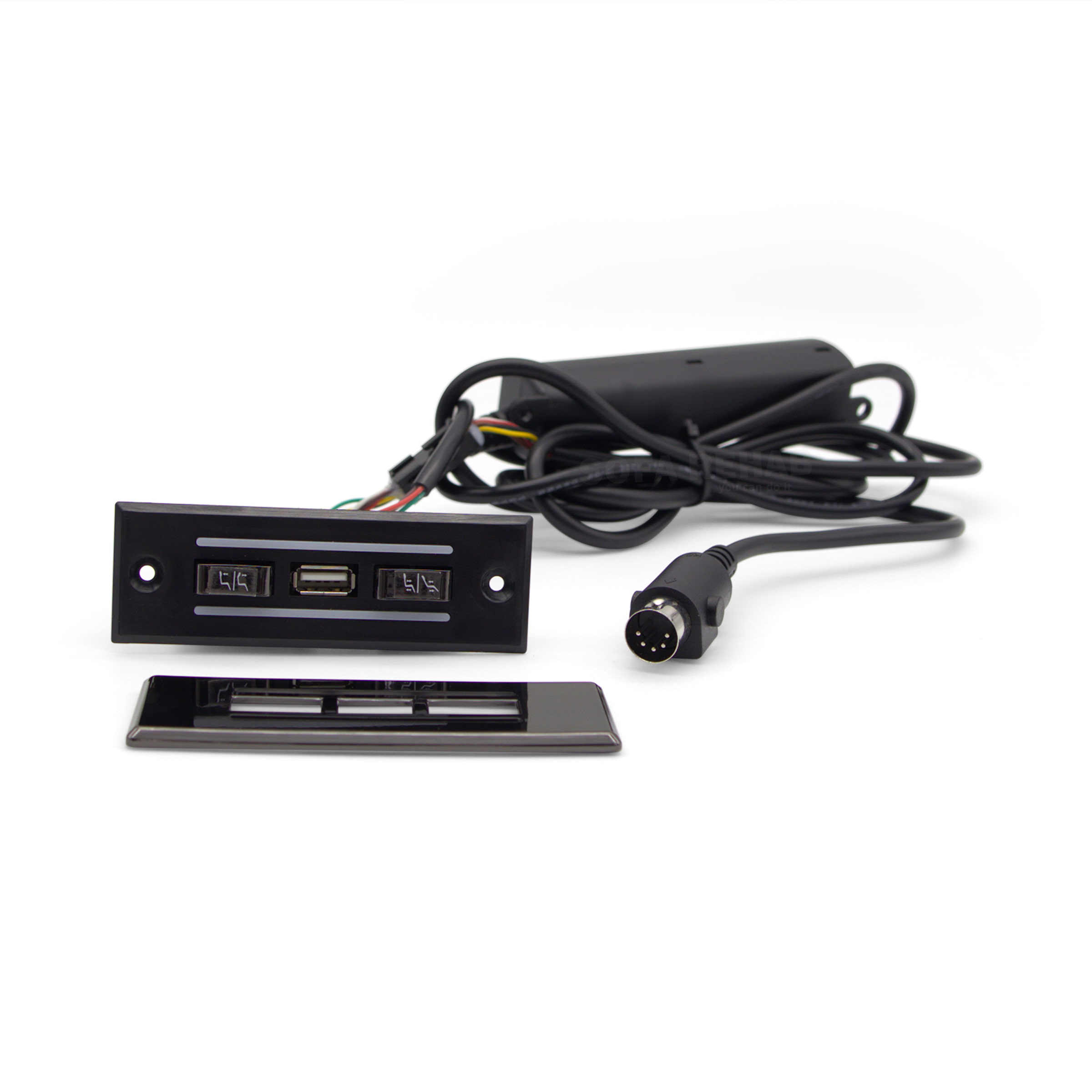

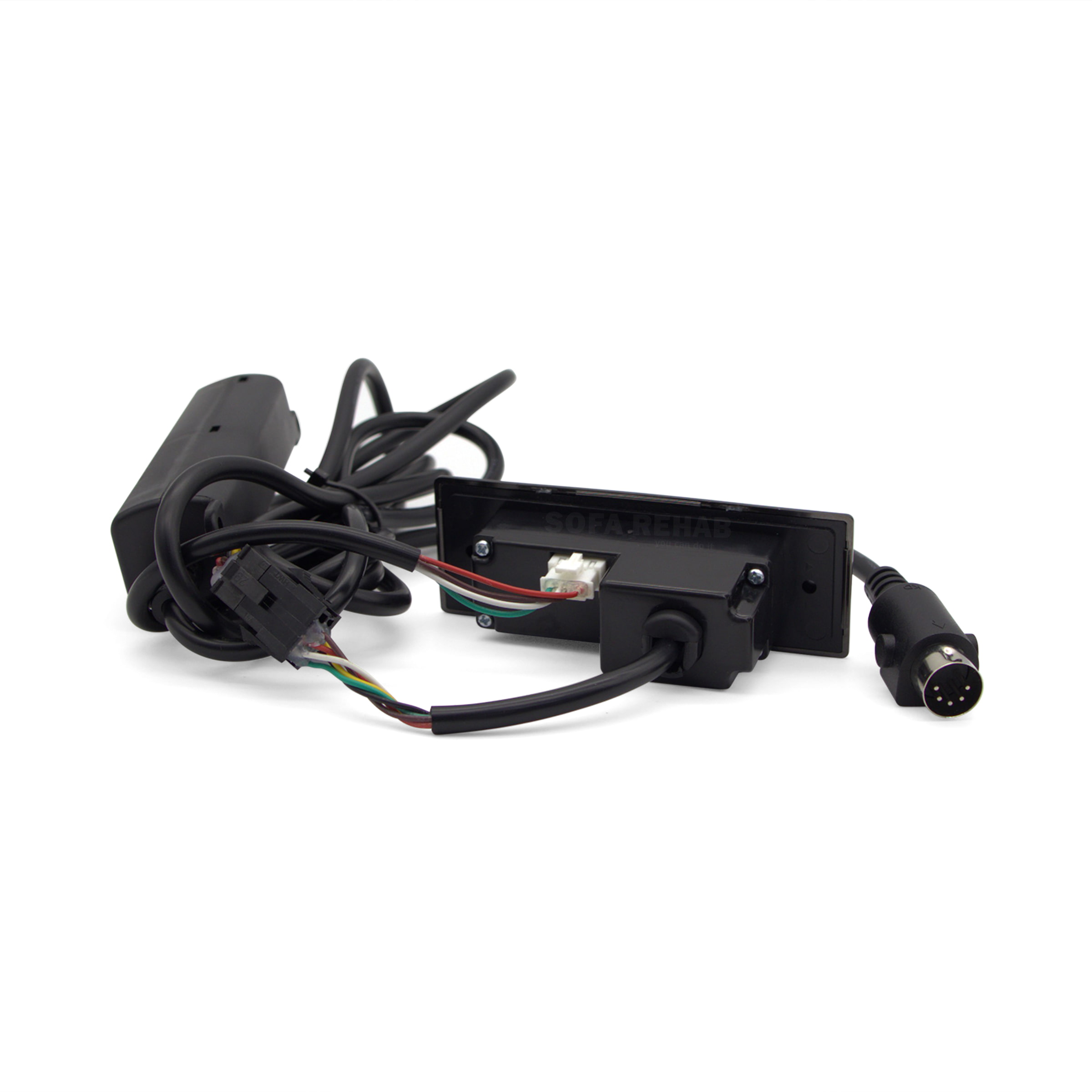

This replacement switch is supplied with 2 wiring harnesses including the white system plug lead with control box and the black lead with 5 pin male DIN plug and retaining pegs for easy installation.
Important Measurements and Compatibility Information
Before ordering, please compare your existing switch model number, plug configuration and measurements carefully to ensure compatibility.
Approximate dimensions are as follows:
- Fascia size: 101mm wide x 36mm high
- Switch body: 98mm wide x 33mm high x 46mm deep
- Required cut-out size: 71mm x 24mm x 47mm deep
This switch is designed for recliners with dual actuator operation for separate recline and headrest movement. The buttons feature directional illustrations to make operation simple and intuitive.
Need the Opposite Side Version?
This is the right hand operated version of the switch, meaning it is fitted to the right hand side when seated in the furniture. The manufacturer orientation for this model is LSF (left side facing).
If you require the opposite side version, we also sell the Kaidi KDH134R-001 MOT-TS-99R recliner switch (click here).
Quality Spare Parts from Sofa Rehab
Sourcing direct from leading OEM factories and trusted aftermarket suppliers, we keep an extensive range of recliner electronics, handles, cables and leather-care kits in stock ready for immediate order. Every item is tested for fit and reliability by our in-house repair technicians before it reaches our shelves, so you receive parts that work first time and last. From the smallest spring to complete power kits, if it belongs on a lounge, chances are we have it – and we stand behind every product with full technical support and clear measuring guides.
Save Time & Money and Do It Yourself
Replacing a faulty switch is a five-minute job with just a screwdriver. Follow our step-by-step video tutorial, feel the pride of a successful DIY repair, and keep money in your pocket instead of paying a call-out fee. Need extra help? Our friendly support team is only a phone call, email or live chat away.
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Kaidi |
| Model Number | KDH134L-001 |
| Manufacturer Reference | MOT-TS-99L |
| Switch Type | Electric Recliner 4 Button Switch |
| Operation | Right Hand Operated |
| Functions | Independent Footrest/Recline and Headrest Control |
| Button Quantity | 4 Buttons |
| USB Port | USB-A Charging Port |
| USB Output | 5V MAX 2000mA |
| Colour | Nickel |
| Button Style | Illustrated Directional Buttons |
| LED Backlighting | No |
| Mounting Style | 2 Screw Mount with Removable Screw Cover |
| Fascia Dimensions | Approx. 101mm W x 36mm H |
| Switch Dimensions | Approx. 98mm W x 33mm H x 46mm D |
| Required Cut-Out Size | Approx. 71mm x 24mm x 47mm D |
| DIN Plug | 5 Pin Male DIN Plug with Retaining Pegs |
| Harness 1 | White System Plug with Control Box |
| Harness 1 Length | Approx. 640mm Including Plug and Housing |
| Harness 2 | Black Lead with 5 Pin Male DIN Plug |
| Harness 2 Length | Approx. 1980mm Including Plugs |
| Compatible Furniture | Electric Recliner Chairs, Sofas, Theatre Lounges |
How To Tutorial
How To Tutorial
How To Install the Kaidi KDH134L-001 Recliner Switch
Replacing the Kaidi KDH134L-001 recliner switch is a simple do-it-yourself repair for most electric recliner chairs, sofas and theatre lounges. Before you begin, unplug the recliner power supply from the wall and take a clear photo of the existing switch, wiring and plug connections for reference.
If you need to move or tilt the furniture to access the wiring, always use safe lifting techniques. Recliners and lounges can be heavy, so ask another person to help if needed and avoid twisting your back while lifting or moving the furniture.
- Disconnect the power. Unplug the recliner transformer from the wall socket before working on any cables or switch components.
- Take a reference photo. Photograph the current switch, cable routing and plug connections before removing anything. This gives you an easy guide when fitting the new switch.
- Move the recliner into position. Carefully move the chair or lounge away from the wall so you have enough room to work safely.
- Access the wiring. If needed, gently tilt the furniture onto its side or back to access the underside and internal wiring. Use proper lifting technique and get help from another person for heavier furniture.
- Remove the screw cover. Carefully remove the nickel screw cover from the existing switch to expose the 2 mounting screws.
- Unscrew the old switch. Remove the 2 screws holding the switch in place, then gently pull the switch and wiring forward from the armrest cut-out.
- Disconnect the old wiring harnesses. Unplug the existing harness connections while comparing them to your reference photo. Do not pull on the wires themselves. Hold the plug body when disconnecting each cable.
- Connect the new switch. Plug the wiring harnesses into the new Kaidi KDH134L-001 switch, making sure each connection is fully seated and correctly aligned.
- Check the cable position. Feed the wiring back into the arm cavity carefully, making sure no cables are pinched, stretched, twisted or trapped behind the switch body.
- Secure the new switch. Place the switch into the cut-out and fasten it with the 2 mounting screws. Do not overtighten the screws.
- Refit the screw cover. Clip the removable screw cover back into position so the fascia has a neat finished appearance.
- Reconnect and test. Plug the recliner power supply back into the wall socket and test all 4 buttons, including footrest/recline and headrest movement. You can also test the USB-A charging port with a suitable USB cable.
If the recliner does not operate correctly after installation, disconnect the power again and check that all plug connections are fully inserted and matched to the correct wiring harness. If you are unsure whether this is the right replacement switch for your recliner, contact Sofa Rehab and we can help you identify the correct part.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How do I know if this recliner switch is compatible with my lounge or chair?
The best way is to compare your existing model number, plug configuration, button layout and measurements with this replacement. This switch uses the model numbers KDH134L-001 and MOT-TS-99L and is designed for dual actuator recliners with independent headrest and recline movement. If you are unsure, send us photos of your existing switch and plugs and we can help identify the correct replacement.
What does “right hand operated” mean?
This switch is installed into the right hand side armrest when sitting in the recliner. The manufacturer may also describe this as a left side fitted or “LSF” switch because it is referenced from facing the furniture externally.
Does this switch include the wiring harnesses?
Yes. The switch includes both wiring harnesses shown in the product images, including the white system plug lead with control box and the black lead with 5 pin male DIN plug and retaining pegs.
Can I replace this recliner switch myself?
Yes, for most recliners this is a straightforward DIY repair requiring only a screwdriver. The switch uses plug together wiring connections and can usually be installed within 10 to 15 minutes. We recommend taking a photo of the existing wiring before removal for reference during installation.
Does the USB port work for charging phones and tablets?
Yes. This switch features a USB-A charging port, making it suitable for charging most modern phones, tablets and USB powered devices while relaxing in your recliner.
