La Z Boy Legrest Motor Extension Cable 10.000108
$96.25
In stock
Replacement La-Z-Boy legrest motor extension wire, part number 10.000108. This cable is installed into the 55T and 55TH Platinum recliner range and links the TiMotion TA4-2060-001 or TA9-2060-001 actuator to the master control modules 10.000086 and 10.000104. Featuring two green connectors (3-pin female DIN with retaining clasp and 8-pin male DIN), plus a sealed junction box in the centre. Cable length is 255mm overall. Genuine La-Z-Boy Actuator Extension Wire. This short harness provides the exact OEM connections for legrest actuators and control modules. Easy to install with plug-and-play fittings and no special tools needed. Need another wiring length or model? Browse our full range of Leads and plugs (click here) or contact us for help identifying the exact replacement you need. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
La-Z-Boy 55T & 55TH Legrest Motor Extension Wire – Part No. 10.000108

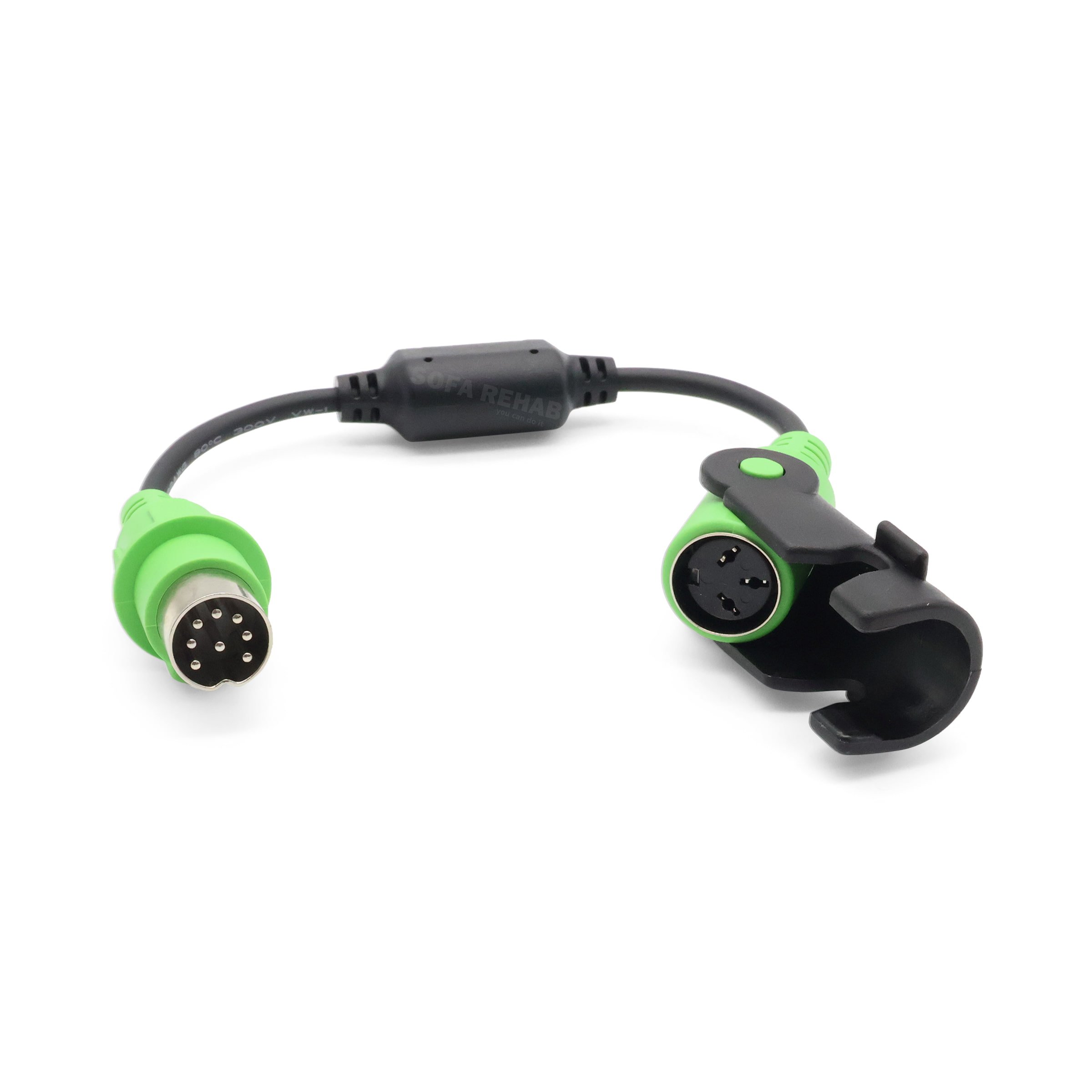

This genuine La-Z-Boy extension wire installs into the 55T and 55TH Platinum recliner chair and connects the TiMotion TA4-2060-001 or TA9-2060-001 actuator to the La-Z-Boy master control modules 10.000086 and 10.000104. Designed for precise fitment, the harness includes a sealed junction box at the centre and measures 255mm end-to-end including the plugs. A reliable replacement to restore your recliner’s smooth legrest function.
OEM Connectors for a Secure Fit

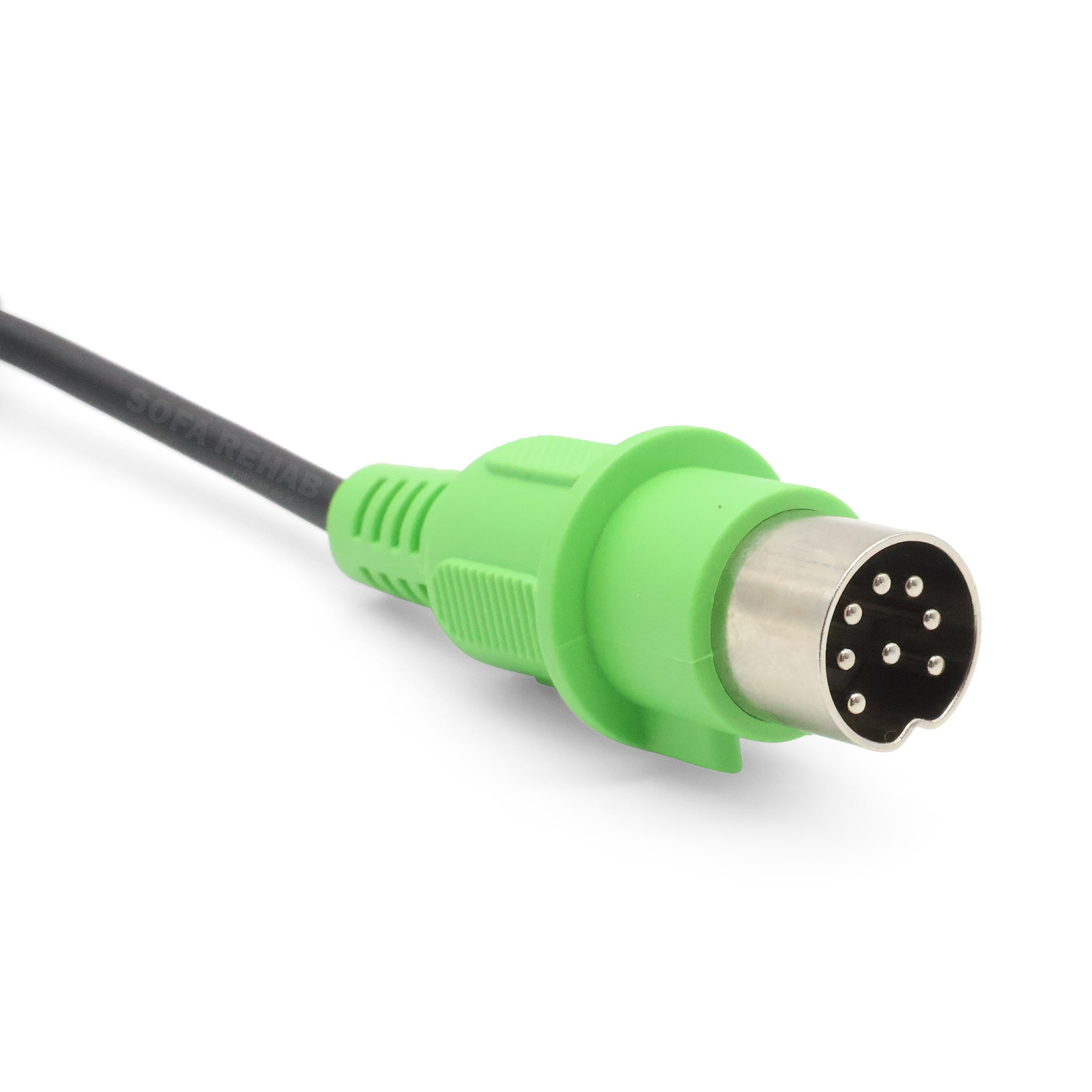

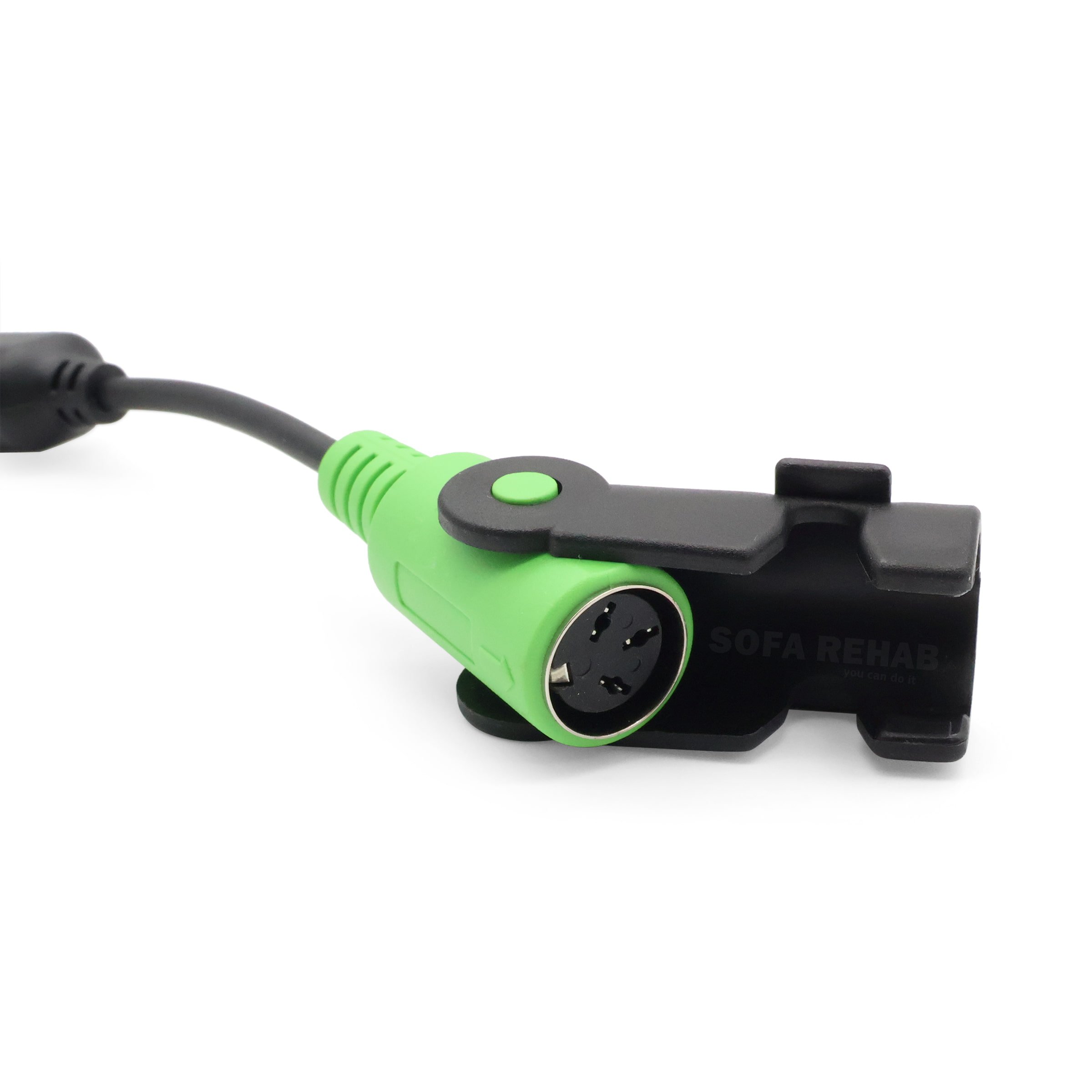

The cable features two green connectors for easy identification: one 3-pin female DIN plug with retaining clasp and one 8-pin male DIN plug. These genuine OEM fittings ensure a secure, long-lasting connection without modification.
Compatible Motors and Control Modules
This harness is designed specifically for use with the TiMotion TA4-2060-001 and TA9-2060-001 legrest actuators. It connects directly to the La-Z-Boy 10.000086 and 10.000104 master control module. Please confirm your actuator model and control box part number before ordering. If unsure, contact our support team for assistance.
OEM Quality Spare Parts from Sofa Rehab
As a preferred La‑Z‑Boy spare‑parts supplier we stock only genuine InSeat harnesses, guaranteeing perfect plug geometry, strain reliefs and UL‑rated cabling. Every loom ships from our Brisbane warehouse, is covered by a 12‑month warranty and is backed by real furniture‑repair pros—so you can order with confidence.
Save Time & Money, Do It yourself
Replacing this cable is a quick plug-and-play task. Simply disconnect your old harness, match the coloured connectors, and click them into place. No soldering or special tools are required.
Technical Specifications
Technical Specifications
Technical Specifications
- Product Type: Legrest Motor Extension Wire
- Brand: Genuine La-Z-Boy OEM Part
- Part Number: 10.000108
- Function: Connects legrest actuator to master control module
- Compatible Actuators: TiMotion TA4-2060-001, TiMotion TA9-2060-001
- Compatible Control Module: La-Z-Boy 10.000086 and 10.000104 (Master Control Module)
- Connectors:
- 1 × 3-pin female DIN with retaining clasp (green)
- 1 × 8-pin male DIN (green)
- Overall Cable Length: 255 mm (including plugs)
- Inline Housing: Sealed junction box positioned at the centre of the cable
- Colour Coding: Green plugs for easy identification
- Installation: Plug-and-play fitment, no special tools required
- Intended Use: Legrest motor extension cable for La-Z-Boy 55T and 55TH Platinum recliners
How To
How To
How to Install
Replacing your La-Z-Boy legrest motor extension wire (Part No. 10.000108) is a quick and simple DIY job. This cable is designed as a plug-and-play component, so no technical expertise is required.
- Unplug the chair from power. Always disconnect the recliner from mains power before working on any electrical parts.
- Access the recliner base. Carefully tip the chair onto its side or back. Use safe lifting techniques and seek help if needed, as recliners can be heavy.
- Take before photos. Snap a few pictures of your existing cable layout and connections. These will make it easier to reference when reassembling.
- Remove the old cable. Disconnect the 3-pin female DIN plug from the actuator and the 8-pin male DIN plug from the master control module.
- Install the new extension wire. Connect the green 3-pin female DIN plug to the actuator (ensure the retaining clasp clicks into place) and the 8-pin male DIN plug to the master control module.
- Secure the cable. Use scissors to remove the old cable tie if necessary, then fit a new cable tie to keep the harness clear of moving parts and pinch points.
- Restore the chair. Gently return the recliner to its upright position, plug the power supply back into the wall, and test the legrest operation.
No specialist tools are required for this installation. A pair of scissors (to remove or trim cable ties) and a replacement cable tie are all you need to complete the job in minutes.
