Moving Blocks and Clevis

Large – Arched Actuator Moving Block

$60.00

In stock

Replacement arch shaped white block for electric recliner chair actuators, large version. Suitable spare part for actuator units that have a worn or broken moving block, saving you the cost of replacing the entire actuator if you've got the know-how to disassemble and install a new moving block. This arched shape design is available in 2 sizes, this being the large version. Made from a durable white plastic. Replacement Large Arched Plastic Moving Block for Actuators. Predominantly found on Kaidi & Mulin electric recliner actuators. This large size version features 3 holes on either side. We also sell the small size version in this same arched design. Not The Right One? Explore Our Other Actuator Plastic Blocks. Whether it's the smaller version, or a completely different shape design, our selection of actuator moving blocks is comprehensive. Explore our actuator moving blocks (click here) to find the perfect fit for your repair. read more

SKU:
E-BLOCK40
Brand:
Kaidi, Mulin Electric, Okin, Sofa Rehab
Weight
0.12 kg
Dimensions
9.6 × 6.6 × 4.2 cm
view all details

Description

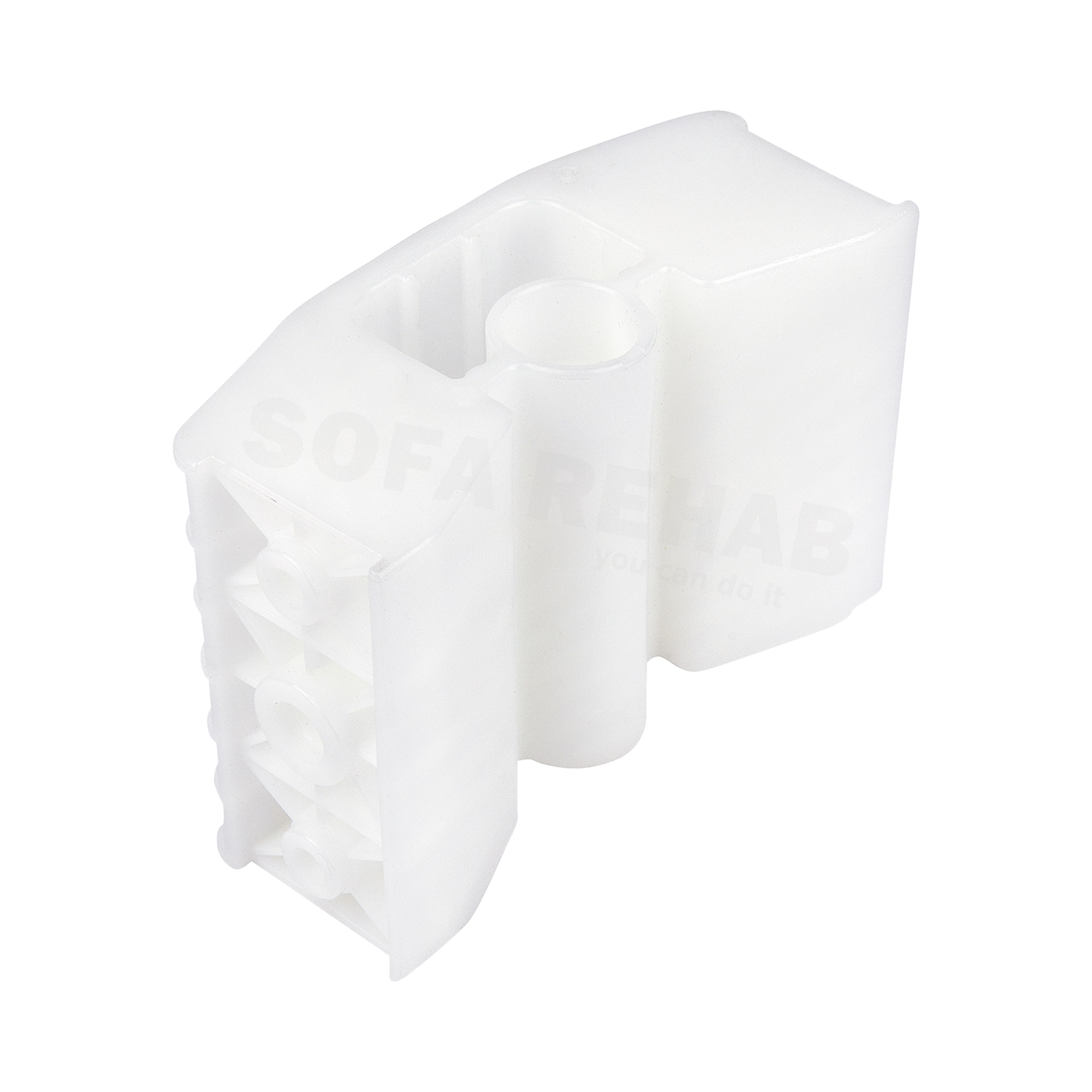

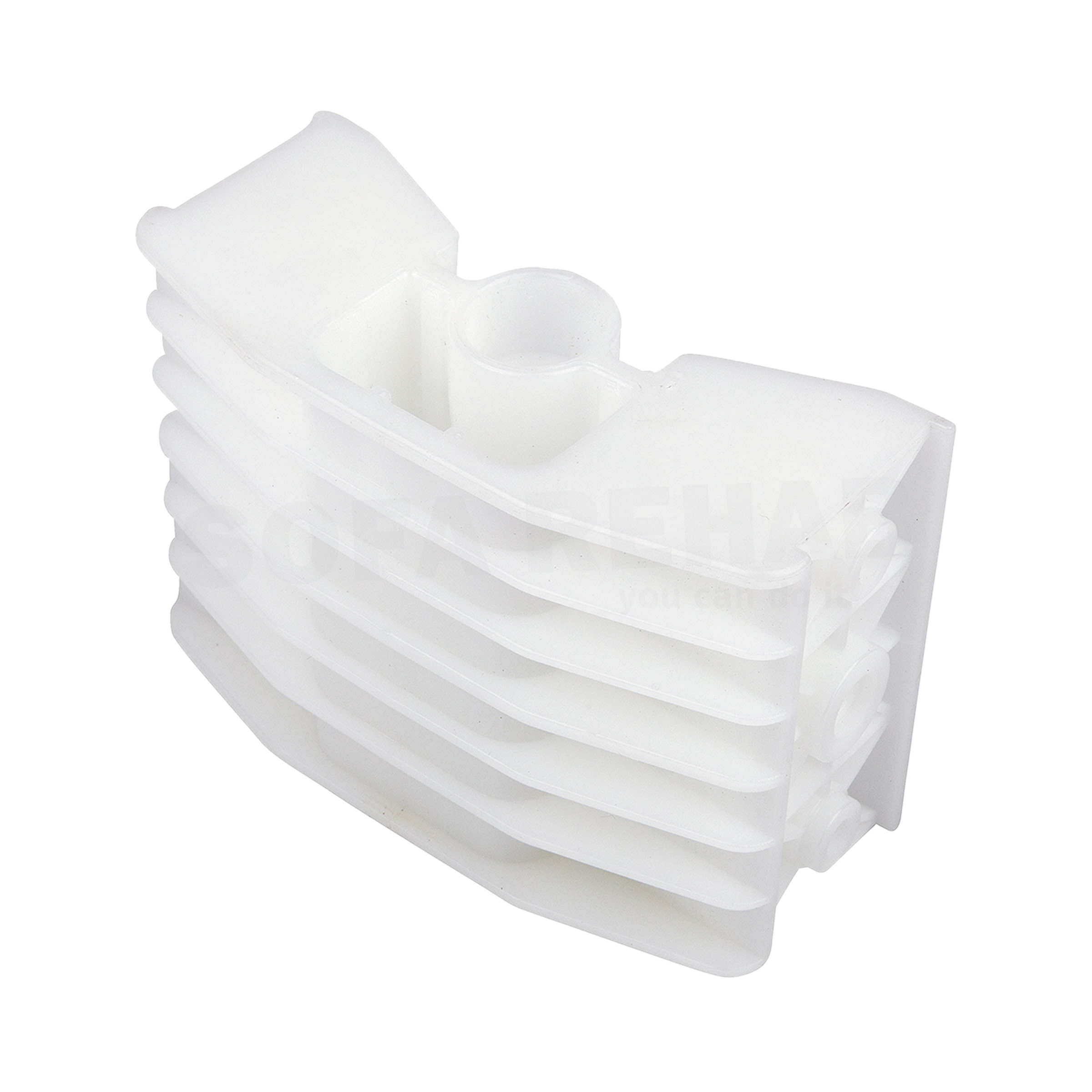

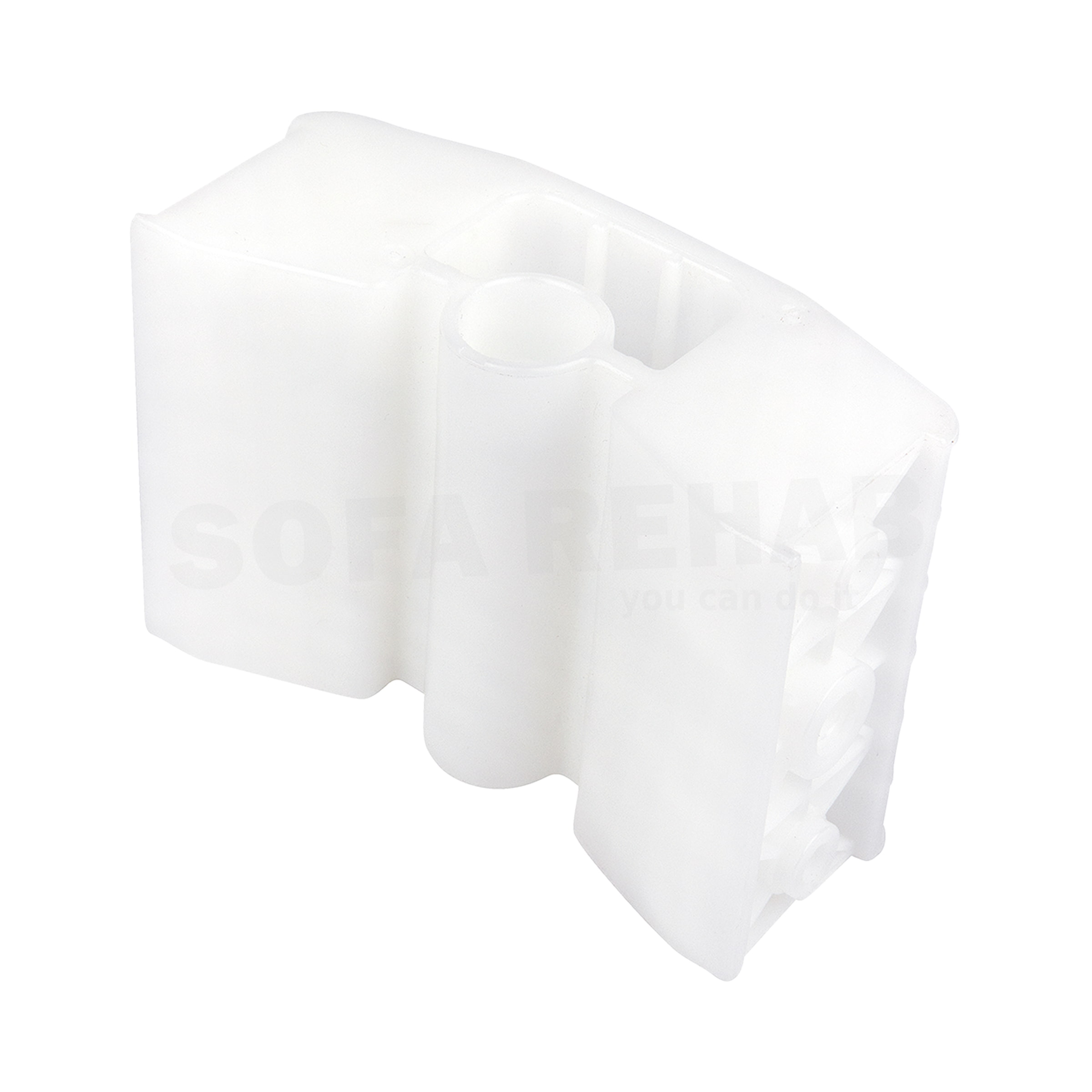

Plastic Moving Block for Actuators – Arch Shape, Large

The white plastic movement block is designed to move with the actuator shaft and support the connection to the recliner’s mechanism. This large-sized block, with its distinctive arch shape design and three mounting holes per side, is the right choice if your actuator is still working except for a broken moving/guide block.

Replacement actuator blocks offer a great option repair without the expense of a full actuator replacement, but should your damage extend beyond the moving block, we also sell a comprehensive range of electric recliner actuators (click here).

Measuring Guide For This Large Version

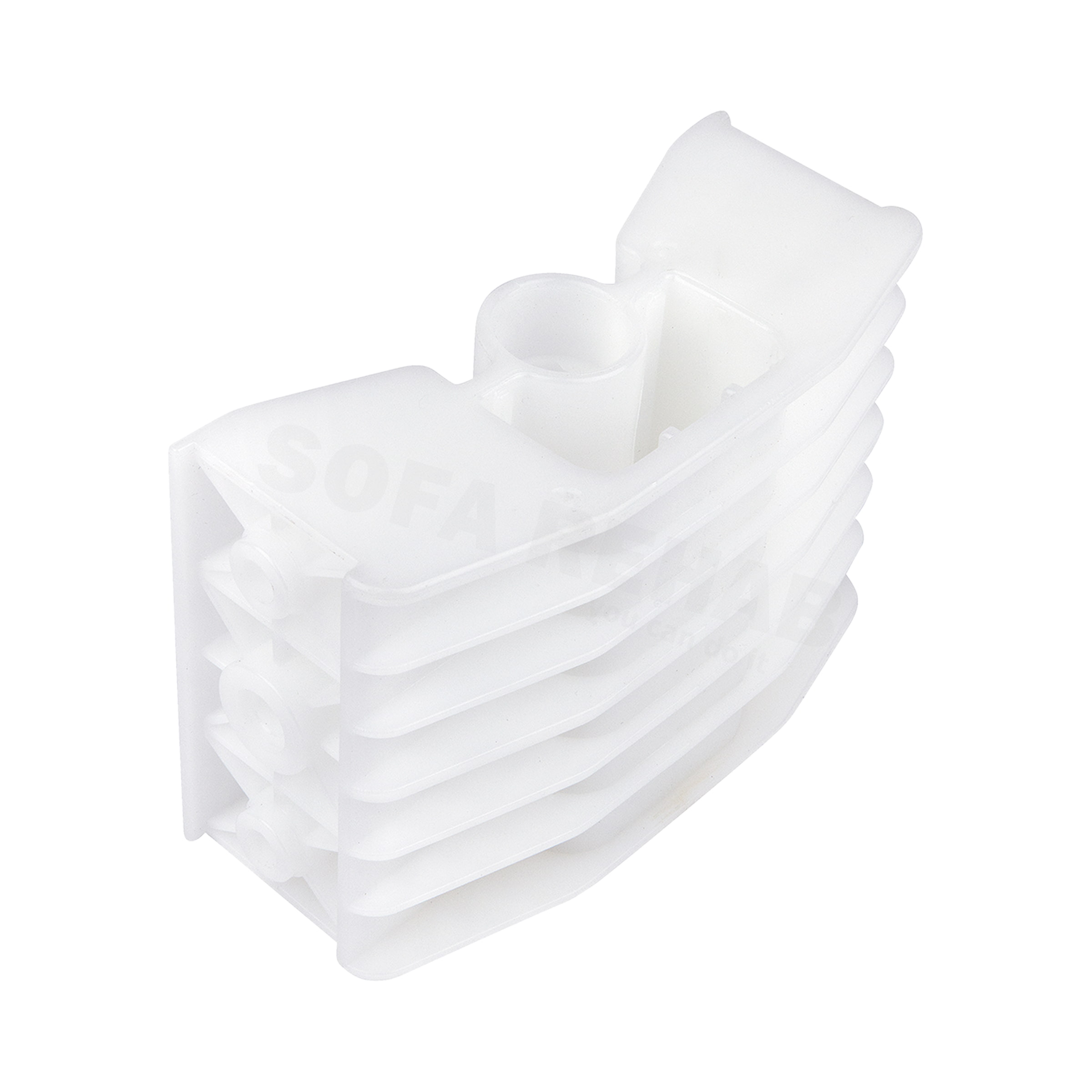

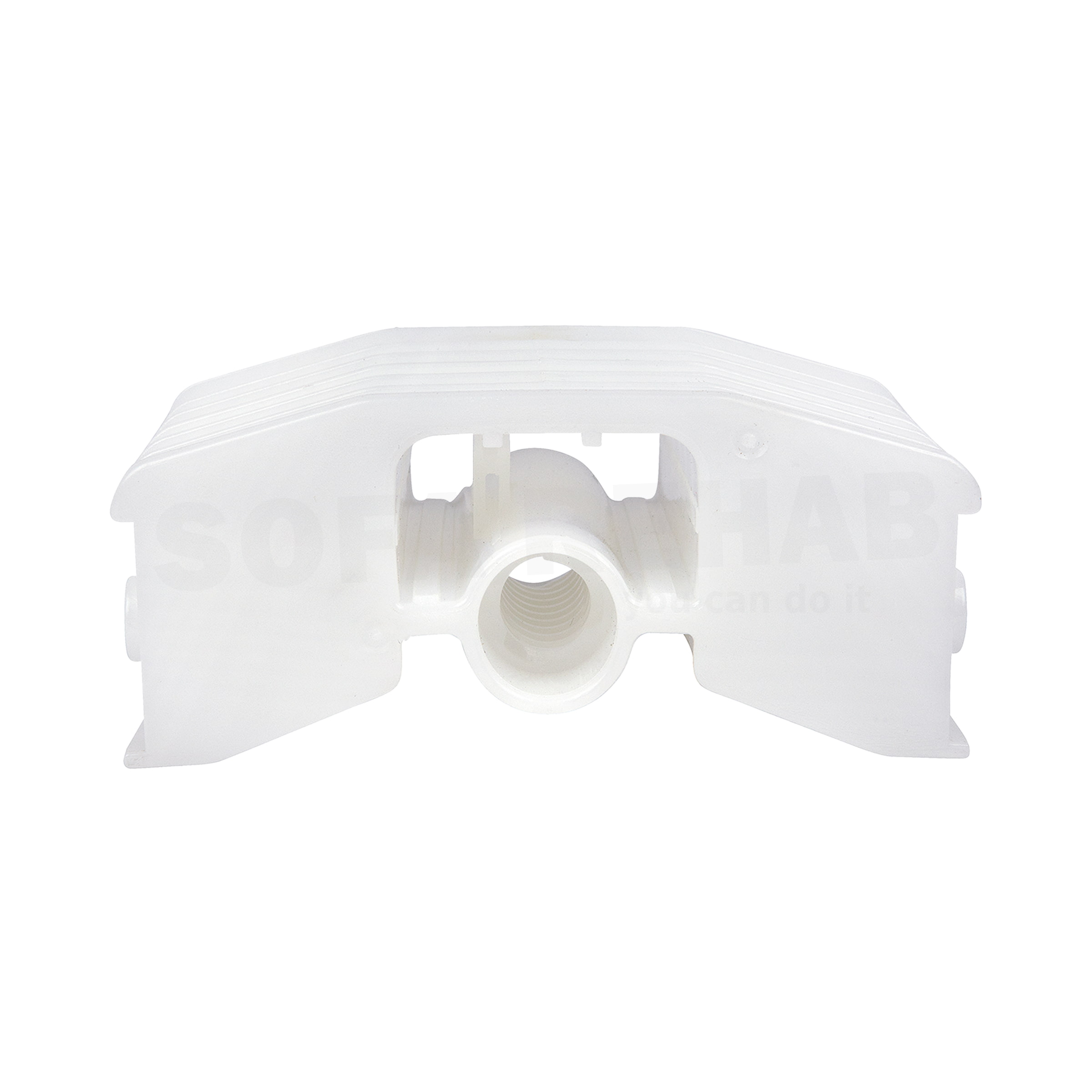

The block has a width of 96mm at the longest side, a depth of 66mm, and stands 42mm at its highest point due to the angled shape. Each side mount face has a height of 35mm. The mounting face on each side is equipped with 3 holes, in contrast with the small version which only has 2 holes on either side. The centre hole for the worm drive rod thread is the industry standard size of approximately 9.7mm.

We also sell this arch shaped actuator block in a smaller 2-hole size (click here).

Selecting the Correct Actuator Moving Block Size & Shape

This large angled actuator moving block is just one of 6 standard designs used by a variety of recliner lift chair actuators. If this particular angled/arched shape doesn’t align with your requirements, our range of actuator moving blocks and clevis (click here) should have the one for your actuators specifications.

For guidance on selecting the right part or assistance with your order, please don’t hesitate to contact us. Our team is ready to support your repair needs.

Compatible Models

Compatible Models

This actuator moving block is used by the OEM for the following brands & models of recliner actuators:

  • Mulin ML8-001
  • Mulin ML18-022
  • Mulin ML8-225
  • Mulin ML8-233
  • Kaidi KDPT005-2
  • Kaidi KDPT005-28
  • Kaidi KDPT005-54
  • Kaidi KDPT005-100
  • Kaidi KDPT005-112A
  • Kaidi KDPT005-144
  • Kaidi KDPT005-149
  • Kaidi KDPT005-153
  • Kaidi KDPT006-14
  • Kaidi KDPT006-16
  • Kaidi KDPT006-20
  • Kaidi KDPT007-43
  • Kaidi KDPT007-54
  • kaidi KDPT007-141
  • Kaidi KDPT007-156
  • Okin JLDQ18.140.327Z03

This is not a full list & we update as and when we are aware of compatible brands & models.
