Moving Blocks and Clevis

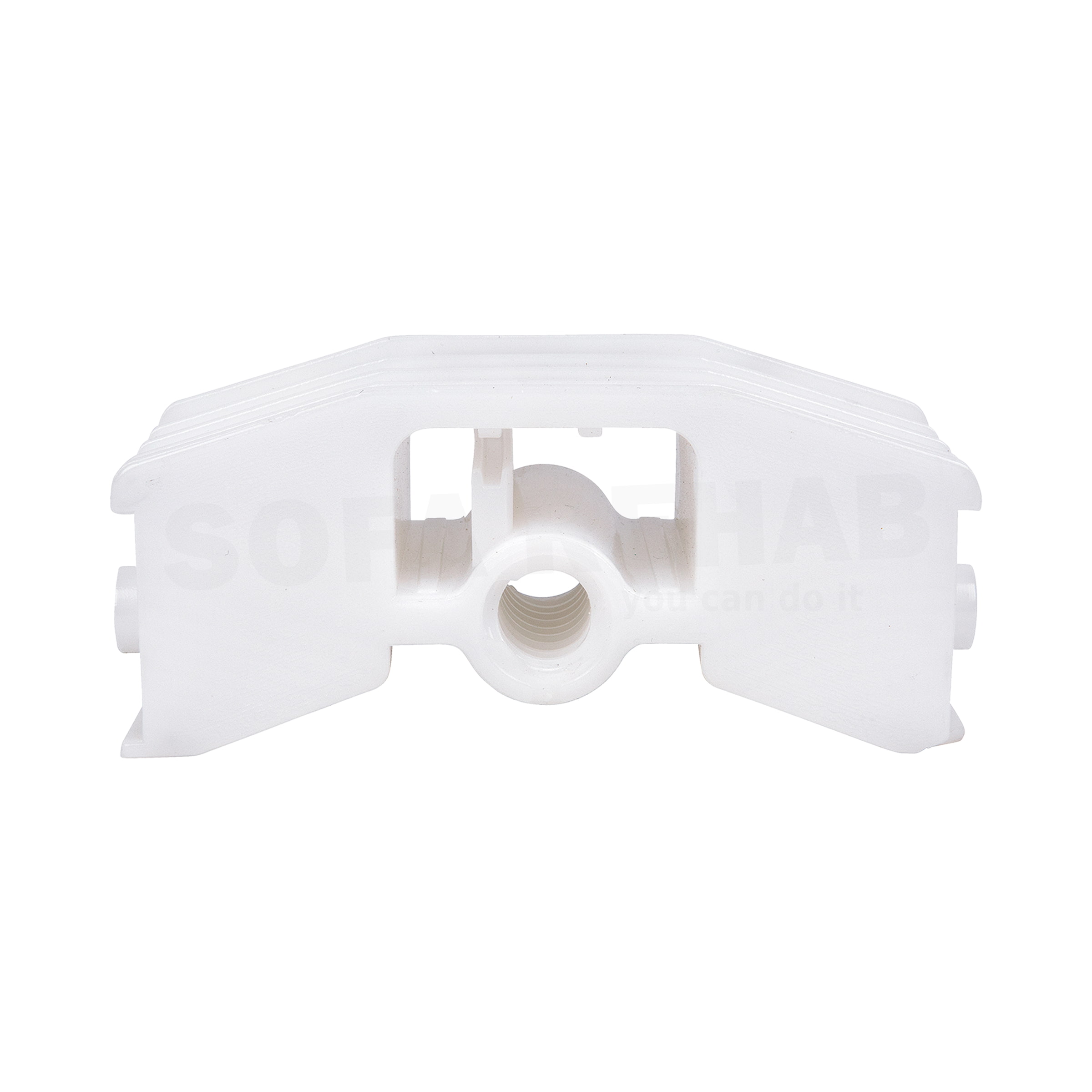

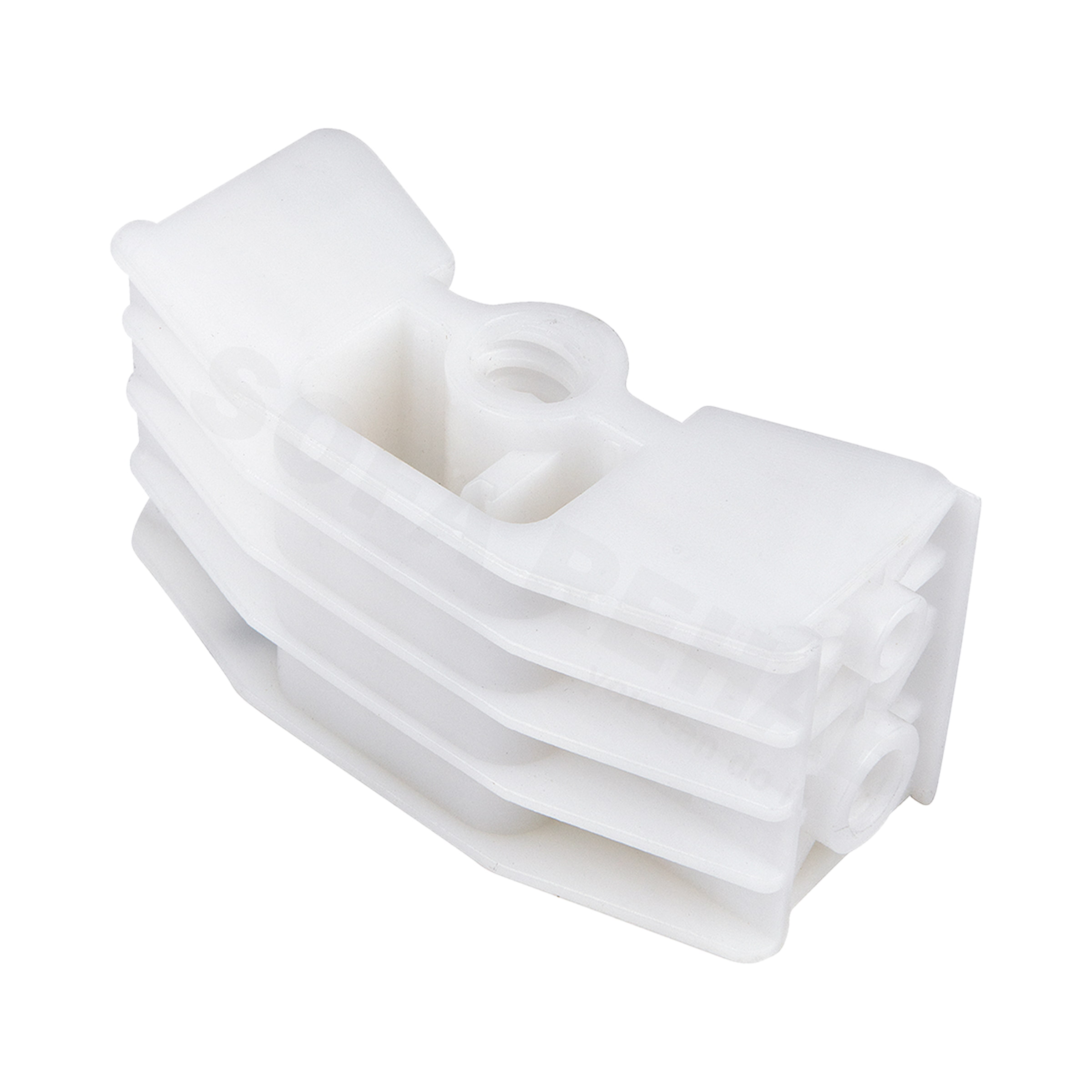

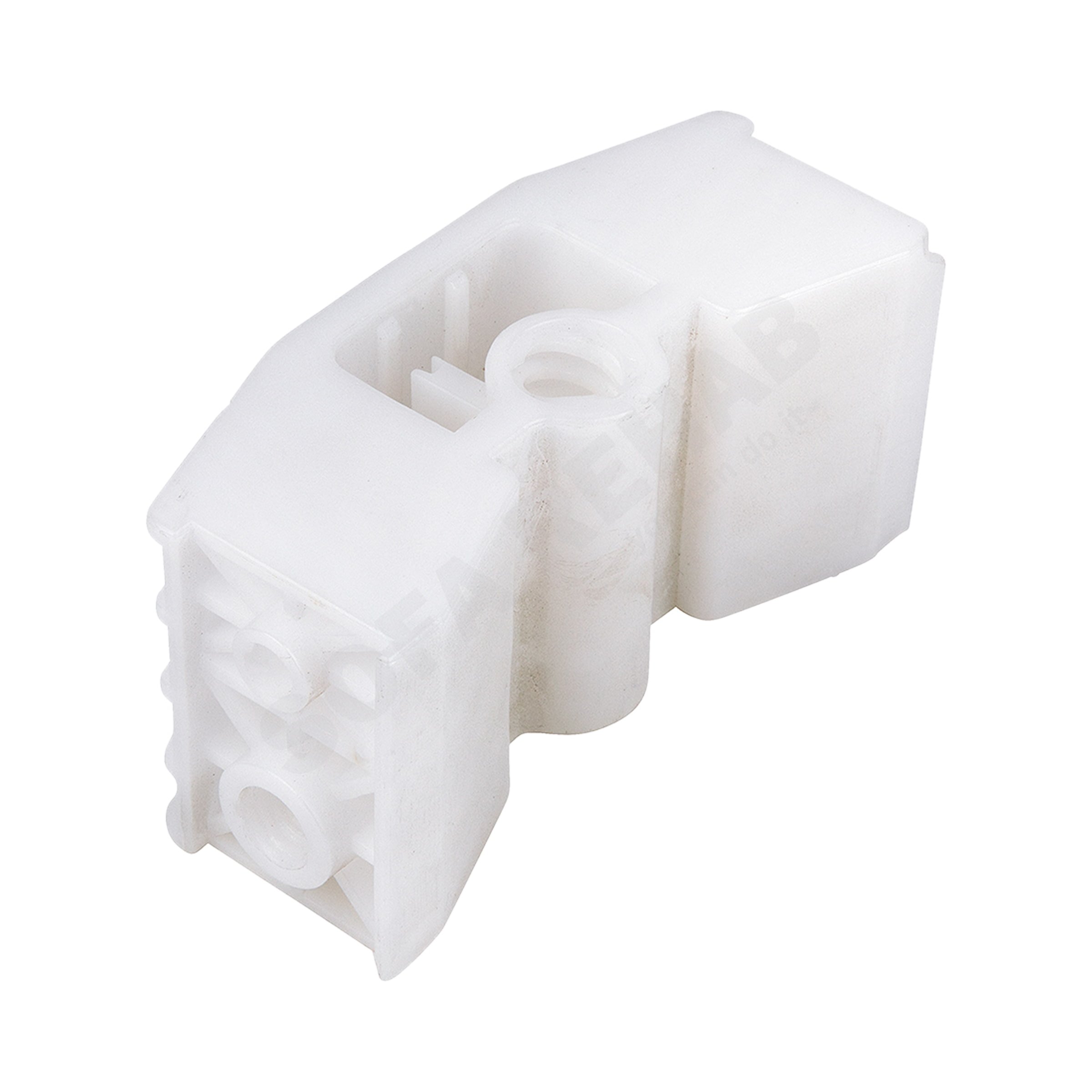

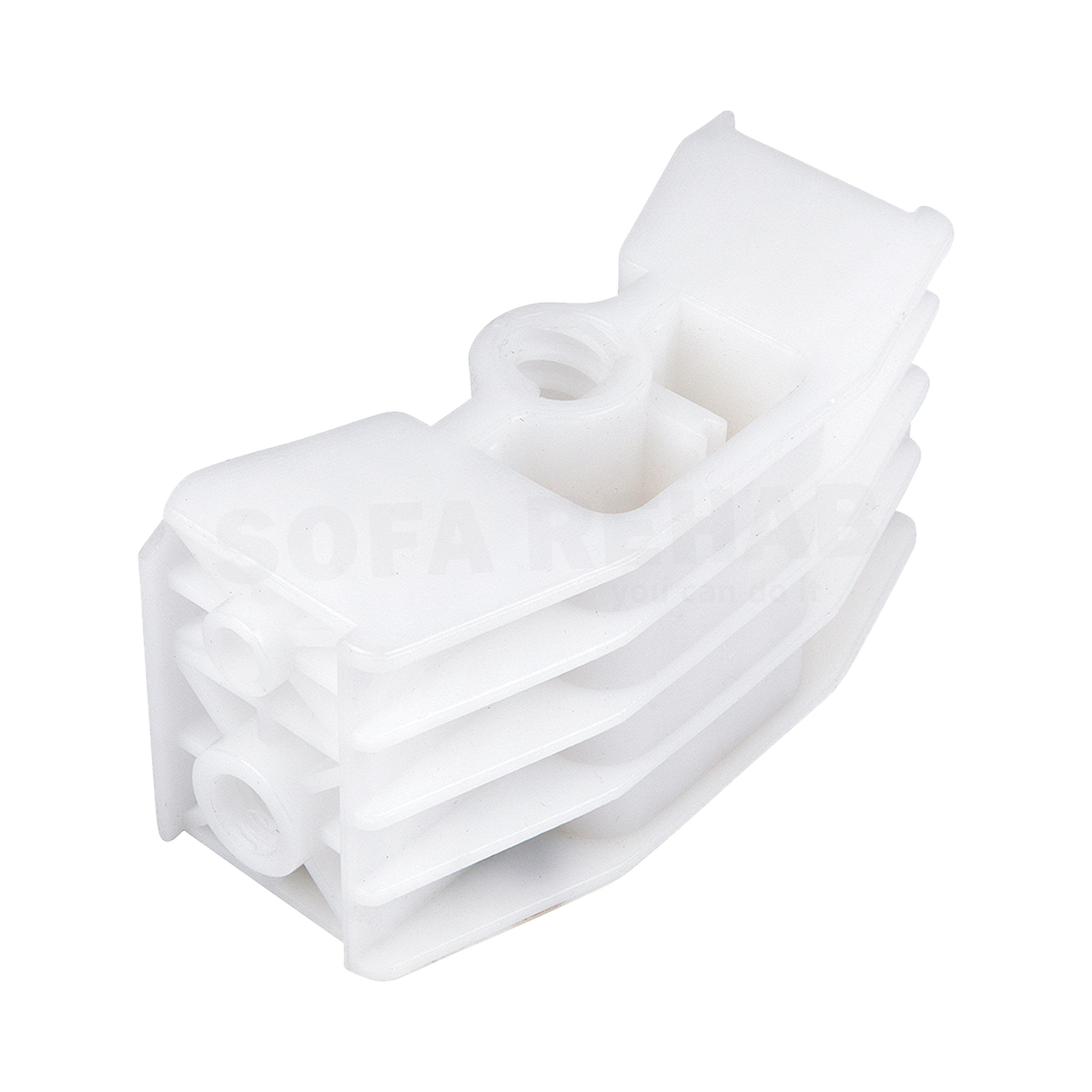

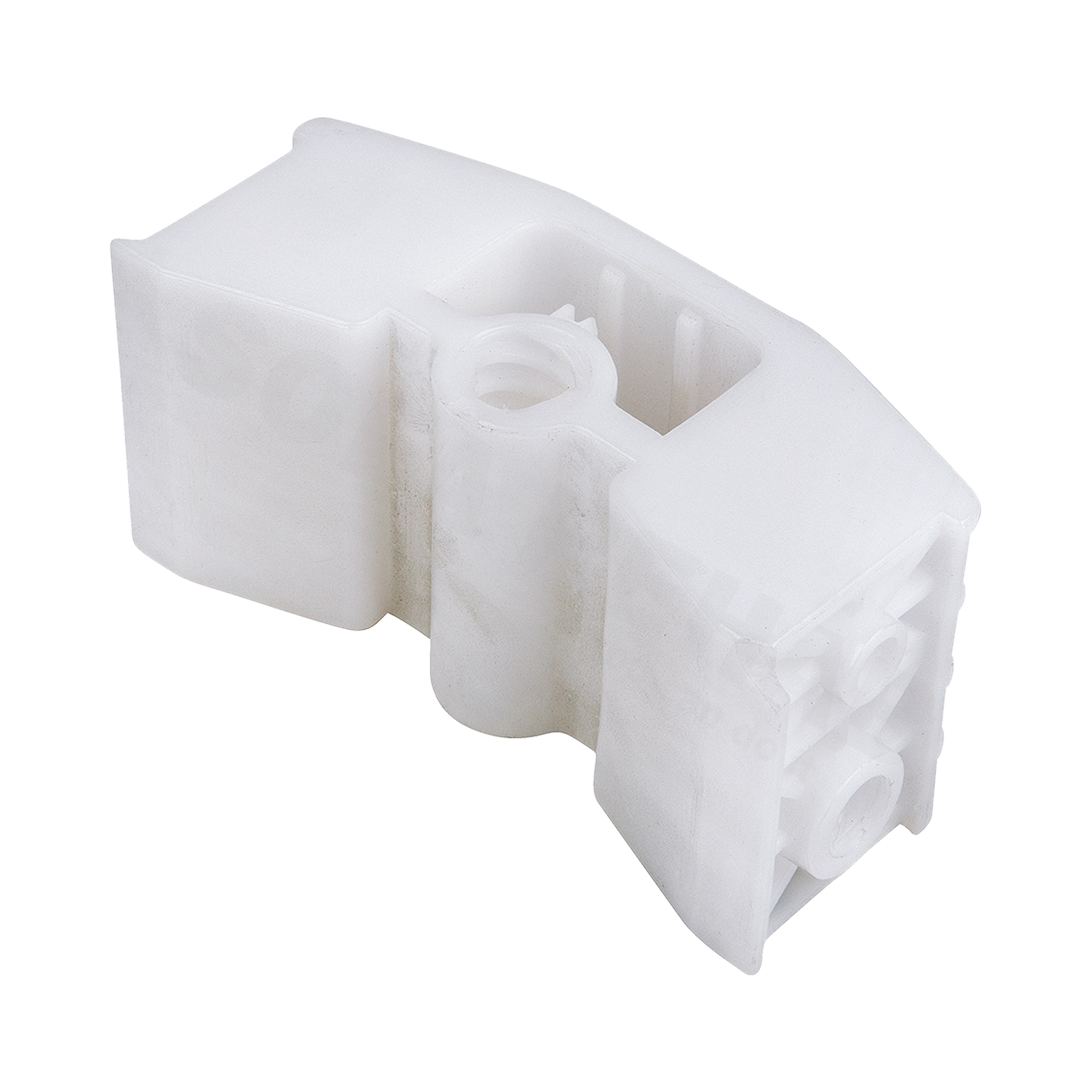

Small – Arched Actuator Moving Block

$60.00

In stock

This arched shape actuator moving block (small size) is the ideal solution for repairing a electric recliner chair actuators that has a broken plastic block and no other damage or malfunctions. With the know-how to disassemble & install the replacement block, this spare part offers a cost-effective alternative to buying a new actuator unit. Made from a durable white plastic and a compact size featuring 2 mount holes on either side. Small Arched Plastic Moving Block Replacement Piece. Commonly found on Kaidi, RMT and Mulin electric recliner actuators. This small size version has 2 holes on either side. We also sell the large version in this same arched design. Looking Another Size of Shape? We offer an complete range of actuator moving blocks (click here) to fit most electric recliner actuators. See our catalogue where you'll also find the large 3-hole version of this same arch shape design. read more

SKU:
E-BLOCK35
Brand:
Kaidi, Mulin Electric, RMT, Sofa Rehab
Weight
0.1 kg
Dimensions
9.6 × 4.8 × 4.2 cm
view all details

Description

Plastic Moving Block for Actuators – Arch Shape, Small

These arch shaped actuator blocks (small 2-hole size) are commonly found on recliner & lift chair actuators made by RMT, Kaidi and Mulin. The actuator movement block is designed to glide along the actuator shaft, facilitating the up and down movement of your recliner’s footrest, backrest or standing position. Made from a robust white plastic, this replacement block is an economical repair solution without needing to buy a whole new actuator.

If your actuator is not powering, or its repair scope goes beyond the moving block then consider if a new actuator is required. We offer an extensive range of electric recliner actuators (click here) to accommodate most recliners & lift chairs on the market.

Measuring Guide For This Small Version

Measuring for the correct replacement block is crucial for a successful repair. This small variant has a width of 96mm, a depth of 48mm, and an overall height of 42mm due to its angled construction. The actuator centre hole for the worm drive rod thread is the industry standard size of approximately 9.7mm wide. The mounting ends each have 2 holes, and height of 35mm, ready to be aligned and attached to your recliner mechanism.

We also sell this arch shaped actuator block in a larger 3-hole size (click here).

Selecting the Correct Actuator Moving Block Size & Shape

This movement block is one of 6 commonly used designs tailored to fit a variety of electric recliner chair motors. If this small angled block does not meet the needs of your specific actuator, our comprehensive range of actuator moving blocks (click here) will likely provide the perfect match for your repair.

If you need further assistance or advice on choosing the correct moving block, please ask our customer support team.

Compatible Models

Compatible Models

This actuator moving block is used by the OEM for the following brands & models of recliner actuators:

  • Kaidi KDPT007-02
  • Kaidi KDPT007-003N
  • Kaidi KDPT007-07
  • Kaidi KDPT007-11
  • Kaidi KDPT007N-11
  • Kaidi KDPT007-13
  • Kaidi KDPT007-15
  • Kaidi KDPT007-16
  • Kaidi KDPT007-41
  • Kaidi KDPT007-52
  • Kaidi KDPT007-59
  • Kaidi KDPT007-73
  • Kaidi KDPT007-74N
  • Kaidi KDPT007-96
  • Kaidi KDPT007-98
  • Kaidi KDPT007-99
  • Kaidi KDPT007-113
  • Kaidi KDPT007-168
  • Kaidi KDPT007-179
  • Kaidi KDPT007-179N
  • Kaidi KDPT007-198N
  • Kaidi KDPT007-204N
  • Kaidi KDPT007-224
  • Kaidi KDPT007-241
  • Kaidi KDPT007-272
  • Kaidi KDPT007-281
  • Kaidi KDPT010-43
  • Kaidi KDPT010-67
  • RMT R8123
  • RMT R812322040333
  • RMT R8123N2040333
  • RMT R8123B2045333
  • RMT R8123D2045333
  • Mulin ML8-205
  • Mulin ML8-076
  • Mulin ML18-005
  • Mulin ML18-055B

This is not a full complete list, we will update as and when we are aware of compatible brands & models.
